3-70 — BRAKE PIPING; AIR,AIR MASTER (#66191) — 92 parça

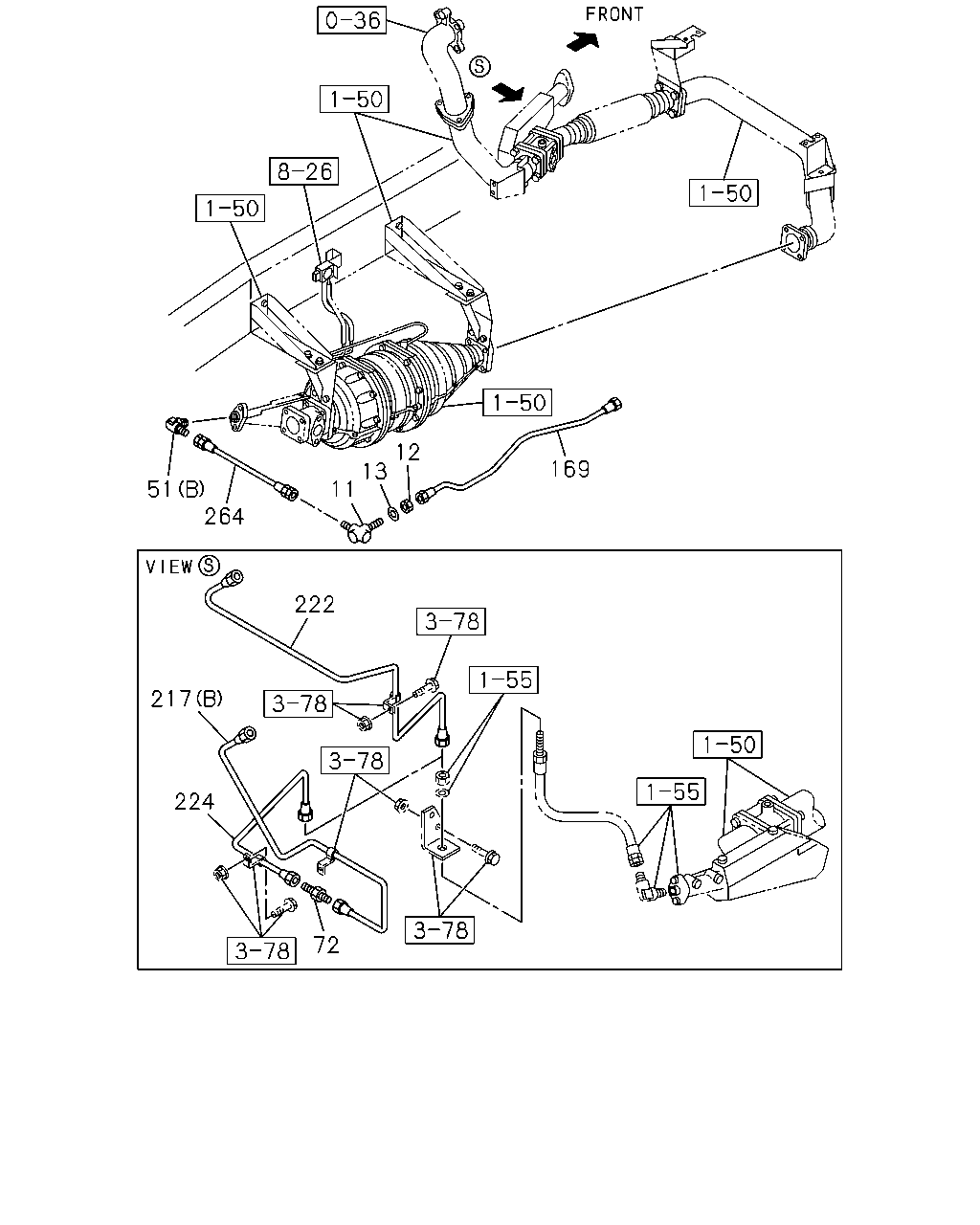

çizim 121185
12 169 13 51 264 11 222 217 224 72
BalonParca AdiParca NoAdetTipApplied Date
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0611-
12 NUT; UNION
M22 		0-91111-522-0 04 1 0611-
12 NUT; UNION
M12 		9-09840-280-0 02 1 0611-
13 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0611-
51 UNION
(A) M22 		0-92123-315-0 01 1 0611-
51 UNION
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0611-
72 UNION; AIR PIPE 8-98070-952-0 01 1 0612-
169 PIPE; AIR,UNION TO FLEX HOSE
L=633 SERVICED BY L=650 		1-47428-810-0 01 1 0611-
217 PIPE; VAC,UNION TO MAG VLV
(B) L=749 SERVICED BY L=800 		1-47428-844-0 01 1 0612-
217 PIPE; VAC,UNION TO MAG VLV
(A) L=234 SERVICED BY L=250 		1-47428-803-0 01 1 0611-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=658 SERVICED BY L=700 		1-47428-811-0 01 1 0611-0611
224 PIPE; AIR,UNION TO FLEX HOSE
L=317 		8-98071-310-0 01 1 0612-
264 HOSE; FLEX
L=410 		1-09363-895-0 01 1 0611-

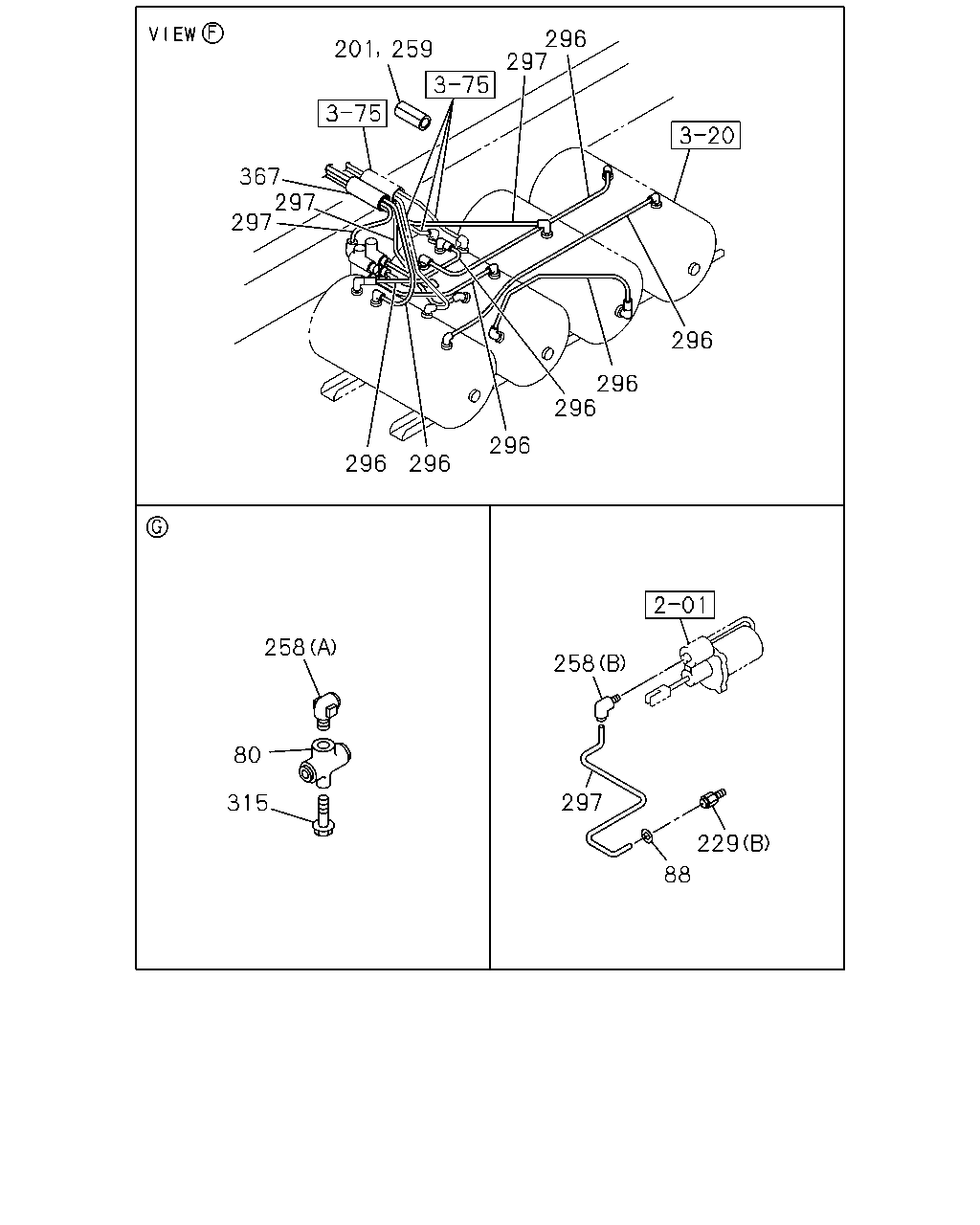

çizim 121214
296 297 201 259 367 297 297 296 296 296 296 296 296 258 258 80 297 315 229 88
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0611-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0611-
201 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710-
201 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0611-1003
229 ADAPTER; NYLON TUBE
(A) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0611-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0611-
259 SLEEVE; RUBBER,NYLON TUBE
ID=23 OD=27 L=40 		1-09337-015-0 03 1 0611-0904
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 03 1 0905-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0611-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0611-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0611-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0611-
297 TUBE; NYLON
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0611-
315 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 02 1 0905-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0611-

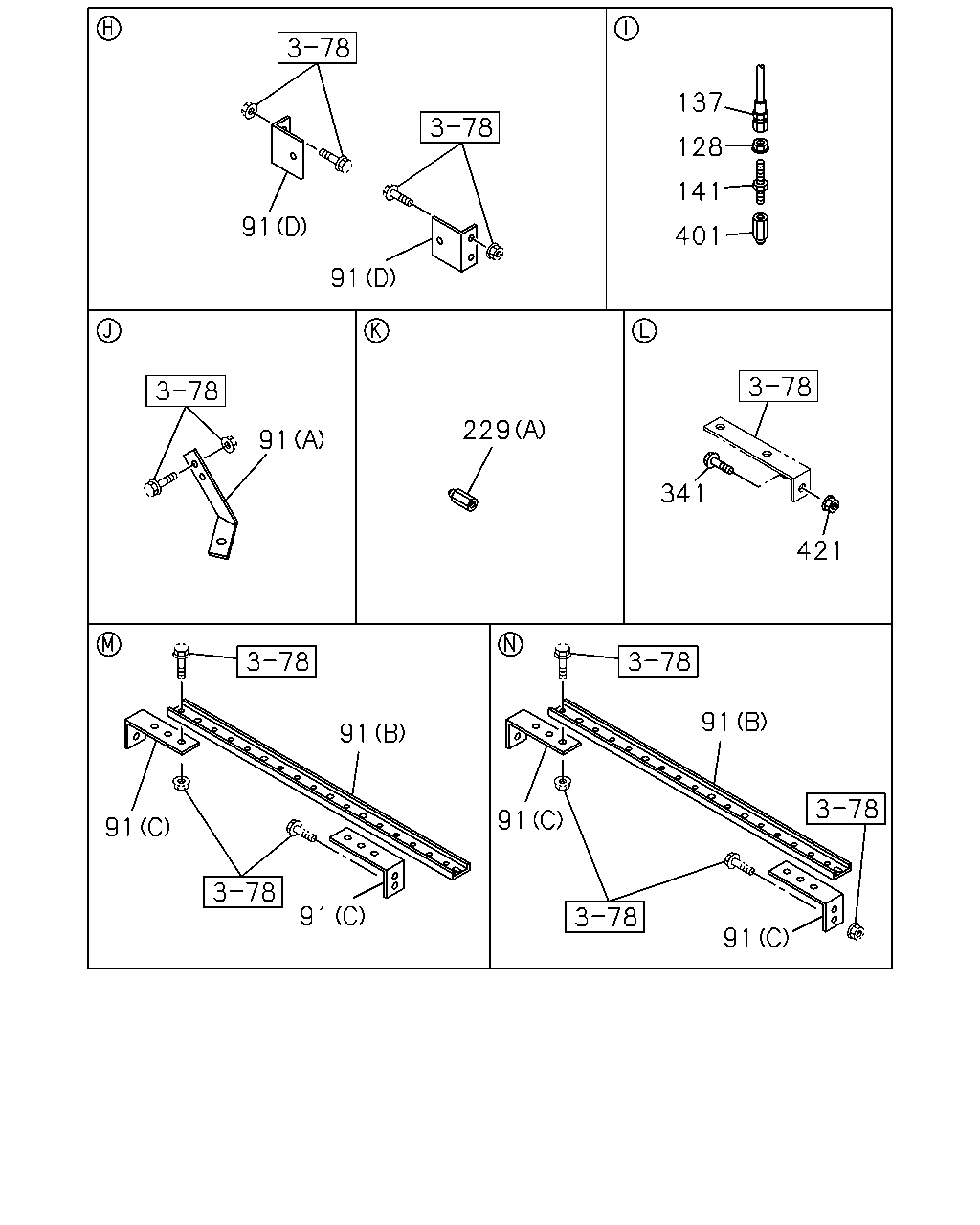

çizim 121361
137 128 141 91 401 91 229 91 341 421 91 91 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
91 BRACKET; TUBE CLIP
(C) 		1-47471-254-0 04 1 0611-
91 BRACKET; TUBE CLIP
(B) 		1-47471-256-0 02 1 0611-
91 BRACKET; TUBE CLIP
(D) 		1-47478-422-0 02 1 0611-0712
91 BRACKET; TUBE CLIP
(D) 		1-47478-422-0 01 1 0801-0904
91 BRACKET; TUBE CLIP
(D) 		1-47478-422-0 01 1 0801-0904
91 BRACKET; TUBE CLIP
(A) 		1-47478-900-0 01 1 0611-0904
91 BRACKET; TUBE CLIP
(D) 		1-47478-422-0 01 1 0905-
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0611-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0611-
141 UNION; FLEX HOSE 1-09650-270-1 02 1 0611-
229 ADAPTER; NYLON TUBE
(A) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0611-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0611-
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0611-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0611-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0611-

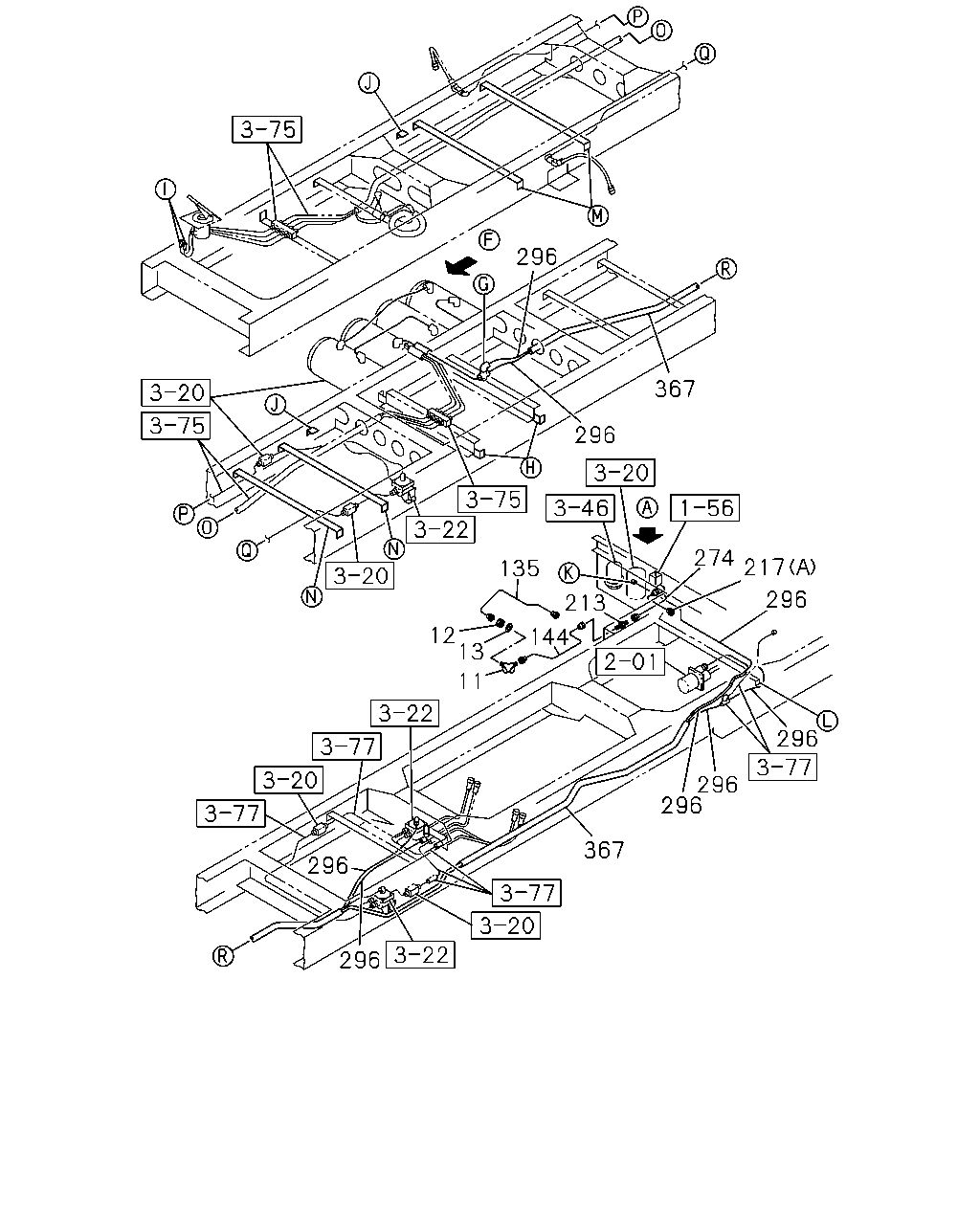

çizim 121386
296 367 296 274 217 135 213 296 144 12 13 11 296 296 296 367 296 296
BalonParca AdiParca NoAdetTipApplied Date
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0611-
12 NUT; UNION
M22 		0-91111-522-0 04 1 0611-
12 NUT; UNION
M12 		9-09840-280-0 02 1 0611-
13 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0611-
135 PIPE; AIR,UNION TO UNION
L=475 		8-97616-147-0 01 1 0611-0904
135 PIPE; AIR,UNION TO UNION
L=476 		8-98146-738-0 01 1 0905-
144 PIPE; AIR,UNION TO UNION
L=676 SERVICED BY L=700 		1-47428-811-0 01 1 0611-
213 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 0611-
217 PIPE; VAC,UNION TO MAG VLV
(B) L=749 SERVICED BY L=800 		1-47428-844-0 01 1 0612-
217 PIPE; VAC,UNION TO MAG VLV
(A) L=234 SERVICED BY L=250 		1-47428-803-0 01 1 0611-
274 PIPE; AIR UNION TO UNION
L=349 		8-97616-146-0 01 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 02 1 0905-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0611-

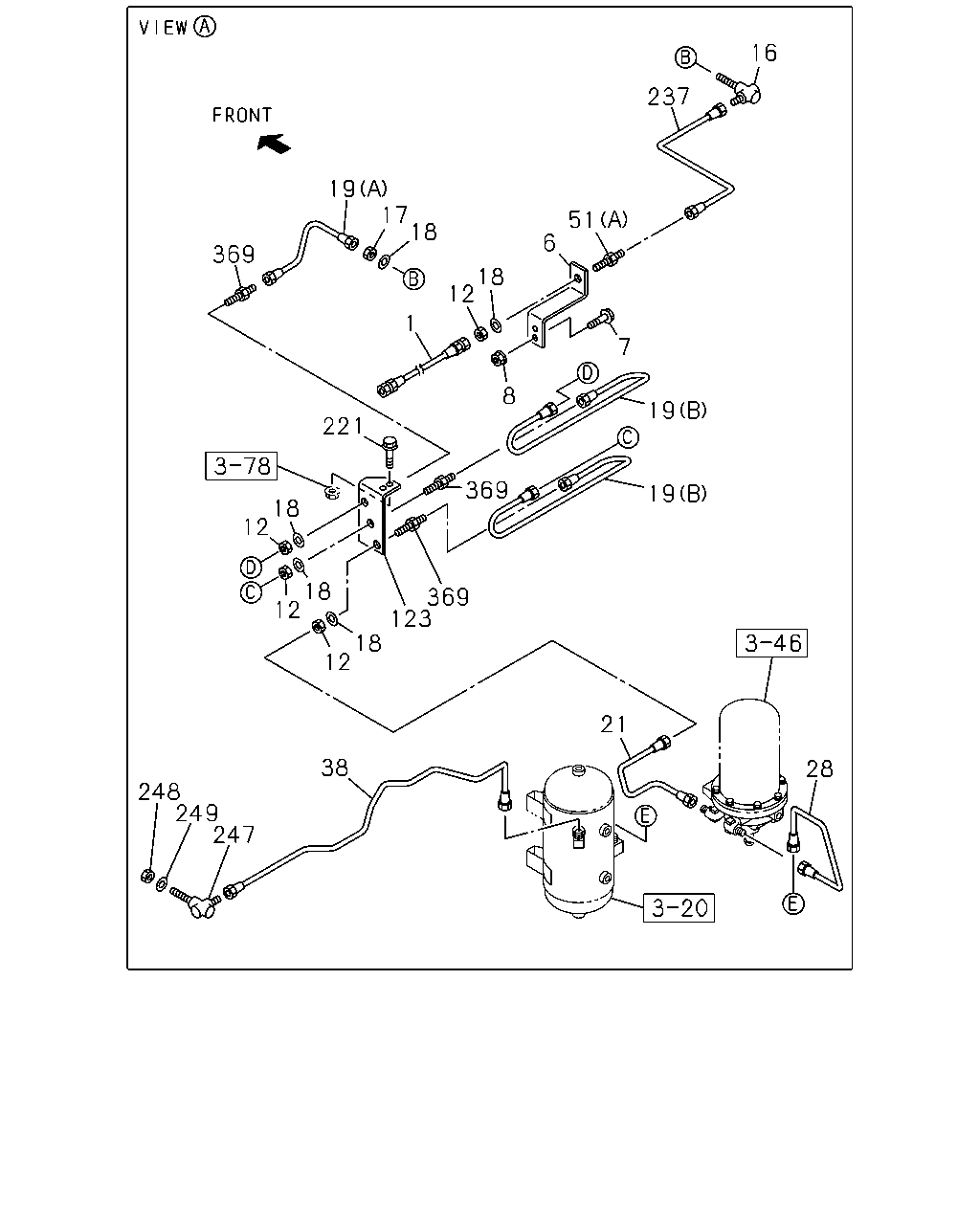

çizim 121632
16 237 19 17 18 51 6 369 18 12 1 7 8 19 221 369 19 18 12 18 12 369 123 18 12 21 38 28 248 249 247
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=340 		1-09363-790-0 01 1 0611-
6 BRACKET; FLEX HOSE,AIR TANK 8-98057-795-0 01 1 0611-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0611-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0611-
12 NUT; UNION
M22 		0-91111-522-0 04 1 0611-
12 NUT; UNION
M12 		9-09840-280-0 02 1 0611-
16 UNION; AIR PIPE
M22 		0-92135-215-0 01 1 0611-
17 NUT; UNION
M22 		0-91111-522-0 01 1 0611-
18 WASHER; LK,UNION
ID=22.5 		0-91510-622-0 05 1 0611-
19 PIPE; AIR,CONNECTOR TO CONNECTOR
(B) L=377 		8-98055-826-0 02 1 0611-
19 PIPE; AIR,CONNECTOR TO CONNECTOR
(A) 		8-98057-798-0 01 1 0611-
21 PIPE; AIR,UNION TO AIR DRYER 8-98057-799-0 01 1 0611-
28 PIPE; AIR,AIR DRYER 8-98057-800-0 01 1 0611-
38 PIPE; AIR,MAIN TANK TO UNION 8-98058-498-0 01 1 0611-
51 UNION
(A) M22 		0-92123-315-0 01 1 0611-
51 UNION
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0611-
123 BRACKET; UNION 8-98057-796-0 01 1 0611-
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0611-
237 PIPE; AIR,FLEX HOSE TO UNION 8-98057-797-0 01 1 0611-
247 UNION; AIR PIPE
M22 		0-92135-215-0 01 1 0611-
248 NUT; PIPE UNION
M22 		0-91111-522-0 01 1 0611-
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-522-0 01 1 0611-0903
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-622-0 01 1 0904-
369 UNION; AIR PIPE
M22 		0-92123-315-0 03 1 0611-
