8-60 — HEATER UNIT; FRONT (#6619) — 32 parça

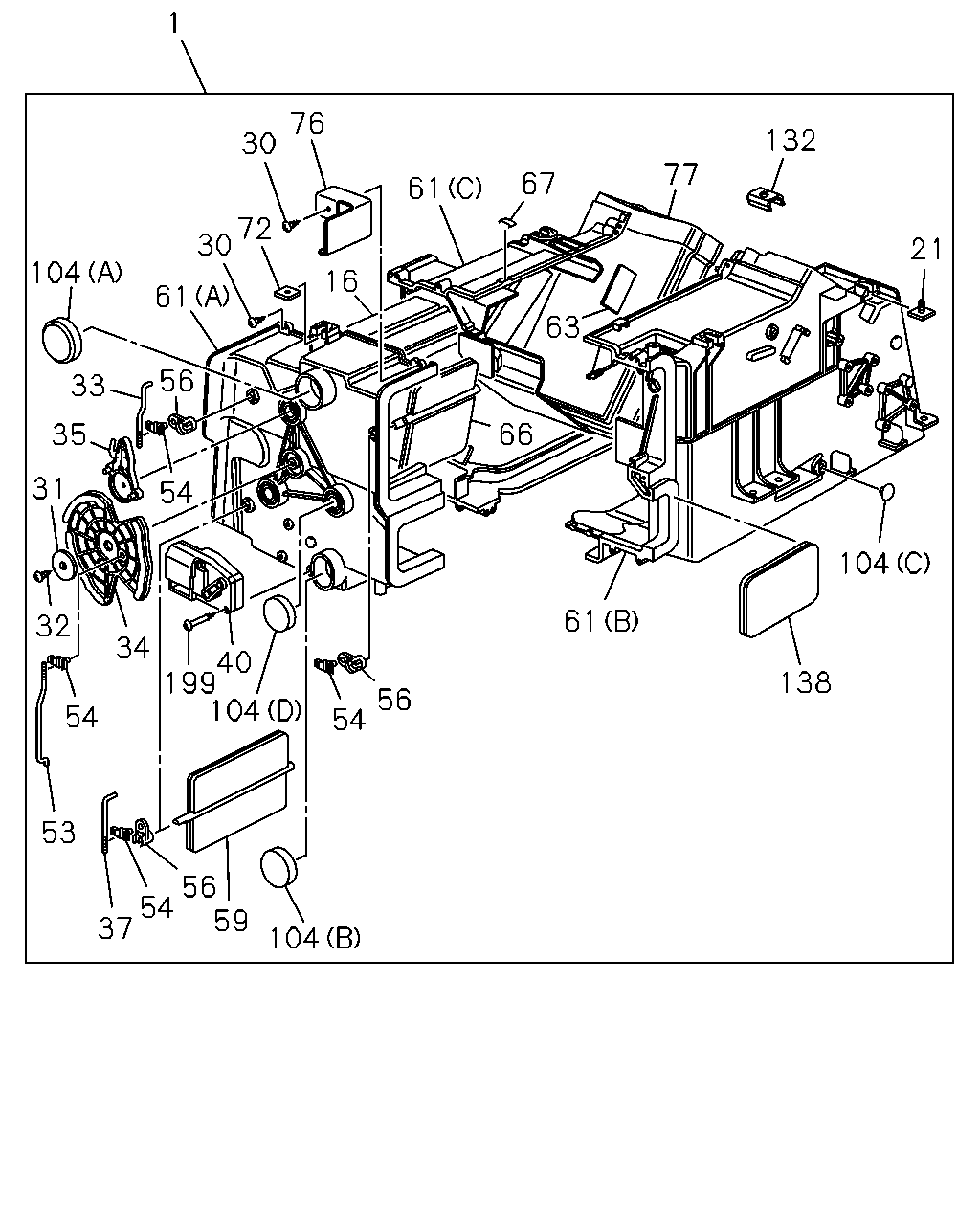

çizim 6034
1 76 30 132 77 67 61 72 30 21 104 16 61 63 56 33 66 35 31 32 54 104 61 34 40 199 104 138 56 54 54 53 56 54 37 59 104
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-139-3 01 1 0101-
5 SCREW; BRKT
M4X16 THA 		8-94324-850-0 01 1 0101-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0101-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0101-
30 SCREW; HTR UNIT
M4X16 THA 		8-94324-850-0 11 1 0101-
31 WASHER; HTR UNIT
THA 		8-94129-950-0 01 1 0101-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 02 1 0101-
33 ROD; SHUTTER LEVER 1-83579-619-0 01 1 0101-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0101-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 02 1 0101-
37 ROD; LEVER 1-83579-620-1 01 1 0101-
40 ACTUATOR; HTR UNIT 1-83579-649-1 01 1 0101-
53 ROD; SHUTTER LEVER 1-83579-622-0 01 1 0101-
54 CLIP; SHUTTER LEVER
THA 		8-94248-794-0 03 1 0101-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 02 1 0101-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0101-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0101-
61 CASE; HTR UNIT 1-83564-401-0 01 1 0101-
61 CASE; HTR UNIT 1-83564-402-0 01 1 0101-
63 LINING; HTR UNIT 1-83578-033-0 01 1 0101-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0101-
67 CLIP; HTR UNIT
THA 		1-83574-148-0 01 1 0101-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0101-
76 BRACKET; HTR UNIT 1-83573-194-0 01 1 0101-
77 COVER; HTR CASE
THA 		8-97102-661-0 01 1 0101-
104 CAP; CASE,HTR UNIT
(A) 		1-83579-617-0 01 1 0101-
104 CAP; CASE,HTR UNIT
(B) 		1-83579-618-0 01 1 0101-
104 CAP; CASE,HTR UNIT
(C) THA 		8-94328-657-0 04 1 0101-
104 CAP; CASE,HTR UNIT
(D) THA 		8-94387-703-0 01 1 0101-
132 BRACKET; HTR CORE 1-83573-195-0 01 1 0101-
142 LEVER; ACTUATOR 1-83564-345-1 01 1 0101-
199 SCREW; ACTUATOR 8-94348-809-0 02 1 0101-
