11049 - LV434(RHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#66158) — 54 parça
◀

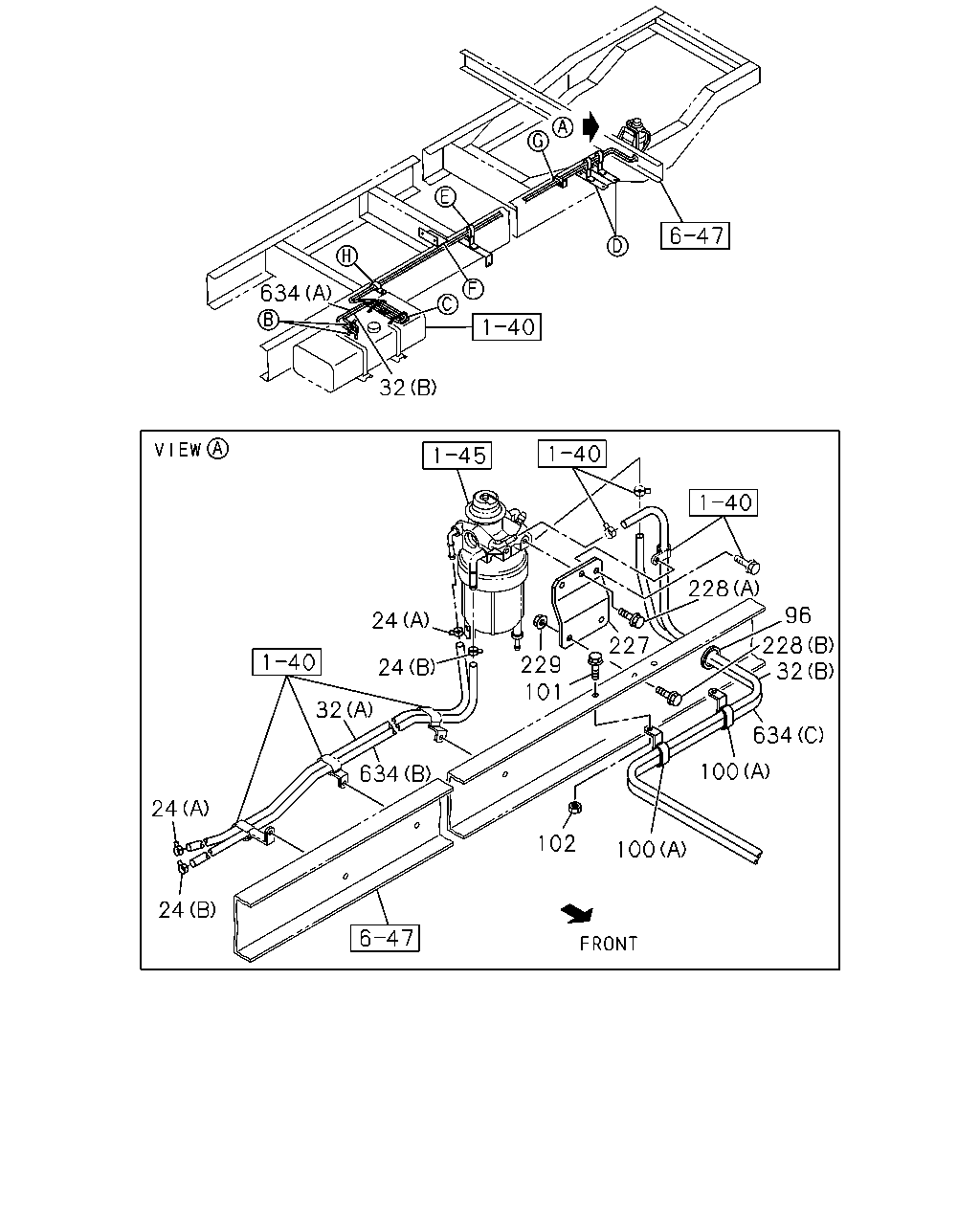

[141A] NO.1 (25 parça)
[141A] NO.2 (29 parça)
▶
634
32
228
96
228
32
634
100
100
102
24
24
634
32
24
24
101
229
227
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(A) ID=14
1-09704-102-0
02
1
0611-
24
CLIP; FUEL HOSE
(B) ID=13
8-94238-571-0
02
1
0611-
32
PIPE; DELIVERY,FUEL TANK
(A) L=1250 SERVICED BY L=3000
0-01260-300-0
01
1
0611-0808
32
PIPE; DELIVERY,FUEL TANK
(A) L=1250
8-98130-491-0
01
1
0809-
32
PIPE; DELIVERY,FUEL TANK
(B) SERVICED BY L=8000
0-01260-800-0
01
1
0611-
96
GROMMET; PIPE,FUEL TANK
9-09575-632-0
01
1
0611-
100
CLIP; FUEL PIPE
(A) ID=16X2 L=20
0-95325-536-0
05
1
0611-0611
100
CLIP; FUEL PIPE
(A) ID=16X2 L=20
0-95325-536-0
04
1
0612-
100
CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25
1-09701-101-0
05
1
0611-0611
100
CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25
1-09701-101-0
07
1
0612-
100
CLIP; FUEL PIPE
(D) ID=16X2 L=50
0-95325-586-0
01
1
0611-
100
CLIP; FUEL PIPE
(C) ID=20 L=60
1-09700-901-0
02
1
0611-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28650-825-0
09
1
0904-
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28650-830-0
13
1
0611-0611
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28650-830-0
14
1
0612-0903
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28650-830-0
05
1
0904-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
11
1
0611-0611
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
12
1
0612-
227
BRACKET; FUEL SEDIMENTER
1-19755-234-1
01
1
0611-
228
BOLT; BRKT,SEDIMENTER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0611-
228
BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE
0-28651-030-0
02
1
0611-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-210-0
02
1
0611-
634
HOSE; RUBBER RETURN
(A) L=980 SERVICED BY L=3000
0-01260-300-0
01
1
0611-
634
HOSE; RUBBER RETURN
(B) L=1200 SERVICED BY L=3000
0-01558-300-0
01
1
0611-
634
HOSE; RUBBER RETURN
(C) SERVICED BY L=7000
0-01558-700-0
01
1
0611-
134
41
134
134
309
134
39
309
38
100
100
103
97
101
101
48
97
48
48
103
97
102
102
101
101
100
97
100
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
SLEEVE; RUBBER,RUBBER HOSE
ID=29 OD=39 L=100
1-09337-022-0
01
1
0611-0611
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
01
1
0611-0903
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
0904-
39
PIPE; FUEL
8-98009-438-1
01
1
0611-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14
1-09704-102-0
02
1
0611-
48
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
09
1
0611-
97
BRACKET; CLIP
(B)
1-47475-648-0
02
1
0611-
97
BRACKET; CLIP
(D)
1-47478-901-0
01
1
0611-1404
97
BRACKET; CLIP
(D)
8-98259-391-0
01
1
1405-
97
BRACKET; CLIP
(C)
1-47478-924-0
02
1
0611-
97
BRACKET; CLIP
(A)
1-47478-941-0
01
1
0611-
100
CLIP; FUEL PIPE
(A) ID=16X2 L=20
0-95325-536-0
05
1
0611-0611
100
CLIP; FUEL PIPE
(A) ID=16X2 L=20
0-95325-536-0
04
1
0612-
100
CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25
1-09701-101-0
05
1
0611-0611
100
CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25
1-09701-101-0
07
1
0612-
100
CLIP; FUEL PIPE
(D) ID=16X2 L=50
0-95325-586-0
01
1
0611-
100
CLIP; FUEL PIPE
(C) ID=20 L=60
1-09700-901-0
02
1
0611-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28650-825-0
09
1
0904-
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28650-830-0
13
1
0611-0611
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28650-830-0
14
1
0612-0903
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28650-830-0
05
1
0904-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
11
1
0611-0611
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
12
1
0612-
103
NUT; BRKT
M8 FLANGE
0-91180-108-0
07
1
0611-
134
CLIP; BAND,FUEL PIPE
L=600
1-09707-107-1
01
1
0611-0611
134
CLIP; BAND,FUEL PIPE
L=250
5-09707-030-1
04
1
0611-0903
134
CLIP; BAND,FUEL PIPE
L=250
5-09707-030-1
06
1
0904-
309
CLIP; PIPE
(A) ID=14
1-09704-102-0
01
1
0611-
309
CLIP; PIPE
(B) ID=13
8-94238-571-0
01
1
0611-
