Isuzu WW
▶
BUSES
▶
LV
▶
11049 - LV434(RHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#66155) — 113 parça
◀
[131A] NO.1 (31 parça)

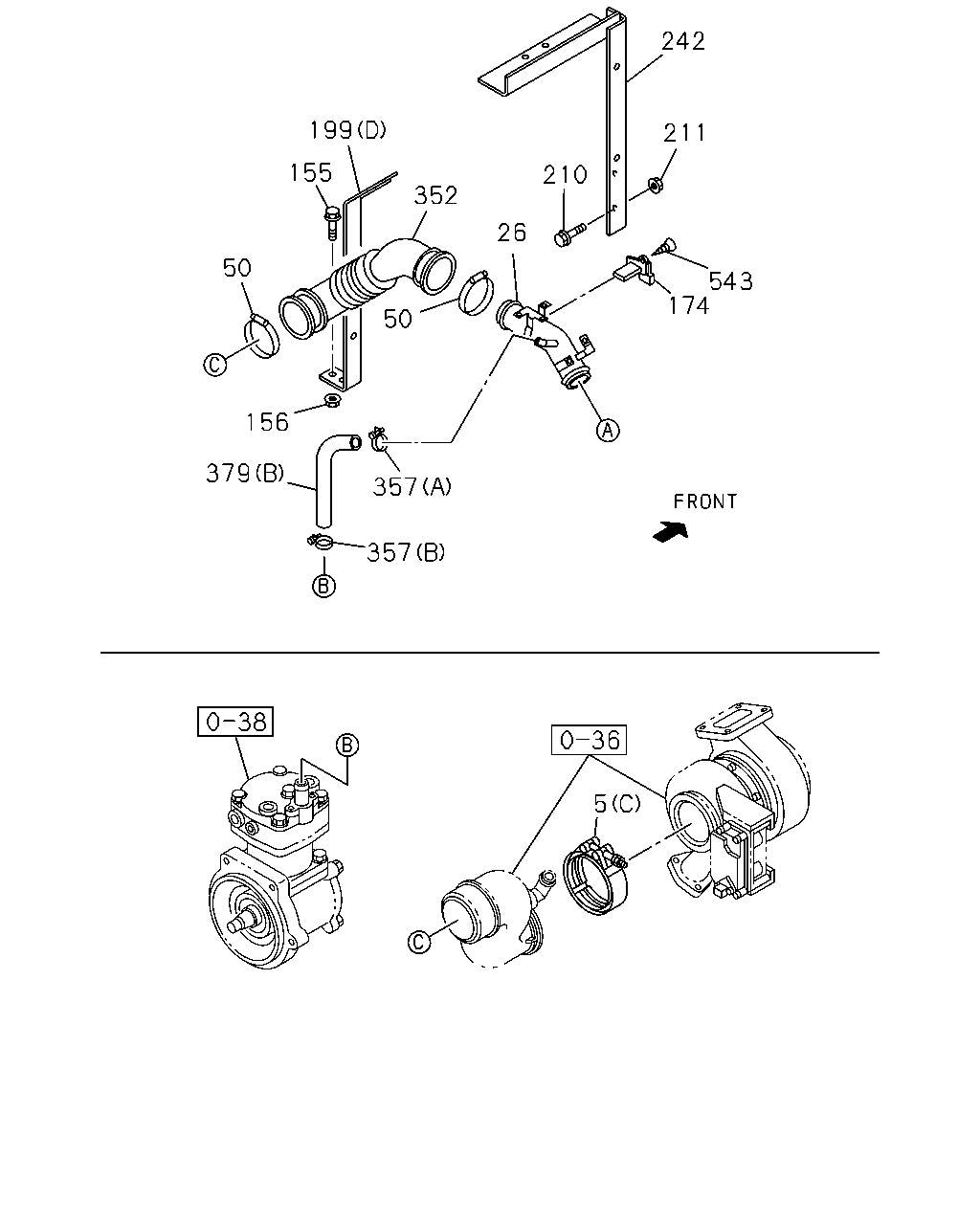

[131A] NO.2 (47 parça)

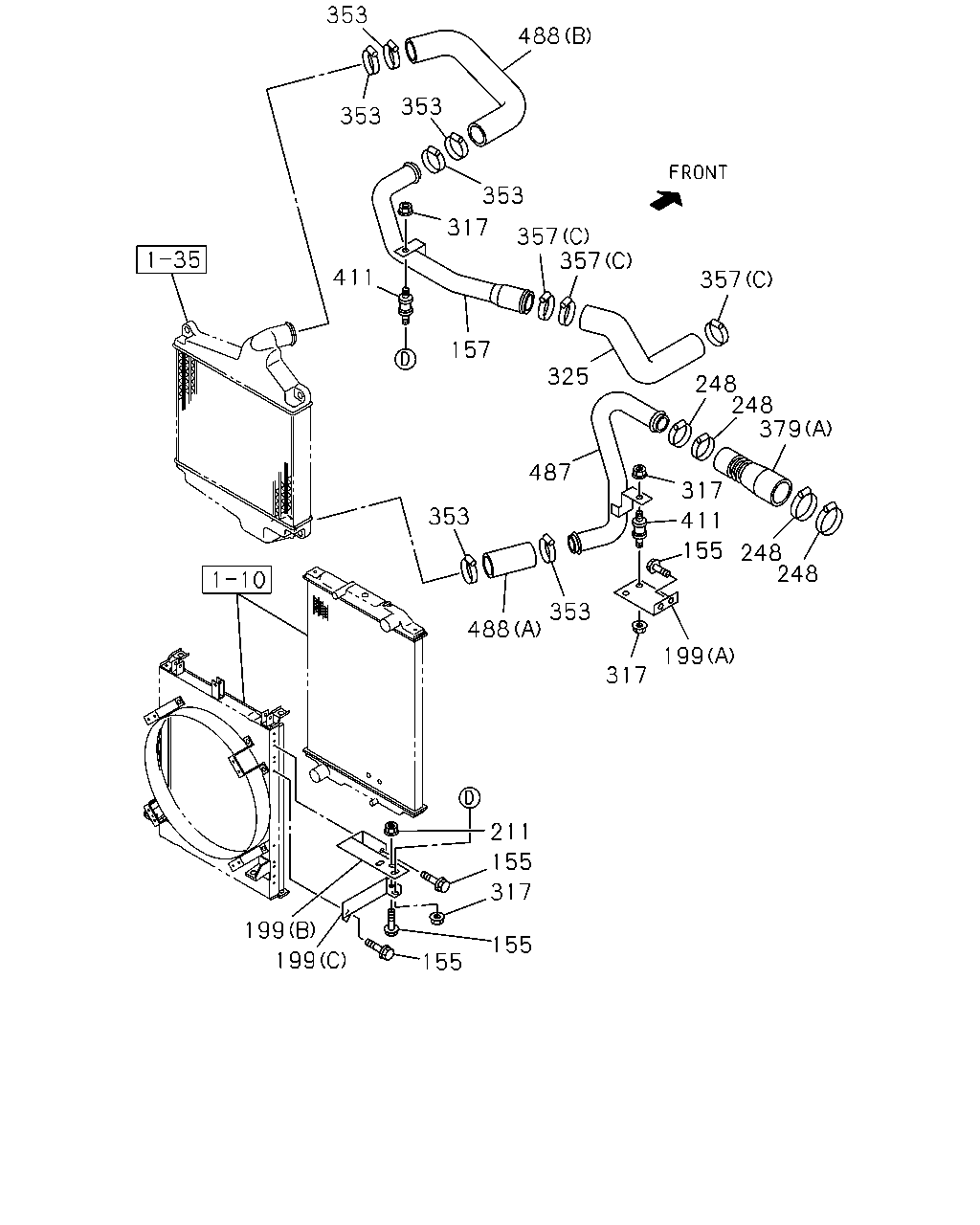

[131A] NO.3 (35 parça)
▶
102
5
337
179
5
5
5
209
209
156
210
209
211
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1002-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169
8-98155-950-0
01
1
1002-
5
CLIP; AIR DUCT
(A) ID=120-140
8-98133-367-0
01
1
0901-0904
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-155-0
01
1
0905-1109
5
CLIP; AIR DUCT
(B) ID=150-170
8-98133-369-0
01
1
0811-0904
5
CLIP; AIR DUCT
(B) ID=130-169
1-09707-157-0
01
1
0905-1109
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
02
1
0611-0812
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
0901-1001
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1002-
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
02
1
0611-0810
5
CLIP; AIR DUCT
(B) ID=130-150
8-98133-360-0
01
1
0811-1001
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=130-150
8-98133-360-0
01
1
1002-
5
CLIP; AIR DUCT
(C) ID=114
8-15178-030-0
01
1
0611-
102
RESONATOR; AIR INT
1-14114-678-0
01
1
0611-1109
155
BOLT; BRKT
M10X30 FLANGE
0-28061-030-0
02
1
0611-
155
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0611-
155
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0611-
155
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0611-
156
NUT; BRKT
M8 FLANGE
0-91180-208-0
02
1
0611-0801
156
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0802-
156
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0611-
179
HOSE; AIR INT
8-97616-174-0
01
1
0611-0804
179
HOSE; AIR INT
8-98101-784-1
01
1
0805-
209
BRACKET; ACL
(A)
1-53419-420-1
02
1
0611-
209
BRACKET; ACL
(B)
1-53419-421-0
01
1
0611-
210
BOLT; ACL BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0611-
210
BOLT; ACL BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0611-
210
BOLT; ACL BRKT
M10X35 FLANGE
0-28651-035-0
04
1
0611-
211
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0611-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
06
1
0611-
337
HOSE; CONN,DUCT TO RESONATOR
1-14231-970-0
01
1
0611-1109
242
199
211
155
210
352
26
50
543
174
50
156
379
357
357
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1002-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169
8-98155-950-0
01
1
1002-
5
CLIP; AIR DUCT
(A) ID=120-140
8-98133-367-0
01
1
0901-0904
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-155-0
01
1
0905-1109
5
CLIP; AIR DUCT
(B) ID=150-170
8-98133-369-0
01
1
0811-0904
5
CLIP; AIR DUCT
(B) ID=130-169
1-09707-157-0
01
1
0905-1109
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
02
1
0611-0812
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
0901-1001
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1002-
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
02
1
0611-0810
5
CLIP; AIR DUCT
(B) ID=130-150
8-98133-360-0
01
1
0811-1001
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=130-150
8-98133-360-0
01
1
1002-
5
CLIP; AIR DUCT
(C) ID=114
8-15178-030-0
01
1
0611-
26
DUCT; AIR INT
8-98030-607-3
01
1
0611-
50
CLIP; JOINT HOSE
EXC. KD PREPARATORY PACK<6HF> ID=104-142
1-09707-139-0
02
1
1002-
50
CLIP; JOINT HOSE
ID=104-139
1-09707-200-0
02
1
0611-0812
50
CLIP; JOINT HOSE
ID=100-120
8-98133-366-0
02
1
0901-1001
50
CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=100-120
8-98133-366-0
02
1
1002-
155
BOLT; BRKT
M10X30 FLANGE
0-28061-030-0
02
1
0611-
155
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0611-
155
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0611-
155
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0611-
156
NUT; BRKT
M8 FLANGE
0-91180-208-0
02
1
0611-0801
156
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0802-
156
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0611-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0611-
199
BRACKET; PIPE
(C)
8-98058-210-0
01
1
0611-
199
BRACKET; PIPE
(A)
1-14239-271-0
01
1
0611-
199
BRACKET; PIPE
(B)
1-14239-273-2
01
1
0611-
199
BRACKET; PIPE
(D)
8-97616-150-2
01
1
0611-
210
BOLT; ACL BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0611-
210
BOLT; ACL BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0611-
210
BOLT; ACL BRKT
M10X35 FLANGE
0-28651-035-0
04
1
0611-
211
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0611-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
06
1
0611-
242
BRACKET; AIR DUCT
8-97616-179-0
01
1
0611-
352
HOSE; RUBBER,AIR DUCT TO ENG
8-98004-246-0
01
1
0611-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99
1-09707-141-0
03
1
1002-
357
CLIP; RUBBER HOSE
(A) ID=36
1-09704-094-0
01
1
0611-
357
CLIP; RUBBER HOSE
(C) ID=77-95
1-09707-198-0
03
1
0611-0810
357
CLIP; RUBBER HOSE
(C) ID=75-95
8-98133-357-0
03
1
0811-1001
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95
8-98133-357-0
03
1
1002-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
0611-
379
HOSE; RUBBER
(A)
1-09360-998-0
01
1
0611-1408
379
HOSE; RUBBER
(A)
8-98245-236-0
01
1
1409-
379
HOSE; RUBBER
(B)
8-98049-144-0
01
1
0611-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0611-
353
488
353
353
353
317
357
357
411
357
157
325
248
248
379
487
317
353
411
155
248
248
353
488
199
317
211
155
317
199
155
199
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
155
BOLT; BRKT
M10X30 FLANGE
0-28061-030-0
02
1
0611-
155
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0611-
155
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0611-
155
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0611-
157
PIPE; AIR
8-97616-164-2
01
1
0611-
199
BRACKET; PIPE
(C)
8-98058-210-0
01
1
0611-
199
BRACKET; PIPE
(A)
1-14239-271-0
01
1
0611-
199
BRACKET; PIPE
(B)
1-14239-273-2
01
1
0611-
199
BRACKET; PIPE
(D)
8-97616-150-2
01
1
0611-
211
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0611-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
06
1
0611-
248
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
04
1
1002-
248
CLIP; RUBBER HOSE
ID=58-76
1-09707-203-0
04
1
0611-0811
248
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
04
1
0812-1001
248
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
04
1
1002-
317
NUT; CUSHION RUBBER
M8 FLANGE
0-91180-108-0
04
1
0611-
325
HOSE; RUBBER,ENG TO PIPE
1-09361-149-0
01
1
0611-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
06
1
1002-
353
CLIP; RUBBER HOSE
ID=58-76
1-09707-203-0
06
1
0611-0811
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
06
1
0812-1001
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
06
1
1002-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99
1-09707-141-0
03
1
1002-
357
CLIP; RUBBER HOSE
(A) ID=36
1-09704-094-0
01
1
0611-
357
CLIP; RUBBER HOSE
(C) ID=77-95
1-09707-198-0
03
1
0611-0810
357
CLIP; RUBBER HOSE
(C) ID=75-95
8-98133-357-0
03
1
0811-1001
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95
8-98133-357-0
03
1
1002-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
0611-
379
HOSE; RUBBER
(A)
1-09360-998-0
01
1
0611-1408
379
HOSE; RUBBER
(A)
8-98245-236-0
01
1
1409-
379
HOSE; RUBBER
(B)
8-98049-144-0
01
1
0611-
411
RUBBER; CUSHION
8-94394-268-1
02
1
0611-
487
PIPE; TURBO TO CHARGE AIR COOLER
1-14121-183-0
01
1
0611-
488
HOSE; RUBBER,PIPE
(A)
1-09360-797-1
01
1
0611-1408
488
HOSE; RUBBER,PIPE
(A)
8-98245-240-0
01
1
1409-
488
HOSE; RUBBER,PIPE
(B)
1-09361-002-0
01
1
0611-
