8-28 — CHASSIS ELECTRICAL (#6615) — 29 parça

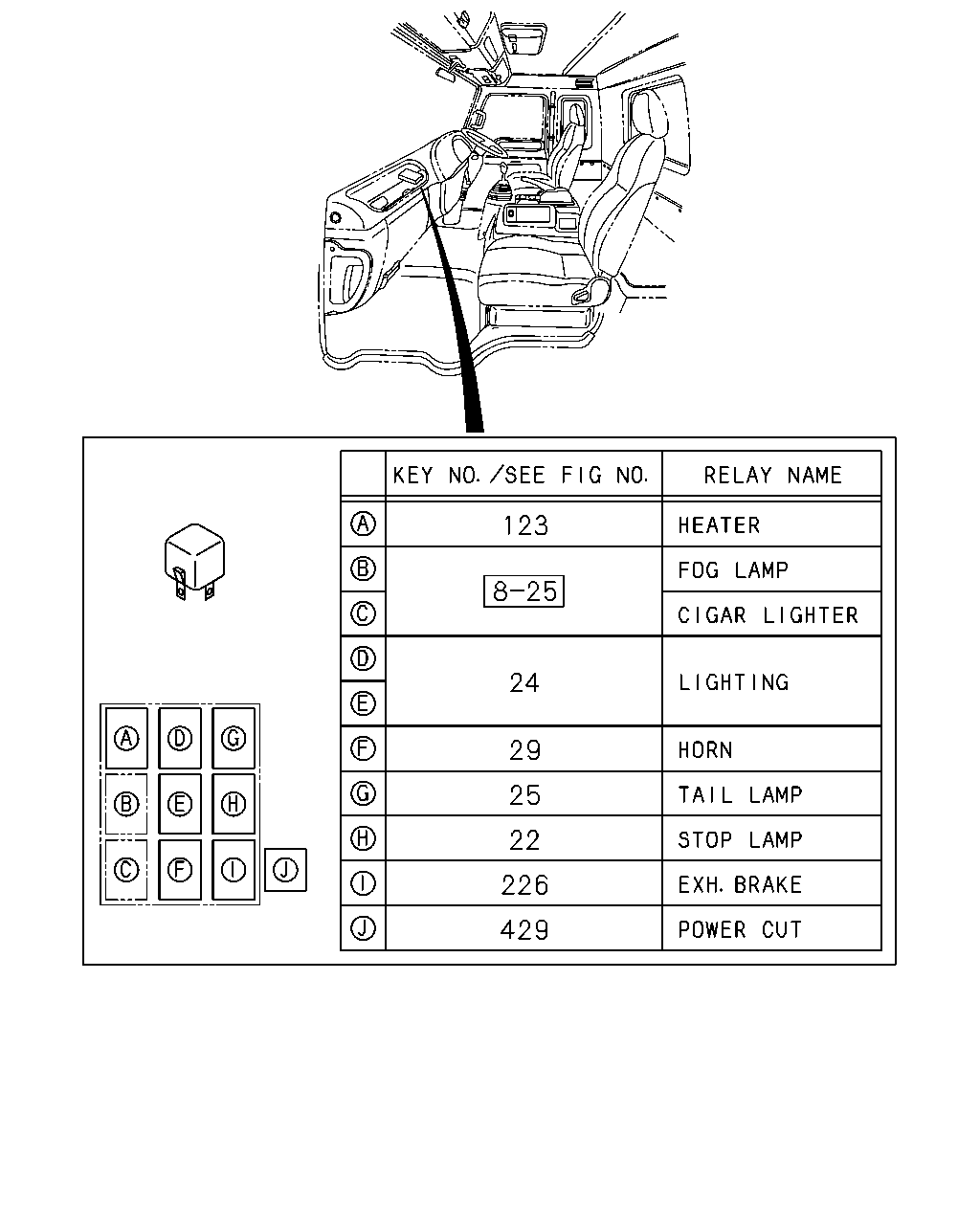

çizim 8116
123 24 29 25 22 226 429
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-
24 RELAY; LIGHTING
24V 12.5A JIDECO THA 		8-97062-815-1 02 1 0101-0111
24 RELAY; LIGHTING
24V 12.5A MATSUSHITA THA 		8-97262-933-0 02 1 0112-
25 RELAY; TAIL LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-
29 RELAY; HORN
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
29 RELAY; HORN
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-
123 RELAY; HTR
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
123 RELAY; HTR
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-
226 RELAY; EXH BRK
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
226 RELAY; EXH BRK
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-
429 RELAY; POWER CUT
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
429 RELAY; POWER CUT
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-

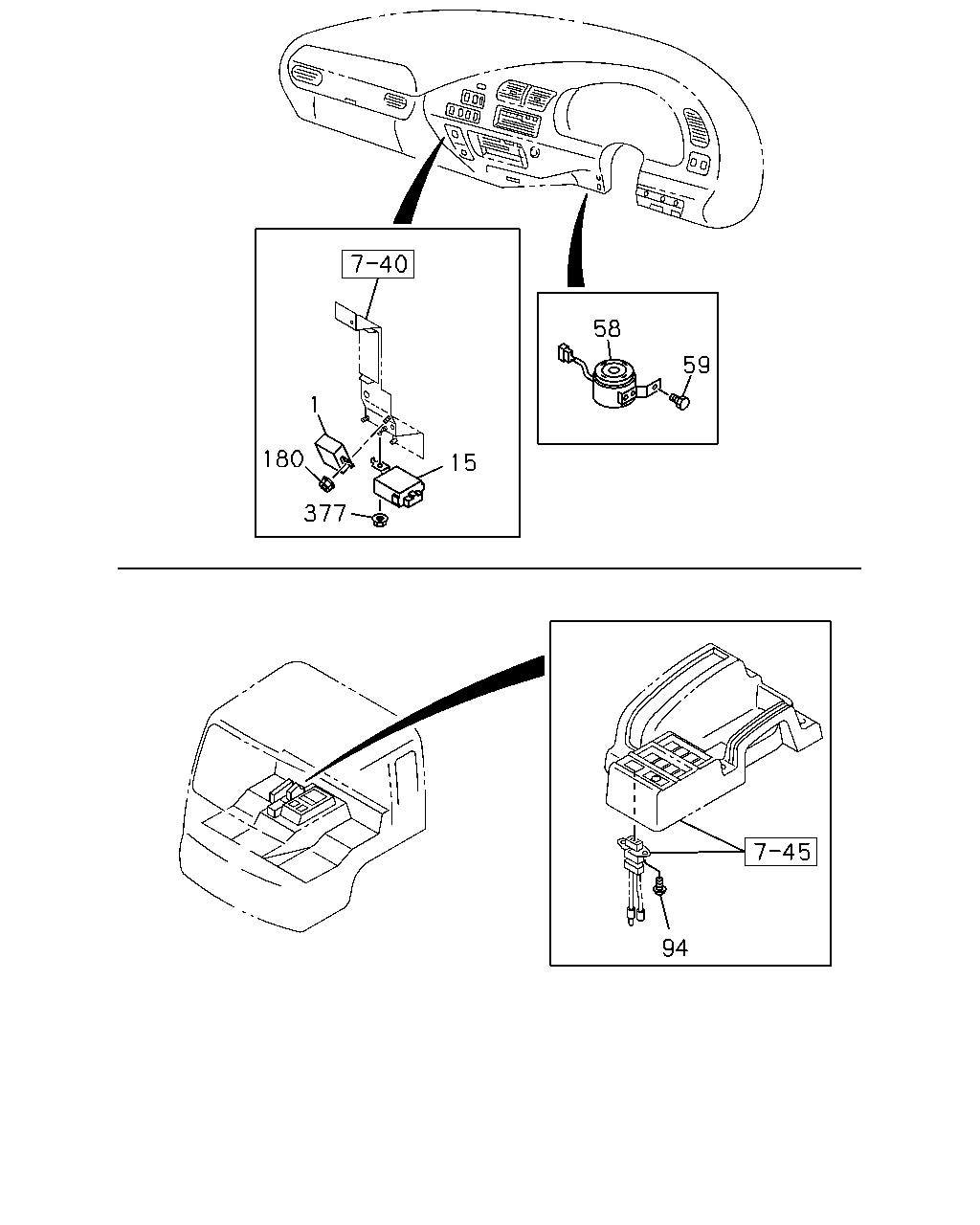

çizim 39963
58 59 1 180 15 377 94
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-060-0 01 1 0101-
15 RELAY; STOP & TAIL WARNING
24V,25WX2,10WX2 		1-82550-299-0 01 1 0101-
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 0101-
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO 		1-83460-074-1 01 1 0101-
59 SCREW; BUZZER
M5X14 THA 		8-94279-325-0 01 1 0101-
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0101-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0101-
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0101-

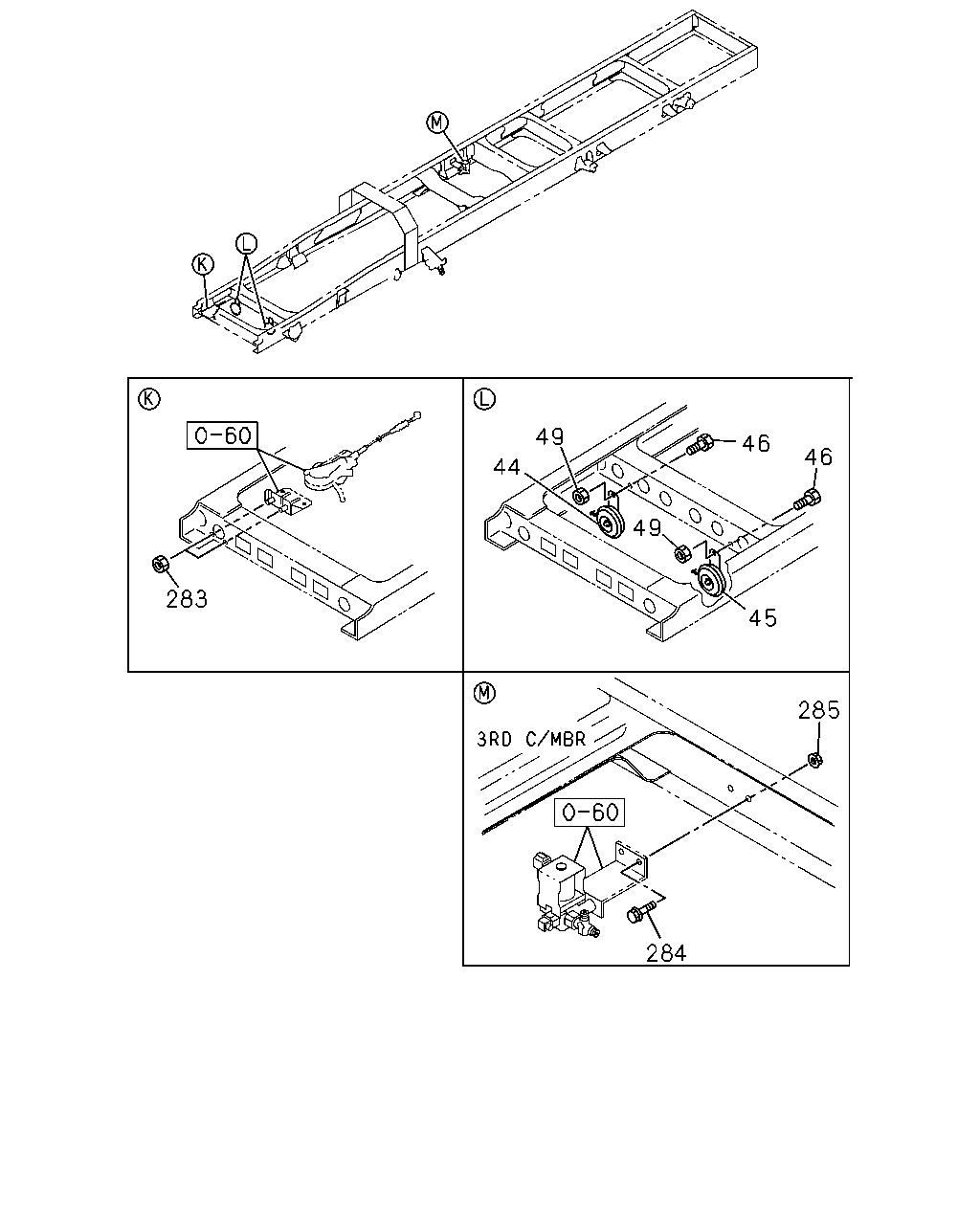

çizim 39964
49 44 46 46 49 283 45 285 284
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE
THA 		8-97915-997-1 01 1 0101-
45 HORN; LOW NOTE
THA 		8-97915-998-1 01 1 0101-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0101-
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0101-
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0101-
284 BOLT; MAG VLV
6HE1 TC ENG<57L> M8X35 FLANGE 		0-28680-835-0 02 1 0101-
285 NUT; MAG VLV
6HE1 TC ENG<57L> M8 FLANGE 		0-91150-108-0 02 1 0101-
