0-33 — FAN AND FAN BELT
(#66136) — 31 parça
◀

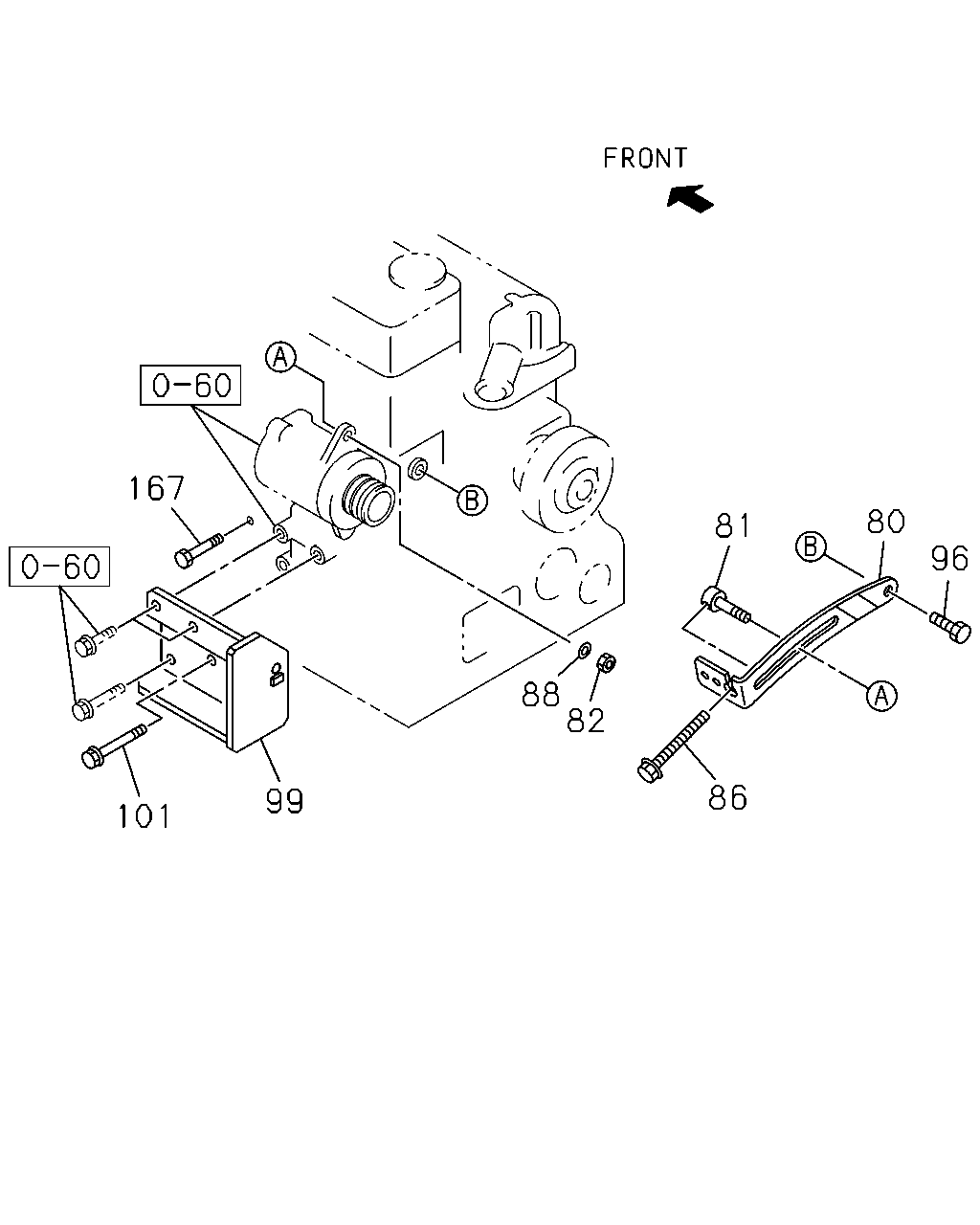

[033A] PLATE;ADJ (9 parça)

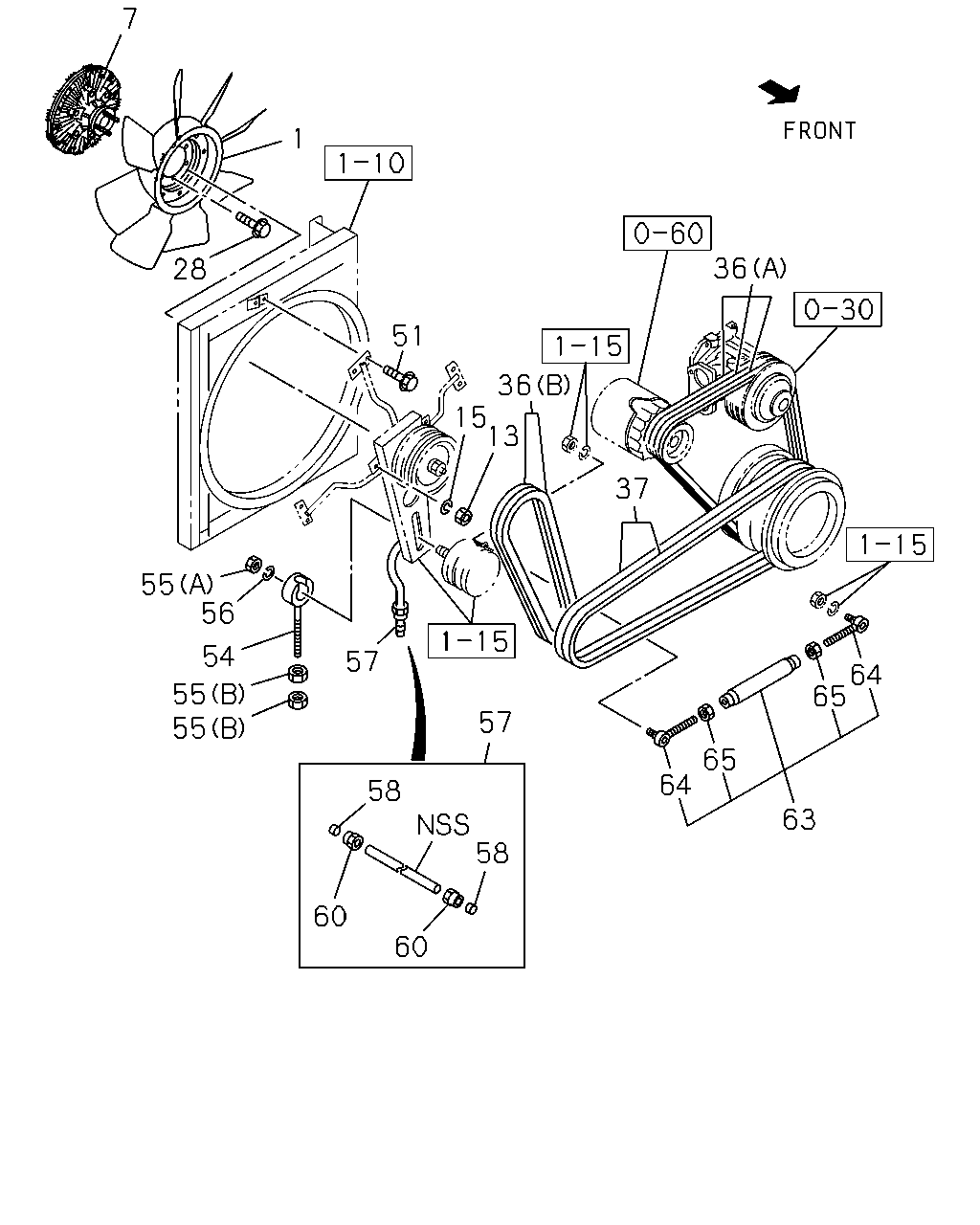

[033A] FAN AND FAN BELT (22 parça)
▶
167
80
81
96
88
82
86
99
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
PLATE; ADJ
8-94396-975-1
01
1
0611-
81
PIECE; SLIDING
M12X59
1-13674-161-0
01
1
0611-
82
NUT; ADJ PLATE
M12 FLANGE
0-91180-112-0
01
1
0611-
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
0611-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
0-91614-712-0
01
1
0611-
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28151-045-0
01
1
0611-
99
BRACKET; ADJ LINK ROD,FAN BELT
8-97608-416-0
01
1
0611-
101
BOLT; BRKT,ADJ LINK ROD
M10X90 FLANGE
0-28151-090-0
01
1
0611-
167
BOLT; HEAT PROTECTOR
M8X20 FLANGE
0-28050-820-0
01
1
0611-
7
1
36
28
51
36
15
13
37
55
56
54
57
64
65
55
55
57
65
64
58
63
58
60
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
1-13660-277-2
01
1
0611-
7
COUPLING; FAN
1-21650-215-0
01
1
0611-
13
NUT; COOLING FAN
M10
0-91110-510-0
04
1
0611-
15
WASHER; LK,COOLING FAN
ID=10.2
0-91510-510-0
04
1
0611-
28
BOLT; COOLING FAN
M10X16 FLANGE
0-28151-016-0
06
1
0611-
36
BELT; COOLING FAN
(B) 1 SET=2 PIECE(1136710010) MITSUBOSHI
1-13671-305-1
01
1
0611-
36
BELT; COOLING FAN
(A) 1 SET=3 PIECE(5136710231) MITSUBOSHI
8-94399-340-0
01
1
0611-1402
36
BELT; COOLING FAN
(A) 1 SET=3 PIECE(8982537050) MITSUBOSHI
8-98253-276-0
01
1
1403-
37
BELT; COOLING FAN,CR/SHF TO IDLE PULLE
1 SET=2 PIECE(1136712970) MITSUBOSHI
1-13671-296-0
01
1
0611-
51
BOLT; FAN DRIVE PULLEY
M10X35 FLANGE
0-28651-035-0
08
1
0611-
54
RETAINER; IDLE PULLEY,COOLING FAN
1-21625-036-0
01
1
0611-
55
NUT; IDLE PULLEY RET
(B) M10
0-91110-510-0
02
1
0611-
55
NUT; IDLE PULLEY RET
(A) M24
0-91111-524-0
01
1
0611-
56
WASHER; LK,IDLE PULLEY TO SPINDLE
ID=24.5
0-91510-524-0
01
1
0611-
57
PIPE; GREASE,IDLE PULLEY
L=180
1-59461-674-0
01
1
0611-
58
SLEEVE; GREASE PIPE,FAN & IDLE PULLEY
ID=6.1 T=6
9-83765-027-0
02
1
0611-
60
NIPPLE; SLEEVE,GREASE PIPE
9-83765-026-0
02
1
0611-
63
LINK ASM; ADJ,COOLING FAN DRIVE PULLEY
1-21629-041-2
01
1
0611-
64
ROD ASM; END,SWING ARM,FAN DRIVE
LH THREAD
1-09760-034-3
01
1
0611-
64
ROD ASM; END,SWING ARM,FAN DRIVE
RH THREAD
1-09760-035-3
01
1
0611-
65
NUT; LK,ADJ LINK,FAN PULLEY
M12
0-91111-512-0
01
1
0611-
65
NUT; LK,ADJ LINK,FAN PULLEY
M12 LH THREAD
9-09840-247-1
01
1
0611-
