◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#6613) — 14 parça

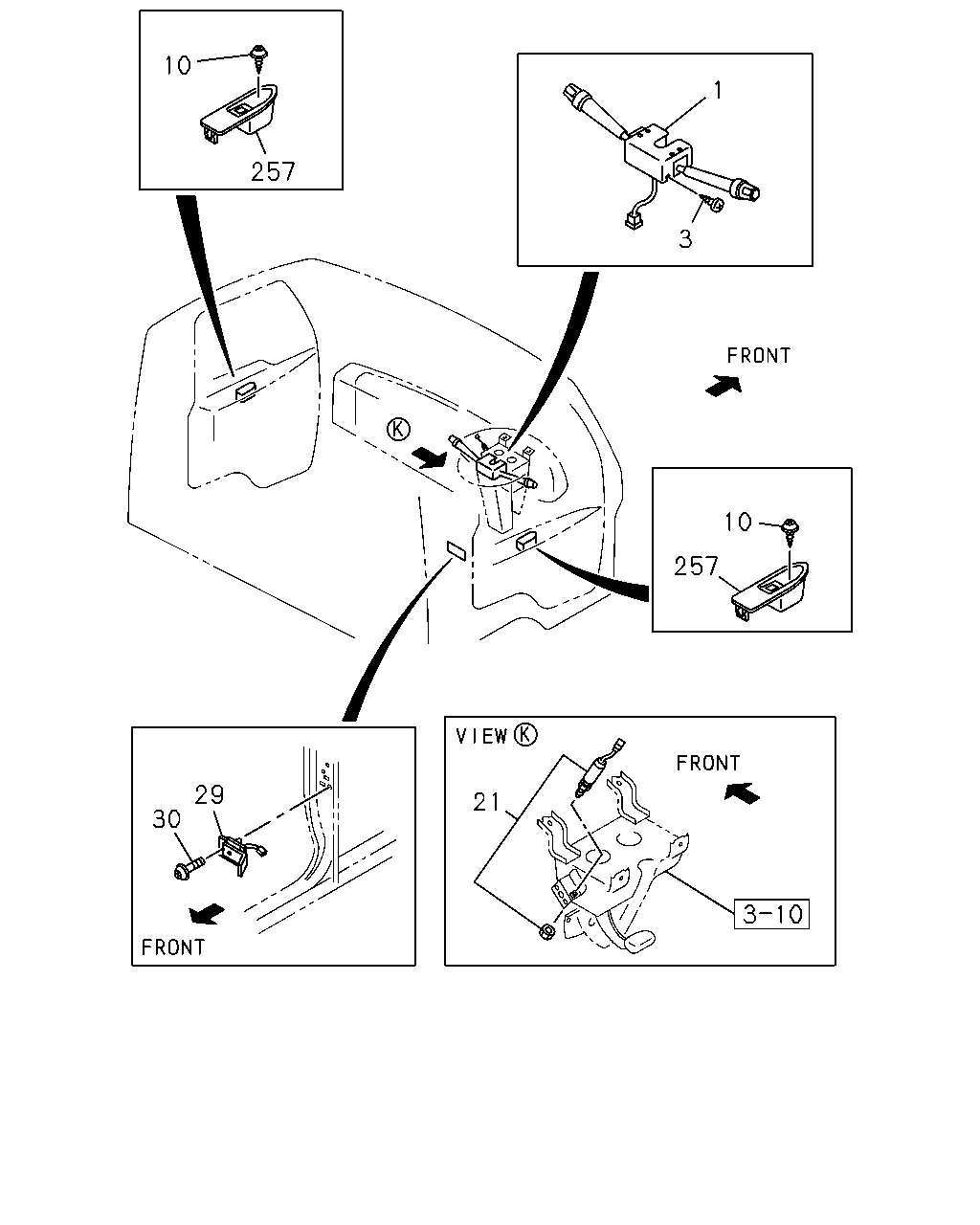

çizim 8051
10 1 257 3 10 257 29 30 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-412-3 01 1 0101-0103
1 SWITCH; COMB 1-82360-619-0 01 1 0104-0312
1 SWITCH; COMB 1-82360-715-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0101-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-
21 SWITCH; CLU 1-82380-114-2 01 1 0101-
29 SWITCH; DOOR 8-97855-032-3 01 1 0101-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0101-
257 COVER; HOLE,SW 1-82389-012-2 01 1 0101-
257 COVER; HOLE,SW 1-82389-011-2 01 1 0101-

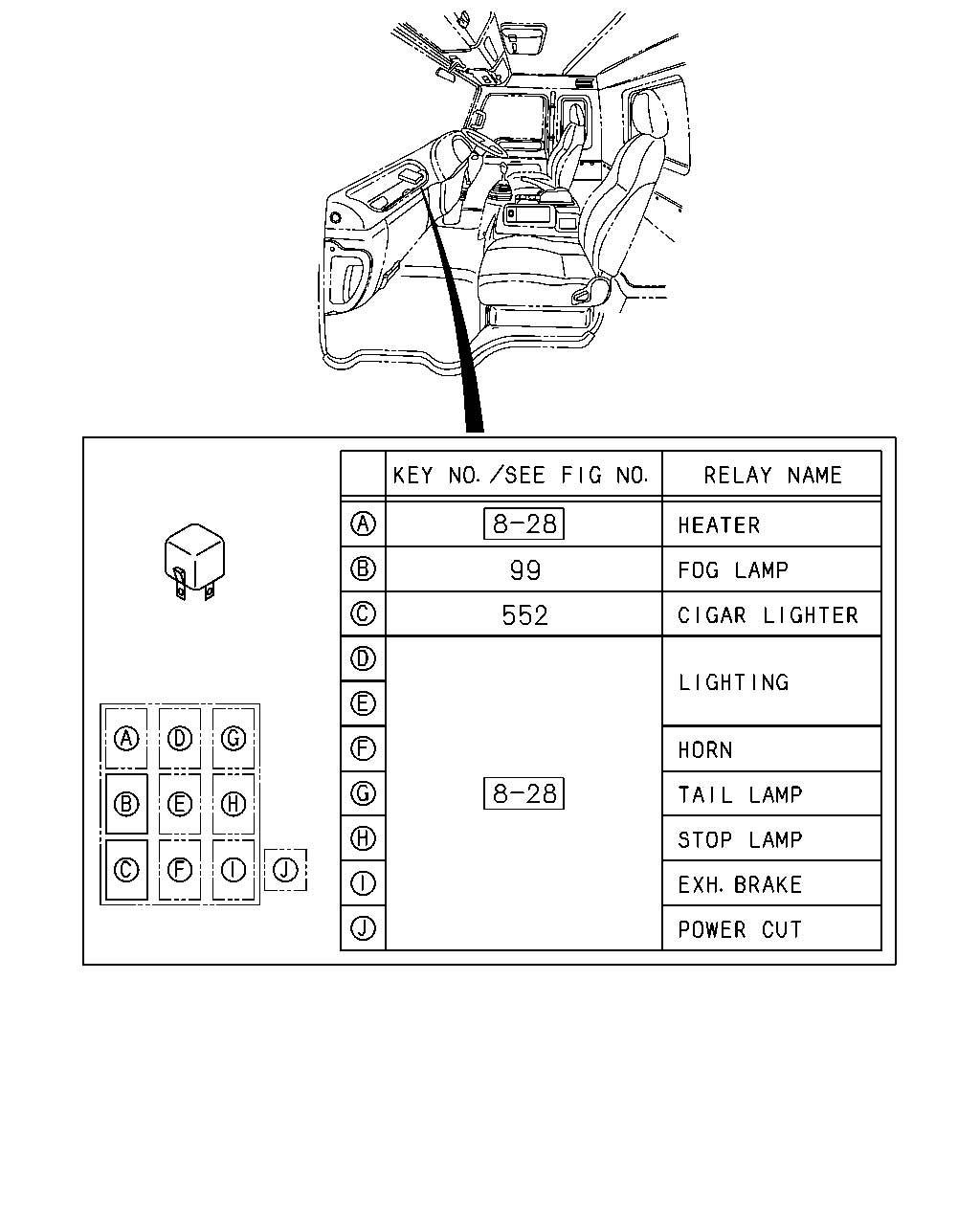

çizim 42351
99 552
BalonParca AdiParca NoAdetTipApplied Date
99 RELAY; FOG LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-
552 RELAY; CIGAR LIGHTER
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0101-0111
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112-
