8-50 — AIR CONDITIONING SYSTEM; FRONT
(#66110) — 27 parça
Tümü
A - CXZ6MC
B - CXZ6MF
◀

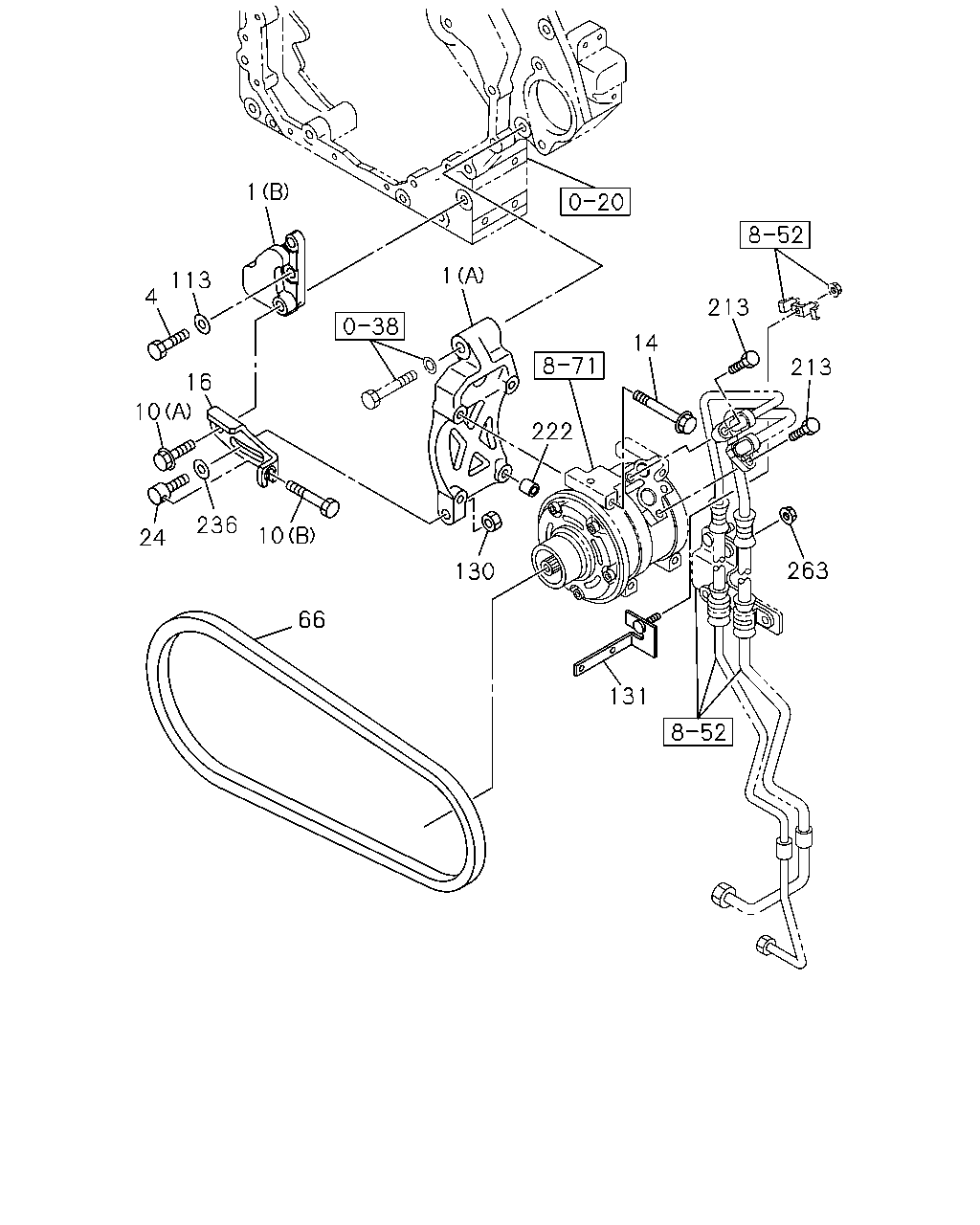

[850A] ENGINE SIDE (21 parça)
[850A] CAB SIDE (6 parça)
▶
1
1
113
4
213
14
213
16
10
222
236
10
24
263
130
66
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83571-987-0
01
1
0410-
●
●
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-001-0
01
1
0410-
●
●
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M14X130
9-09804-194-1
02
1
0410-
●
●
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE
0-28181-225-0
01
1
0410-0512
●
●
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE
0-28151-225-0
01
1
0601-
●
●
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90
1-09009-151-0
01
1
0410-
●
●
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE
0-28080-880-0
04
1
0410-0512
●
●
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE
0-28050-880-0
04
1
0601-
●
●
16
PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-13674-253-1
01
1
0410-
●
●
24
PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45
1-13674-160-0
01
1
0410-
●
●
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131
1-13671-436-0
01
1
0410-
●
●
113
WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26
9-09164-514-0
02
1
0410-
●
●
130
NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE
0-91150-112-0
01
1
0410-0602
●
●
130
NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE
0-91180-112-0
01
1
0603-
●
●
131
STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-244-0
01
1
0410-
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28080-625-0
02
1
0410-0512
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
02
1
0601-
●
●
222
GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4 OD=19
5-11779-001-0
02
1
0410-
●
●
236
WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32
9-09160-712-0
01
1
0410-
●
●
263
NUT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
02
1
0410-0602
●
●
263
NUT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
84
84
84
316
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2
1-83574-190-0
01
1
0410-
●
●
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20
1-83574-195-1
01
1
0410-
●
●
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20
9-09524-835-0
02
1
0410-0606
●
●
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20
0-95234-835-0
02
1
0607-
●
●
316
BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE
0-28680-830-0
02
1
0410-0512
●
●
316
BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE
0-28650-830-0
02
1
0601-
●
●
