8-28 — CHASSIS ELECTRICAL (#66107) — 124 parça

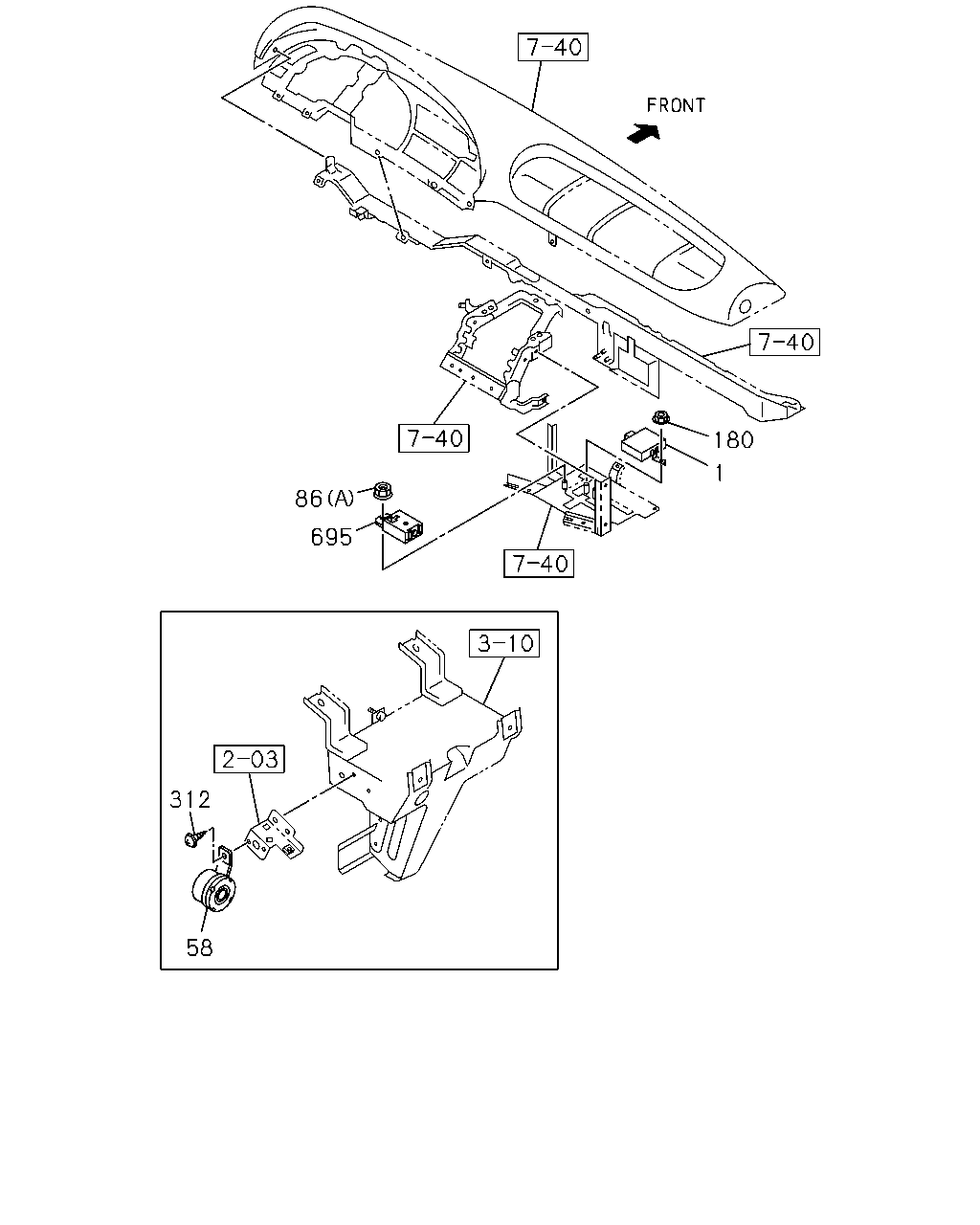

180 1 86 695 312 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-060-1	01	1	0410-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0410-0612	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-	●	●
86	NUT; BUZZER (A) M6 FLANGE	0-91150-106-0	01	1	0410-0602	●	●
86	NUT; BUZZER (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0410-0602	●	●
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0410-0602	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0410-	●	●
695	ALARM; OVER HEAT	1-83460-051-1	01	1	0410-	●	●

96 282 96 97 604 39 280 97 88 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28680-825-0	02	1	0410-0507	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28680-835-0	02	1	0508-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
88	CONNECTOR; MAG VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0410-	●	●
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	05	1	0410-0512	●	●
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0410-0512	●	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0410-0602	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-110-0	01	1	0410-0602	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
97	NUT; BRKT FIX (C) M10 FLANGE	0-91150-210-0	01	1	0410-0602	●	●
97	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0410-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0410-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0410-	●	●
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0410-	●	●
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0410-0412	●	●
282	BRACKET; MAG VLV (B)	1-82569-419-0	01	1	0501-0503	●	●
282	BRACKET; MAG VLV (D)	1-82569-421-0	01	1	0504-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-364-1	01	1	0410-	●	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0410-	●	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0410-	●	●

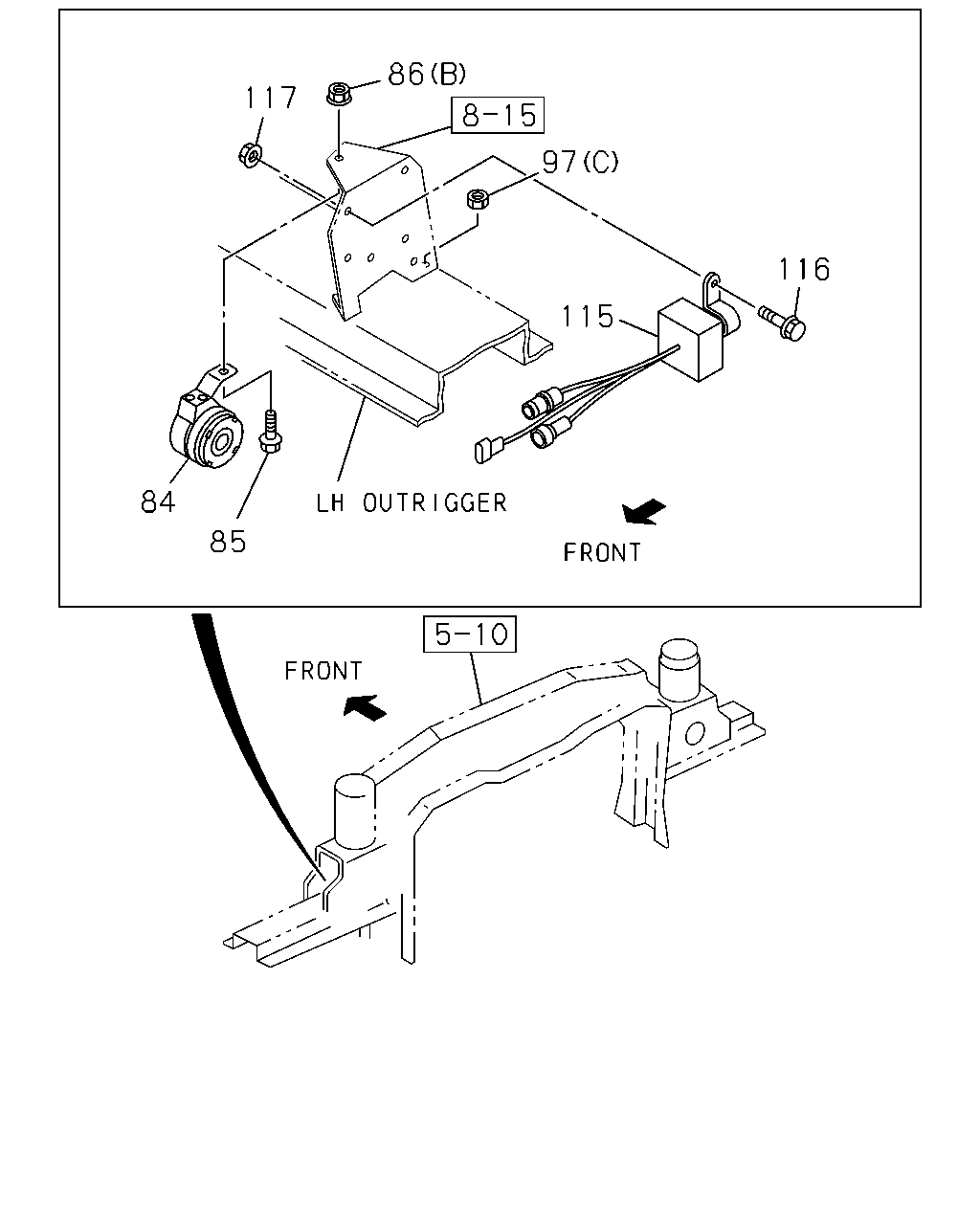

86 117 97 116 115 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0410-0612	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28680-820-0	01	1	0410-0512	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
86	NUT; BUZZER (A) M6 FLANGE	0-91150-106-0	01	1	0410-0602	●	●
86	NUT; BUZZER (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0410-0602	●	●
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0410-0602	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-110-0	01	1	0410-0602	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
97	NUT; BRKT FIX (C) M10 FLANGE	0-91150-210-0	01	1	0410-0602	●	●
97	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0410-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0410-0512	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0410-0602	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

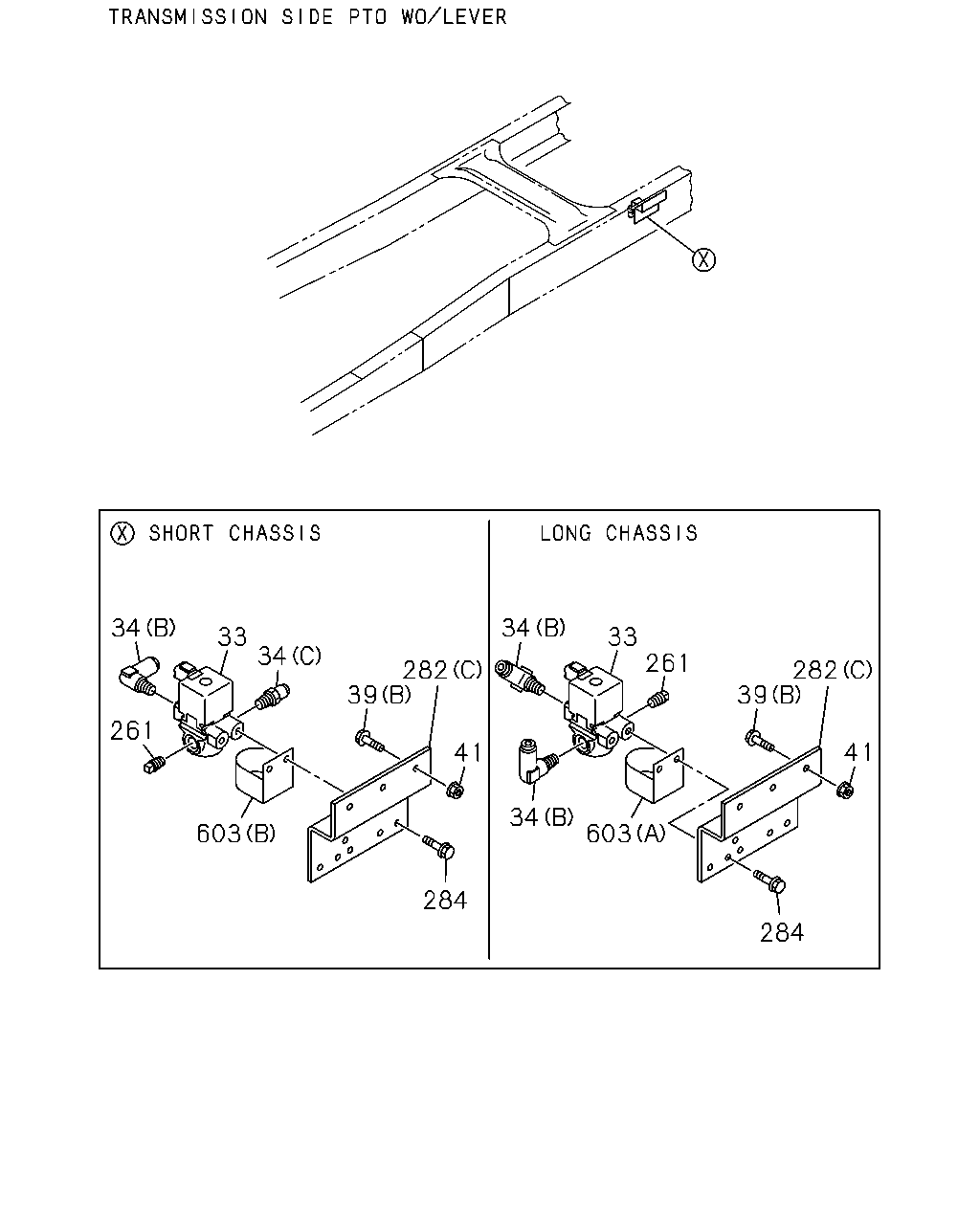

34 34 33 34 33 261 282 39 282 39 261 41 41 34 603 603 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0410-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0410-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0410-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0410-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0410-		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28680-825-0	02	1	0410-0507	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28680-835-0	02	1	0508-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0410-0602	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0410-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0410-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0410-	●	●
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0410-0412	●	●
282	BRACKET; MAG VLV (B)	1-82569-419-0	01	1	0501-0503	●	●
282	BRACKET; MAG VLV (D)	1-82569-421-0	01	1	0504-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-364-1	01	1	0410-	●	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0410-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
603	PROTECTOR; MAG VLV (B)	1-47471-044-0	01	1	0410-0706	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-47471-044-0	01	1	0410-0706	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0410-0706		●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0707-	●	●
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	0707-	●	●

91 284 90 91 284 282 34 282 603 34 261 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0410-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0410-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0410-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0410-		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0410-1205	●	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-	●	●
90	BOLT; MAG VLV M8X40 FLANGE	0-28680-840-0	02	1	0504-0512	●	●
90	BOLT; MAG VLV M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
91	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0410-0602	●	●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0410-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0410-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0410-	●	●
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0410-0412	●	●
282	BRACKET; MAG VLV (B)	1-82569-419-0	01	1	0501-0503	●	●
282	BRACKET; MAG VLV (D)	1-82569-421-0	01	1	0504-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-364-1	01	1	0410-	●	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0410-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
603	PROTECTOR; MAG VLV (B)	1-47471-044-0	01	1	0410-0706	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-47471-044-0	01	1	0410-0706	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0410-0706		●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0707-	●	●
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	0707-	●	●

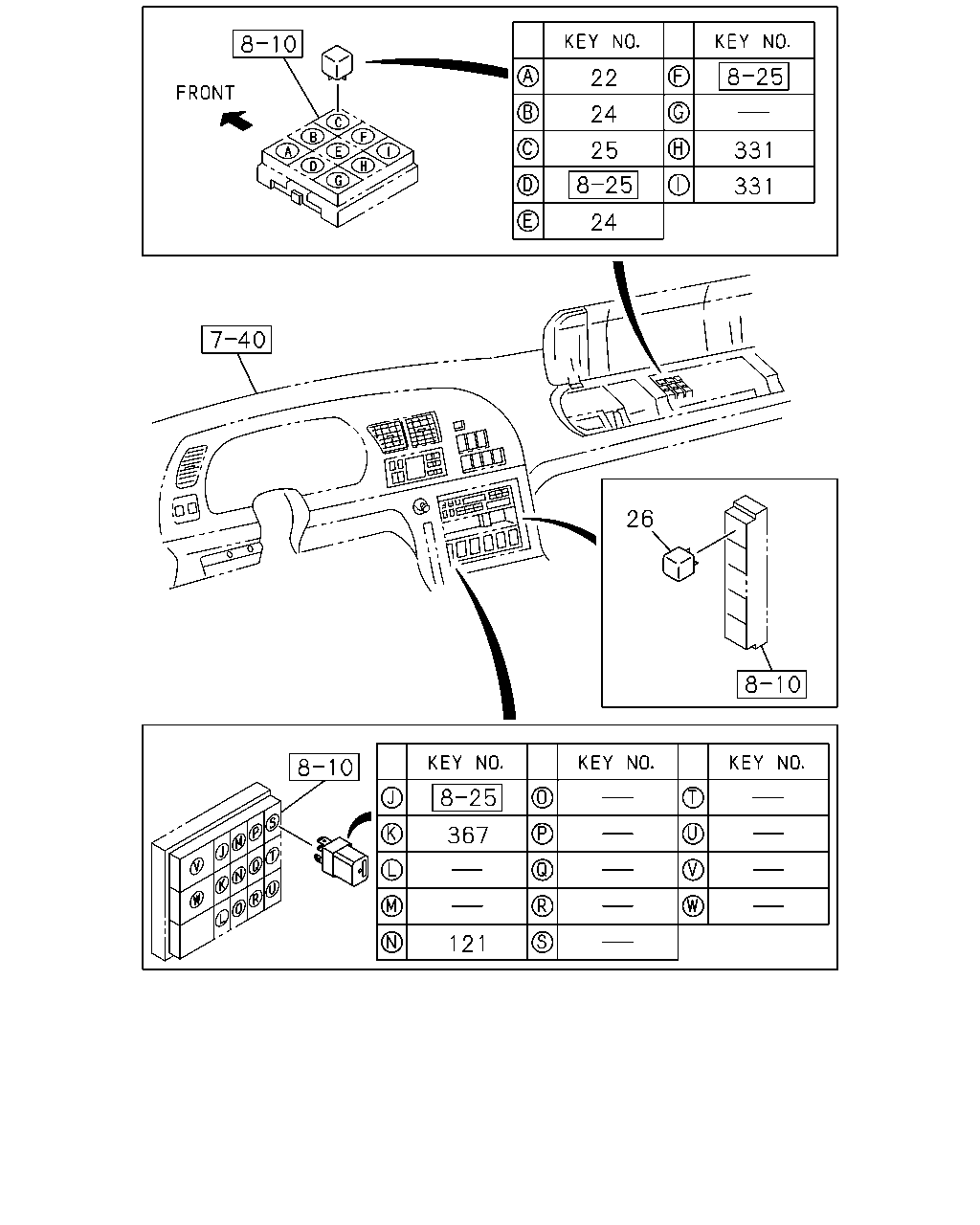

22 24 25 331 331 24 26 367 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0410-	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0410-	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0410-	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0410-	●	●
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0410-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0410-	●	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0410-	●	●

78 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
77	HORN ASM	1-83430-041-2	01	1	0410-0609	●	●
77	HORN ASM	1-83430-043-0	01	1	0610-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0410-	●	●
