◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11013 - CXZ LHD WEDGE BRAKE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#66102) — 472 parça
çizim 136623
53 53 27 324 312 324 334 342 342 375
BalonParca AdiParca NoAdetTipApplied Date A B
27 PROTECTOR; EDGE 8-97618-028-0 01 1 0701- ● ●
53 BRACKET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (B) 		1-82698-382-0 01 1 0410-0410 ● ●
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0410-0412 ● ●
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0501-0507 ●
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0508-0511 ● ●
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0508-0511 ●
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0512-0806 ● ●
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0410-0508 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 0509- ● ●
312 BRACKET; CLIP HARNESS 1-82698-479-0 01 1 0410- ● ●
324 BRACKET; CLIP
(A) 		1-47477-077-1 01 1 0509- ●
324 BRACKET; CLIP
(B) 		1-47478-659-0 01 1 0509- ●
334 BRACKET 1-53458-709-1 01 1 0410- ● ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0410- ● ●
342 BRACKET; HARNESS CAB MTG
EXC. MIXER TRUCK<RA2> (B) 		1-47479-974-0 01 1 0410-0610 ● ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0410- ● ●
çizim 136713
516 38 150 242 38 38 38 242 38 313 86 139 242 313 38 242 239 38 88 133 358 239 38 19 88
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0701-0904 ● ●
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0806 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0806 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0806 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807- ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28080-610-0 01 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0806 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0410-0512 ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0410-1105 ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0410-1201 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0410-0512 ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0410-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0410-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0410- ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0410-0512 ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
150 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 01 1 0410-0512 ● ●
150 BOLT; CLIP
M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0410-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0410-0512 ● ●
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0410-0508 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512 ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0410-0512 ● ●
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
242 BOLT; BRKT,HARNESS
EXC. MIXER TRUCK<RA2> (C) M8X30 FLANGE 		0-28680-830-0 01 1 0410-0512 ● ●
242 BOLT; BRKT,HARNESS
EXC. MIXER TRUCK<RA2> (C) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0508-0511 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
313 BOLT; BRKT
FUEL SEDIMENTER WITH WARNING<EBJ> (B) M8X30 FLANGE 		0-28680-830-0 01 1 0410-0410 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0410-0412 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0501-0511 ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 05 1 0410-0508 ● ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512 ● ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0410- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0410- ● ●
çizim 136749
16 51 81 104 142 171 206 212 305 462 16 104 171 194 228 369 194 212 16 48 194 212 16 51 142 162 194 208
BalonParca AdiParca NoAdetTipApplied Date A B

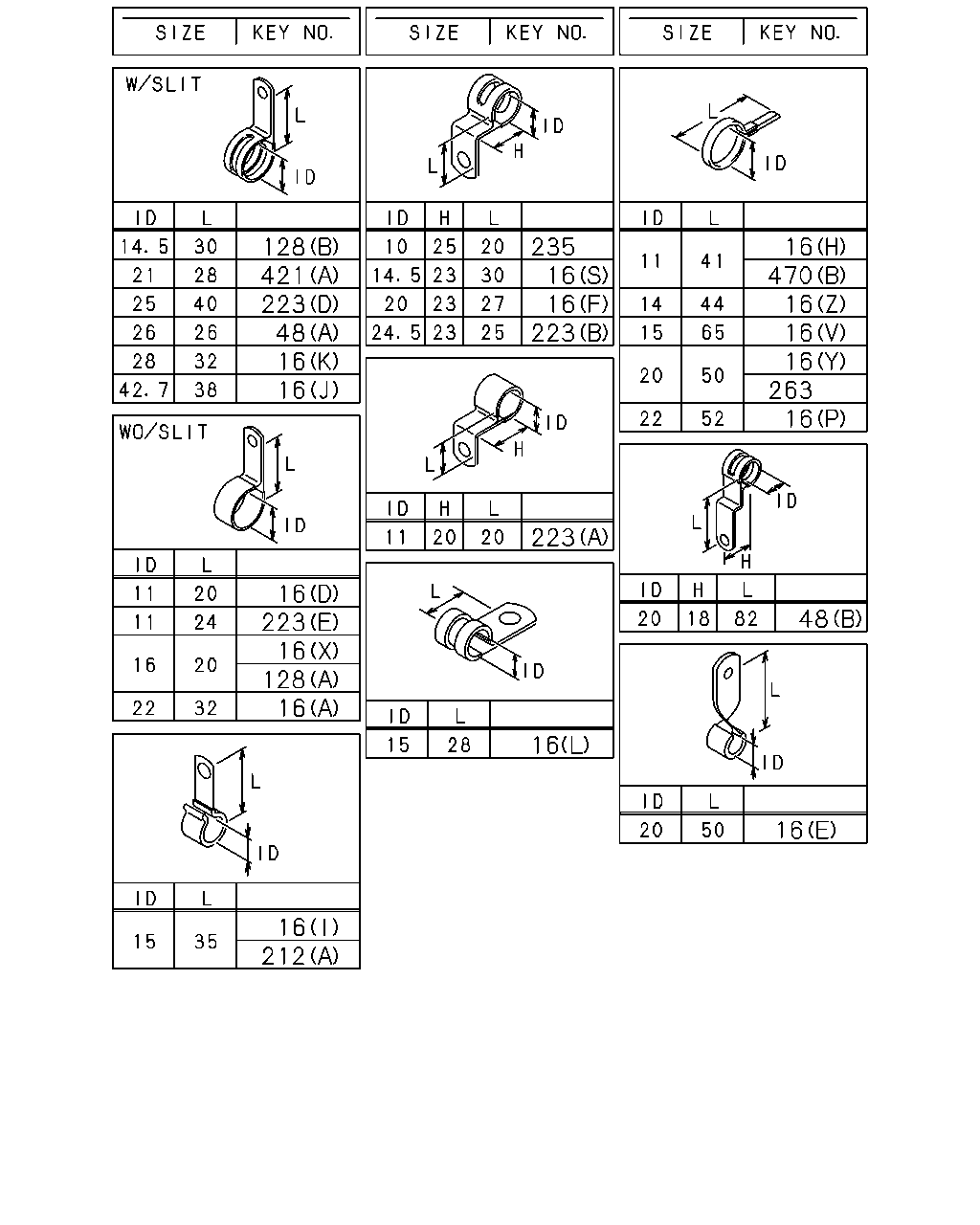

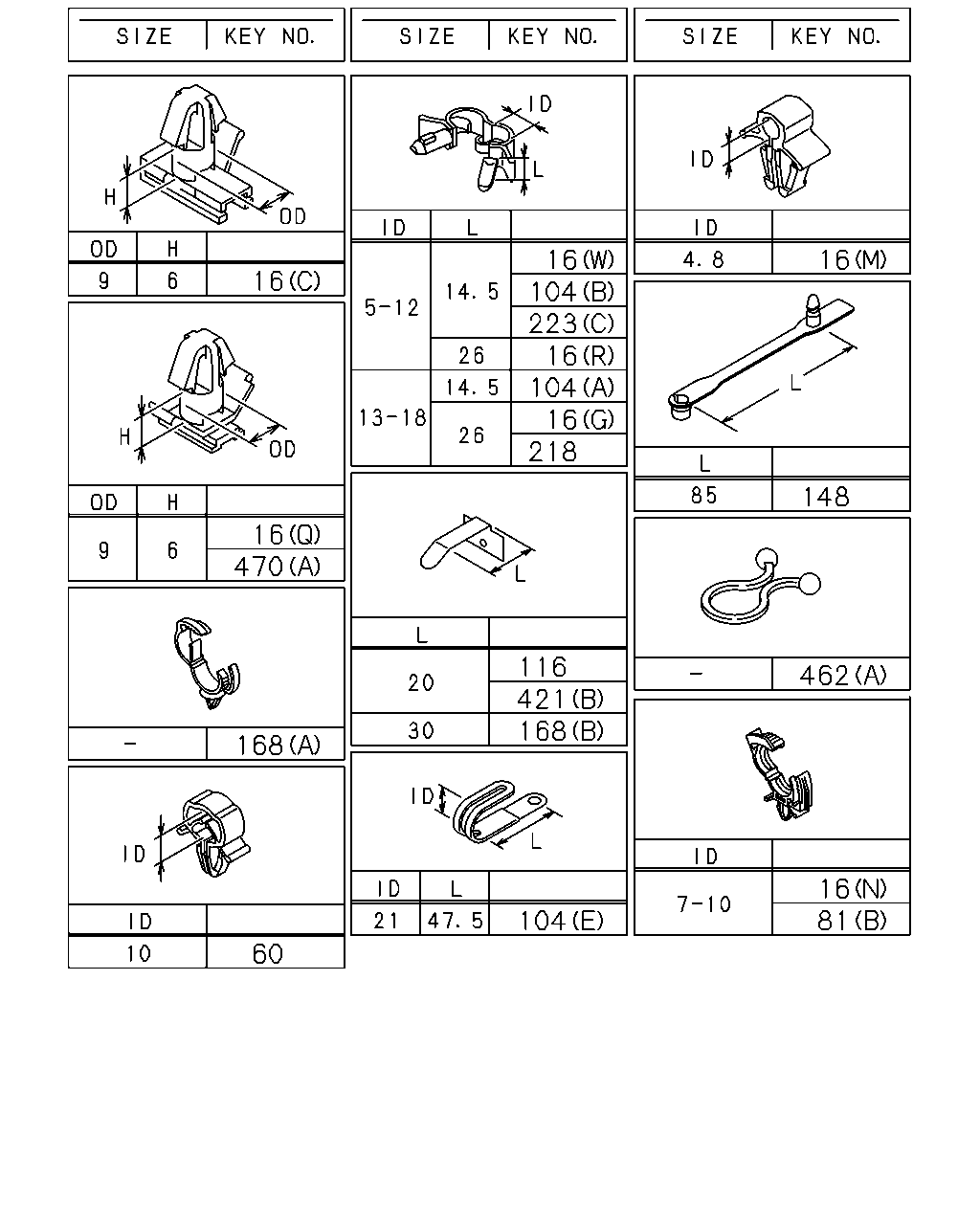

16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0509- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (G) ID=13-18 L=26 		1-09709-293-0 08 1 0410-0509 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0510- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0510- ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0412 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0501-0507 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0508- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 04 1 0410-0410 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0410-0606 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0607- ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0410-0606 ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0410-0810 ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0410-0810 ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0811- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ●
16 CLIP; HARNESS
(G) ID=13-18 L=26 		1-09709-293-0 02 1 0410- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0811- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0410- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0410-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0607- ● ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0410- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0410- ● ●
16 CLIP; HARNESS
(S) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0410- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0410- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0410- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0410- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0410- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0410-0508 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0509- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0410-0508 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0410- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 09 1 0811- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0410- ● ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0410- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0410-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 02 1 0410- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0811- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0410- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (V) ID=15 L=65 		1-09700-466-0 01 1 0410-0509 ●
16 CLIP; HARNESS
(V) ID=15 L=65 		1-09700-466-0 01 1 0510- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (R) ID=5-12 L=26 		1-09709-289-0 02 1 0410-0509 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 02 1 0510- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=13-18 L=26 		1-09709-293-0 04 1 0410-0509 ●
16 CLIP; HARNESS
(G) ID=13-18 L=26 		1-09709-293-0 04 1 0510- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0501-0507 ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0410- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0410- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 09 1 0410-0508 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0509- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0410- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0410- ● ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0410- ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0410-0410 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 04 1 0410-0410 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0410-0710 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0410- ● ●
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 0410-1207 ● ●
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 02 1 1208- ● ●
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0410-1205 ● ●
142 CLIP; HARNESS,ENG
(B) L=140 		8-98216-431-0 01 1 1206- ● ●
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0410- ● ●
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0410- ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0410- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 0509-0804 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 08 1 0805- ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0509- ●
194 CLIP; BAND
(D) L=300 		1-09707-001-1 02 1 0410-0504 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 0410-0504 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0505-0508 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 0509- ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0410-1001 ● ●
194 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0410- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0410- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0410- ● ●
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0410-0504 ● ●
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0505- ● ●
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0410-0806 ● ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0410- ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0410- ● ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0410- ● ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 0410- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0410- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0410- ● ●
çizim 137005
128 421 223 48 16 16 235 16 16 223 16 470 16 16 16 263 16 223 16 223 16 128 16 48 16 16 16 212
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0509- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (G) ID=13-18 L=26 		1-09709-293-0 08 1 0410-0509 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0510- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0510- ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0412 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0501-0507 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0508- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 04 1 0410-0410 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0410-0606 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0607- ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0410-0606 ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0410-0810 ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0410-0810 ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0811- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ●
16 CLIP; HARNESS
(G) ID=13-18 L=26 		1-09709-293-0 02 1 0410- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0811- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0410- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0410-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0607- ● ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0410- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0410- ● ●
16 CLIP; HARNESS
(S) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0410- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0410- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0410- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0410- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0410- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0410-0508 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0509- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0410-0508 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0410- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 09 1 0811- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0410- ● ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0410- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0410-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 02 1 0410- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0811- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0410- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (V) ID=15 L=65 		1-09700-466-0 01 1 0410-0509 ●
16 CLIP; HARNESS
(V) ID=15 L=65 		1-09700-466-0 01 1 0510- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (R) ID=5-12 L=26 		1-09709-289-0 02 1 0410-0509 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 02 1 0510- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=13-18 L=26 		1-09709-293-0 04 1 0410-0509 ●
16 CLIP; HARNESS
(G) ID=13-18 L=26 		1-09709-293-0 04 1 0510- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0501-0507 ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0410- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0410- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 09 1 0410-0508 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0509- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0410-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0410- ● ●
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0410-0504 ● ●
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0505- ● ●
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0410-0806 ● ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0410- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0509- ●
223 CLIP; AIR TANK HARNESS
(D) ID=25 L=40 		1-09700-215-1 01 1 0410-0410 ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=24 		9-09525-045-0 01 1 0410-0412 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0410-0410 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0410- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 03 1 0410-0412 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0501-0707 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0508 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0509- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0410- ● ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0410- ● ●
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0410- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0410- ● ●
çizim 137184
16 104 223 16 104 16 218 16 16 148 16 470 116 421 168 462 168 16 81 104 60
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0509- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (G) ID=13-18 L=26 		1-09709-293-0 08 1 0410-0509 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0410 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0410-0509 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0510- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 0510- ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0412 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0501-0507 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0508- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0410-0410 ● ●
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 04 1 0410-0410 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0410-0606 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0607- ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0410-0606 ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0410-0810 ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0410-0810 ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0811- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ●
16 CLIP; HARNESS
(G) ID=13-18 L=26 		1-09709-293-0 02 1 0410- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0811- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0410- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0410-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0607- ● ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0410- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0410- ● ●
16 CLIP; HARNESS
(S) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0410- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0410- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0410- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0410- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0410- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0410-0508 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0509- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0410-0508 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0410- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0410- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 09 1 0811- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0410-0810 ● ●
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0410- ● ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0410- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0410-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 02 1 0410- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0410-0810 ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0811- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0410- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (V) ID=15 L=65 		1-09700-466-0 01 1 0410-0509 ●
16 CLIP; HARNESS
(V) ID=15 L=65 		1-09700-466-0 01 1 0510- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (R) ID=5-12 L=26 		1-09709-289-0 02 1 0410-0509 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 02 1 0510- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=13-18 L=26 		1-09709-293-0 04 1 0410-0509 ●
16 CLIP; HARNESS
(G) ID=13-18 L=26 		1-09709-293-0 04 1 0510- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0501-0507 ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0410- ● ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0410- ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0410-0410 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 04 1 0410-0410 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0410- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0410-0710 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0410- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0410-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0410- ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0410- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0410- ● ●
218 CLIP; BAND,RR COMB
DUMP TRUCK<RA1> ID=13-18 L=26 		1-09709-293-0 07 1 0410- ●
218 CLIP; BAND,RR COMB
MIXER TRUCK<RA2> ID=13-18 L=26 		1-09709-293-0 06 1 0410- ●
218 CLIP; BAND,RR COMB
ID=13-18 L=26 		1-09709-293-0 06 1 0410- ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0509- ●
223 CLIP; AIR TANK HARNESS
(D) ID=25 L=40 		1-09700-215-1 01 1 0410-0410 ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=24 		9-09525-045-0 01 1 0410-0412 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0410-0410 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0410- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 03 1 0410-0412 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0501-0707 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0410-0508 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0509- ●
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0410- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0410- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0410- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0410- ● ●
çizim 137350
119 64 524 219 294 340 515 515 423
BalonParca AdiParca NoAdetTipApplied Date A B
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0410- ● ●
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0410- ● ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0410-0410 ● ●
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE 		0-91150-108-0 01 1 0410-0410 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0410-0410 ● ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0410-0412 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0410-0412 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0410-0412 ● ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0501-0507 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0501-0507 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0501-0507 ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0508-0508 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0508-0508 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0508-0508 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0508-0508 ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0509-0511 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0511 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0511 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0511 ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0511 ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0603-0810 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0810 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0810 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0810 ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0811- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811- ●
219 NUT
M8 FLANGE 		0-91150-108-0 10 1 0410-0501 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 11 1 0502-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 0603-0806 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 10 1 0807-0810 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 0811- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 04 1 0410-0508 ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 03 1 0509-0602 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0410- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91150-110-0 02 1 0410-0602 ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0410-0602 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
çizim 137785
5 224 1 1 1 178 178 178 178 178 178 510 530 292 530
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0410-0704 ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=25 		1-09337-052-0 01 1 0705- ● ●
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0410- ● ●
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0410- ● ●
178 GROMMET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (F) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0410-0410 ● ●
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0410-0410 ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0410- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0410- ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0410- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0410- ● ●
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0410- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0410- ● ●
292 CAP; RUBBER 1-82691-239-0 02 1 0410-0810 ● ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0410- ● ●
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 01 1 0410- ● ●
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 06 1 0410- ● ●
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 08 1 0410- ● ●
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 01 1 0410- ● ●
530 SEAL; HARNESS
(B) 		1-76770-009-2 01 1 0410-1101 ● ●
530 SEAL; HARNESS
(B) 		8-98119-974-0 01 1 1102- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
