◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11013 - CXZ LHD WEDGE BRAKE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#66101) — 79 parça

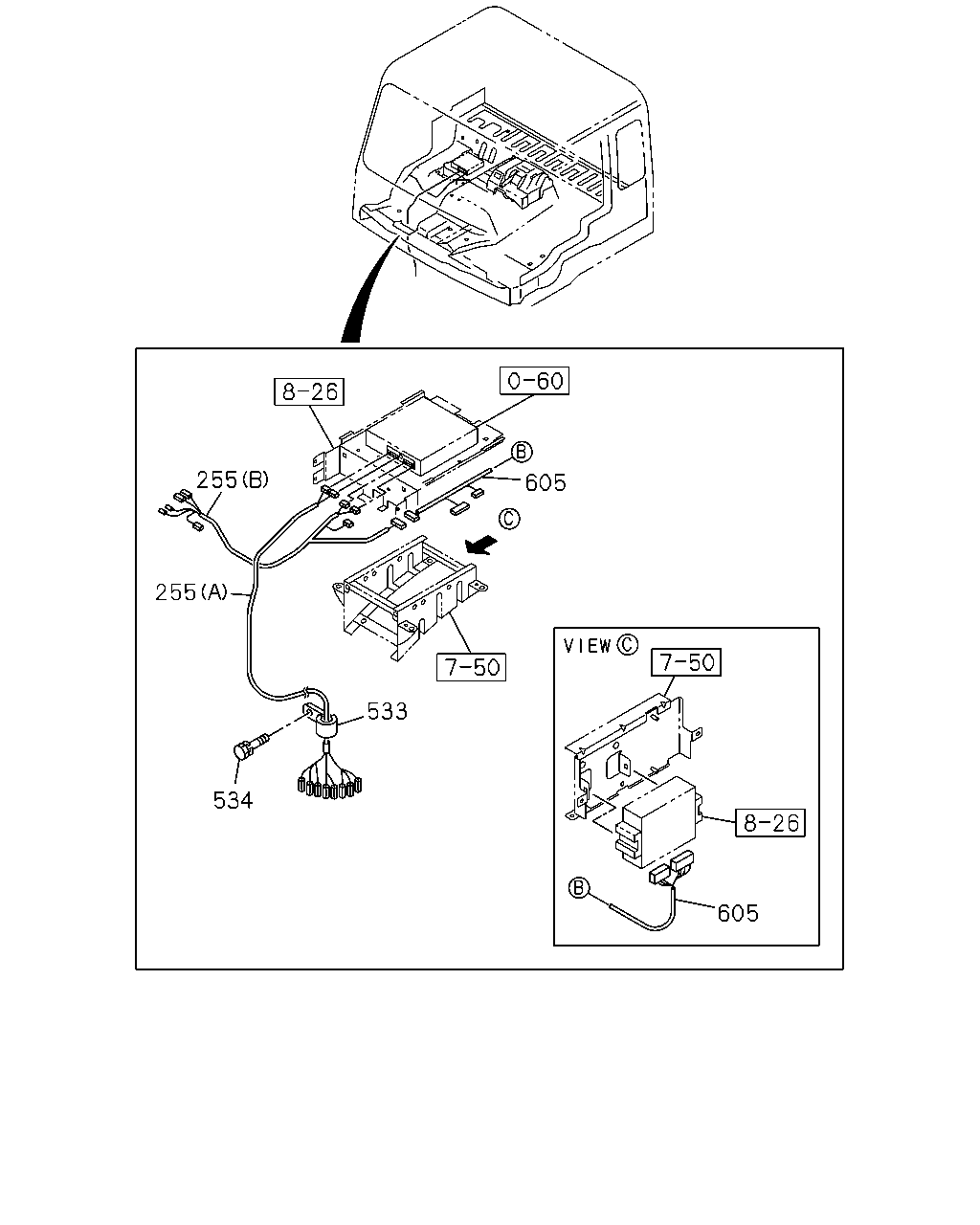

çizim 136065
255 605 255 533 534 605
BalonParca AdiParca NoAdetTipApplied Date A B
255 HARNESS; ELEC GOV
(A) 		1-82662-594-1 01 1 0410- ● ●
255 HARNESS; ELEC GOV
(B) 		1-82662-595-0 01 1 0410- ● ●
533 CLIP
ID=21 L=24 		8-94176-807-1 02 1 0410- ● ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0410- ● ●
605 HARNESS; SEAT 1-82660-400-1 01 1 0410- ● ●

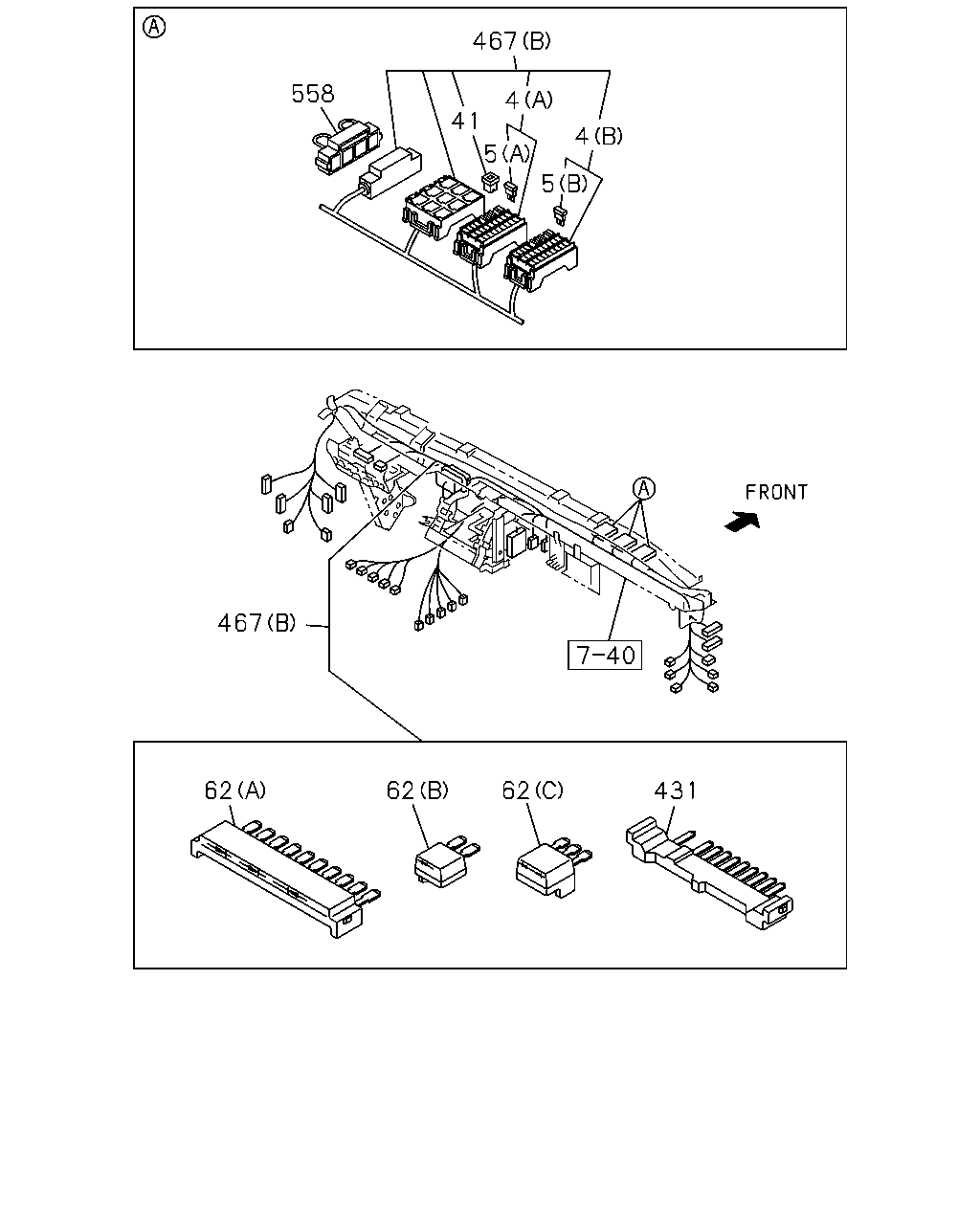

çizim 136128
467 558 4 41 4 5 5 467 62 62 62 431
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX23 		1-82510-411-0 01 1 0410- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX21 25AX2 		1-82510-513-0 01 1 0410- ● ●
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 21 1 0410- ● ●
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 0410- ● ●
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 23 1 0410- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0410- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 0410-0507 ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 04 1 0508- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0410-0507 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0508- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0410- ● ●
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 0410- ● ●
467 HARNESS; FACIA
(A) 		1-82662-033-5 01 1 0410- ● ●
467 HARNESS; FACIA
(B) 		1-82662-593-4 01 1 0410- ● ●
558 CONNECTOR; HARNESS
4P 		1-82629-690-0 01 1 0508- ● ●

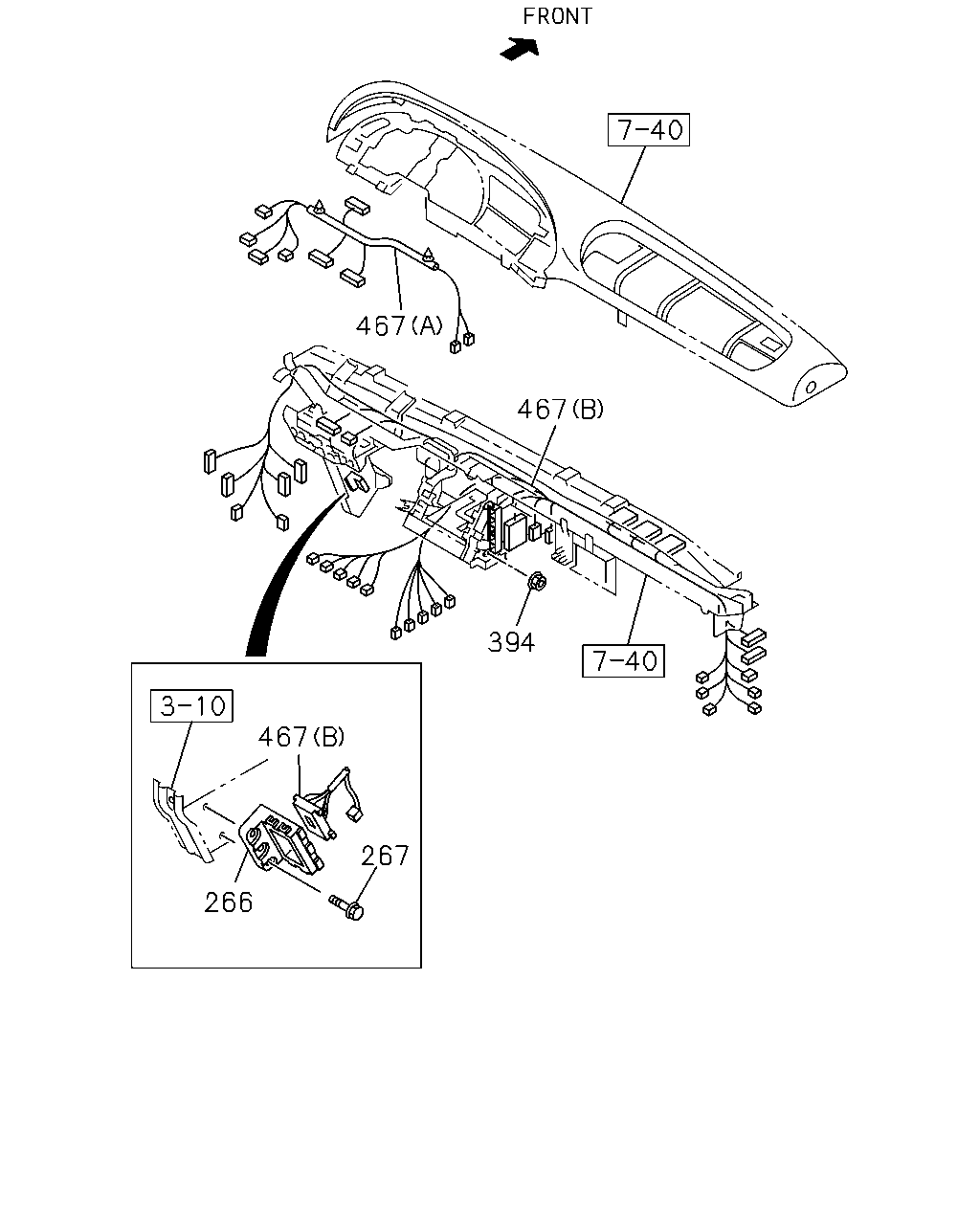

çizim 136348
467 467 394 467 267 266
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0410- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0410- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0410-0602 ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
467 HARNESS; FACIA
(A) 		1-82662-033-5 01 1 0410- ● ●
467 HARNESS; FACIA
(B) 		1-82662-593-4 01 1 0410- ● ●

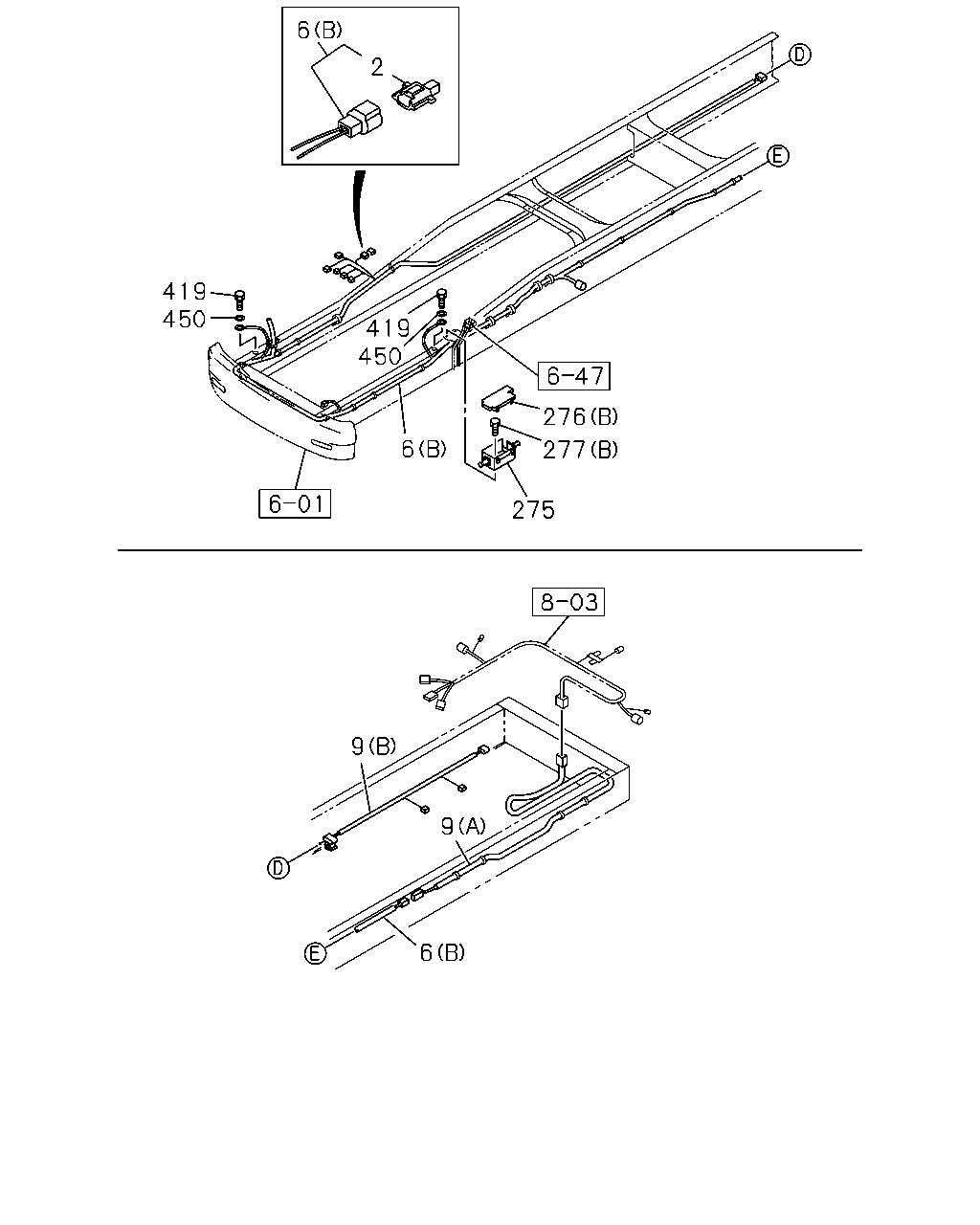

çizim 136984
6 2 419 450 419 450 276 6 277 275 9 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0410- ● ●
6 HARNESS; FRAME
(B) 		1-82678-021-4 01 1 0410- ●
6 HARNESS; FRAME
(A) 		1-82677-378-3 01 1 0410- ● ●
6 HARNESS; FRAME
(B) 		1-82678-022-3 01 1 0410- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (A) 		1-82677-369-1 01 1 0410-0509 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (B) 		1-82677-373-1 01 1 0410-0509 ●
9 HARNESS; FRAME,RR
(A) 		1-82677-366-0 01 1 0410- ●
9 HARNESS; FRAME,RR
(B) 		1-82677-370-2 01 1 0410- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (A) 		1-82677-368-0 01 1 0410-0509 ●
9 HARNESS; FRAME,RR
(A) 		1-82677-368-0 01 1 0510- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (B) 		1-82677-372-1 01 1 0410-0509 ●
9 HARNESS; FRAME,RR
(B) 		1-82677-372-1 01 1 0510- ●
275 BOX ASM; FRAME HARNESS 1-82699-474-2 01 1 0410- ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0410- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0410- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0410-0512 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0410- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0410-1201 ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0410-0810 ● ●

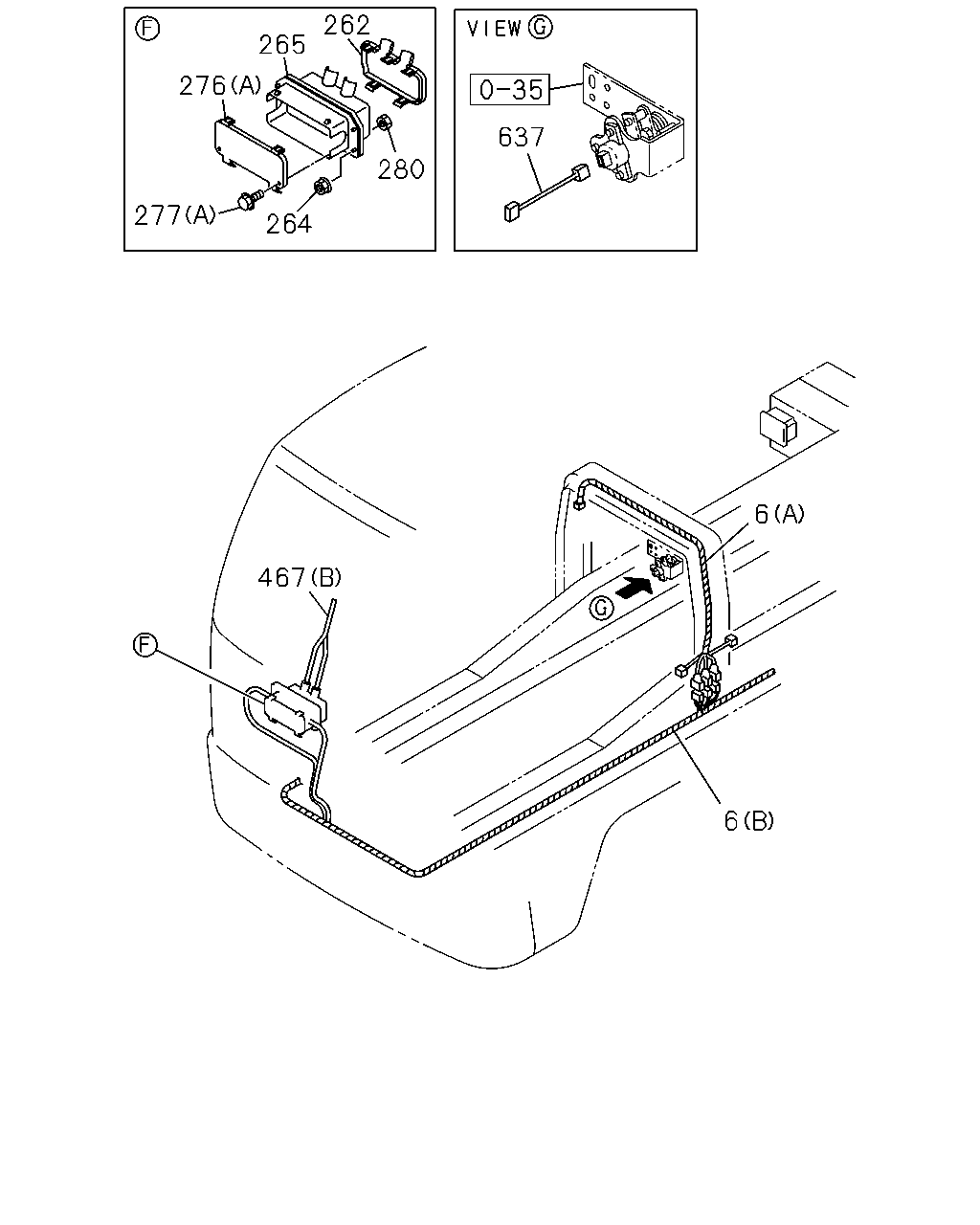

çizim 137035
262 265 276 637 280 277 264 6 467 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(B) 		1-82678-021-4 01 1 0410- ●
6 HARNESS; FRAME
(A) 		1-82677-378-3 01 1 0410- ● ●
6 HARNESS; FRAME
(B) 		1-82678-022-3 01 1 0410- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0410- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0410- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0410- ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0410- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0410- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0410-0512 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0410- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0410- ● ●
467 HARNESS; FACIA
(A) 		1-82662-033-5 01 1 0410- ● ●
467 HARNESS; FACIA
(B) 		1-82662-593-4 01 1 0410- ● ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0410- ● ●

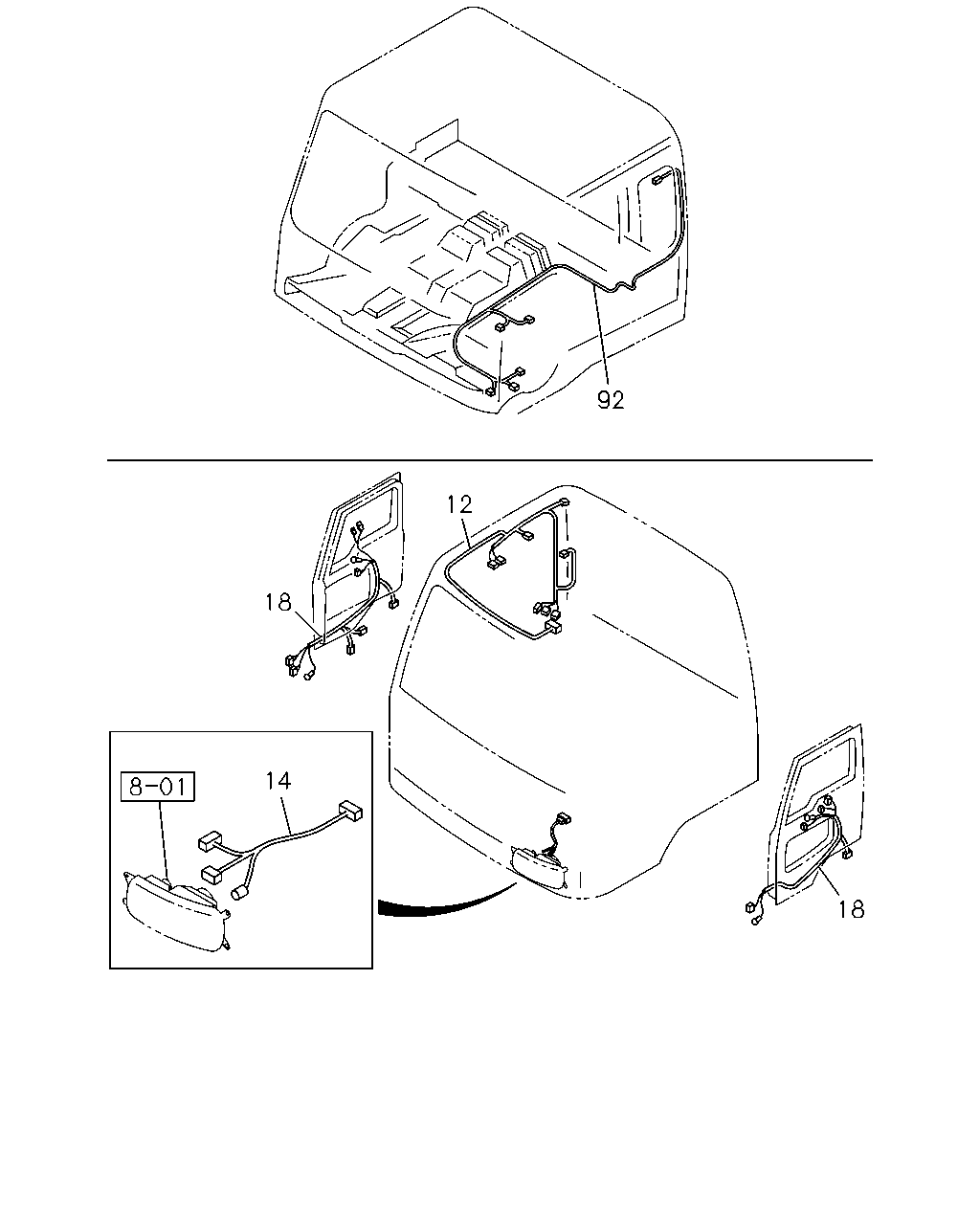

çizim 191940
92 12 18 14 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 1-82629-921-2 01 1 0410- ● ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82677-628-3 02 1 0410- ● ●
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82625-150-2 02 1 0410- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-582-0 01 1 0410- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-584-0 01 1 0410- ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-032-0 01 1 0410- ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-037-0 01 1 0410- ● ●
92 HARNESS; FLOOR 1-82662-596-1 01 1 0410- ● ●

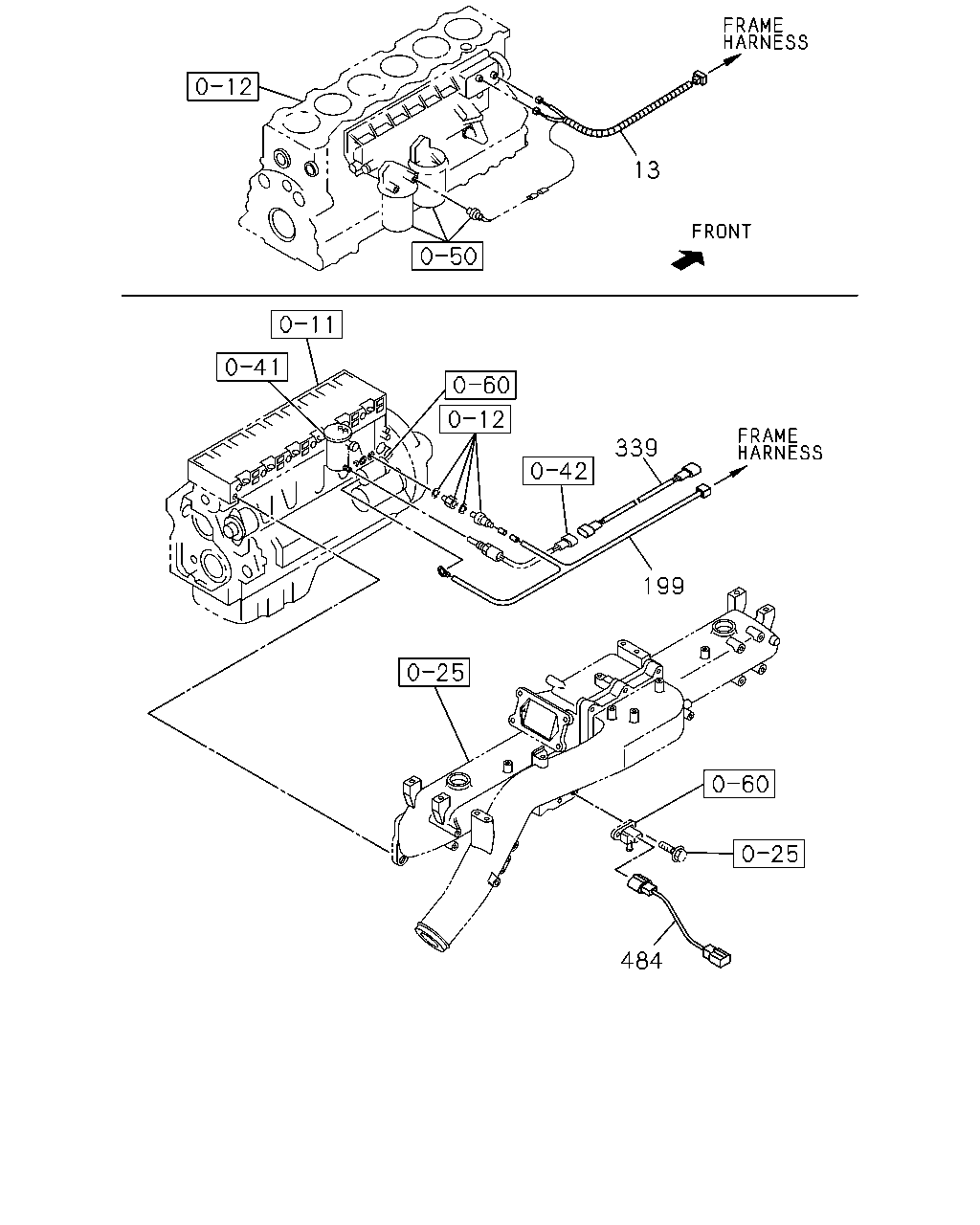

çizim 191944
13 339 199 484
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG 1-82640-553-4 01 1 0410- ● ●
199 HARNESS; STARTER 1-82641-329-3 01 1 0410- ● ●
339 HARNESS; EXT,FUEL 1-82641-316-0 01 1 0410- ● ●
484 HARNESS; BOOST SENSOR 1-82641-149-0 01 1 0410- ● ●

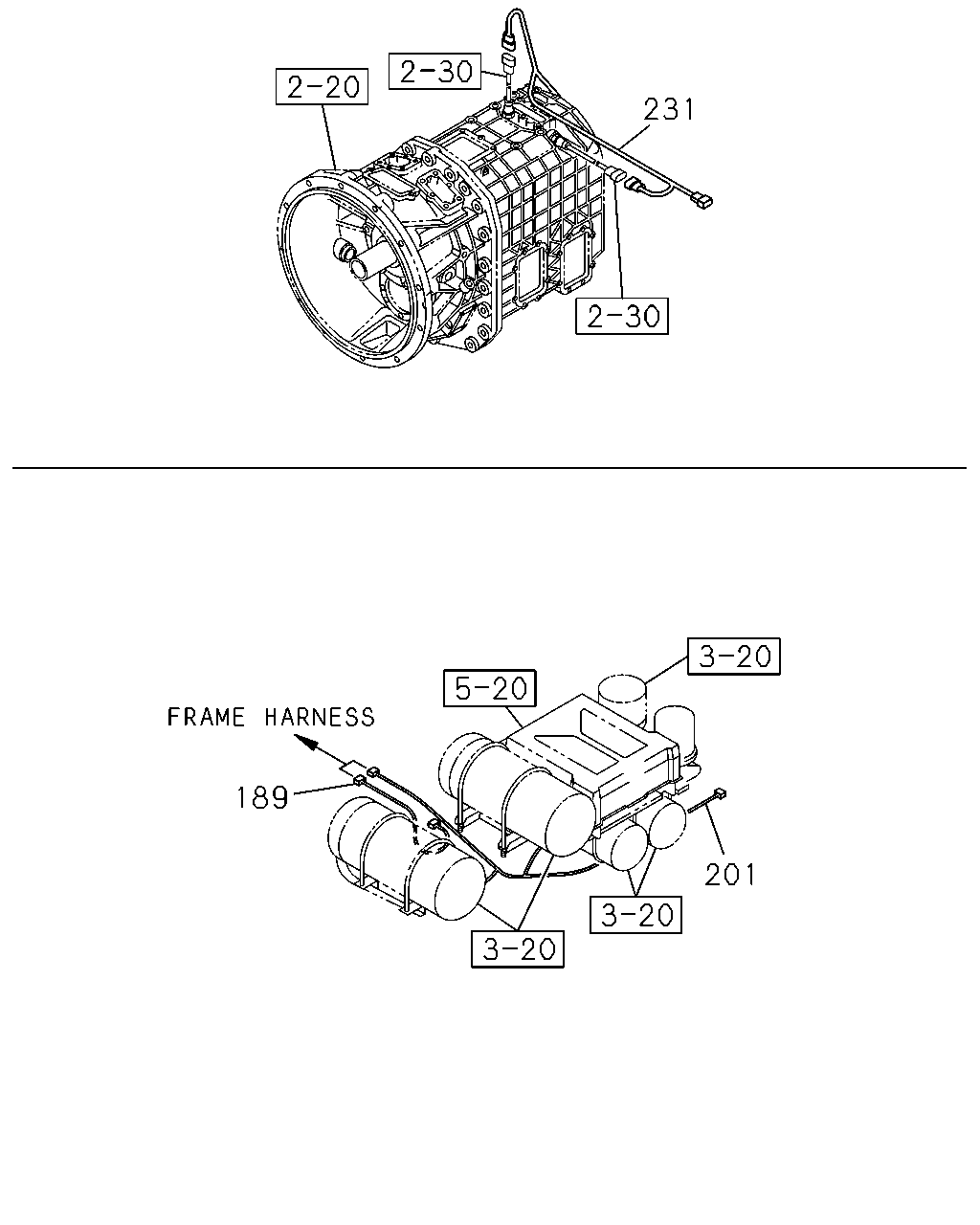

çizim 191945
231 189 201
BalonParca AdiParca NoAdetTipApplied Date A B
189 HARNESS; EXT 1-82671-596-0 01 1 0509- ●
201 HARNESS; AIR TANK 1-82677-377-4 01 1 0410-0511 ● ●
201 HARNESS; AIR TANK 1-82678-222-1 01 1 0512- ● ●
231 HARNESS; TRANS 1-82676-366-4 01 1 0410-0609 ● ●
231 HARNESS; TRANS 8-97615-725-1 01 1 0610- ● ●
