◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#6610) — 145 parça

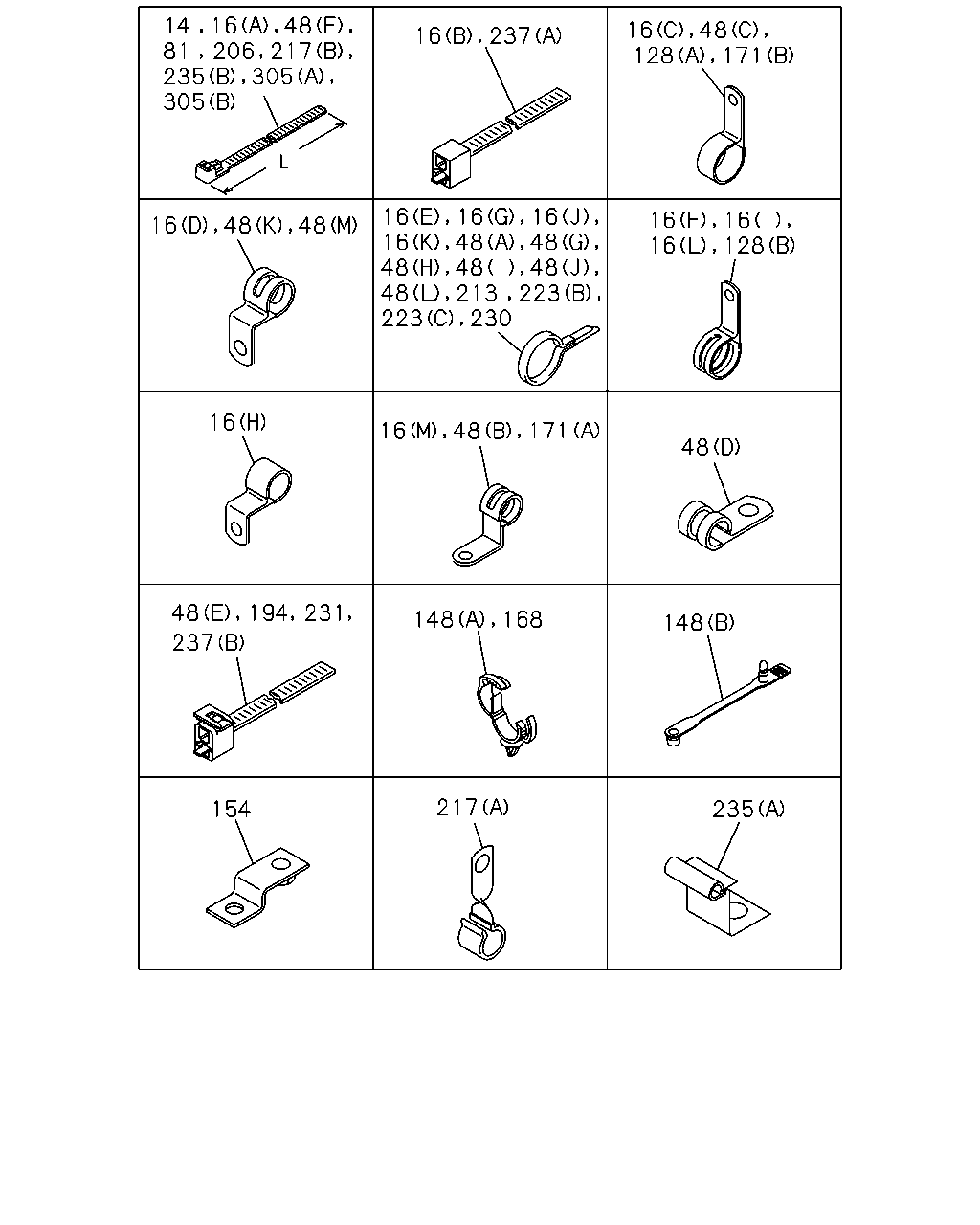

çizim 8050
81 305 128 171 16 16 16 16 16 16 128 16 171 48 48 168 148 148 237 217 154 235 14 16 48 206 217 305 235 16 237 16 48 48 48 223 230 213 48 48 16 48 48 223 48 48 16 16 48 194 231
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0101-
16 CLIP; HARNESS
(E) ID=11 L=41 THA 		1-09700-403-0 03 1 0101-
16 CLIP; HARNESS
(G) ID=28 L=78 THA 		1-09700-858-0 01 1 0101-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0101-
16 CLIP; HARNESS
(F) ID=25 L=50 		1-09701-019-0 01 1 0101-
16 CLIP; HARNESS
(H) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0101-
16 CLIP; HARNESS
(I) ID=24 L=40 		1-09701-139-0 01 1 0101-
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0101-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0101-
16 CLIP; HARNESS
(C) ID=19 L=32 		9-09525-866-0 01 1 0101-
16 CLIP; HARNESS
(J) ID=14 L=44 THA 		9-09917-427-0 03 1 0101-
16 CLIP; HARNESS
(K) ID=20 L=50 THA 		9-09917-430-0 03 1 0101-
16 CLIP; HARNESS
6HH1 STD ENG<65L> (L) ID=24 L=32 THA 		1-09700-766-1 01 1 0101-
16 CLIP; HARNESS
6HH1 STD ENG<65L> (M) ID=25 H=30 L=35 		1-09700-875-0 01 1 0101-
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 THA 		1-09700-484-0 01 1 0101-
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 0101-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 THA 		1-09700-858-0 04 1 0101-
48 CLIP; FRAME HARNESS
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0101-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09700-976-0 01 1 0101-
48 CLIP; FRAME HARNESS
6HE1 TC ENG<57L> (D) ID=25 L=50 		1-09700-976-0 01 1 0101-
48 CLIP; FRAME HARNESS
(E) L=180 THA 		1-09707-162-1 01 1 0101-
48 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 02 1 0101-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 THA 		8-97916-115-0 02 1 0101-
48 CLIP; FRAME HARNESS
(C) ID=19 L=28 		9-09525-856-0 01 1 0101-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 THA 		9-09917-427-0 01 1 0101-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 THA 		9-09917-427-0 01 1 0101-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 02 1 0101-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 02 1 0101-
48 CLIP; FRAME HARNESS
(L) ID=22 L=52 		9-09917-431-0 04 1 0101-
48 CLIP; FRAME HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0101-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 THA 		8-97916-115-0 15 1 0101-0101
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5800MM<58W> (I) ID=20 L=50 THA 		8-97916-115-0 15 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W> (I) ID=20 L=50 THA 		9-09917-430-0 03 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5400MM<54W> (I) ID=20 L=50 THA 		8-97916-115-0 03 1 0101-0101
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W> (I) ID=20 L=50 THA 		8-97916-115-0 03 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5800MM<58W> (I) ID=20 L=50 THA 		9-09917-430-0 15 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5400MM<54W> (I) ID=20 L=50 THA 		8-97916-115-0 04 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5400MM<54W> (I) ID=20 L=50 THA 		9-09917-430-0 04 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5400MM<54W>,WHEEL BASE 6300MM<63W> (I) ID=20 L=50 THA 		8-97916-115-0 16 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5400MM<54W>,WHEEL BASE 6300MM<63W> (I) ID=20 L=50 THA 		9-09917-430-0 16 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> (I) ID=20 L=50 THA 		8-97916-115-0 05 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W> (I) ID=20 L=50 THA 		8-97916-115-0 05 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> (I) ID=20 L=50 THA 		9-09917-430-0 05 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM<63W> (I) ID=20 L=50 THA 		8-97916-115-0 07 1 0101-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM<63W> (I) ID=20 L=50 THA 		9-09917-430-0 07 1 0101-
48 CLIP; FRAME HARNESS
6HE1 TC ENG<57L> (M) ID=24 H=40 L=24 		1-09701-243-0 01 1 0101-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0101-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0101-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0101-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 THA 		8-94232-611-0 01 1 0101-
148 CLIP; BAND,HEADLAMP HARNESS
(A) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0101-
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG<65L> 		1-47465-518-0 01 1 0101-
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0101-
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 THA 		1-09709-178-0 02 1 0101-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0101-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0101-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (B) ID=19 L=28 		9-09525-856-0 01 1 0101-
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0101-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0101-
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0101-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0101-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0101-
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 07 1 0101-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 0101-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0101-
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0101-
231 CLIP; BAND,OIL PRESS
L=180 THA 		1-09707-162-1 01 1 0101-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0101-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0101-
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0101-
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0101-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0101-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0101-
305 CLIP; ENG HARNESS
6HH1 STD ENG<65L> (B) L=250 		5-09707-030-1 02 1 0101-
305 CLIP; ENG HARNESS
6HH1 STD ENG<65L> (B) L=250 		5-09707-030-1 02 1 0101-
çizim 41361
53 59 171 223 470 178 178 224 224 121 312 335 312 530 38 133 139 313 38 116 421 38 88 173 239 239
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0108
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0109-0112
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0101-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201-
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28181-016-0 01 1 0101-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0101-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0201-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0101-0108
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0109-0112
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0109-0112
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0101-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0101-
38 BOLT; CLIP,HARNESS
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0101-
38 BOLT; CLIP,HARNESS
6HE1 TC ENG<57L> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0101-
38 BOLT; CLIP,HARNESS
6HE1 TC ENG<57L> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0101-
38 BOLT; CLIP,HARNESS
6HH1 STD ENG<65L> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0101-
38 BOLT; CLIP,HARNESS
6HH1 STD ENG<65L> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0101-
53 BRACKET; HARNESS 1-47476-812-1 01 1 0101-
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0101-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0101-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0101-
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0101-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0101-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0101-
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0101-
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 THA 		1-09709-178-0 02 1 0101-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0101-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0101-
171 CLIP; STARTER HARNESS
6HE1 TC ENG<57L> (B) ID=19 L=28 		9-09525-856-0 01 1 0101-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0101-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0101-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0101-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0101-
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 07 1 0101-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 0101-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0101-
224 SLEEVE; RUBBER,HARNESS
(A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0101-
224 SLEEVE; RUBBER,HARNESS
6HH1 STD ENG<65L> (B) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0101-
239 BOLT; GRAND
(B) M5X8 THA 		0-20800-508-0 01 1 0101-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0101-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0101-
312 BRACKET; CLIP HARNESS
(A) THA 		1-82699-588-0 01 1 0101-0302
312 BRACKET; CLIP HARNESS
(B) 		1-47478-981-0 01 1 0303-
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0101-
335 BRACKET; CONNECTOR
THA 		1-82698-167-0 01 1 0101-
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 07 1 0101-0101
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 01 1 0102-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0101-
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0102-
çizim 41430
239 133 133 516 520 209 184 210 219 294 524
BalonParca AdiParca NoAdetTipApplied Date
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0101-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0101-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0101-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0101-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0101-
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0101-
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0101-
219 NUT
6HH1 STD ENG<65L> M8 FLANGE 		0-91150-108-0 01 1 0304-
239 BOLT; GRAND
(B) M5X8 THA 		0-20800-508-0 01 1 0101-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0101-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0101-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0101-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0101-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0101-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0101-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0101-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0101-
