◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#661) — 32 parça

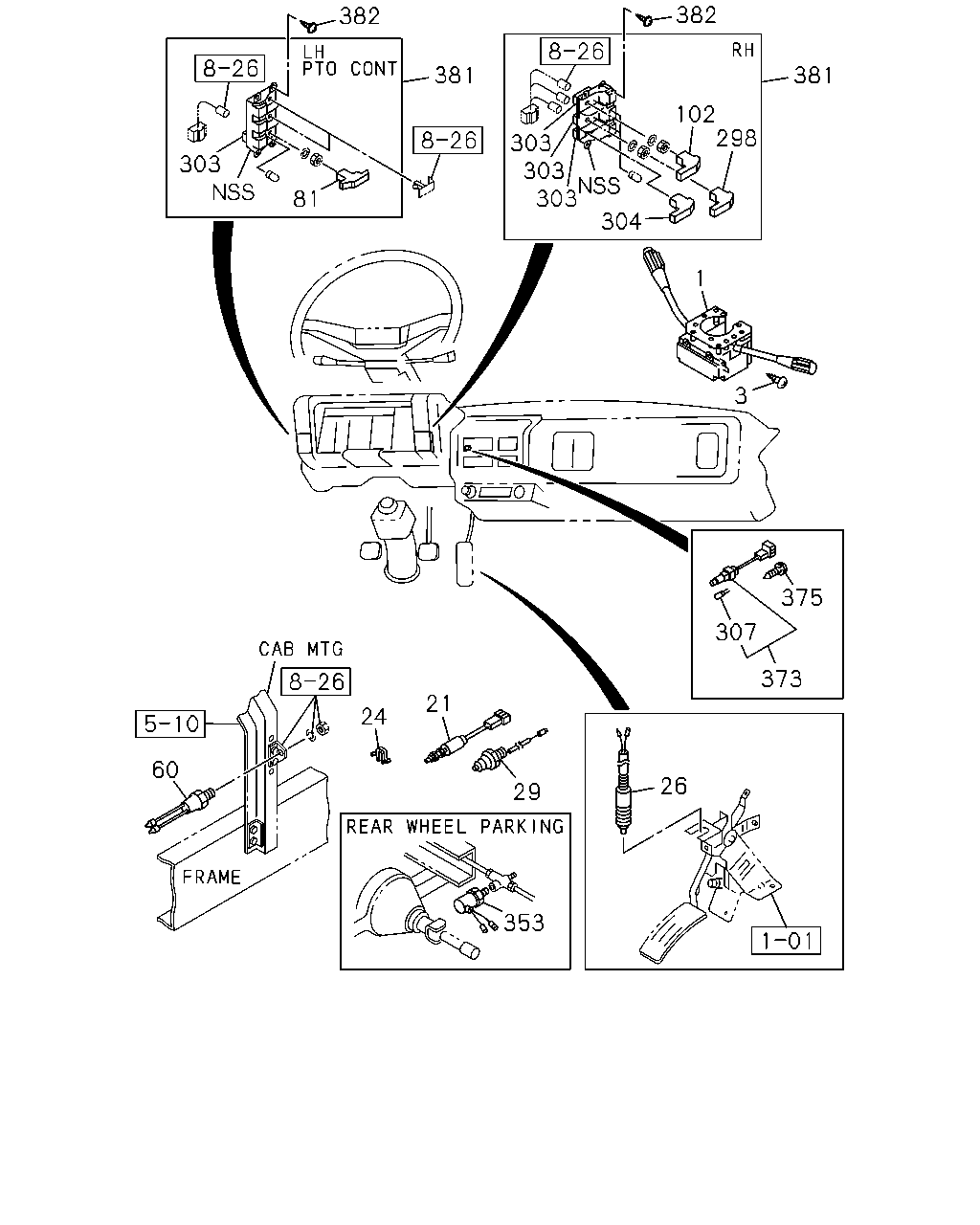

çizim 92584
382 382 381 381 102 298 303 303 303 303 81 304 1 3 375 307 373 21 24 60 26 29 353
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-312-2 01 1 9202-9409 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> 		1-82360-312-2 01 1 9202-9409 ●
1 SWITCH; COMB 1-82360-394-0 01 1 9410- ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> 		1-82360-394-0 01 1 9410- ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8> 		1-82360-326-1 01 1 9202-9409 ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8> 		1-82360-398-0 01 1 9410- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9202-9409 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9410- ● ●
21 SWITCH; CLU 1-82380-009-3 01 1 9202- ●
21 SWITCH; CLU
EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9202- ●
21 SWITCH; CLU
PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9202- ●
24 CLIP; CLU SW,EXH BRK 1-09987-161-0 01 1 9202- ● ●
26 SWITCH; ACCEL 1-82380-009-3 01 1 9202- ●
26 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9202- ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9202- ● ●
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9202- ● ●
81 KNOB ASM; PTO
PTO CONTROL<SV6> 		1-82356-073-0 01 1 9202- ● ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9202- ● ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9202- ● ●
303 SWITCH; MICRO
FOG 		1-82350-091-0 01 1 9202- ● ●
303 SWITCH; MICRO
PARKING 		1-82350-127-0 01 1 9202- ● ●
303 SWITCH; MICRO
HAZARD 		1-82350-181-0 01 1 9202- ● ●
303 SWITCH; MICRO
PTO CONTROL<SV6> PTO 		1-82350-128-0 01 1 9202- ● ●
304 KNOB ASM; HAZARD 1-82356-068-0 01 1 9202- ● ●
307 BULB ASM; SW
AIR CON MANUAL CONTROL(C60) 		1-82194-082-0 01 1 9202- ● ●
353 SWITCH ASM; PARKING BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-138-0 01 1 9202-9502 ●
353 SWITCH ASM; PARKING BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 9503- ●
373 SWITCH; A/C
AIR CON MANUAL CONTROL(C60) 		1-82340-206-0 01 1 9202- ● ●
375 SCREW; A/C SW
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9202- ● ●
381 SWITCH ASM; METER CLUSTER SIDE 1-82350-171-0 01 1 9202- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
PTO CONTROL<SV6> 		1-82350-138-0 01 1 9202- ● ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9202- ● ●
