Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#66098) — 236 parça

206 28 19 49 273 30 1 422 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-455-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-455-2	01	1	0501-0612	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-480-0	01	1	0701-0711	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	8-98097-190-1	01	1	0712-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-456-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-456-2	01	1	0501-0612	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-481-0	01	1	0701-0711	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	8-98097-191-1	01	1	0712-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-393-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0501-0711	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	8-98097-196-0	01	1	0712-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-394-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0501-0711	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	8-98097-197-0	01	1	0712-	●	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0410-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X30 FLANGE	0-28681-030-0	06	1	0410-0512	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X30 FLANGE	0-28651-030-0	06	1	0601-0808	●	●
28	BOLT; HEADLAMP (A) M10X30 FLANGE	0-28651-030-0	06	1	0809-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0410-0808	●	●
28	BOLT; HEADLAMP (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0809-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0410-	●	●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0410-	●	●
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE	0-28680-825-0	02	1	0410-0512	●	●
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; STAY (A) M10X25 FLANGE	0-28681-025-0	04	1	0410-0512	●	●
30	BOLT; STAY (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0410-	●	●
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0410-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0410-0808	●	●
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0809-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0410-0808	●	●
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0809-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0410-0808	●	●
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0809-	●	●
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0410-	●	●
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0410-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-761-3	01	1	0410-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-762-3	01	1	0410-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0410-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0410-	●	●
273	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	04	1	0410-0410	●	●
273	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	04	1	0411-0512	●	●
273	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28680-616-0	08	1	0410-0512	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28650-616-0	08	1	0601-0808	●	●
273	BOLT; BRKT (B) M6X16 FLANGE	0-28650-616-0	08	1	0809-	●	●
422	BRACKET; HEADLAMP STAY (A)	1-82698-568-0	02	1	0410-0510	●	●
422	BRACKET; HEADLAMP STAY (B)	1-82698-605-0	02	1	0511-	●	●

1 12 340 5 14 23 202 202 18 339 338 13 211 13 13 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-455-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-455-2	01	1	0501-0612	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-480-0	01	1	0701-0711	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	8-98097-190-1	01	1	0712-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-456-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-456-2	01	1	0501-0612	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-481-0	01	1	0701-0711	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	8-98097-191-1	01	1	0712-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-393-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0501-0711	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	8-98097-196-0	01	1	0712-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-394-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0501-0711	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	8-98097-197-0	01	1	0712-	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-212-0	01	1	0410-0412	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB>	1-82119-212-0	01	1	0501-	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-213-0	01	1	0410-0412	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB>	1-82119-213-0	01	1	0501-	●	●
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-175-0	01	1	0410-0412	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-175-0	01	1	0410-0412	●	●
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-175-0	01	1	0501-	●	●
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-176-0	01	1	0410-0412	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-176-0	01	1	0410-0412	●	●
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-176-0	01	1	0501-	●	●
5	BULB; HEADLAMP 24V 75/70W	8-94405-657-0	02	1	0410-	●	●
12	HARNESS; HEADLAMP	1-82118-014-0	02	1	0410-	●	●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A)	1-82119-084-0	02	1	0410-0412	●	●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	02	1	0501-0711	●	●
13	CLIP; HEADLAMP (A)	1-82119-084-0	02	1	0712-	●	●
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	04	1	0410-0412	●	●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A)	1-82119-084-0	04	1	0410-0412	●	●
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	04	1	0501-0711	●	●
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	0410-	●	●
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0410-	●	●
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0410-	●	●
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0410-	●	●
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	0410-	●	●
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0410-0711	●	●
211	TUBE; HEADLAMP (B)	8-98101-137-0	01	1	0712-	●	●
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0410-0711	●	●
211	TUBE; HEADLAMP (B)	8-98101-138-0	01	1	0712-	●	●
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0410-0906	●	●
338	LEVELING; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-86830-399-0	02	1	0410-0412	●	●
338	LEVELING; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-86830-399-0	02	1	0501-0509	●	●
338	LEVELING; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98010-256-0	02	1	0510-	●	●
339	GASKET; LEVELING BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-86830-158-0	02	1	0410-0412	●	●
339	GASKET; LEVELING BUMPER W/HEADLAMPS<SLB>	1-86830-158-0	02	1	0501-	●	●
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0410-	●	●

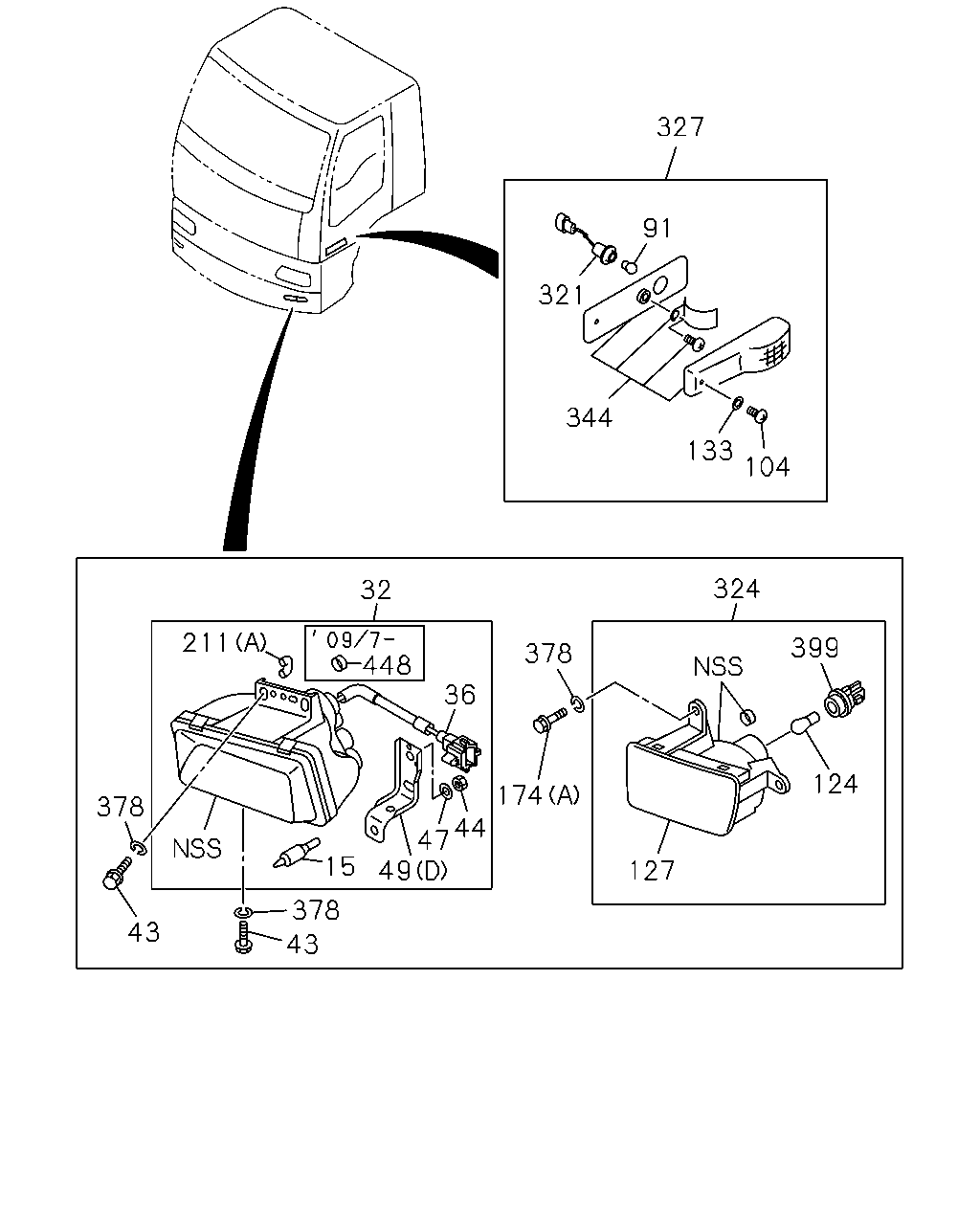

327 91 321 344 104 133 324 399 124 127 174 378 36 32 448 211 44 47 49 15 378 43 43 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BULB; FOG LAMP 24V 70W	1-82194-106-0	02	1	0410-	●	●
32	LAMP ASM; FOG	1-82110-453-0	01	1	0410-0612	●	●
32	LAMP ASM; FOG	1-82110-475-0	01	1	0701-0906	●	●
32	LAMP ASM; FOG	8-98149-149-1	01	1	0907-1301	●	●
32	LAMP ASM; FOG	8-98232-064-1	01	1	1302-	●	●
32	LAMP ASM; FOG	1-82110-454-0	01	1	0410-0612	●	●
32	LAMP ASM; FOG	1-82110-476-0	01	1	0701-0906	●	●
32	LAMP ASM; FOG	8-98149-150-1	01	1	0907-1301	●	●
32	LAMP ASM; FOG	8-98232-065-1	01	1	1302-	●	●
36	CORD; FOG LAMP	1-82118-015-0	01	1	0410-	●	●
36	CORD; FOG LAMP	1-82118-016-0	01	1	0410-	●	●
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50140-620-0	06	1	0410-0512	●	●
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	0601-0601	●	●
43	BOLT; FOG LAMP M6X20 FLANGE	0-28650-620-0	06	1	0602-	●	●
44	NUT; FOG LAMP M6	8-98217-430-0	02	1	1205-	●	●
47	WASHER; PL,FOG LAMP	8-98217-429-0	02	1	1205-	●	●
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0410-	●	●
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0410-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0410-0808	●	●
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0809-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0410-0808	●	●
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0809-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0410-0808	●	●
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0809-	●	●
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0410-	●	●
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0410-	●	●
91	BULB; SIDE TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0410-	●	●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0410-	●	●
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-105-0	02	1	0410-	●	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-073-0	01	1	0410-	●	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-074-0	01	1	0410-	●	●
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0410-	●	●
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0410-0512	●	●
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601	●	●
174	BOLT (A) M6X20 FLANGE	0-28650-620-0	04	1	0602-	●	●
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0410-	●	●
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0410-0711	●	●
211	TUBE; HEADLAMP (B)	8-98101-137-0	01	1	0712-	●	●
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0410-0711	●	●
211	TUBE; HEADLAMP (B)	8-98101-138-0	01	1	0712-	●	●
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0410-0906	●	●
321	HARNESS; SIDE FLASHER LAMP	1-82218-002-0	02	1	0410-	●	●
324	LAMP; FRT FLASHER	1-82210-259-1	01	1	0410-	●	●
324	LAMP; FRT FLASHER	1-82210-260-1	01	1	0410-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	1-82210-227-2	01	1	0410-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	1-82210-228-2	01	1	0410-	●	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-82213-020-0	01	1	0410-	●	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-82213-021-0	01	1	0410-	●	●
378	WASHER; PL ID=6.4 OD=14	9-09160-606-0	04	1	0602-0605	●	●
378	WASHER; PL ID=6.4	0-91610-606-0	04	1	0606-	●	●
378	WASHER; PL ID=6.4 OD=14	9-09160-606-0	06	1	0602-0605	●	●
378	WASHER; PL ID=6.4	0-91610-606-0	06	1	0606-	●	●
399	SOCKET; TURN SIGNAL	1-82219-038-0	02	1	0410-	●	●
448	CAP ASM; LAMP	8-97378-874-0	02	1	0907-	●	●

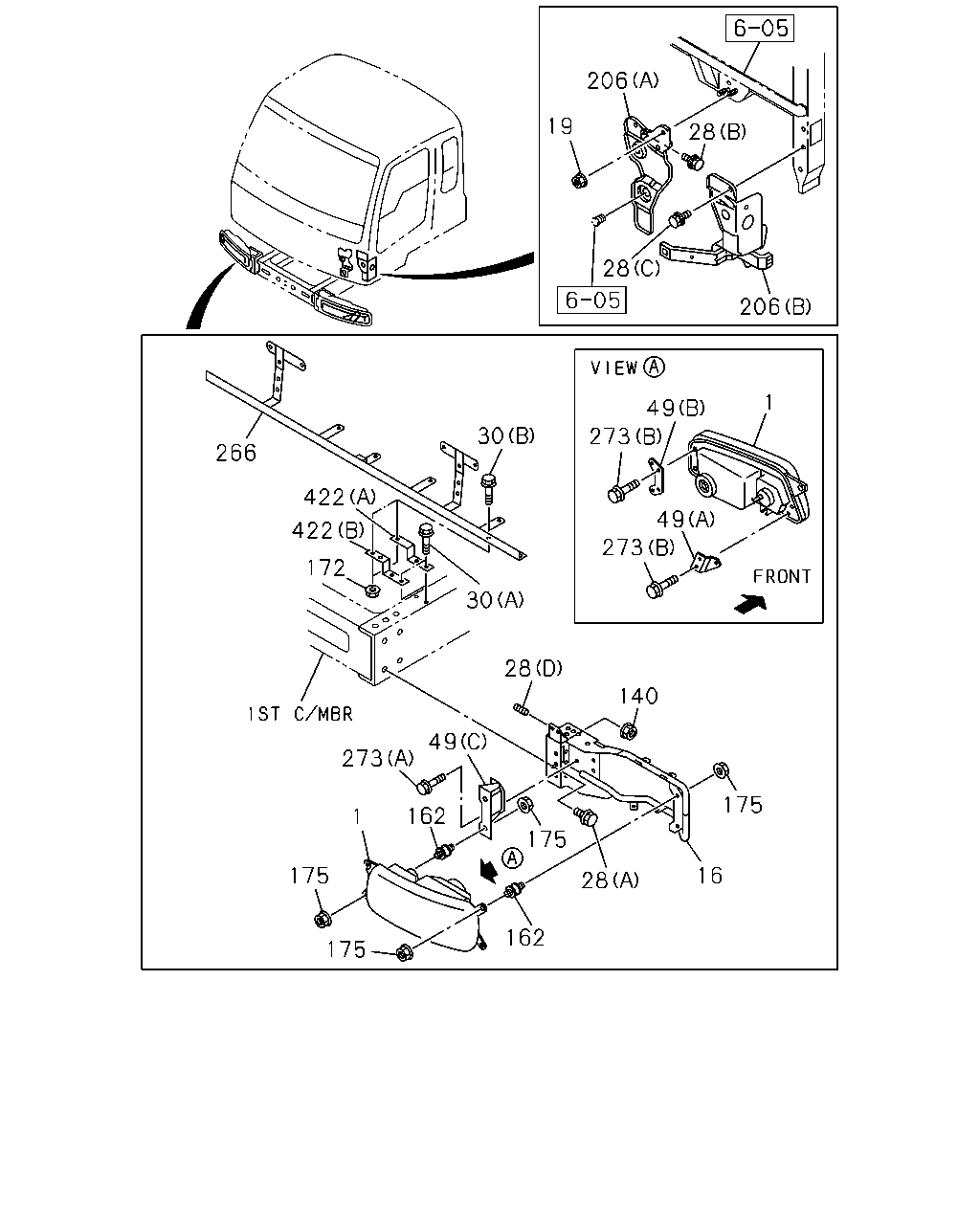

206 19 28 28 206 1 49 30 266 422 422 49 172 30 28 140 49 273 175 12 1 175 175 16 28 162 175 273 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-455-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-455-2	01	1	0501-0612	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-480-0	01	1	0701-0711	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	8-98097-190-1	01	1	0712-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-456-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-456-2	01	1	0501-0612	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-481-0	01	1	0701-0711	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	8-98097-191-1	01	1	0712-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-393-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0501-0711	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	8-98097-196-0	01	1	0712-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-394-2	01	1	0410-0412	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0501-0711	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	8-98097-197-0	01	1	0712-	●	●
12	HARNESS; HEADLAMP	1-82118-014-0	02	1	0410-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-172-2	01	1	0410-0502	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-97608-505-1	01	1	0503-0808	●	●
16	BRACKET; HEADLAMP	8-97608-505-1	01	1	0809-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-173-2	01	1	0410-0502	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-97608-506-2	01	1	0503-0808	●	●
16	BRACKET; HEADLAMP	8-97608-506-2	01	1	0809-	●	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0410-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X30 FLANGE	0-28681-030-0	06	1	0410-0512	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X30 FLANGE	0-28651-030-0	06	1	0601-0808	●	●
28	BOLT; HEADLAMP (A) M10X30 FLANGE	0-28651-030-0	06	1	0809-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0410-0808	●	●
28	BOLT; HEADLAMP (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0809-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0410-	●	●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0410-	●	●
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE	0-28680-825-0	02	1	0410-0512	●	●
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; STAY (A) M10X25 FLANGE	0-28681-025-0	04	1	0410-0512	●	●
30	BOLT; STAY (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0410-	●	●
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0410-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0410-0808	●	●
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0809-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0410-0808	●	●
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0809-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0410-0808	●	●
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0809-	●	●
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0410-	●	●
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0410-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	0410-0602	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	02	1	0603-0808	●	●
140	NUT M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	0410-0808	●	●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0809-	●	●
172	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0410-0602	●	●
172	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0410-0602	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	0603-0808	●	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	0809-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-761-3	01	1	0410-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-762-3	01	1	0410-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0410-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0410-	●	●
266	STAY; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-163-2	01	1	0410-	●	●
273	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	04	1	0410-0410	●	●
273	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	04	1	0411-0512	●	●
273	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28680-616-0	08	1	0410-0512	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28650-616-0	08	1	0601-0808	●	●
273	BOLT; BRKT (B) M6X16 FLANGE	0-28650-616-0	08	1	0809-	●	●
422	BRACKET; HEADLAMP STAY (A)	1-82698-568-0	02	1	0410-0510	●	●
422	BRACKET; HEADLAMP STAY (B)	1-82698-605-0	02	1	0511-	●	●

328 325 185 256 82 81 174 83 80 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BULB; MARKER LAMP 24V 5W	8-94135-397-0	02	1	0410-	●	●
81	SEAT; SCREW	1-82219-012-0	04	1	0410-	●	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	0410-	●	●
83	LENS; MARKER LAMP	1-82215-046-0	02	1	0410-	●	●
84	GASKET; MARKER LAMP	1-86830-288-0	02	1	0410-	●	●
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0410-0512	●	●
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601	●	●
174	BOLT (A) M6X20 FLANGE	0-28650-620-0	04	1	0602-	●	●
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0410-	●	●
185	GROMMET; SCREW M5 SCREW GROMMET	1-09983-131-0	12	1	0410-	●	●
256	LAMP; MARKER	1-86830-242-3	02	1	0410-	●	●
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	9-07066-514-0	12	1	0410-0603	●	●
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	0-71040-514-0	12	1	0604-	●	●
328	COVER; LAMP	1-76217-122-1	03	1	0410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
