Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#66097) — 43 parça

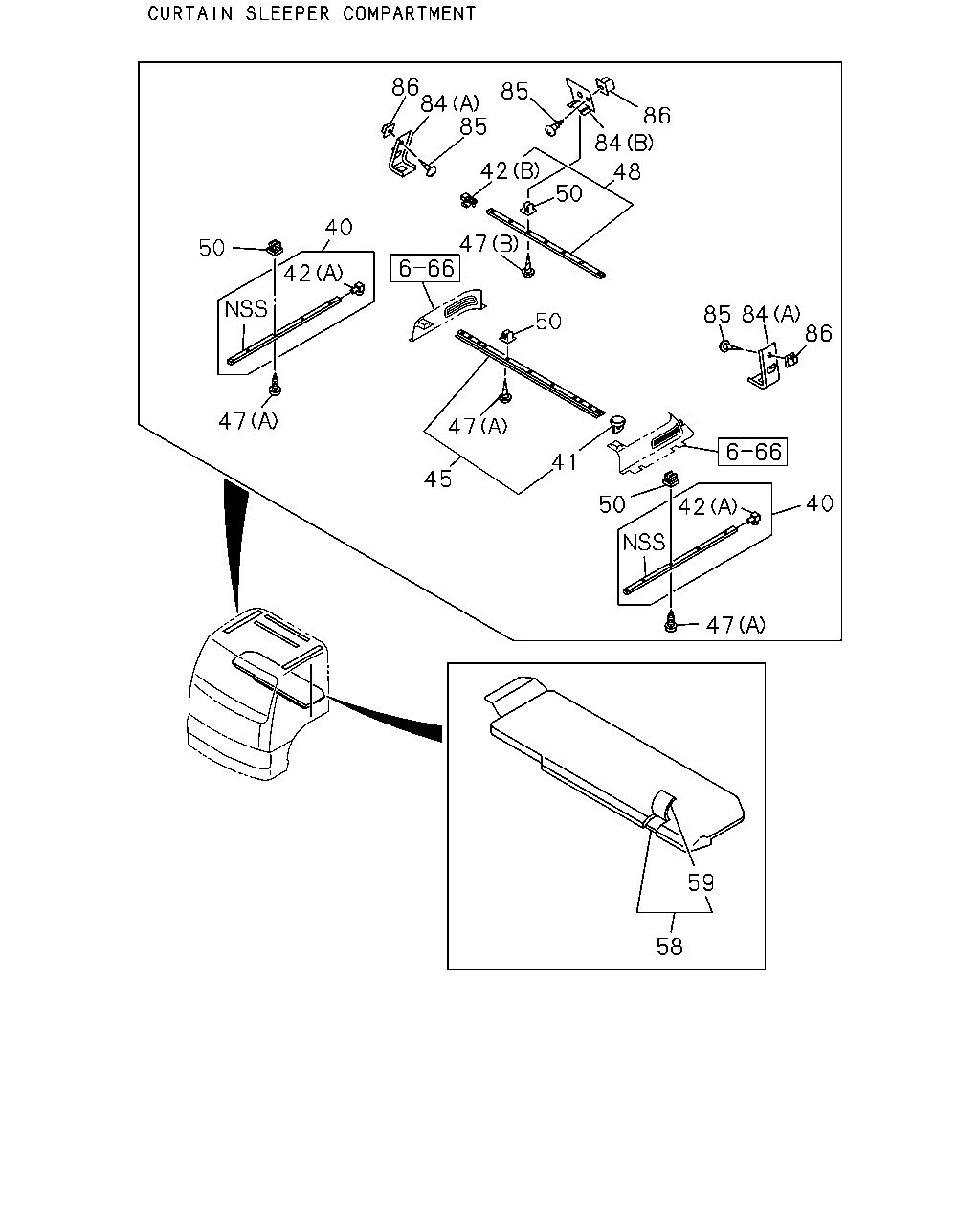

86 84 85 85 86 84 42 48 50 40 47 50 42 84 85 86 50 47 47 41 45 40 50 42 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE	1-73996-378-1	02	1	0410-	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0410-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0410-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0410-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0410-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0410-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	0410-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0410-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	08	1	0410-1002	●	●
47	SCREW; CURTAIN RAIL (B) M5X20	5-09981-059-0	08	1	1003-	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0410-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0410-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	08	1	0410-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0410-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	0410-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	0410-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0410-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0410-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0410-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0410-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0410-	●	●

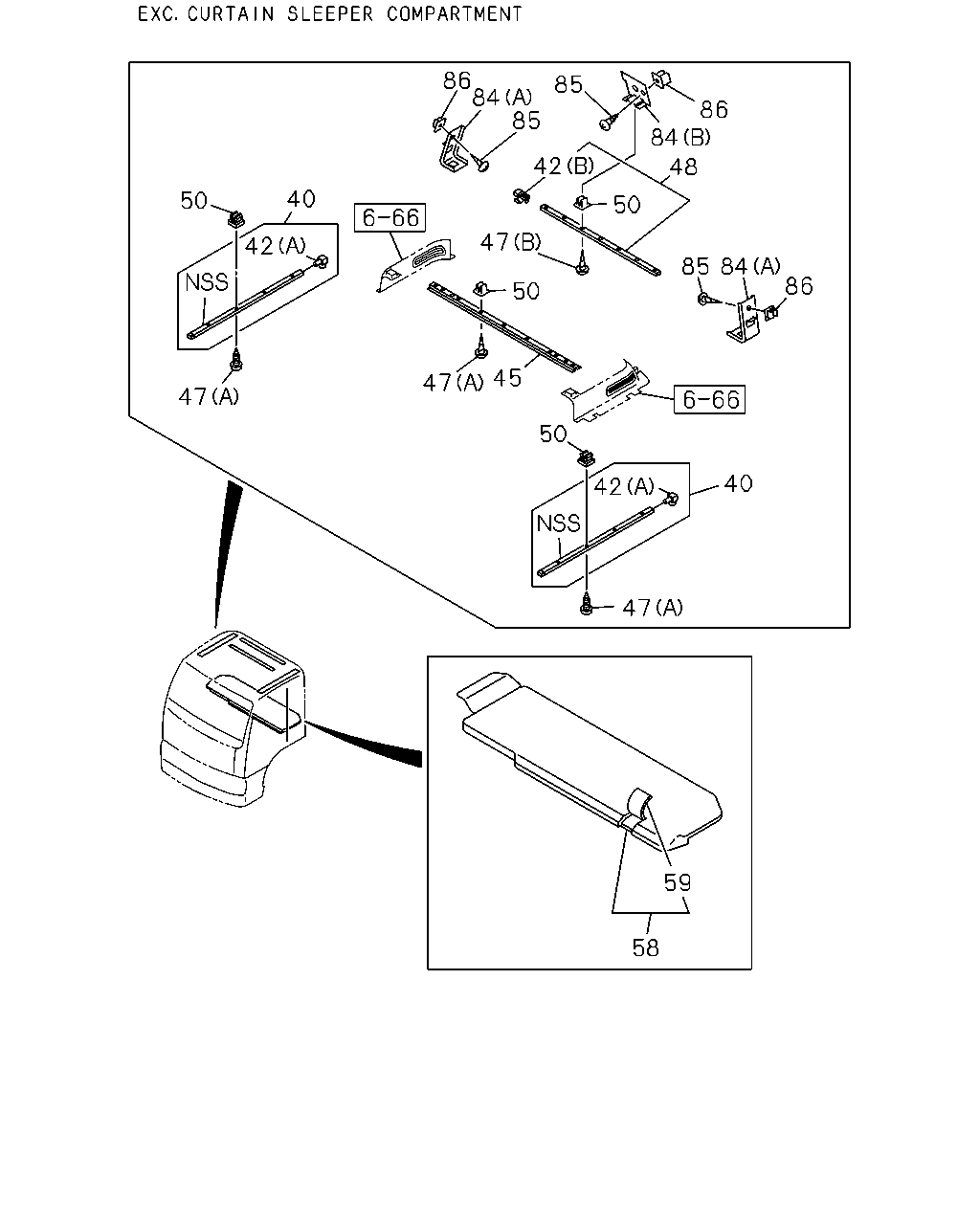

86 84 85 85 86 84 42 48 40 50 50 47 42 85 84 86 50 45 47 47 50 40 42 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE	1-73996-378-1	02	1	0410-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0410-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0410-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0410-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0410-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	0410-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0410-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	08	1	0410-1002	●	●
47	SCREW; CURTAIN RAIL (B) M5X20	5-09981-059-0	08	1	1003-	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0410-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0410-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	08	1	0410-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0410-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	0410-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	0410-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0410-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0410-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0410-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0410-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0410-	●	●

44 44

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	0410-	●	●
	44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	0410-	●	●
