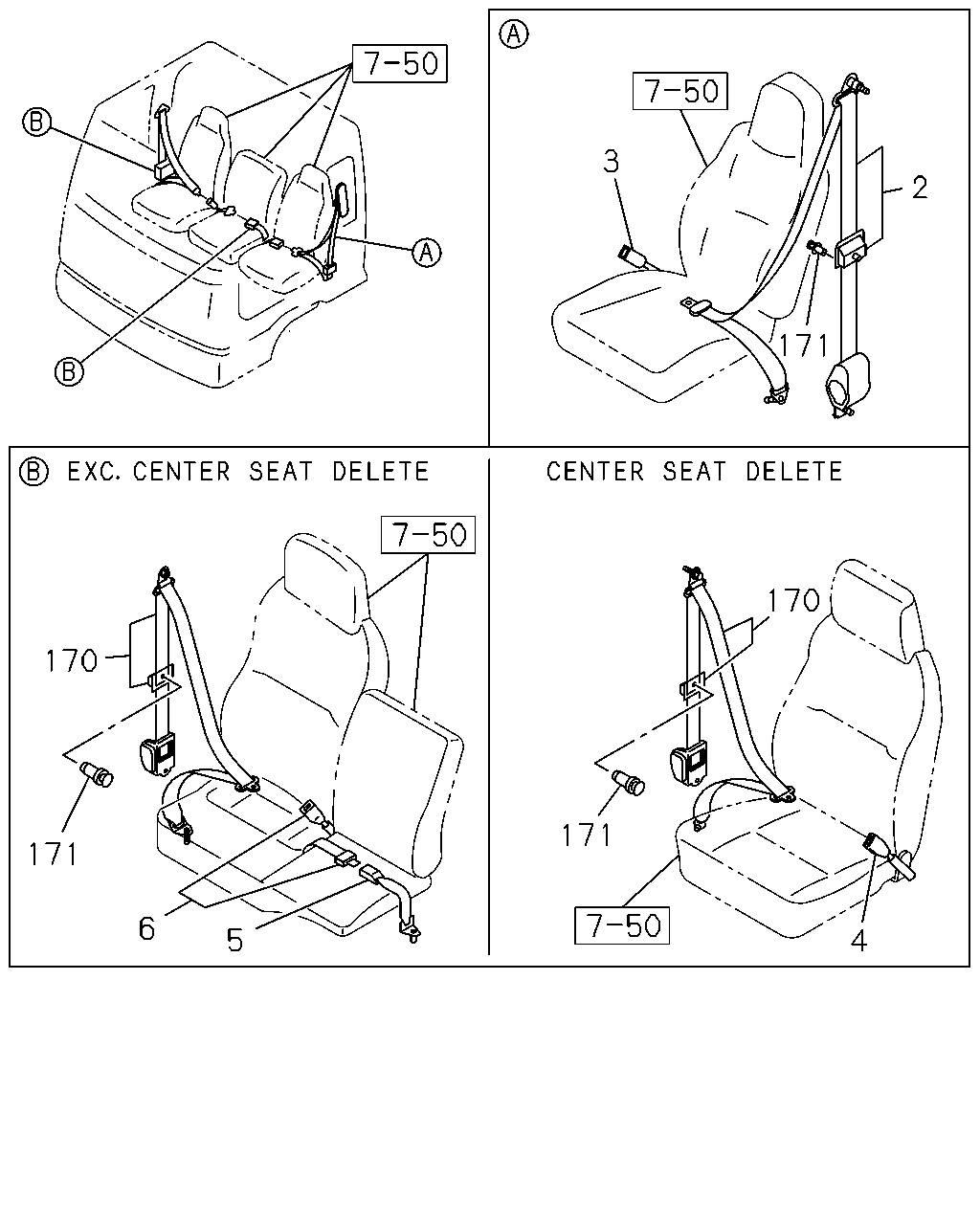

7-60 — SEAT BELT (#66096) — 10 parça

3 2 171 170 170 171 171 4 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE	8-97382-647-3	01	1	0410-	●	●
3	BELT; SEAT,BUCKLE SIDE	1-75618-914-0	01	1	0410-	●	●
4	BELT; PASSENGER SEAT,BUCKLE SIDE CENTER SEAT DELETE(SP9)	1-75618-911-1	01	1	0410-	●	●
5	BELT; CENTER SEAT,BUCKLE SIDE EXC. CENTER SEAT DELETE(SP9)	1-75617-553-1	01	1	0410-0808	●	●
5	BELT; CENTER SEAT,BUCKLE SIDE CENTER SEAT(SA1)	1-75617-553-1	01	1	0809-1310	●	●
5	BELT; CENTER SEAT,BUCKLE SIDE CENTER SEAT(SA1)	8-98184-487-2	01	1	1311-	●	●
6	BELT; CENTER SEAT,TONGUE SIDE EXC. CENTER SEAT DELETE(SP9)	8-97382-652-1	01	1	0410-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE CENTER SEAT(SA1),CENTER SEAT DELETE(SP9)	8-97382-650-2	01	1	0410-	●	●
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	0410-	●	●

169

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

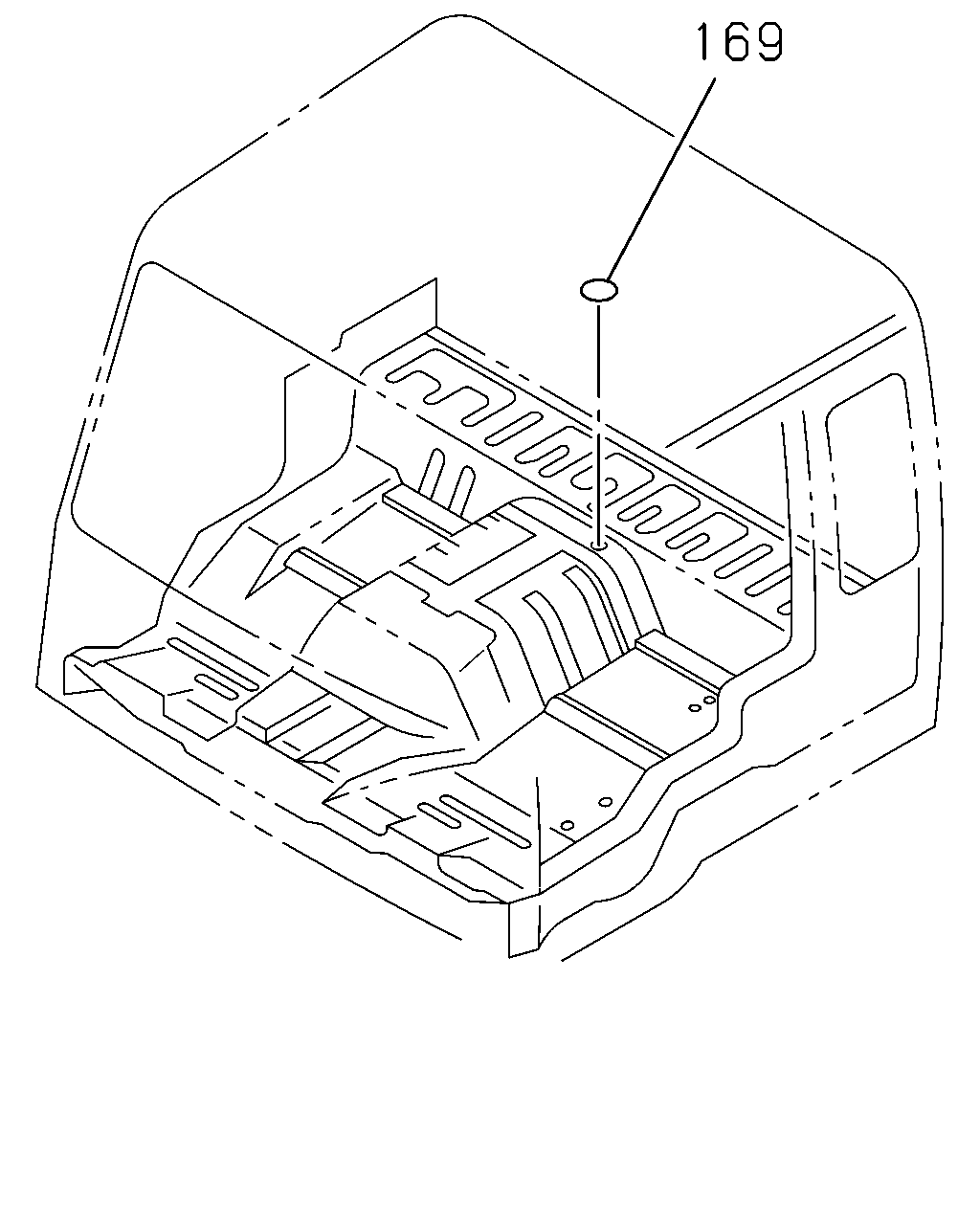

	169	SEAL CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	01	1	0410-	●	●
