Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#66095) — 251 parça

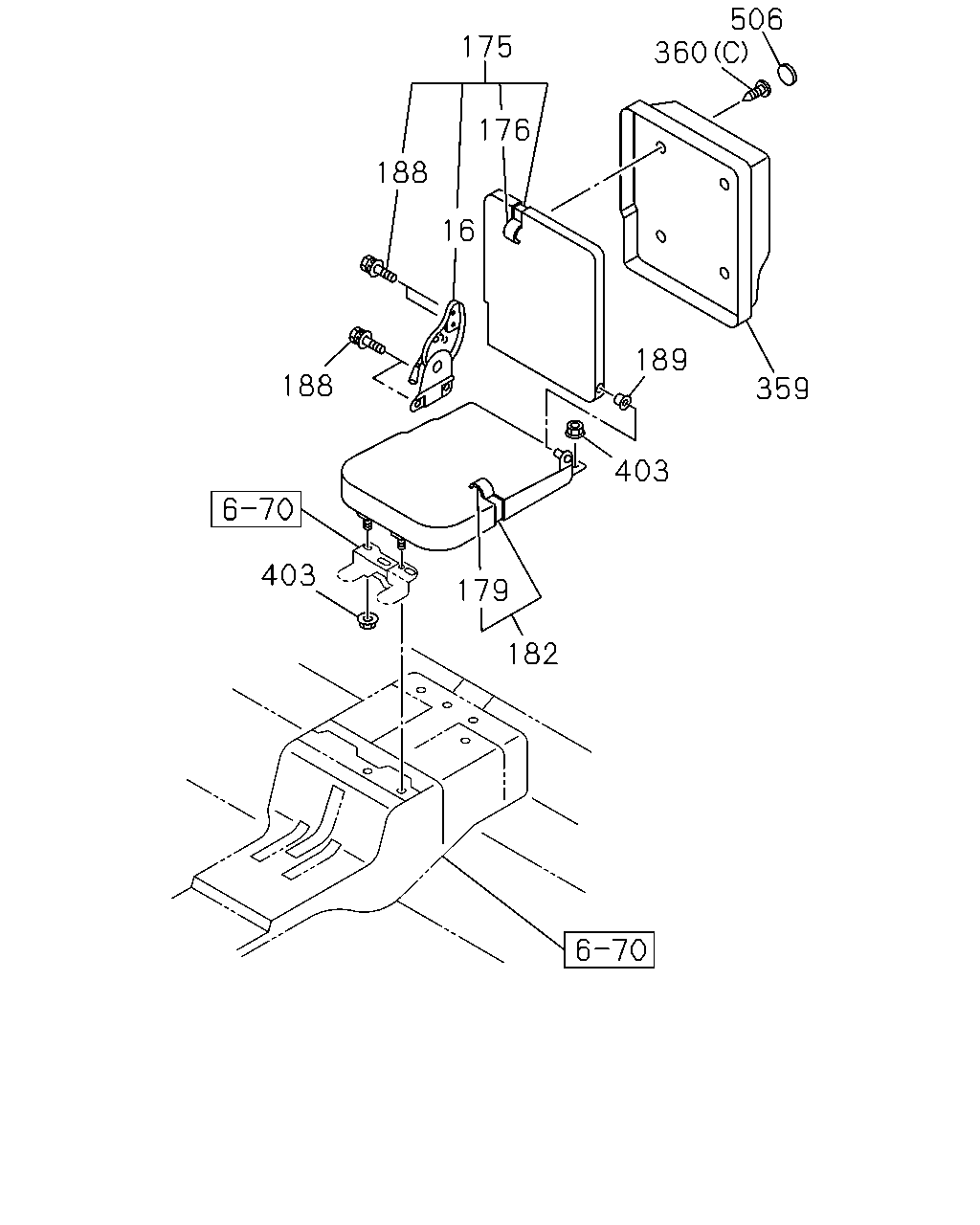

506 360 175 176 188 16 189 188 359 403 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9)	1-75418-062-1	01	1	0410-	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75207-602-2	01	1	0410-0504	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75026-856-3	01	1	0410-0504	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. CENTER SEAT DELETE(SP9)	1-75026-856-3	01	1	0505-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75127-156-1	01	1	0410-0504	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75116-710-1	01	1	0410-0504	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. CENTER SEAT DELETE(SP9)	1-75116-710-1	01	1	0505-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75127-164-0	01	1	0410-0504	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75127-127-1	01	1	0410-0504	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. CENTER SEAT DELETE(SP9)	1-75127-127-1	01	1	0505-	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75207-644-0	01	1	0410-0504	●	●
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75207-009-4	01	1	0410-0504	●	●
182	CUSHION ASM; CENTER SEAT EXC. CENTER SEAT DELETE(SP9)	1-75207-009-4	01	1	0505-	●	●
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0410-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0410-	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-4	01	1	0410-1006	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	8-98145-114-0	01	1	1007-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0410-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0410-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0410-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0410-0703	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	0-91180-108-0	04	1	0704-	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-3	04	1	0410-1006	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-3	02	1	1007-	●	●

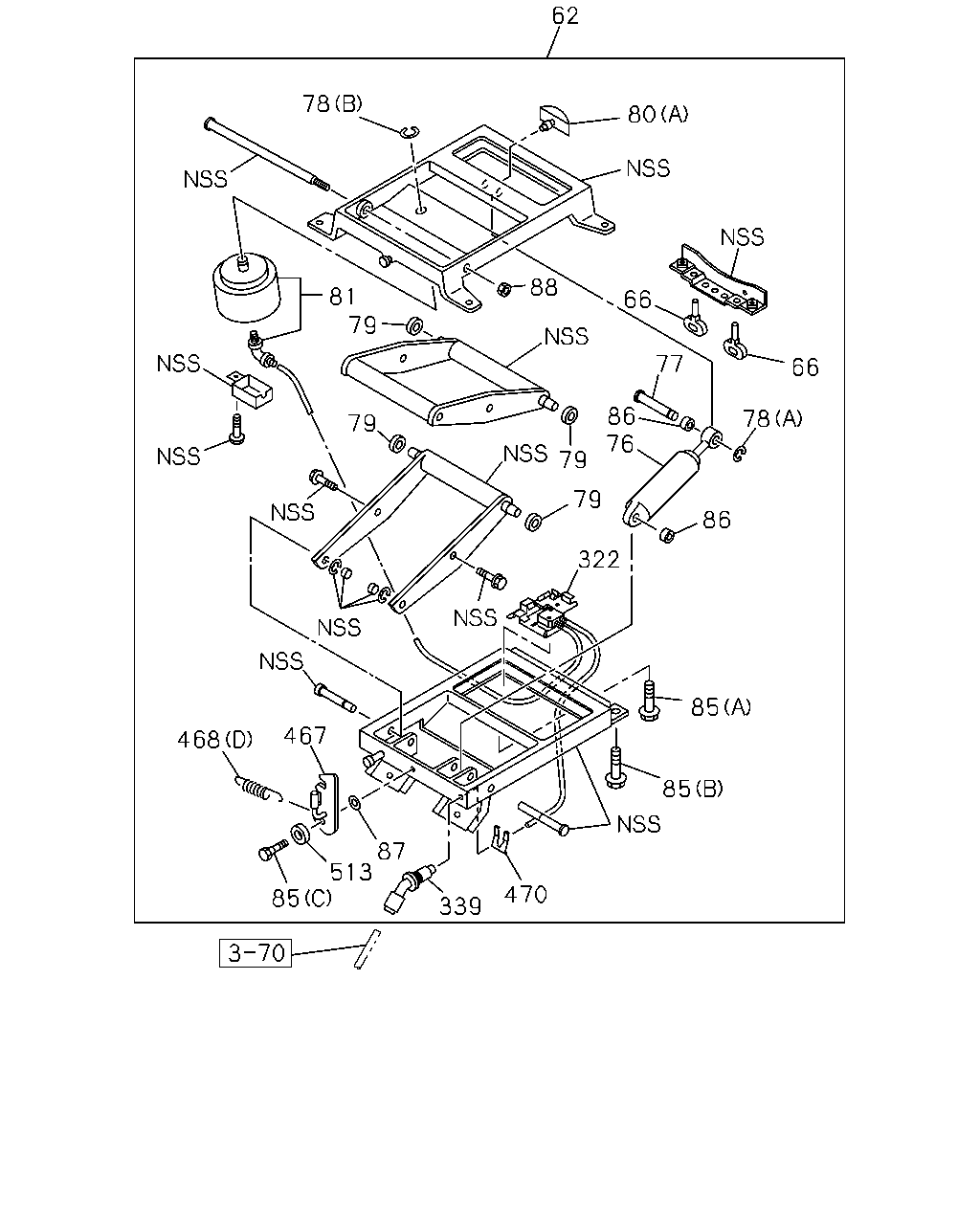

62 78 80 81 79 88 66 77 66 78 86 76 86 322 79 79 79 467 468 85 513 87 339 470 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0410-0504	●	●
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0410-0504	●	●
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0410-0504	●	●
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0410-0504	●	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0410-0504	●	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	0410-0504	●	●
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0410-0504	●	●
80	RUBBER; STOPPER EXC. CENTER SEAT DELETE(SP9) (B)	1-72538-187-0	02	1	1007-	●	●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	0410-0504	●	●
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0410-0504	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0410-0504	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0410-0504	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0410-0504	●	●
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0410-0504	●	●
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0410-0504	●	●
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	0410-0504	●	●
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	0410-0504	●	●
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0410-0504	●	●
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0410-0504	●	●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-206-0	01	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-206-0	01	1	0505-	●	●
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-207-0	01	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-207-0	01	1	0505-	●	●
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (C)	1-75518-208-0	02	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT WO/ARM REST(TAZ) (C)	1-75518-208-0	02	1	0505-	●	●
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0410-0504	●	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0410-0504	●	●

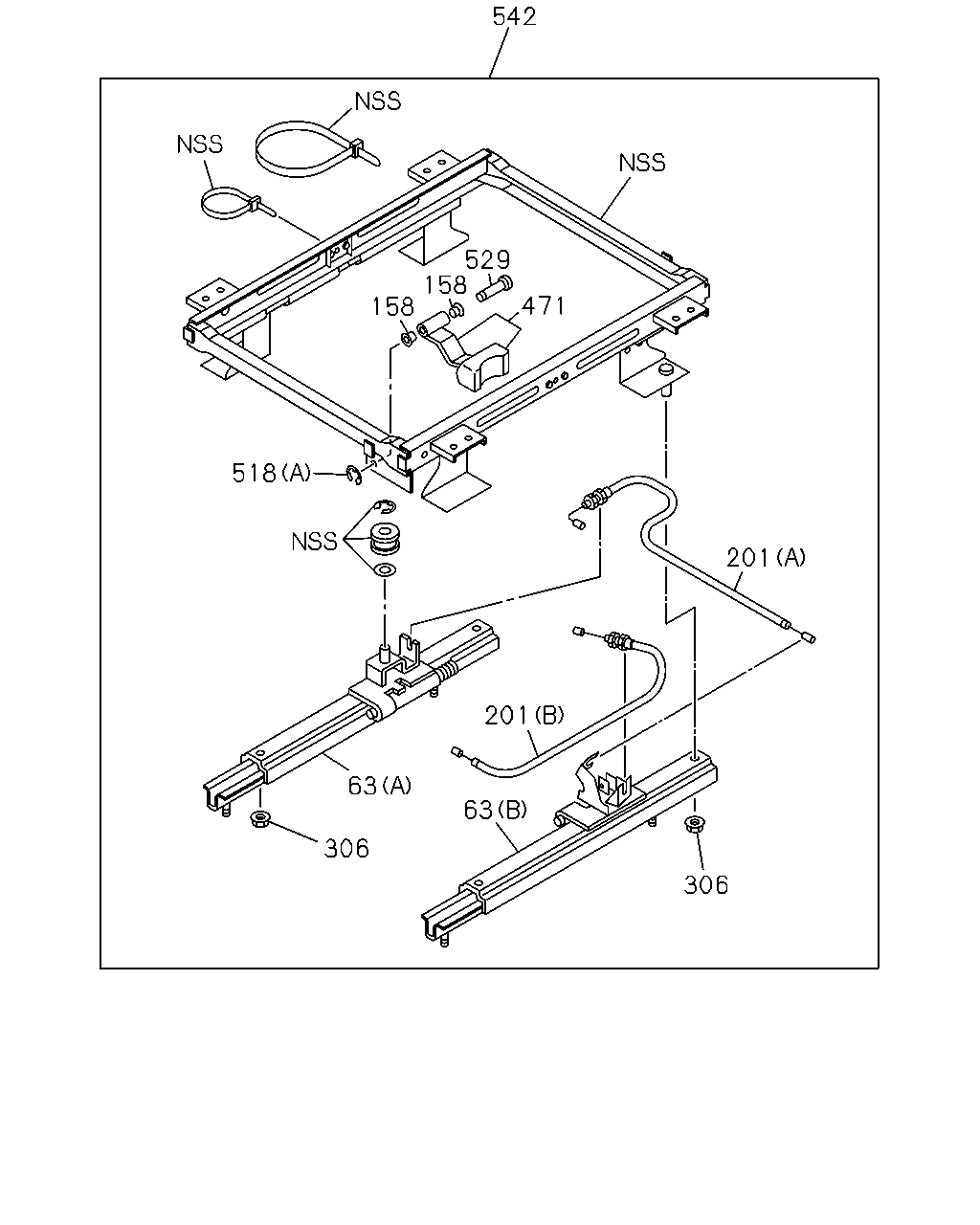

542 529 158 471 158 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	ADJUSTER; SEAT SLIDE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-324-0	01	1	0410-0504	●	●
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-324-0	01	1	0505-	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	0410-	●	●
63	ADJUSTER; SEAT SLIDE EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-295-1	01	1	0410-0504	●	●
63	ADJUSTER; SEAT SLIDE EXC. RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-295-1	01	1	0505-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0410-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0410-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0410-	●	●
306	NUT; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	14	1	0410-0504	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	14	1	0505-	●	●
306	NUT; SEAT ADJ EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	12	1	0410-0504	●	●
306	NUT; SEAT ADJ EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	12	1	0505-	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0410-0710	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-	●	●
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-264-0	04	1	0410-0504	●	●
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-264-0	04	1	0505-	●	●
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT	5-09984-020-0	02	1	0410-0504	●	●
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT	5-09984-020-0	02	1	0505-	●	●
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (C) M8 FLANGE	8-94152-886-0	04	1	0410-0504	●	●
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (C) M8 FLANGE	8-94152-886-0	04	1	0505-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0410-	●	●
529	PIN; LINK	1-75518-262-0	01	1	0410-	●	●
542	ADJUSTER ASM; SEAT SLIDE EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-283-3	01	1	0410-0504	●	●
542	ADJUSTER ASM; SEAT SLIDE EXC. RIGID SEAT WO/ARM REST(TAZ)	1-75518-283-3	01	1	0505-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE EXC. RIGID SEAT WO/ARM REST(TAZ)	8-98291-656-0	01	1	1503-	●	●

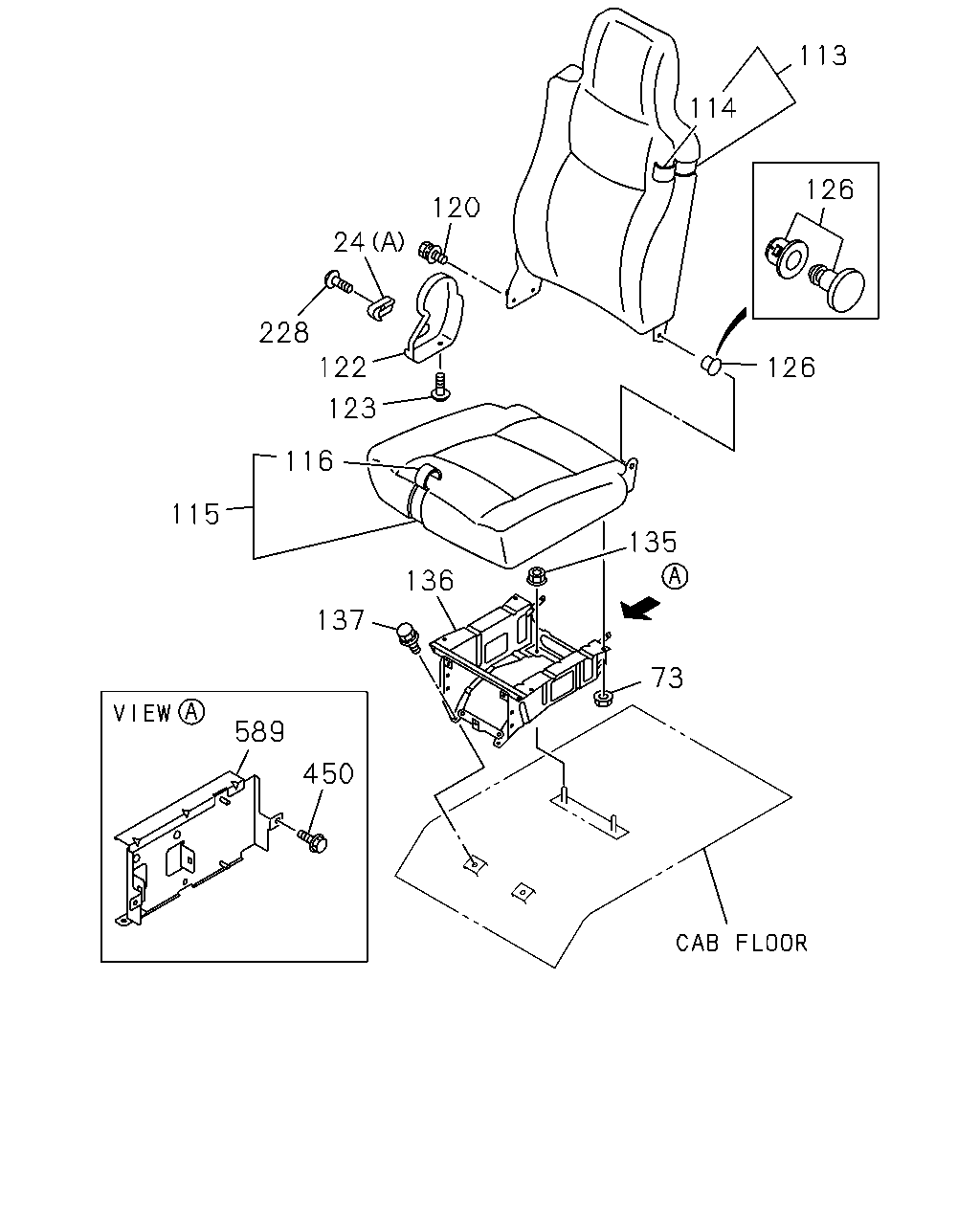

113 114 126 120 24 228 122 126 123 116 115 135 136 137 73 589 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0410-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0410-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0410-	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-654-1	01	1	0410-0504	●	●
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75208-241-2	01	1	0410-0504	●	●
113	BACK ASM; SEAT	1-75208-241-2	01	1	0505-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-173-0	01	1	0410-0504	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-742-1	01	1	0410-0504	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-742-1	01	1	0505-	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-642-0	01	1	0410-0504	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-367-1	01	1	0410-0504	●	●
115	CUSHION ASM; PASSENGER SEAT	1-75207-367-1	01	1	0505-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-162-0	01	1	0410-0504	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-133-1	01	1	0410-0504	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75127-133-1	01	1	0505-	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0410-	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0410-	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0410-	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0410-	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0410-0703	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0410-1305	●	●
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1306-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0410-0703	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0410-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0410-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
450	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0410-0703	●	●
450	BOLT; BRKT M6X16	0-52000-616-0	03	1	0704-	●	●
589	BRACKET; SEAT STAND	1-75557-514-0	01	1	0410-	●	●

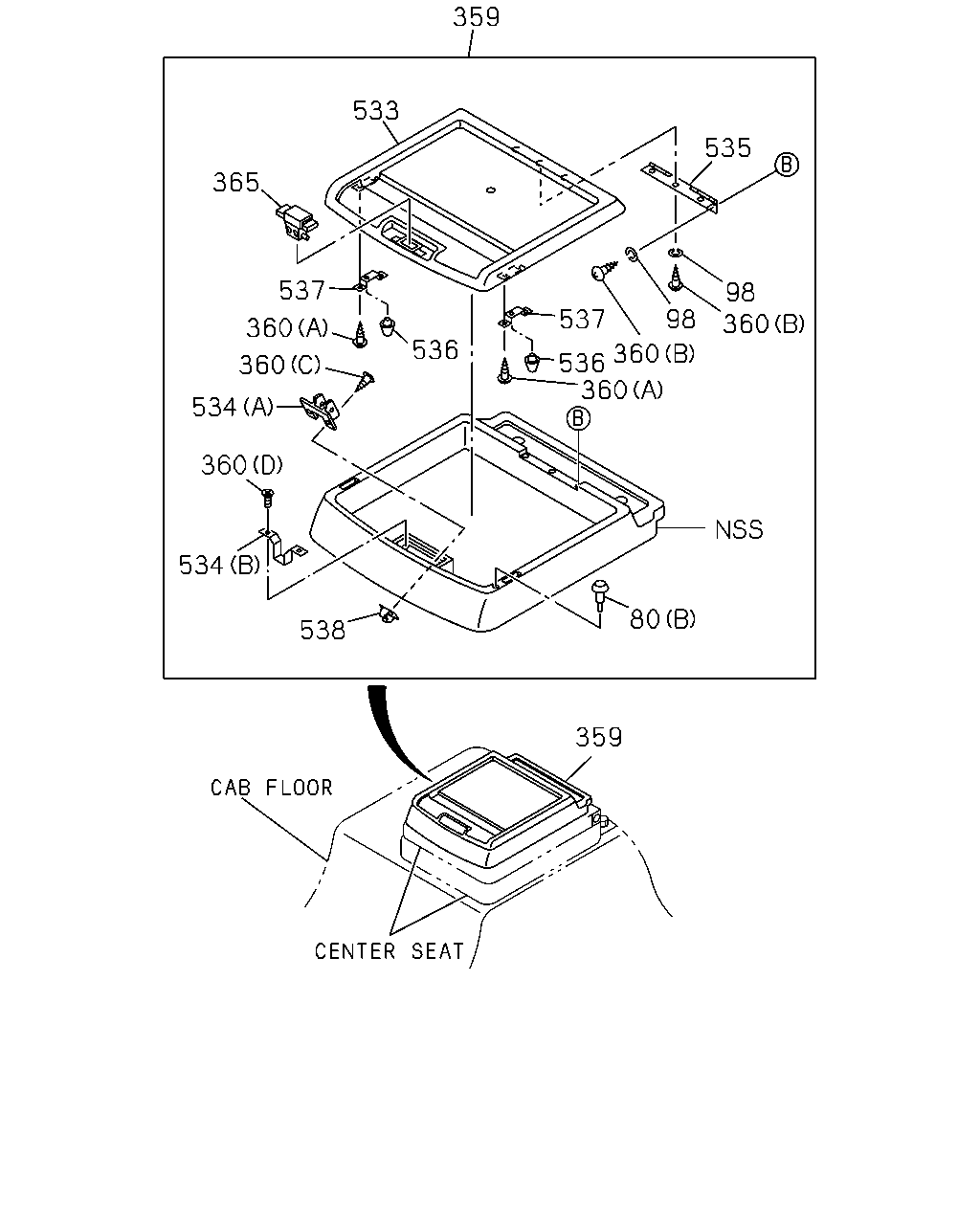

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	RUBBER; STOPPER EXC. CENTER SEAT DELETE(SP9) (B)	1-72538-187-0	02	1	1007-	●	●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	0410-0504	●	●
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0410-	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-4	01	1	0410-1006	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	8-98145-114-0	01	1	1007-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0410-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0410-0612	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0410-1006	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0410-	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-1	01	1	0410-1006	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	8-98145-118-0	01	1	1007-	●	●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9) (A)	1-72538-181-0	01	1	0410-1006	●	●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9) (B)	1-72538-190-0	01	1	1007-	●	●
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0410-	●	●
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0410-1006	●	●
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0410-1006	●	●
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0410-1006	●	●

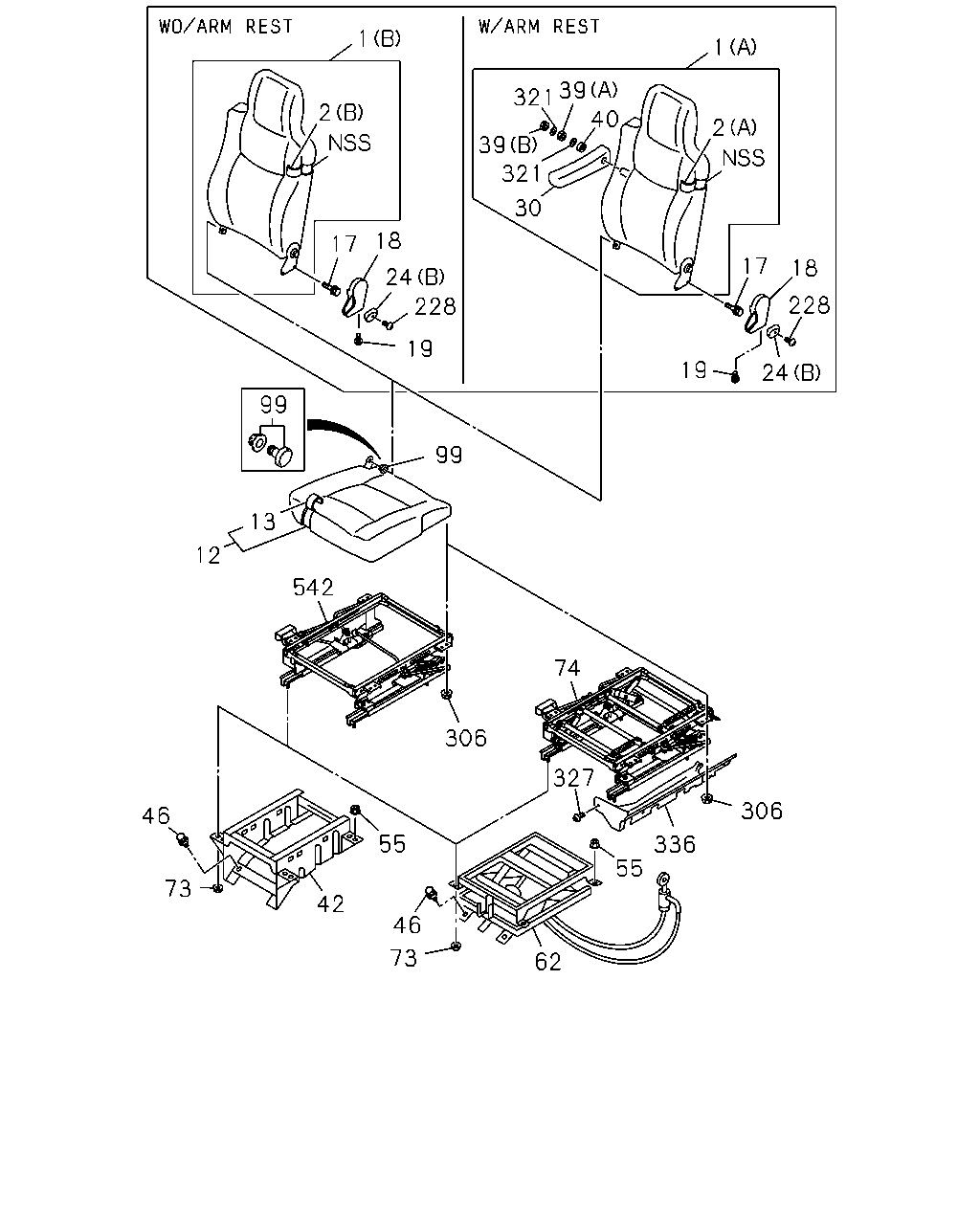

1 1 39 321 2 40 2 39 321 30 18 17 17 18 24 228 228 19 19 24 99 99 13 12 542 74 306 327 306 46 55 336 55 73 42 46 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75207-648-1	01	1	0410-0504	●	●
1	BACK ASM; SEAT EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75207-728-2	01	1	0410-0504	●	●
1	BACK ASM; SEAT (B)	1-75207-728-2	01	1	0505-0901	●	●
1	BACK ASM; SEAT (B)	8-98135-638-0	01	1	0902-	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75127-167-0	01	1	0410-0504	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75127-183-1	01	1	0410-0504	●	●
2	COVER; TRIM,FRT SEAT,BACK (B)	1-75127-183-1	01	1	0505-	●	●
12	CUSHION; SEAT,FRT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-640-1	01	1	0410-0504	●	●
12	CUSHION; SEAT,FRT EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-006-3	01	1	0410-0504	●	●
12	CUSHION; SEAT,FRT	1-75207-006-3	01	1	0505-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-160-1	01	1	0410-0504	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-104-1	01	1	0410-0504	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75127-104-1	01	1	0505-	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0410-	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0410-	●	●
19	SCREW; COVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	0410-0504	●	●
19	SCREW; COVER RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	0505-	●	●
19	SCREW; COVER EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0410-0504	●	●
19	SCREW; COVER EXC. RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0505-	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0410-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0410-	●	●
30	REST ASM; ARM,FRT SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-175-0	01	1	0410-0504	●	●
39	NUT; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0410-0504	●	●
39	NUT; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0410-0504	●	●
40	SPACER; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0410-0504	●	●
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0410-0504	●	●
42	STAND; DRIVER SEAT	1-75558-604-2	01	1	0505-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0410-0703	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0410-0703	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0410-0504	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0410-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-331-1	01	1	0410-0504	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ)	1-75518-331-3	01	1	0505-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ)	8-98291-646-0	01	1	1503-	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0410-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0410-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0410-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
306	NUT; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	14	1	0410-0504	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	14	1	0505-	●	●
306	NUT; SEAT ADJ EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	12	1	0410-0504	●	●
306	NUT; SEAT ADJ EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	12	1	0505-	●	●
321	WASHER; PL,ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0410-0504	●	●
321	WASHER; PL,ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0410-0504	●	●
327	CLIP; COVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-09987-273-0	01	1	0410-0504	●	●
327	CLIP; COVER RIGID SEAT WO/ARM REST(TAZ)	1-09987-273-0	01	1	0505-	●	●
336	COVER; DRIVER SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-313-0	01	1	0410-0504	●	●
336	COVER; DRIVER SEAT RIGID SEAT WO/ARM REST(TAZ)	1-75518-313-0	01	1	0505-	●	●
542	ADJUSTER ASM; SEAT SLIDE EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-283-3	01	1	0410-0504	●	●
542	ADJUSTER ASM; SEAT SLIDE EXC. RIGID SEAT WO/ARM REST(TAZ)	1-75518-283-3	01	1	0505-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE EXC. RIGID SEAT WO/ARM REST(TAZ)	8-98291-656-0	01	1	1503-	●	●

302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-325-1	04	1	0410-0504	●	●
51	SCREW; COVER RIGID SEAT WO/ARM REST(TAZ)	1-75518-325-1	04	1	0505-	●	●
63	ADJUSTER; SEAT SLIDE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-324-0	01	1	0410-0504	●	●
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-324-0	01	1	0505-	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	0410-	●	●
63	ADJUSTER; SEAT SLIDE EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-295-1	01	1	0410-0504	●	●
63	ADJUSTER; SEAT SLIDE EXC. RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-295-1	01	1	0505-	●	●
72	SPACER; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-334-1	02	1	0410-0504	●	●
72	SPACER; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ)	1-75518-334-1	02	1	0505-1502	●	●
72	SPACER; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ)	8-98291-668-0	02	1	1503-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-331-1	01	1	0410-0504	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ)	1-75518-331-3	01	1	0505-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ)	8-98291-646-0	01	1	1503-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0410-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0410-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0410-	●	●
278	COLLAR; FRT SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-244-0	03	1	0410-0504	●	●
278	COLLAR; FRT SEAT RIGID SEAT WO/ARM REST(TAZ)	1-75518-244-0	03	1	0505-	●	●
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (C)	1-75518-266-2	02	1	0410-0504	●	●
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ) (C)	1-75518-266-2	02	1	0505-	●	●
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-270-1	04	1	0410-0504	●	●
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-270-1	04	1	0505-1502	●	●
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ) (A)	8-98291-667-0	04	1	1503-	●	●
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-336-1	02	1	0410-0504	●	●
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-336-1	02	1	0505-	●	●
306	NUT; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	14	1	0410-0504	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	14	1	0505-	●	●
306	NUT; SEAT ADJ EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	12	1	0410-0504	●	●
306	NUT; SEAT ADJ EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	12	1	0505-	●	●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-206-0	01	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-206-0	01	1	0505-	●	●
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-207-0	01	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-207-0	01	1	0505-	●	●
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (C)	1-75518-208-0	02	1	0410-0504	●	●
468	SPRING; RETURN RIGID SEAT WO/ARM REST(TAZ) (C)	1-75518-208-0	02	1	0505-	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0410-0710	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-	●	●
512	COVER; LEVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-245-1	02	1	0410-0504	●	●
512	COVER; LEVER RIGID SEAT WO/ARM REST(TAZ)	1-75518-245-1	02	1	0505-	●	●
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-264-0	04	1	0410-0504	●	●
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-264-0	04	1	0505-	●	●
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT	5-09984-020-0	02	1	0410-0504	●	●
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT	5-09984-020-0	02	1	0505-	●	●
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (C) M8 FLANGE	8-94152-886-0	04	1	0410-0504	●	●
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (C) M8 FLANGE	8-94152-886-0	04	1	0505-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0410-	●	●
529	PIN; LINK	1-75518-262-0	01	1	0410-	●	●
532	LEVER ASM; TILT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-221-0	01	1	0410-0504	●	●
532	LEVER ASM; TILT RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-221-0	01	1	0505-	●	●
532	LEVER ASM; TILT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-222-1	01	1	0410-0504	●	●
532	LEVER ASM; TILT RIGID SEAT WO/ARM REST(TAZ) (B)	1-75518-222-1	01	1	0505-	●	●
543	WASHER; HEIGHT ADJUSTER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4	9-09160-508-0	04	1	0410-0504	●	●
543	WASHER; HEIGHT ADJUSTER RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4	9-09160-508-0	04	1	0505-	●	●
543	WASHER; HEIGHT ADJUSTER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-335-0	02	1	0410-0504	●	●
543	WASHER; HEIGHT ADJUSTER RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-335-0	02	1	0505-1502	●	●
543	WASHER; HEIGHT ADJUSTER RIGID SEAT WO/ARM REST(TAZ) (A)	8-98291-669-0	02	1	1503-	●	●
551	SLIDER; HEIGHT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),RIGID SEAT WO/ARM REST(TAZ)	1-75518-265-0	04	1	0410-0504	●	●
551	SLIDER; HEIGHT ADJ RIGID SEAT WO/ARM REST(TAZ)	1-75518-265-0	04	1	0505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
