◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11013 - CXZ LHD WEDGE BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#66090) — 127 parça

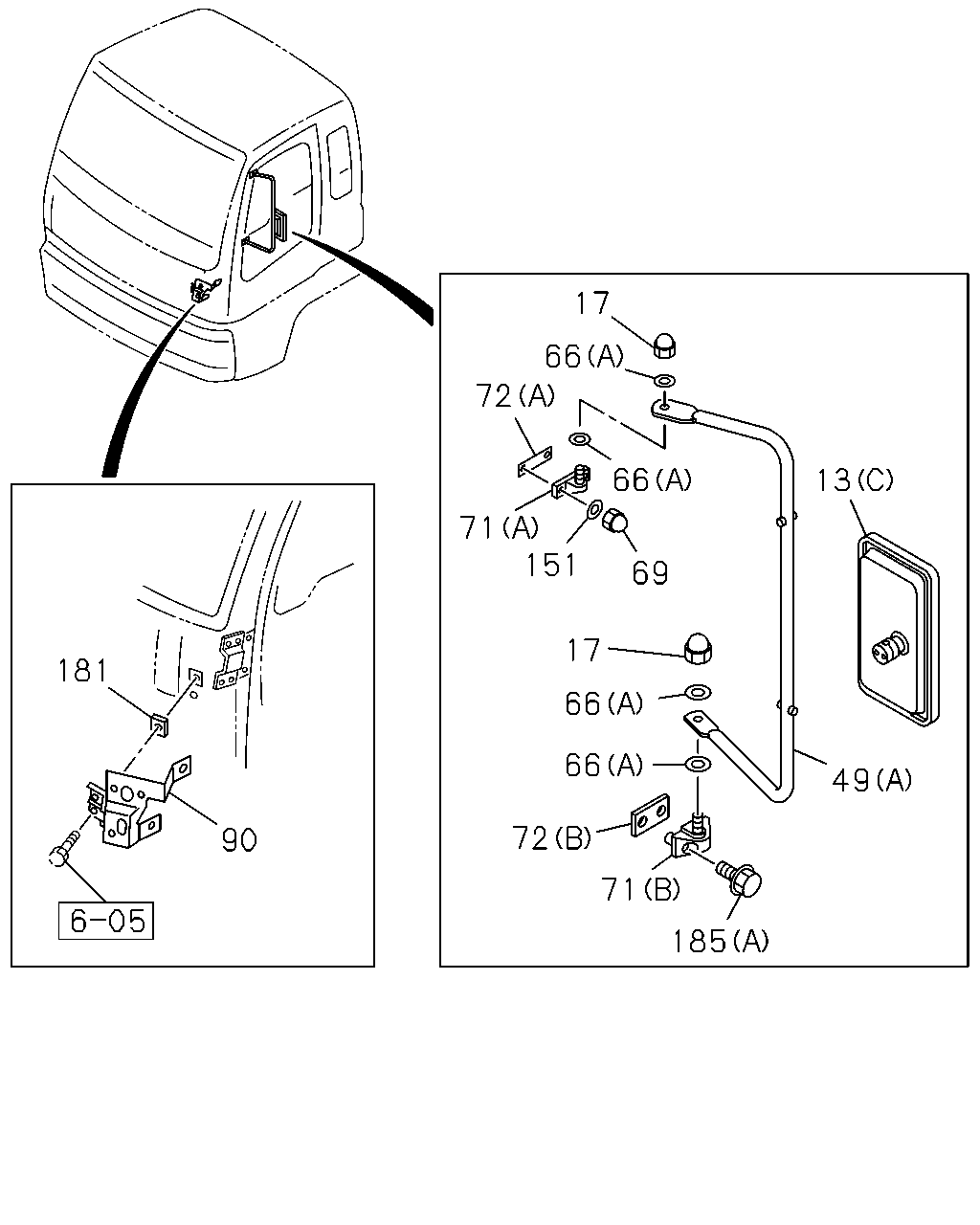

çizim 132833
17 66 72 66 13 71 151 69 17 181 66 66 49 72 90 71 185
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71707-161-2 01 1 0410-0711 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71707-235-0 01 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-861-1 01 1 0410-0711 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-895-0 01 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-97094-318-1 01 1 0410-0603 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-98037-582-0 01 1 0604-0611 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-98051-644-0 01 1 0612- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 05 1 0410-0703 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0704- ● ●
49 STAY; MIRROR SIDE
(B) 		1-71707-162-0 01 1 0410-0410 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71707-167-1 01 1 0410- ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-868-1 01 1 0410- ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 11 1 0410-0703 ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0704- ● ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0410- ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0410-0809 ● ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-244-1 01 1 0704-0708 ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-263-0 01 1 0709- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 01 1 0704-0803 ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-810-0 01 1 0804- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-664-2 01 1 0704-0803 ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-811-0 01 1 0804-1007 ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98167-111-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0410- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0410- ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0704-0803 ● ●
72 SHEET
(A) 		1-71798-487-3 02 1 0410- ● ●
72 SHEET
(B) 		1-71798-488-1 02 1 0410- ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0410-0809 ● ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0810- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0410- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0410- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0410- ● ●
185 BOLT; BRKT
(B) M5X16 		1-71707-259-0 02 1 0704- ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		0-28690-835-0 04 1 0410-0512 ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		8-98046-876-0 04 1 0606- ● ●
çizim 191931
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 1-73117-033-1 01 1 0410-0611 ● ●
1 MIRROR; ROOM 1-73317-561-0 01 1 0612- ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0410- ● ●

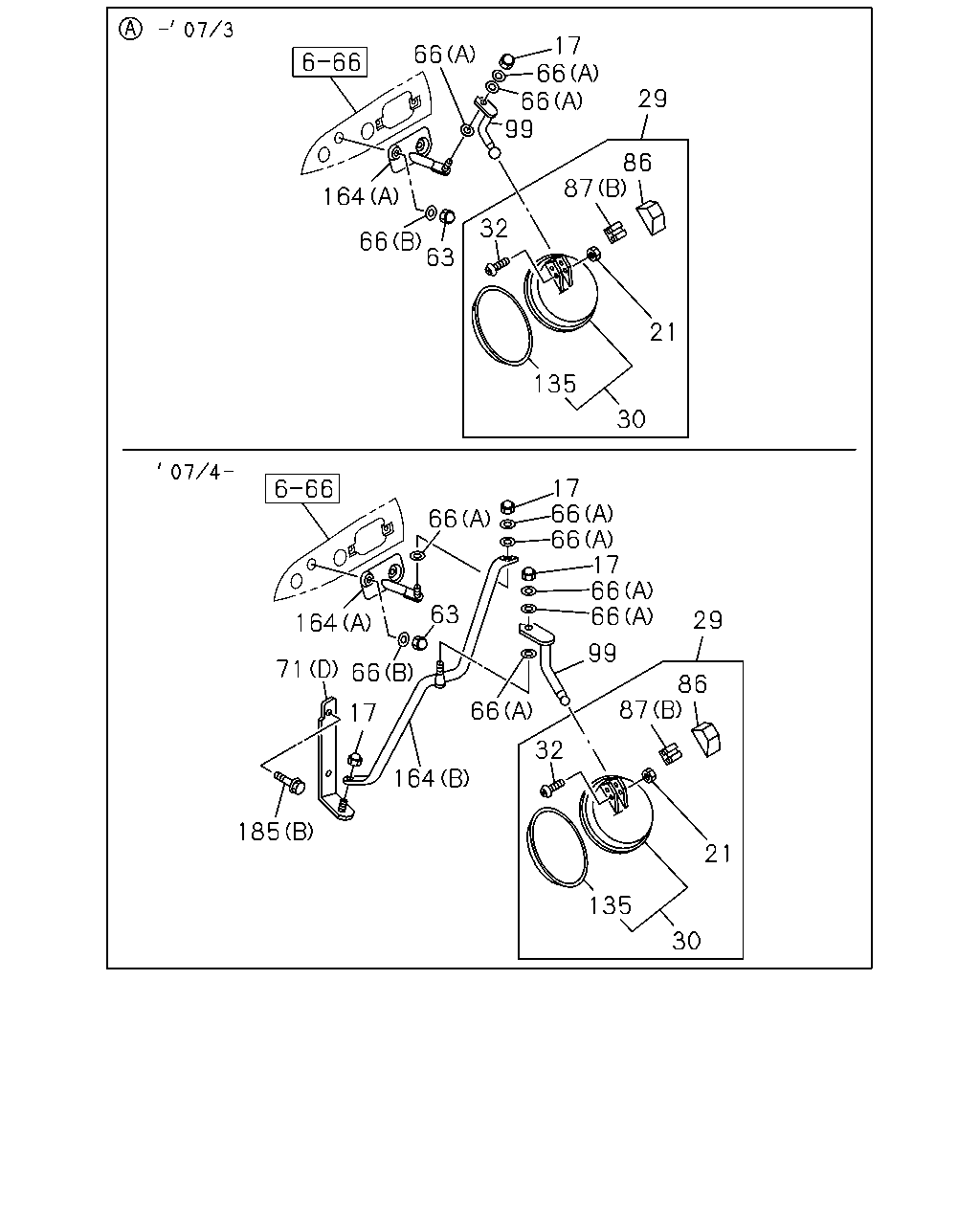

çizim 191932
17 66 66 99 66 29 86 87 164 32 66 63 21 135 30 17 66 66 17 66 66 66 63 29 164 99 71 66 86 87 66 17 32 164 185 21 135 30
BalonParca AdiParca NoAdetTipApplied Date A B
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 05 1 0410-0703 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0704- ● ●
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 0410- ● ●
29 MIRROR ASM; UNDER 1-71798-422-0 01 1 0410- ● ●
30 MIRROR; UNDER 1-71798-591-1 01 1 0410- ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 0410- ● ●
63 NUT; STAY
M8 		1-09984-187-0 02 1 0410- ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 11 1 0410-0703 ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0704- ● ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0410- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-244-1 01 1 0704-0708 ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-263-0 01 1 0709- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 01 1 0704-0803 ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-810-0 01 1 0804- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-664-2 01 1 0704-0803 ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-811-0 01 1 0804-1007 ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98167-111-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0410- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-649-1 01 1 0410- ● ●
87 SPACER
(A) 		1-71707-165-1 01 1 0410-0707 ● ●
87 SPACER
(A) 		1-71707-261-0 01 1 0708- ● ●
87 SPACER
(B) 		1-71737-646-2 01 1 0410- ● ●
99 STAY; MAIN UNDER MIRROR 1-71798-880-1 01 1 0410-0703 ● ●
99 STAY; MAIN UNDER MIRROR 1-71707-241-1 01 1 0704-0711 ● ●
99 STAY; MAIN UNDER MIRROR 1-71707-265-1 01 1 0712- ● ●
135 LENS; MIRROR,SIDE UNDER 1-71798-838-0 01 1 0410- ● ●
164 STAY; ROOF
(B) 		1-71707-242-1 01 1 0704-0711 ● ●
164 STAY; ROOF
(B) 		1-71707-267-0 01 1 0712- ● ●
164 STAY; ROOF
(A) 		1-71707-159-3 01 1 0410-0703 ● ●
164 STAY; ROOF
(A) 		1-71707-243-1 01 1 0704-0708 ● ●
164 STAY; ROOF
(A) 		1-71707-264-0 01 1 0709- ● ●
185 BOLT; BRKT
(B) M5X16 		1-71707-259-0 02 1 0704- ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		0-28690-835-0 04 1 0410-0512 ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		8-98046-876-0 04 1 0606- ● ●

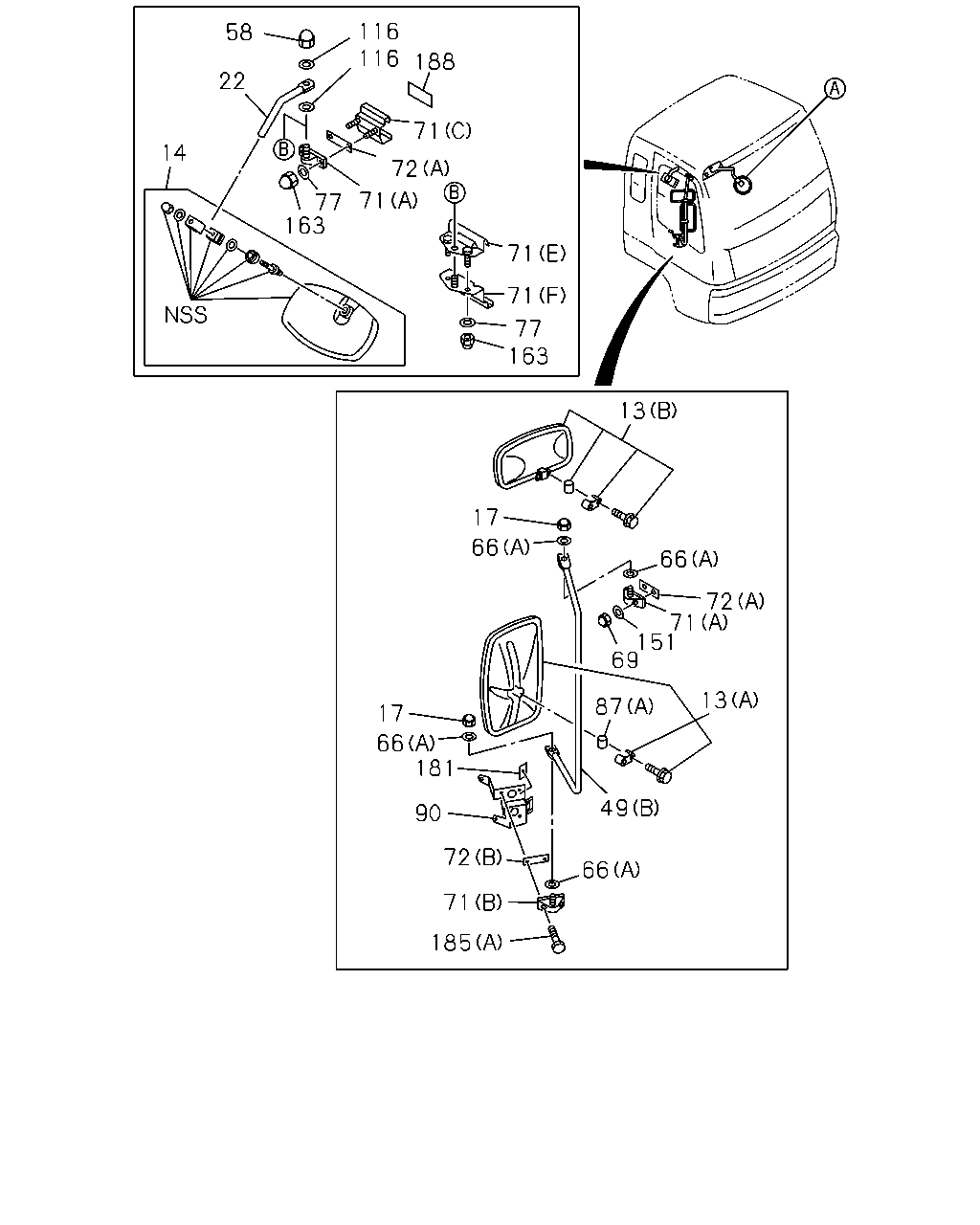

çizim 191933
116 116 58 188 22 71 14 72 71 77 163 71 71 77 163 13 17 66 66 72 71 151 69 13 87 17 66 181 49 90 72 66 71 185
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71707-161-2 01 1 0410-0711 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71707-235-0 01 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-861-1 01 1 0410-0711 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-895-0 01 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-97094-318-1 01 1 0410-0603 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-98037-582-0 01 1 0604-0611 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-98051-644-0 01 1 0612- ● ●
14 MIRROR ASM; OUTSIDE 1-71798-861-1 01 1 0704-0711 ● ●
14 MIRROR ASM; OUTSIDE 1-71798-895-0 01 1 0712- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 05 1 0410-0703 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0704- ● ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 0704- ● ●
49 STAY; MIRROR SIDE
(B) 		1-71707-162-0 01 1 0410-0410 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71707-167-1 01 1 0410- ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-868-1 01 1 0410- ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 0704- ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 11 1 0410-0703 ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0704- ● ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0410- ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0410-0809 ● ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-244-1 01 1 0704-0708 ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71707-263-0 01 1 0709- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 01 1 0704-0803 ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-810-0 01 1 0804- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-664-2 01 1 0704-0803 ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-811-0 01 1 0804-1007 ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98167-111-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0410- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0410- ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0704-0803 ● ●
72 SHEET
(A) 		1-71798-487-3 02 1 0410- ● ●
72 SHEET
(B) 		1-71798-488-1 02 1 0410- ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0704- ● ●
87 SPACER
(A) 		1-71707-165-1 01 1 0410-0707 ● ●
87 SPACER
(A) 		1-71707-261-0 01 1 0708- ● ●
87 SPACER
(B) 		1-71737-646-2 01 1 0410- ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0410-0809 ● ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0810- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0410- ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0704- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0410- ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 0704-0910 ● ●
163 NUT; MIRROR BRKT
M8 CAP NUT 		8-98059-914-0 02 1 0911- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0410- ● ●
185 BOLT; BRKT
(B) M5X16 		1-71707-259-0 02 1 0704- ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		0-28690-835-0 04 1 0410-0512 ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		0-28660-835-0 04 1 0601-0605 ● ●
185 BOLT; BRKT
(A) M8X35 FLANGE 		8-98046-876-0 04 1 0606- ● ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 0704-0803 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
