Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11013 - CXZ LHD WEDGE BRAKE
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

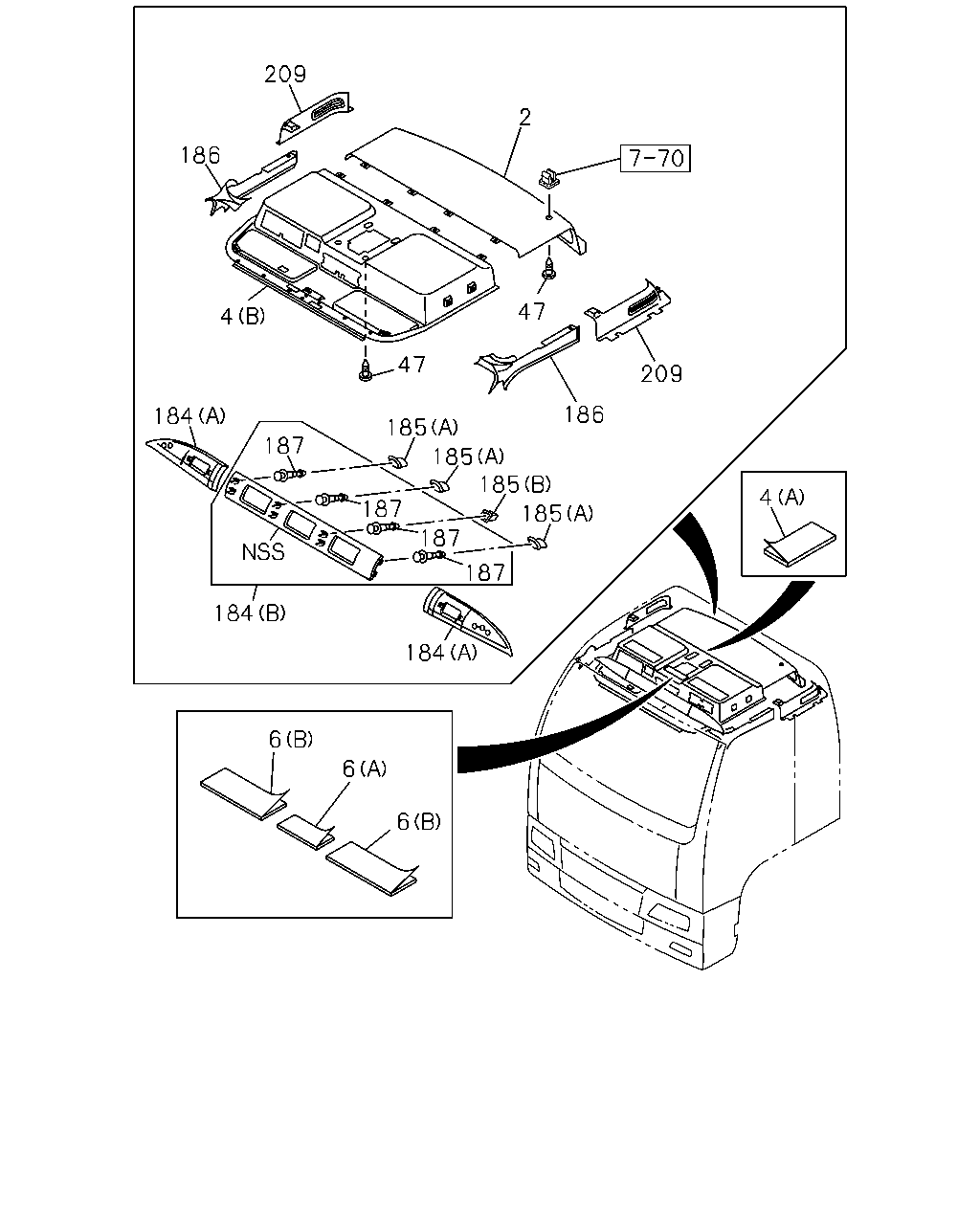

6-66 — HEAD LINING AND TRIM
(#66078) — 23 parça
Tümü
A - CXZ6MC
B - CXZ6MF
209
2
186
47
4
47
209
186
184
185
187
185
185
4
187
185
187
187
184
184
6
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LINING; HD,ROOF RR
1-73317-502-2
01
1
0410-0701
●
●
2
LINING; HD,ROOF RR
1-73317-565-0
01
1
0702-
●
●
4
LINING; ROOF,FRT
(A)
1-73317-436-0
02
1
0410-
●
●
4
LINING; ROOF,FRT
(B)
1-73317-519-3
01
1
0410-0701
●
●
4
LINING; ROOF,FRT
(B)
1-73317-564-0
01
1
0702-
●
●
6
SPACER; HD LINING
(A) 140X800
1-73317-429-2
02
1
0410-
●
●
6
SPACER; HD LINING
(B) 130X300
1-73317-435-2
01
1
0410-
●
●
47
CLIP; HEADLINING
D5X14.7
1-09983-183-0
05
1
0410-
●
●
47
CLIP; HEADLINING
D7.7X25 LIGHT GRAY
1-73317-371-0
08
1
0410-
●
●
47
CLIP; HEADLINING
D6X23 LIGHT GRAY
1-73318-629-0
11
1
0410-
●
●
47
CLIP; HEADLINING
OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0410-
●
●
184
ORNAMENT; ROOF
(A)
1-73317-409-2
01
1
0410-
●
●
184
ORNAMENT; ROOF
(A)
1-73317-452-1
01
1
0410-
●
●
184
ORNAMENT; ROOF
(B)
1-73318-660-3
01
1
0410-
●
●
185
GROMMET; ORNAMENT
(A)
1-79198-012-0
06
1
0410-
●
●
185
GROMMET; ORNAMENT
(B)
1-79198-013-0
02
1
0410-
●
●
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-012-2
01
1
0410-0612
●
●
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-041-0
01
1
0701-
●
●
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-013-2
01
1
0410-0612
●
●
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-042-0
01
1
0701-
●
●
187
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
0410-
●
●
209
COVER; GRILLE
1-73347-865-3
01
1
0410-
●
●
209
COVER; GRILLE
1-73347-866-3
01
1
0410-
●
●
