6-47 — MUD GUARD AND INSULATOR (#66076) — 180 parça
çizim 131290
130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0410-0512 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0410-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0410-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0410-0512 ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0410-0512 ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-990-2 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-048-2 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-028-1 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-049-2 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-029-0 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-050-3 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 0410- ● ●
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0410-1207 ● ●
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208- ● ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0410- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0410- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0410- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0410- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0410-0512 ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
168 NUT; EXH COVER
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0410- ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0410- ● ●

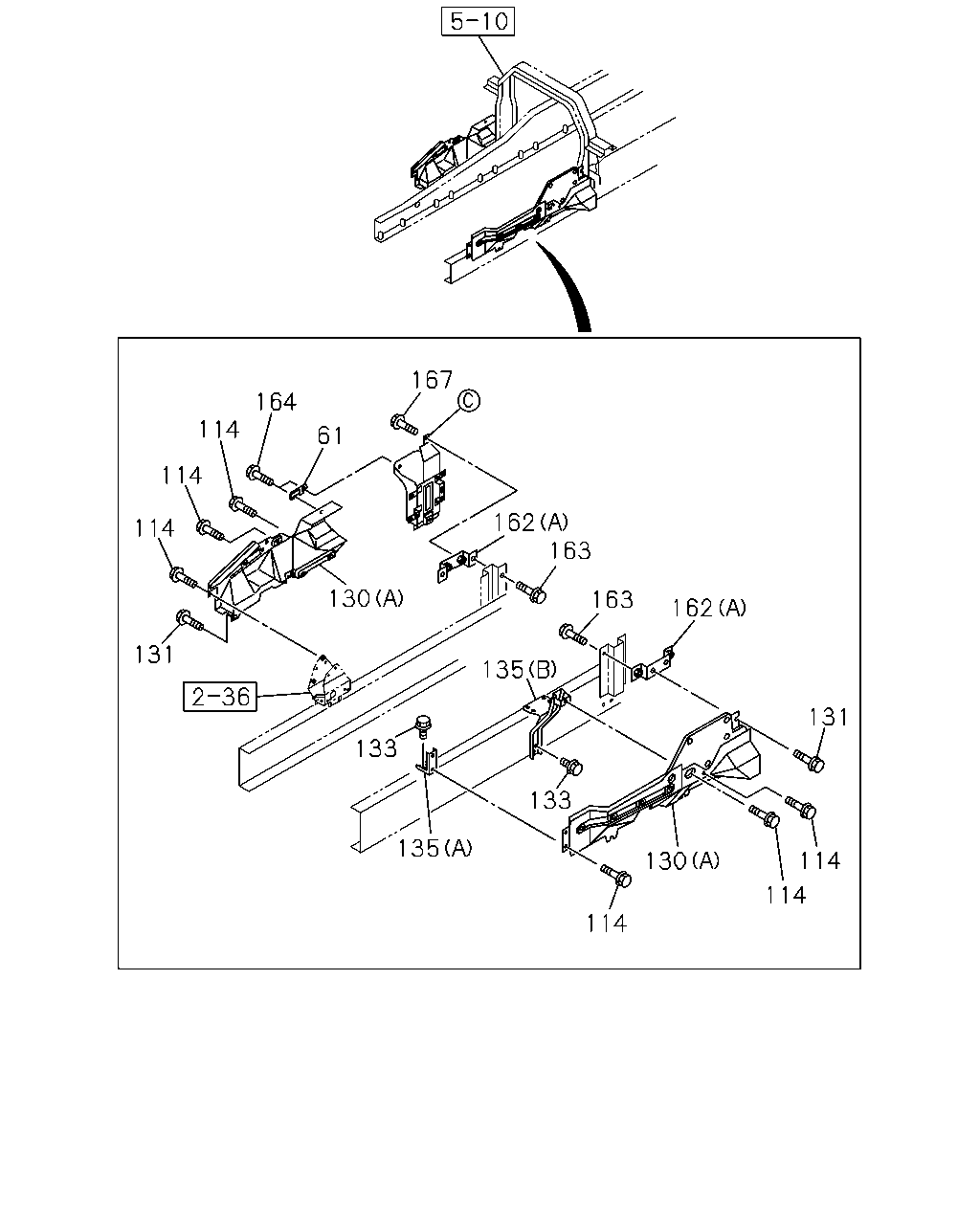

çizim 131557
167 164 114 61 114 162 163 114 130 163 162 131 135 131 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER 1-53441-536-1 01 1 0410-0803 ● ●
61 BRACKET; COVER 8-98039-501-1 01 1 0804- ● ●
114 BOLT
M8X20 FLANGE 		0-28680-820-0 05 1 0410-0512 ● ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-990-2 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-048-2 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-028-1 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-049-2 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-029-0 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-050-3 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 0410- ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0410-0805 ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0410-0512 ● ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0410- ● ●
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0410- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0410- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0410- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0410- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0410-0512 ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0410-0512 ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●

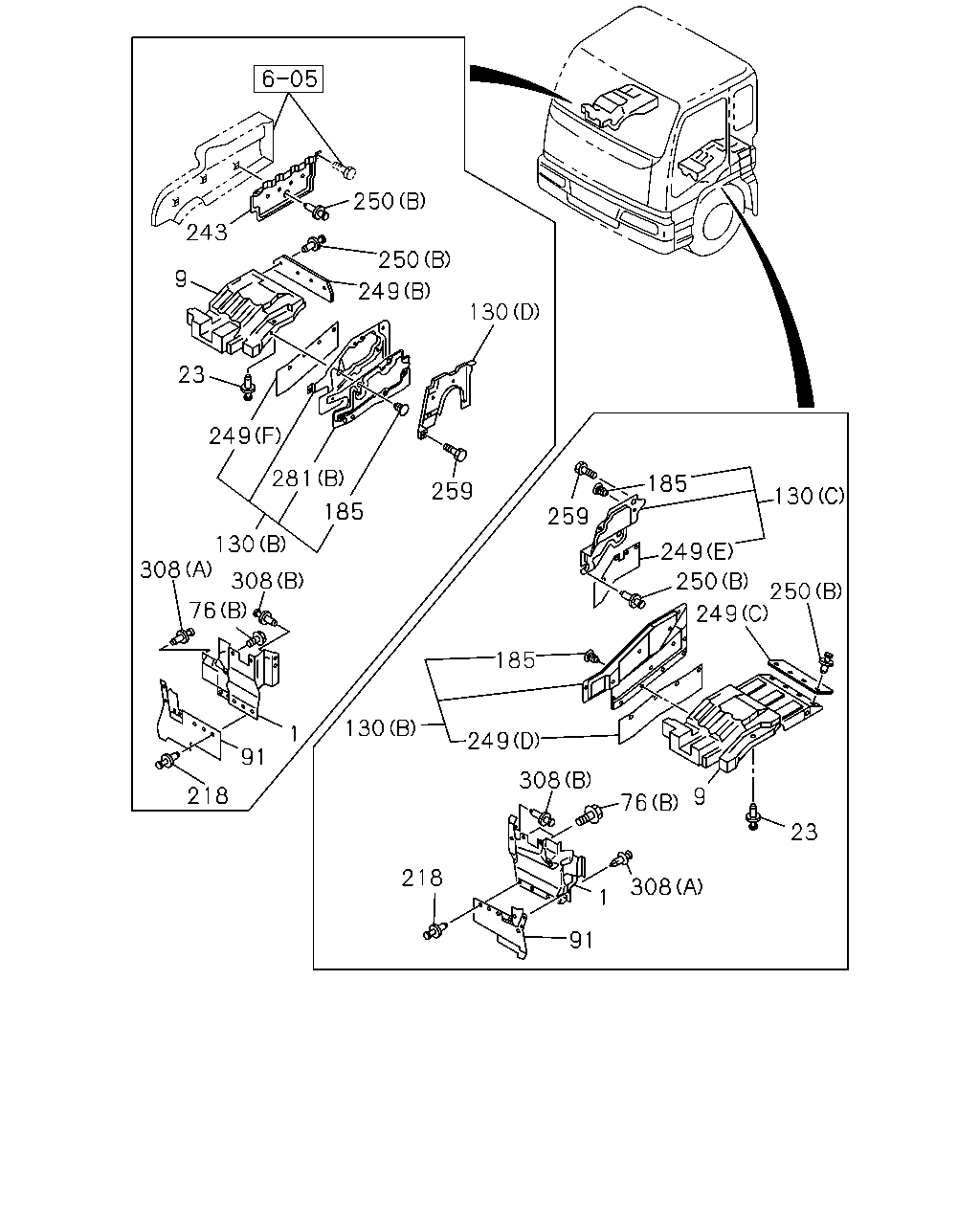

çizim 191924
243 250 250 9 249 130 23 249 281 185 259 130 185 259 130 249 308 308 250 250 249 76 185 130 1 249 91 308 218 9 76 23 218 308 1 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0410- ● ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0410- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0410- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0410- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0410- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0410-0805 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0410- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0410- ● ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 0410- ● ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-990-2 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-048-2 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-028-1 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-049-2 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-029-0 01 1 0410-0507 ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-050-3 01 1 0508- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0410- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 0410- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0410-0512 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0410-0512 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 16 1 0601- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0410- ● ●
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0410-0511 ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0410- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-1 01 1 0410-0507 ● ●
249 RUBBER; SHUTTER
(D) 		1-79947-052-1 01 1 0508- ● ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-0 01 1 0410-0507 ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0508- ● ●
249 RUBBER; SHUTTER
(F) 		1-79937-989-0 01 1 0410-0507 ● ●
249 RUBBER; SHUTTER
(F) 		1-79947-051-1 01 1 0508- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0410- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0410- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0410- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0410-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0410-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0911-1112 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ● ●
250 FASTENER; SHUTTER
CONCRETE PUMP<RA5> (A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0410-0608 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0609- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0410-0608 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 08 1 0609- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0410-0904 ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 0410- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0410- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0410- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0410- ● ●

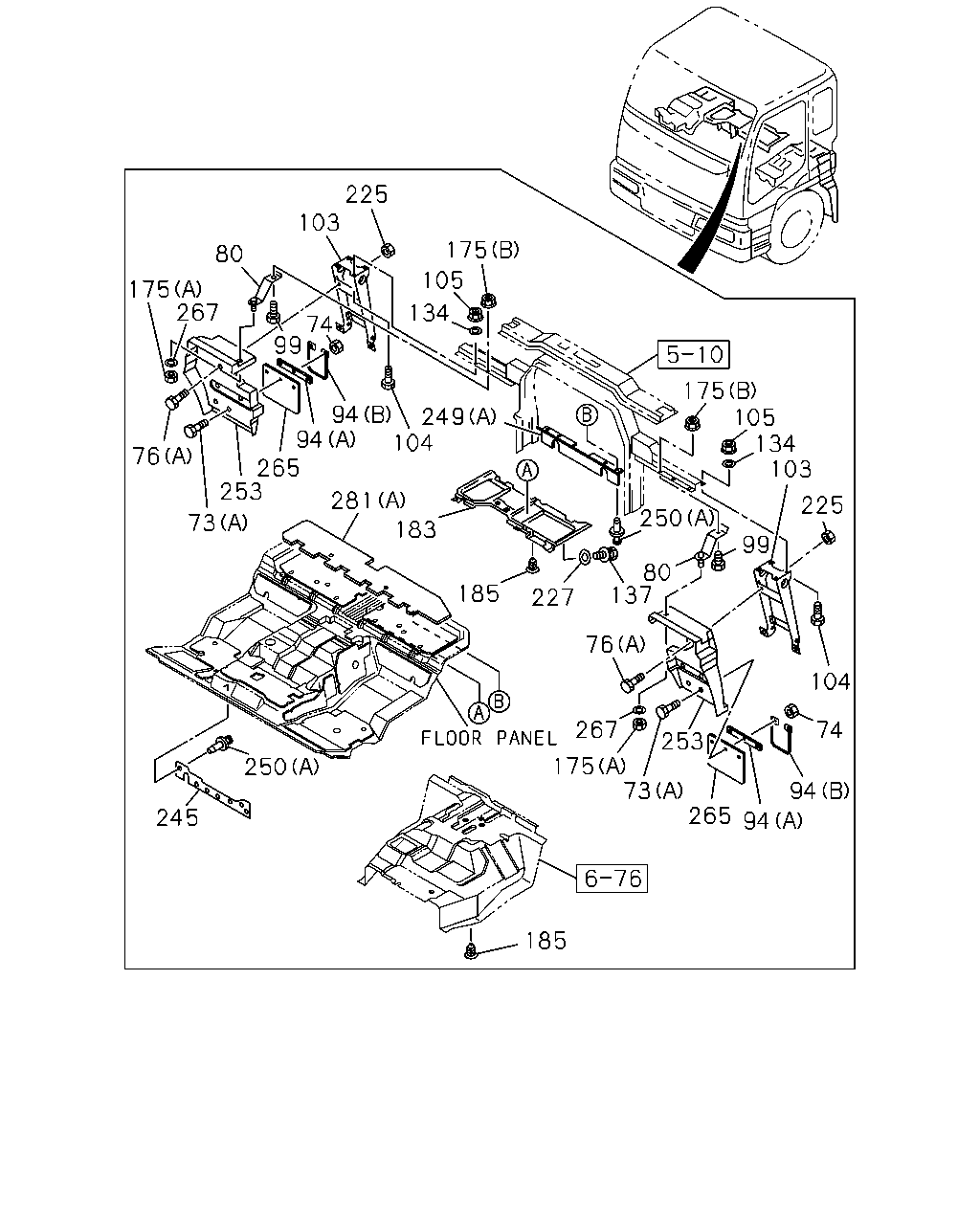

çizim 191928
225 103 175 80 105 175 267 134 74 99 175 105 134 103 94 249 94 104 265 253 76 281 225 250 73 183 99 80 137 185 227 76 104 267 74 253 175 73 250 94 265 245 94 185
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0410-0512 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0410-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0410-0602 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0410-0805 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0410- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0410- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0410- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0410- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 0410- ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0410-0512 ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 0410-1502 ● ●
103 BRACKET ASM; RR MUD FLAP 8-98306-887-0 02 1 1503- ● ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0410-0512 ● ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ● ●
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0410-0602 ● ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0410- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0410-0904 ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0410-0602 ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0410- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0410-0512 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0410-0512 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 16 1 0601- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0410- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0410-0602 ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0410- ● ●
245 RUBBER; SHUTTER,RAD
CONCRETE PUMP<RA5> 		1-79937-949-1 01 1 1201- ●
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0410-0910 ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-1 01 1 0410-0507 ● ●
249 RUBBER; SHUTTER
(D) 		1-79947-052-1 01 1 0508- ● ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-0 01 1 0410-0507 ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0508- ● ●
249 RUBBER; SHUTTER
(F) 		1-79937-989-0 01 1 0410-0507 ● ●
249 RUBBER; SHUTTER
(F) 		1-79947-051-1 01 1 0508- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0410- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0410- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0410- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0410-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0410-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0911-1112 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ● ●
250 FASTENER; SHUTTER
CONCRETE PUMP<RA5> (A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0410-0608 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0609- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0410-0608 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 08 1 0609- ● ●
253 GUARD; MUD 1-79931-064-7 01 1 0410-0901 ● ●
253 GUARD; MUD 8-98134-759-0 01 1 0902- ● ●
253 GUARD; MUD 1-79931-066-7 01 1 0410-0901 ● ●
253 GUARD; MUD 8-98134-766-1 01 1 0902- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0410- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0410-0605 ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 0410- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
