◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11013 - CXZ LHD WEDGE BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#66071) — 124 parça

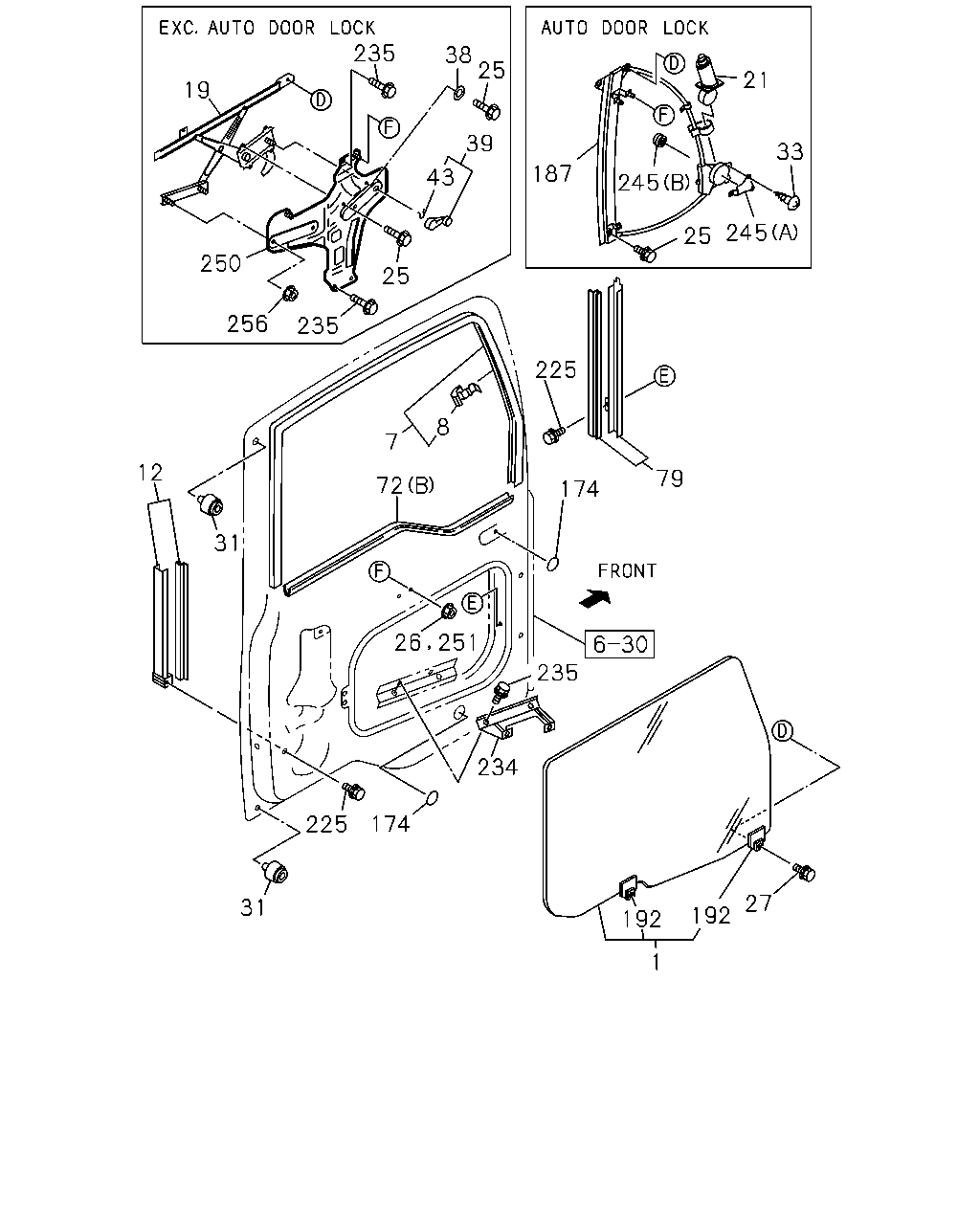

çizim 191922
1 192 192 27 31 225 174 234 235 26 251 31 12 72 7 8 174 79 225 25 245 187 245 33 21 19 235 38 25 39 43 25 235 256 250
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76148-095-2 01 1 0410- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0410- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0410- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0410- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0410- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0410- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0410- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0410- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0410- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-134-5 01 1 0410- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-144-5 01 1 0410- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-176-0 01 1 0410- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-177-0 01 1 0410- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 10 1 0410-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 10 1 0711- ● ●
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0410- ● ●
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 06 1 0410- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0410- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0410- ● ●
33 SCREW; REG MOTOR
AUTO DOOR LOCK<AU4> 		8-98099-646-0 03 1 1204- ● ●
33 SCREW; REG MOTOR
AUTO DOOR LOCK<AU4> 		8-98099-646-0 03 1 1204- ● ●
38 WASHER; PL,WINDOW REG
EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0410- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> BLACK 		8-94371-427-0 02 1 0410- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94220-591-0 02 1 0410- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0410-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0410-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0410- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0410- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0410- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0410- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 16 1 0410- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 22 1 0410- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> OD=52 BLACK 		1-76798-041-0 02 1 0410- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-178-3 01 1 0410- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-179-3 01 1 0410- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0410- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0410- ● ●
192 HOLDER; DOOR GLASS
EXC. AUTO DOOR LOCK<AU4> 		1-74427-170-0 04 1 0410- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0410-0512 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0410- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0410- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0410- ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 08 1 0410-0512 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 08 1 0711- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0410- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0410- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-180-0 01 1 0410- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-181-0 01 1 0410- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-148-0 01 1 0410- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-149-0 01 1 0410- ● ●
251 NUT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 04 1 0410- ● ●
256 NUT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0410- ● ●

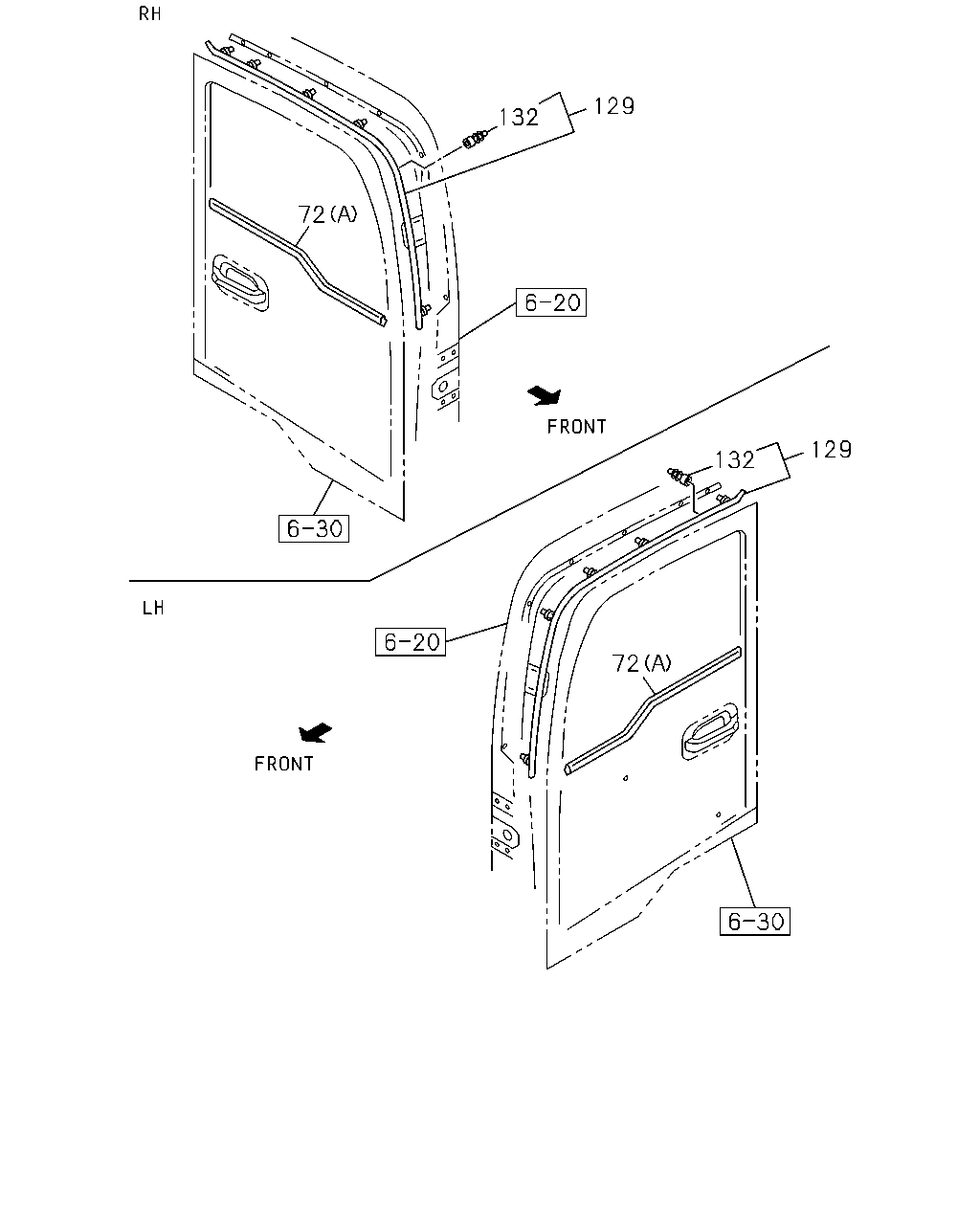

çizim 191923
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0410-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0410-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0410- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0410- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0410- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0410- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0410- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0410- ● ●

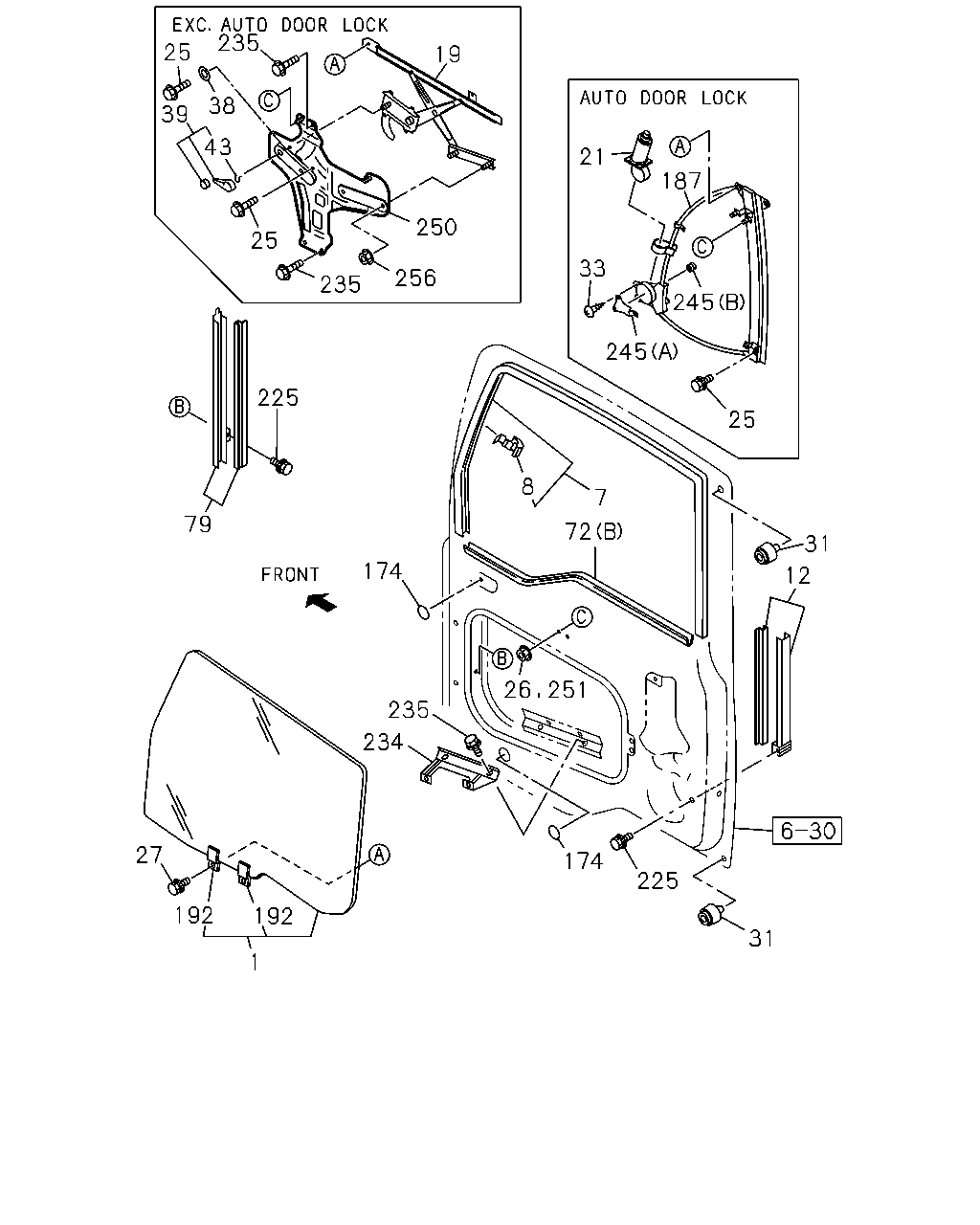

çizim 191927
31 225 174 1 192 192 27 234 235 26 251 174 12 31 72 7 8 25 245 245 33 187 21 79 225 235 256 250 19 235 25 39 38 43 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76148-095-2 01 1 0410- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0410- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0410- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0410- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0410- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0410- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0410- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0410- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0410- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-134-5 01 1 0410- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-144-5 01 1 0410- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-176-0 01 1 0410- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-177-0 01 1 0410- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 10 1 0410-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 10 1 0711- ● ●
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0410- ● ●
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 06 1 0410- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0410- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0410- ● ●
33 SCREW; REG MOTOR
AUTO DOOR LOCK<AU4> 		8-98099-646-0 03 1 1204- ● ●
33 SCREW; REG MOTOR
AUTO DOOR LOCK<AU4> 		8-98099-646-0 03 1 1204- ● ●
38 WASHER; PL,WINDOW REG
EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0410- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> BLACK 		8-94371-427-0 02 1 0410- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94220-591-0 02 1 0410- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0410-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0410-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0410- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0410- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0410- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0410- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 16 1 0410- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 22 1 0410- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> OD=52 BLACK 		1-76798-041-0 02 1 0410- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-178-3 01 1 0410- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-179-3 01 1 0410- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0410- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0410- ● ●
192 HOLDER; DOOR GLASS
EXC. AUTO DOOR LOCK<AU4> 		1-74427-170-0 04 1 0410- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0410-0512 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0410- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0410- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0410- ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 08 1 0410-0512 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 08 1 0711- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0410- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0410- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-180-0 01 1 0410- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-181-0 01 1 0410- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-148-0 01 1 0410- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-149-0 01 1 0410- ● ●
251 NUT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 04 1 0410- ● ●
256 NUT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0410- ● ●
