6-20 — SIDE PANEL AND STEP (#66069) — 101 parça

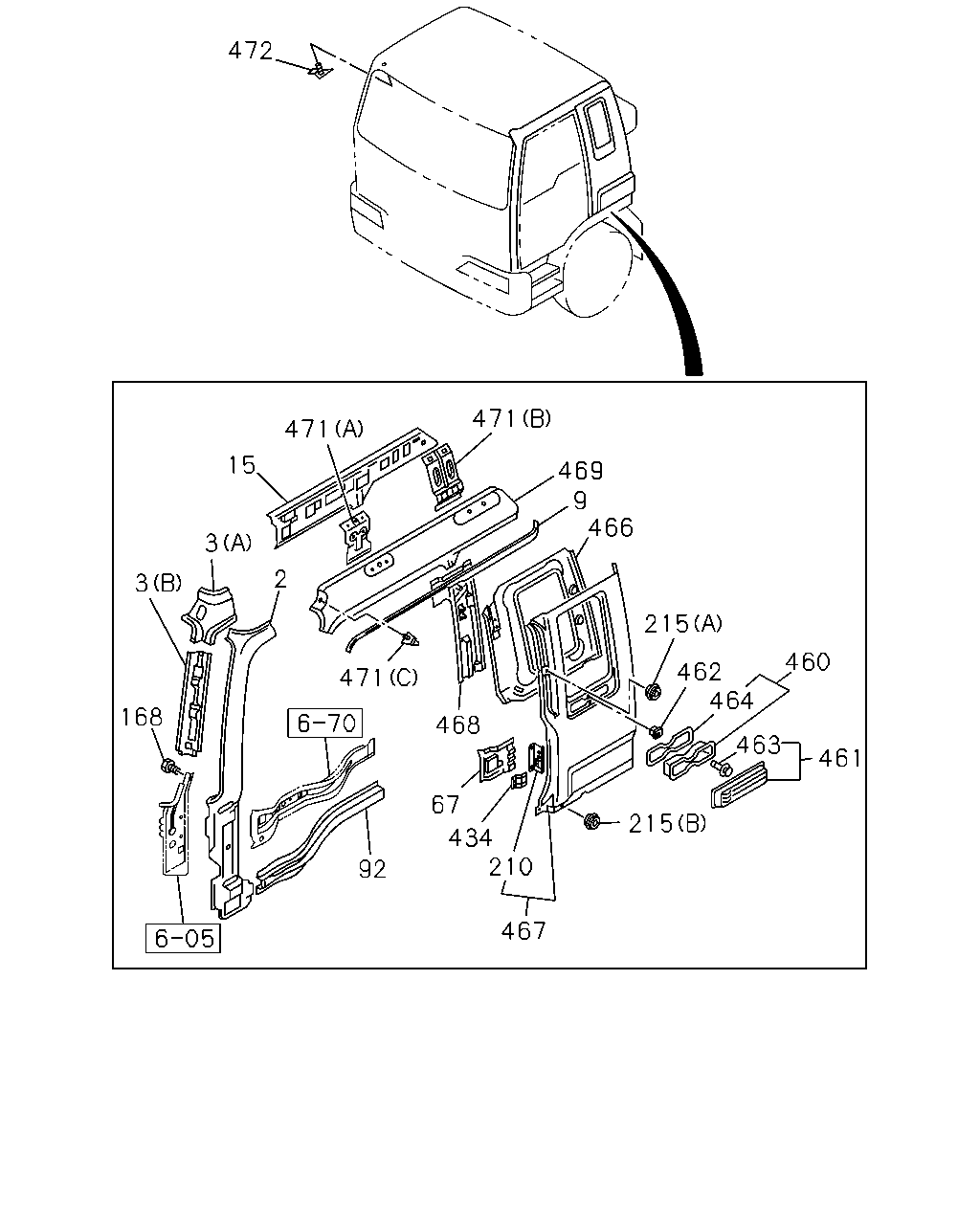

çizim 126388
472 471 469 9 466 215 462 464 460 463 461 215 467 210 434 92 67 468 471 2 168 3 3 15 471
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT
CAUTIONS CHINESE<SL7> 		1-61281-410-2 01 1 0410-0512 ● ●
2 PILLAR; FRT 1-61281-410-2 01 1 0601- ● ●
2 PILLAR; FRT 1-61281-409-2 01 1 0410-0703 ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0704- ● ●
3 PANEL; CLOSING,FRT PILLAR
CAUTIONS CHINESE<SL7> (A) 		1-61281-170-5 01 1 0410-0512 ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0601- ● ●
3 PANEL; CLOSING,FRT PILLAR
CAUTIONS CHINESE<SL7> (B) 		1-61281-344-5 01 1 0410-0512 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0601- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0410- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0410- ● ●
9 MOLDING; DRIP,CAB SIDE
CAUTIONS CHINESE<SL7> 		1-61281-281-5 01 1 0410-0512 ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0601- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0410- ● ●
15 PANEL; CANT RAIL SIDE
CAUTIONS CHINESE<SL7> 		1-61281-178-8 01 1 0410-0512 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0601- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0410- ● ●
67 PANEL; INNER,RR PILLAR LWR
CAUTIONS CHINESE<SL7> 		1-61281-195-5 01 1 0410-0512 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0601- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0410- ● ●
92 PANEL; SIDE SILL,CAB
CAUTIONS CHINESE<SL7> 		1-61281-212-8 01 1 0410-0512 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0601- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0410- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0410-0512 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
210 PANEL; DOOR STRIKER REINF
CAUTIONS CHINESE<SL7> 		8-97851-446-1 01 1 0410-0512 ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0601- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0410- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0410- ● ●
434 PATCH; ASSIST GRIP
CAUTIONS CHINESE<SL7> 		1-61270-763-1 01 1 0410-0512 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0410-0512 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0601- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0601- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0410- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0410- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0410- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0410- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0410- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0410- ● ●
466 PANEL; INNER,BACK CORNER
CAUTIONS CHINESE<SL7> 		1-61281-416-1 01 1 0410-0512 ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0601- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0410- ● ●
467 PANEL; OUTER,BACK CORNER
CAUTIONS CHINESE<SL7> 		1-61281-478-3 01 1 0410-0510 ● ●
467 PANEL; OUTER,BACK CORNER
CAUTIONS CHINESE<SL7> 		1-61281-204-3 01 1 0511-0512 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 0601- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 0410-0510 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0511- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
CAUTIONS CHINESE<SL7> 		1-61281-418-2 01 1 0410-0512 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0601- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0410- ● ●
469 ROOF; SIDE
CAUTIONS CHINESE<SL7> 		1-61281-199-8 01 1 0410-0512 ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 0601- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 0410- ● ●
471 PATCH; AIR DEFLECTOR
CAUTIONS CHINESE<SL7> (B) 		1-61281-202-3 01 1 0410-0512 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0410-0512 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0601- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0601- ● ●
471 PATCH; AIR DEFLECTOR
CAUTIONS CHINESE<SL7> (A) 		1-61281-201-3 01 1 0410-0512 ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 0601- ● ●
471 PATCH; AIR DEFLECTOR
CAUTIONS CHINESE<SL7> (C) 		1-61281-233-4 01 1 0410-0512 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0601-0812 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 0410- ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0410- ● ●
çizim 126839
446 444 30 110 517 304 103 455 339 146 291 447 103 289 404 285 430 149 146
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0410-0910 ● ●
30 CLOSING; SIDE STEP 8-98156-823-0 01 1 0911- ● ●
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0410-0910 ● ●
30 CLOSING; SIDE STEP 8-98156-824-0 01 1 0911- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0410- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0410- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0410- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0410- ● ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0410- ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28081-230-0 02 1 0410-0512 ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 02 1 0601- ● ●
146 BOLT; STEP BRKT
(B) M12X80 		0-28081-280-0 04 1 0410-0512 ● ●
146 BOLT; STEP BRKT
(B) M12X80 FLANGE 		0-28051-280-0 04 1 0601- ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 02 1 0410-0602 ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0410- ● ●
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0410- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		9-09160-706-0 08 1 0410-0605 ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0606- ● ●
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0410-0512 ● ●
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0410- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0410- ● ●
404 BRACKET 1-53414-256-2 01 1 0410-0901 ● ●
404 BRACKET 8-98138-281-2 01 1 0902- ● ●
404 BRACKET 1-53414-264-0 01 1 0410-0901 ● ●
404 BRACKET 8-98138-282-2 01 1 0902- ● ●
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0410-0602 ● ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0410-0904 ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0410- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0410-0512 ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0601- ● ●
455 PROTECTOR; STEP 1-71907-186-2 01 1 0410- ● ●
455 PROTECTOR; STEP 1-71907-187-2 01 1 0410- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0410-0604 ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605- ● ●
