6-05 — FRONT PANEL (#66067) — 195 parça

544 547 544 560 548 545 545 545 548 532 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0410-0411	●	●
532	BOLT; FRT PANEL (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0412-	●	●
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0410-	●	●
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0410-	●	●
544	LID; FRT	1-71107-403-0	01	1	0410-	●	●
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0410-0411	●	●
545	SEAL; FRT LID (D)	1-71907-578-0	02	1	0412-	●	●
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0410-	●	●
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0410-	●	●
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0410-	●	●
547	RUBBER; CUSHION (C) L=1825	1-71907-581-1	01	1	0410-	●	●
547	RUBBER; CUSHION (B) OD=22 L=39	1-71907-419-0	02	1	0410-	●	●
547	RUBBER; CUSHION (A) OD=22 L=29	8-94324-556-2	02	1	0410-	●	●
548	STRIKER; FRT LID PANEL (A)	1-79317-003-1	01	1	0410-	●	●
548	STRIKER; FRT LID PANEL (B)	1-79318-008-1	02	1	0410-	●	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0410-1105	●	●
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0410-1105	●	●
560	SEAL; COVER (A)	1-71998-827-1	01	1	0410-	●	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0410-	●	●

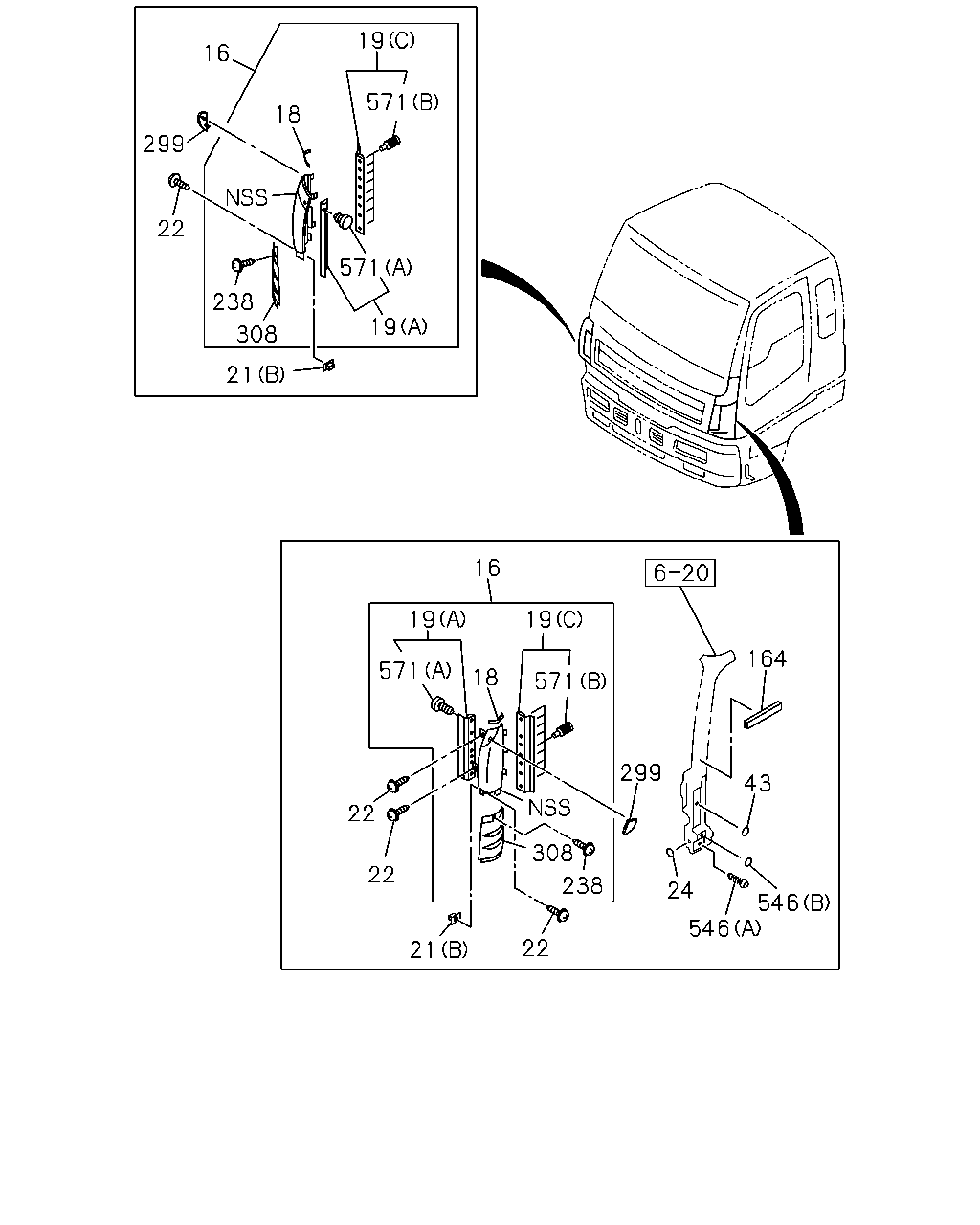

19 16 571 18 299 22 571 238 19 308 21 16 19 19 164 571 18 571 299 43 22 308 22 546 238 24 546 22 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> WHITE	1-65472-648-3	01	1	0410-	●	●
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> WHITE	1-65472-649-3	01	1	0410-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB>	1-71998-898-2	01	1	0410-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB>	1-71998-899-2	01	1	0410-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-410-0	01	1	0410-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-411-0	01	1	0410-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-579-1	01	1	0410-1111	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98208-433-0	01	1	1112-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-580-1	01	1	0410-1111	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98208-434-0	01	1	1112-	●	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0410-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	14	1	0410-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0410-	●	●
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING	8-97893-344-0	14	1	0410-0810	●	●
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING	8-94279-123-0	14	1	0811-1010	●	●
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING	8-97893-344-0	14	1	1011-	●	●
24	SEAL; FRT PANEL LWR AUTO DOOR LOCK<AU4> OD=25 BLACK	1-76798-019-0	06	1	0410-	●	●
24	SEAL; FRT PANEL LWR EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK	1-76798-019-0	07	1	0410-	●	●
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	0410-	●	●
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	0410-	●	●
238	SCREW BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING	8-94279-123-0	06	1	0410-	●	●
299	COVER; FRT PANEL SIDE	1-71998-995-1	01	1	0410-0512	●	●
299	COVER; FRT PANEL SIDE	1-71998-995-1	01	1	0601-0602	●
299	COVER; FRT PANEL SIDE	1-71998-995-1	01	1	0603-	●	●
299	COVER; FRT PANEL SIDE	1-71998-996-1	01	1	0410-	●	●
308	PLATE; FRT PANEL BUMPER W/HEADLAMPS<SLB>	1-65472-568-1	01	1	0410-	●	●
308	PLATE; FRT PANEL BUMPER W/HEADLAMPS<SLB>	1-65472-569-1	01	1	0410-	●	●
546	PLUG; DUMMY HOLE (A) OD=16 L=11	1-76378-155-0	02	1	0410-	●	●
546	PLUG; DUMMY HOLE (B) OD=25 BLACK	1-76798-019-0	04	1	0410-	●	●
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	0410-	●	●
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (B) PINK	1-09987-256-0	08	1	0410-	●	●
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (B) NATURAL	1-09987-257-0	08	1	0410-	●	●

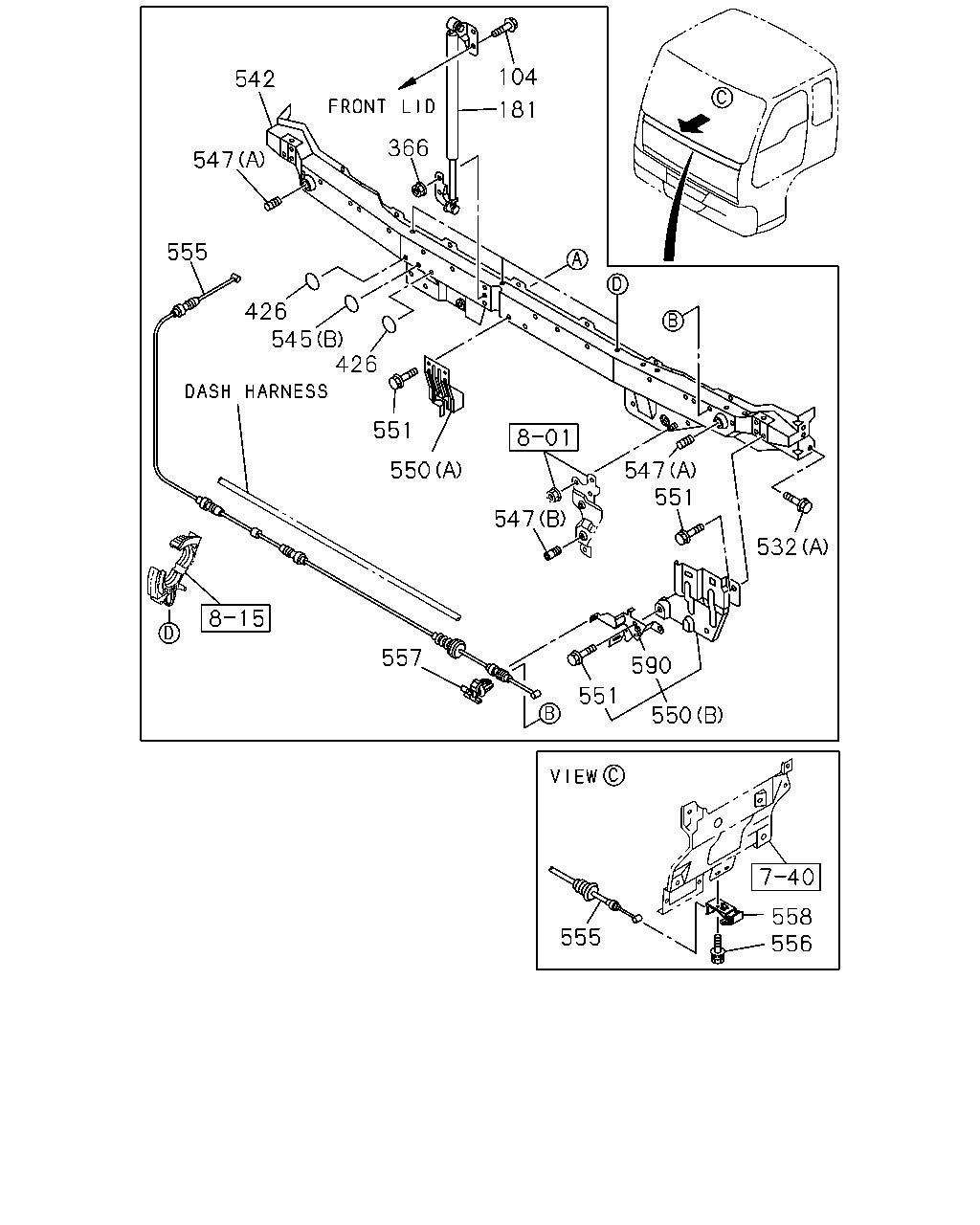

104 542 181 366 547 555 426 545 426 551 550 547 551 547 532 557 590 551 550 558 556 555

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0410-	●	●
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	0410-0411	●	●
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-864-0	01	1	0412-	●	●
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0410-	●	●
426	GASKET OD=25 BLACK	1-76798-019-0	11	1	0410-	●	●
426	GASKET OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0410-	●	●
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	02	1	0410-	●	●
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0410-0411	●	●
532	BOLT; FRT PANEL (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0412-	●	●
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0410-	●	●
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0410-	●	●
542	RAIL; FRT MOUNTING	1-61470-701-4	01	1	0410-0505	●	●
542	RAIL; FRT MOUNTING	1-61470-722-1	01	1	0506-	●	●
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0410-0411	●	●
545	SEAL; FRT LID (D)	1-71907-578-0	02	1	0412-	●	●
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0410-	●	●
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0410-	●	●
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0410-	●	●
547	RUBBER; CUSHION (C) L=1825	1-71907-581-1	01	1	0410-	●	●
547	RUBBER; CUSHION (B) OD=22 L=39	1-71907-419-0	02	1	0410-	●	●
547	RUBBER; CUSHION (A) OD=22 L=29	8-94324-556-2	02	1	0410-	●	●
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (A)	1-79317-013-1	01	1	0410-	●	●
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (B)	1-79317-016-1	01	1	0410-	●	●
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (B)	1-79317-017-1	01	1	0410-	●	●
551	BOLT; LOCK BUMPER W/HEADLAMPS<SLB> M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0410-	●	●
551	BOLT; LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	0410-	●	●
555	CABLE; FRT LID BUMPER W/HEADLAMPS<SLB> L=2612	1-79347-008-1	01	1	0410-	●	●
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0410-	●	●
557	CLIP; CABLE ID=4.8	8-94128-483-0	04	1	0410-	●	●
558	LEVER; FRT LID	8-97865-110-0	01	1	0410-	●	●
590	LOCK; FRT LID BUMPER W/HEADLAMPS<SLB>	1-79318-006-3	01	1	0410-	●	●
590	LOCK; FRT LID BUMPER W/HEADLAMPS<SLB>	1-79318-007-5	01	1	0410-	●	●

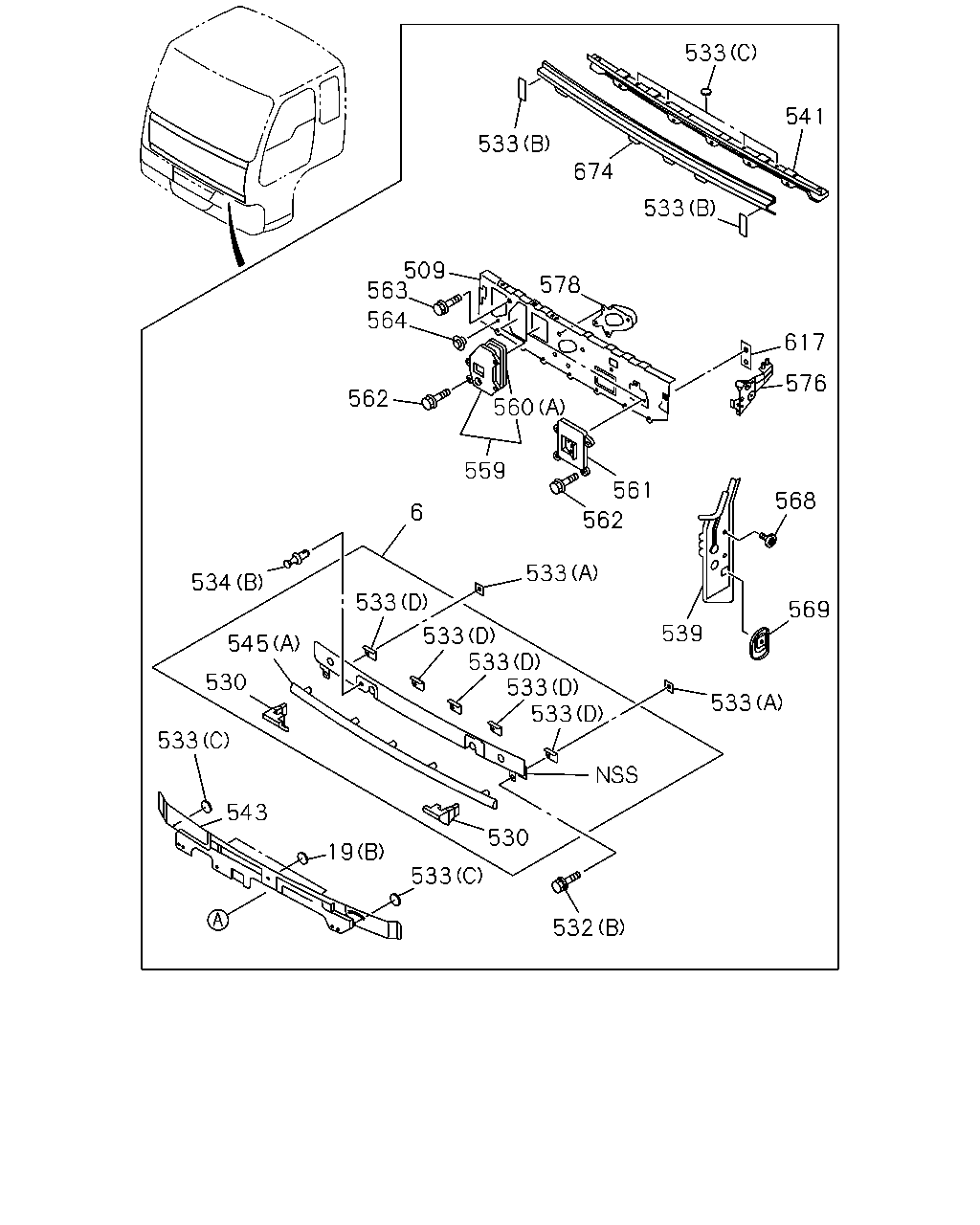

533 541 533 674 533 509 563 578 564 617 560 576 562 559 561 568 6 562 533 534 533 533 533 533 533 569 539 545 530 533 533 543 530 19 533 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PANEL; FRONT	1-65472-551-3	01	1	0410-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-410-0	01	1	0410-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-411-0	01	1	0410-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-579-1	01	1	0410-1111	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98208-433-0	01	1	1112-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-580-1	01	1	0410-1111	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98208-434-0	01	1	1112-	●	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0410-	●	●
509	PANEL; DASH	1-62270-496-2	01	1	0410-1210	●	●
509	PANEL; DASH	8-98198-669-0	01	1	1211-	●	●
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	0410-	●	●
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	0410-	●	●
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0410-0411	●	●
532	BOLT; FRT PANEL (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0412-	●	●
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0410-	●	●
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0410-	●	●
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	07	1	0410-	●	●
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-3	02	1	0410-	●	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	0410-	●	●
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	0410-	●	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0410-1302	●	●
534	FASTENER (A) ID=5.4 OD=6.8	8-98241-984-0	08	1	1303-	●	●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0410-	●	●
539	CLOSING; PILLAR	1-61480-762-1	01	1	0410-	●	●
539	CLOSING; PILLAR	1-61480-763-1	01	1	0410-	●	●
541	PANEL; FRONT,INNER	1-61470-700-1	01	1	0410-	●	●
543	CLOSING; FRT MTG RAIL	1-61470-703-3	01	1	0410-0505	●	●
543	CLOSING; FRT MTG RAIL	1-61470-726-0	01	1	0506-	●	●
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0410-0411	●	●
545	SEAL; FRT LID (D)	1-71907-578-0	02	1	0412-	●	●
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0410-	●	●
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0410-	●	●
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0410-	●	●
559	COVER; EVAPOLATOR	1-71996-193-1	01	1	0410-	●	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0410-1105	●	●
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0410-1105	●	●
560	SEAL; COVER (A)	1-71998-827-1	01	1	0410-	●	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0410-	●	●
561	COVER; HEATER CORE	1-71998-993-2	01	1	0410-	●	●
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0410-	●	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	16	1	0410-	●	●
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	0410-	●	●
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	0410-	●	●
568	PATCH; INST REINF	1-61480-675-2	02	1	0410-	●	●
569	PATCH; LWR GRIP	1-61480-736-2	01	1	0410-	●	●
569	PATCH; LWR GRIP	1-61480-772-0	01	1	0410-	●	●
576	FRAME; INST SIDE	1-62280-200-2	01	1	0410-	●	●
576	FRAME; INST SIDE	1-62280-201-2	01	1	0410-	●	●
578	COVER; WIPER MOTOR	1-62280-254-1	01	1	0410-	●	●
617	SEAL; DASH	1-61281-497-1	02	1	0410-	●	●
674	PANEL; UPR	1-61470-699-2	01	1	0410-	●	●

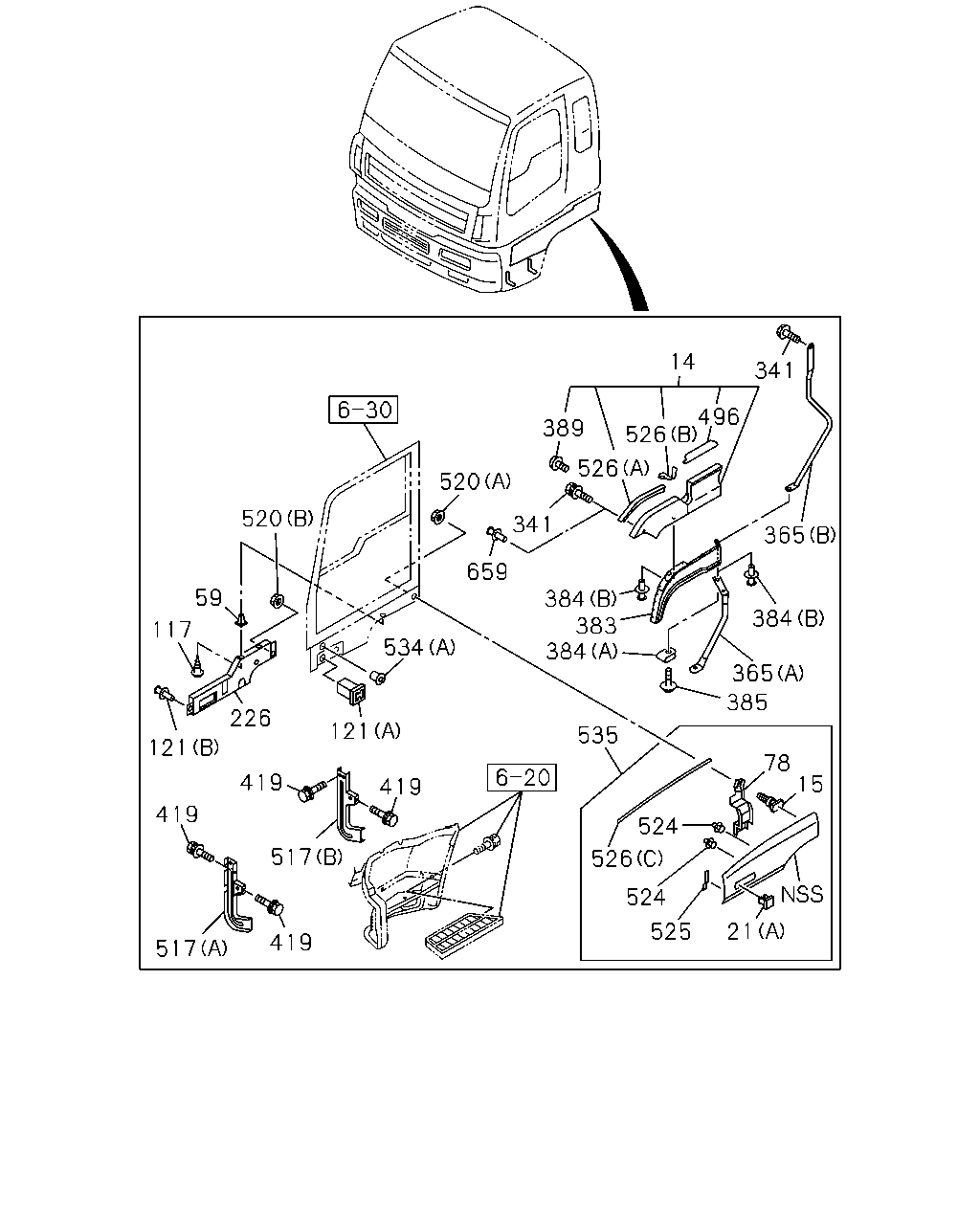

14 341 496 526 389 526 520 520 341 365 659 59 384 383 384 384 117 534 365 385 226 121 535 121 78 15 419 419 419 524 517 526 524 21 525 419 517

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	FENDER; FRT BODY COLOR ARC WHITE(729)	8-98154-744-1	01	1	0911-	●	●
14	FENDER; FRT BODY COLOR ARC WHITE(729)	8-98154-745-1	01	1	0911-	●	●
14	FENDER; FRT BODY COLOR MARINE BLUE(890)	8-98155-610-0	01	1	0911-	●	●
14	FENDER; FRT BODY COLOR MARINE BLUE(890)	8-98155-611-0	01	1	0911-	●	●
14	FENDER; FRT	1-65472-874-8	01	1	0410-0901	●	●
14	FENDER; FRT	1-65472-875-8	01	1	0410-0901	●	●
14	FENDER; FRT	8-98137-383-0	01	1	0902-0910	●	●
14	FENDER; FRT	8-98137-384-0	01	1	0902-0910	●	●
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	0410-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	14	1	0410-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0410-	●	●
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	0410-	●	●
78	BRACKET; FENDER	1-71267-214-0	01	1	0410-	●	●
78	BRACKET; FENDER	1-71267-215-0	01	1	0410-	●	●
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	0410-	●	●
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	0410-	●	●
121	GROMMET; FENDER (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0410-	●	●
226	PROTECTOR; FRT	1-71267-268-1	01	1	0410-	●	●
226	PROTECTOR; FRT	1-71267-269-1	01	1	0410-	●	●
341	BOLT; FENDER TO COWL M6X19.5 W/LK&PL WASHER	8-94279-201-0	16	1	0410-0410	●	●
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	15	1	0411-0810	●	●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0411-0810	●	●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	16	1	0811-0910	●	●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	0911-	●	●
365	SUPPORT; FENDER (A)	1-71907-417-1	01	1	0710-0810	●	●
365	SUPPORT; FENDER (B)	8-98120-231-0	01	1	0811-	●	●
365	SUPPORT; FENDER (A)	1-71907-418-1	01	1	0710-0810	●	●
365	SUPPORT; FENDER (B)	8-98120-232-0	01	1	0811-	●	●
383	GUARD; MUD,FENDER LWR	1-71907-415-2	01	1	0410-0709	●	●
383	GUARD; MUD,FENDER LWR	1-71907-456-2	01	1	0710-	●	●
383	GUARD; MUD,FENDER LWR	1-71907-416-2	01	1	0410-0709	●	●
383	GUARD; MUD,FENDER LWR	1-71907-457-2	01	1	0710-	●	●
384	CLIP; FENDER LWR (A) ID=6	1-09987-266-0	04	1	0710-0810	●	●
384	CLIP; FENDER LWR (B) D8X13.5	1-09987-248-1	13	1	0410-0709	●	●
384	CLIP; FENDER LWR (B) D8X13.5	1-09987-248-1	09	1	0710-0810	●	●
384	CLIP; FENDER LWR (B) D8X13.5	1-09987-248-1	13	1	0811-	●	●
385	SCREW; FENDER LWR M6X25	1-65481-736-0	04	1	0710-0810	●	●
389	SCREW; STAND,FENDER M6X22	1-65481-386-0	06	1	0410-	●	●
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	0410-0904	●	●
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-98059-720-0	10	1	0905-	●	●
496	RUBBER; STEP	1-71998-861-2	01	1	0410-	●	●
496	RUBBER; STEP	1-71998-862-2	01	1	0410-	●	●
517	SUPPORT; STEP PANEL (B)	1-65671-530-1	01	1	0410-	●	●
517	SUPPORT; STEP PANEL (B)	1-65671-531-1	01	1	0410-	●	●
517	SUPPORT; STEP PANEL (A)	1-65671-766-1	01	1	0410-	●	●
517	SUPPORT; STEP PANEL (A)	1-65671-778-0	01	1	0410-	●	●
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0410-	●	●
520	NUT; FENDER (B) M6	8-94343-366-1	02	1	0410-	●	●
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	0410-	●	●
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	0410-0410	●	●
525	SEAL; FENDER 10X145	1-71267-342-0	02	1	0410-	●	●
526	FINISHER; FENDER (C)	1-71268-275-1	02	1	0410-	●	●
526	FINISHER; FENDER (A)	1-71907-641-0	02	1	0410-	●	●
526	FINISHER; FENDER (B)	1-71907-642-0	01	1	0410-	●	●
526	FINISHER; FENDER (B)	1-71907-643-0	01	1	0410-	●	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0410-1302	●	●
534	FASTENER (A) ID=5.4 OD=6.8	8-98241-984-0	08	1	1303-	●	●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0410-	●	●
535	FENDER; BLISTER	1-71267-293-1	01	1	0410-	●	●
535	FENDER; BLISTER	1-71267-294-1	01	1	0410-	●	●
659	CLIP; FENDER D8X13.5	1-09987-248-1	02	1	0911-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
