◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11013 - CXZ LHD WEDGE BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#66065) — 136 parça

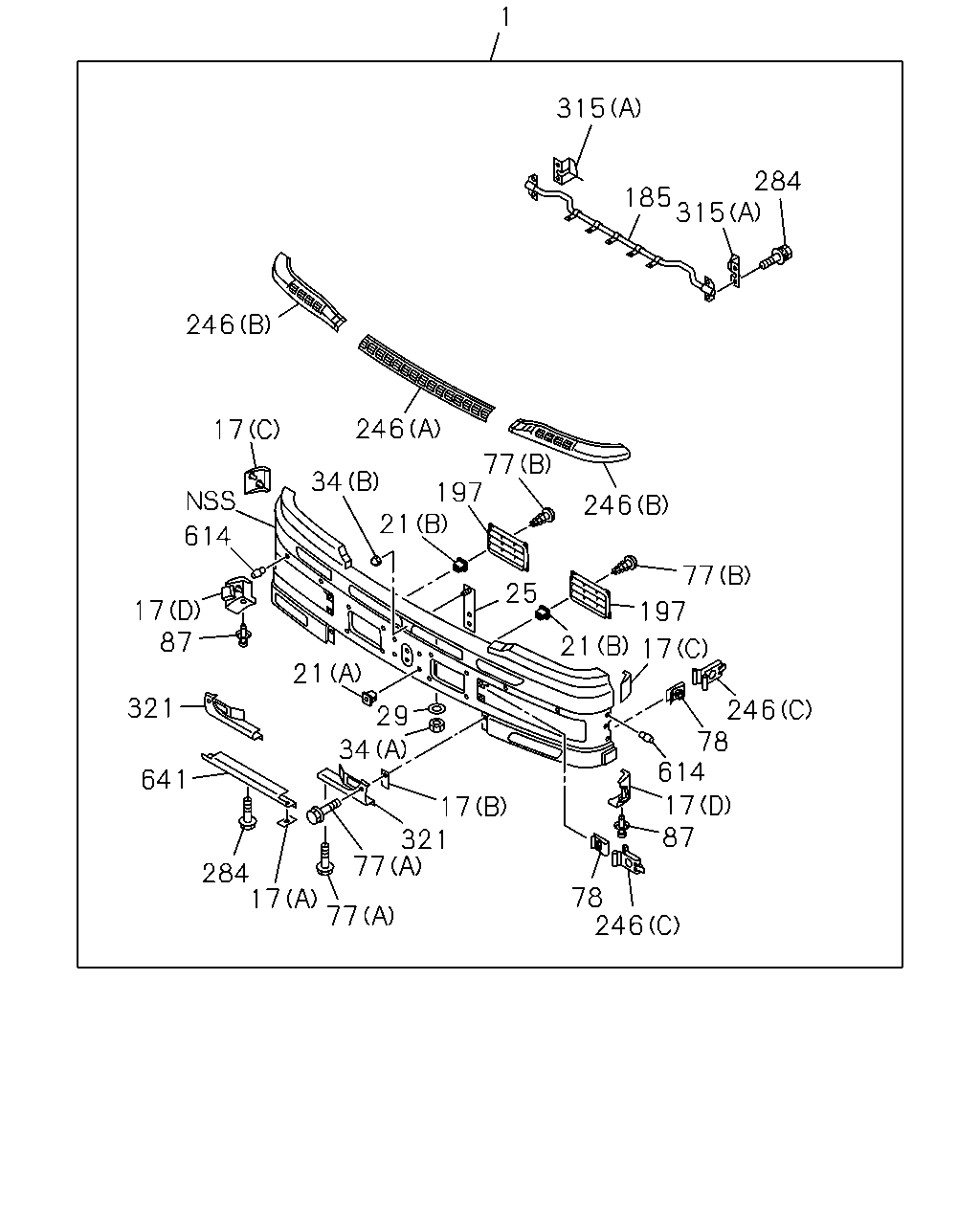

çizim 191914
1 315 284 185 315 246 246 17 77 197 21 34 246 614 77 25 17 87 197 21 17 21 29 321 246 78 614 34 641 17 87 17 321 77 284 17 78 246 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		1-71211-233-2 01 1 0410-0502 ● ●
1 BUMPER ASM; FRT
WHITE 		1-71211-385-0 01 1 0503-0901 ● ●
1 BUMPER ASM; FRT
WHITE 		8-98139-028-0 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
(C) 		8-98139-102-1 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
(C) 		8-98139-103-1 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
(D) 		8-98139-106-2 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
(D) 		8-98139-107-2 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 03 1 0410-0502 ● ●
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0503- ● ●
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0503- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0410- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0410- ● ●
25 SPACER; PLATFORM 1-71230-640-0 01 1 0503- ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 13 1 0410-0605 ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0606- ● ●
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91150-108-0 04 1 0410-0602 ● ●
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0808 ● ●
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0809- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0410-0602 ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ● ●
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0503- ● ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 04 1 0410-0502 ● ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0503- ● ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 08 1 0410-0603 ● ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0604- ● ●
78 NUT; SPIRE 1-71260-174-0 06 1 0410- ● ●
87 RIVET; POP,FRT BUMPER
D8X13.5 		1-09987-248-1 02 1 0902- ● ●
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0410- ● ●
197 GRILLE; BUMPER 1-71260-115-1 01 1 0410- ● ●
197 GRILLE; BUMPER 1-71260-116-1 01 1 0410- ● ●
246 PROTECTOR; BUMPER
(D) 		8-98139-104-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
(D) 		8-98139-105-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0410- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0410- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0410- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0410- ● ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 05 1 0410-0502 ● ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 0503-0512 ● ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0601- ● ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0410-0512 ● ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0410-0502 ● ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0503- ● ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0410-0502 ● ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0503- ● ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0410- ● ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0410- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0410- ● ●
321 COVER; BUMPER FRT SIDE 1-71260-237-1 01 1 0410-0502 ● ●
321 COVER; BUMPER FRT SIDE 1-71260-263-0 01 1 0503- ● ●
321 COVER; BUMPER FRT SIDE 1-71260-238-1 01 1 0410-0502 ● ●
321 COVER; BUMPER FRT SIDE 1-71260-264-0 01 1 0503- ● ●
614 STOPPER; LID 1-71260-163-0 12 1 0410- ● ●
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0410- ● ●

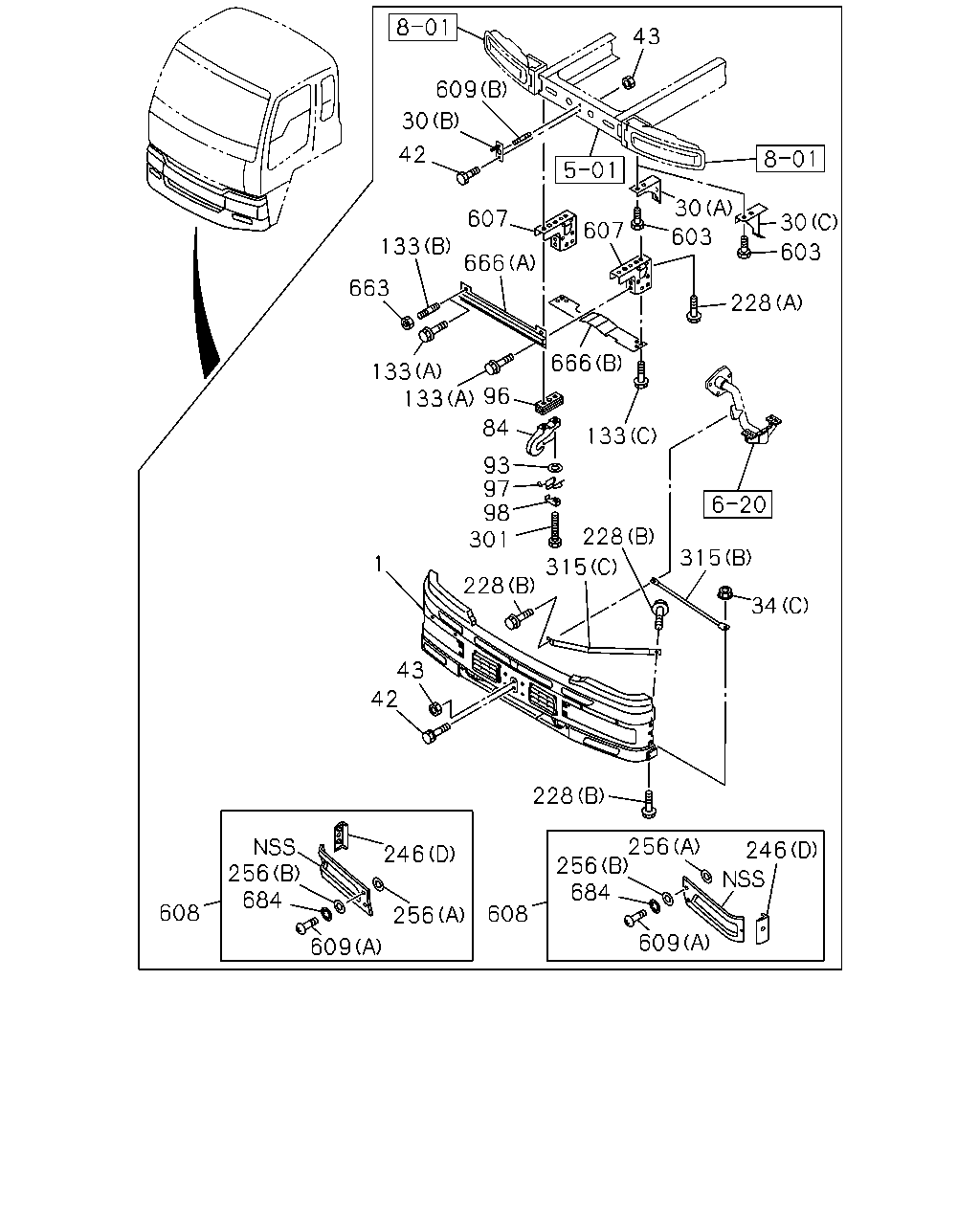

çizim 191917
43 609 30 42 30 607 30 607 603 133 603 666 663 228 666 133 133 96 84 133 93 97 98 301 228 315 1 315 228 34 43 42 228 256 256 684 256 684 246 246 608 608 256 609 609
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		1-71211-233-2 01 1 0410-0502 ● ●
1 BUMPER ASM; FRT
WHITE 		1-71211-385-0 01 1 0503-0901 ● ●
1 BUMPER ASM; FRT
WHITE 		8-98139-028-0 01 1 0902- ● ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-611-2 01 1 0410-0502 ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-432-0 01 1 0410-0502 ● ●
30 BRACKET; FRT BUMPER
(C) 		1-71230-638-0 01 1 0503- ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-433-0 01 1 0410-0502 ● ●
30 BRACKET; FRT BUMPER
(C) 		1-71230-639-0 01 1 0503- ● ●
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91150-108-0 04 1 0410-0602 ● ●
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0808 ● ●
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0809- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0410-0602 ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ● ●
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0503- ● ●
42 BOLT; BUMPER
M10X25 FLANGE 		0-28681-025-0 10 1 0410-0410 ● ●
42 BOLT; BUMPER
M10X25 FLANGE 		0-28681-025-0 08 1 0411-0502 ● ●
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0503- ● ●
42 BOLT; BUMPER
M10X25 		8-94279-212-0 02 1 0411-0502 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 03 1 0410-0410 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 0411-0602 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0603- ● ●
43 NUT; BRKT TO BUMPER
M10 CAP NUT 		1-09650-480-0 01 1 0411-0512 ● ●
84 HOOK 1-57181-027-1 01 1 0410- ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0410-0603 ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0410-0507 ● ●
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0508- ● ●
97 SPRING; FRT HOOK
BUMPER W/HEADLAMPS<SLB> 		9-53519-003-0 01 1 0410- ● ●
98 STOPPER; SPR,FRT HOOK
BUMPER W/HEADLAMPS<SLB> 		9-53519-006-0 01 1 0410- ● ●
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28681-240-0 04 1 0410-0410 ● ●
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28681-240-0 02 1 0411-0512 ● ●
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 02 1 0601-0808 ● ●
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 04 1 0809- ● ●
133 BOLT; PROTECTOR FIX
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0410-0503 ● ●
133 BOLT; PROTECTOR FIX
(C) M12X25 FLANGE 		0-28691-225-0 06 1 0504-0512 ● ●
133 BOLT; PROTECTOR FIX
(C) M12X25 FLANGE 		0-28661-225-0 06 1 0601-1207 ● ●
133 BOLT; PROTECTOR FIX
(C) M12X30 FLANGE 		0-28661-230-0 06 1 1208- ● ●
133 BOLT; PROTECTOR FIX
(B) M12X40 L=56 		1-09300-123-0 02 1 0411-0808 ● ●
228 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE 		0-28680-825-0 06 1 0410-0512 ● ●
228 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE 		0-28650-825-0 06 1 0601-0808 ● ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0809- ● ●
228 BOLT; BRKT
(A) M16X40 		9-92061-640-0 06 1 0410-0512 ● ●
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 0601- ● ●
246 PROTECTOR; BUMPER
(D) 		8-98139-104-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
(D) 		8-98139-105-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0410- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0410- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0410- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0410- ● ●
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0410- ● ●
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0410- ● ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10811-690-0 01 1 0410-0512 ● ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0601- ● ●
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0410- ● ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0410-0502 ● ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0503- ● ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0410-0502 ● ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0503- ● ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0410- ● ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0410- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0410- ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0410-0512 ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
607 BRACKET 1-71230-622-4 01 1 0410-0503 ● ●
607 BRACKET 8-97608-469-3 01 1 0504- ● ●
607 BRACKET 1-71230-623-4 01 1 0410-0503 ● ●
607 BRACKET 8-97608-470-3 01 1 0504- ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		8-98138-788-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		8-98138-789-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		8-98139-037-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		8-98139-038-3 01 1 0902- ● ●
608 LID; BUMPER 1-71211-284-0 01 1 0410-0901 ● ●
608 LID; BUMPER 1-71211-285-0 01 1 0410-0901 ● ●
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0410- ● ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0410- ● ●
663 NUT
M12 FLANGE 		0-91150-212-0 02 1 0411-0602 ● ●
663 NUT
M12 FLANGE 		0-91180-212-0 02 1 0603-0808 ● ●
666 PROTECTOR; UNDER
(A) 		1-71211-323-2 01 1 0410-0503 ● ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 0504- ● ●
666 PROTECTOR; UNDER
(B) 		1-71211-324-3 01 1 0410-0503 ● ●
666 PROTECTOR; UNDER
(A) 		8-97608-471-0 01 1 0504- ● ●
684 WASHER 8-98148-221-0 06 1 0906- ● ●
