5-15 — CAB MOUNTING; CAB SIDE (#66060) — 121 parça

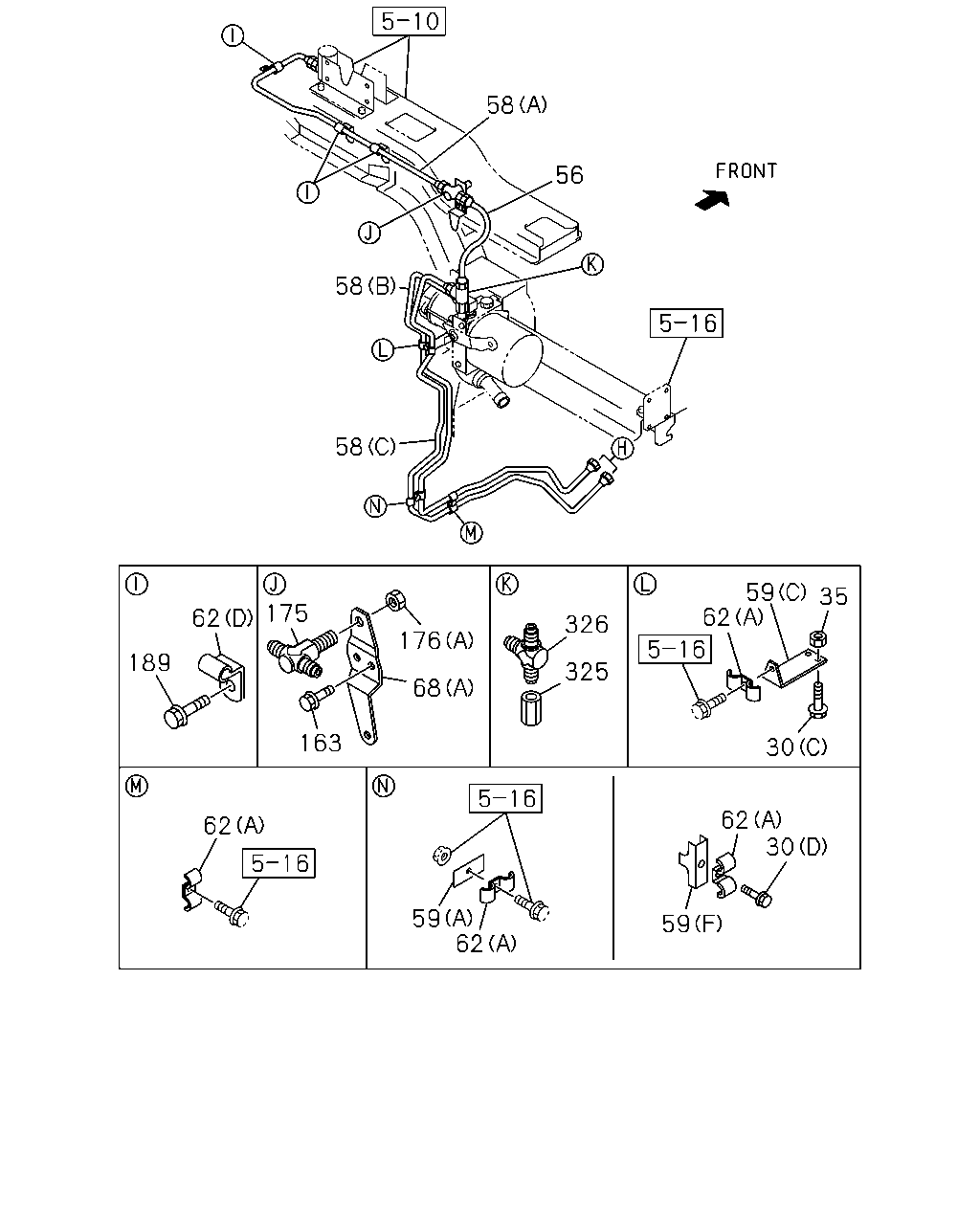

çizim 125780
58 56 58 58 59 62 35 175 62 326 176 189 325 68 163 30 62 30 62 59 62 59
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(D) M8X45 FLANGE 		0-28080-845-0 01 1 0511-0512 ● ●
30 BOLT; BRKT FIX
(D) M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ●
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0410-0512 ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 0410-0512 ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28651-225-0 01 1 0601- ● ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
56 HOSE; FLEX,OIL PIPE
L=400 		1-09365-060-0 01 1 0410- ● ●
58 PIPE; OIL,POWER UNIT
(C) L=1178 SERVICED BY L=1200 		1-47428-732-0 01 1 0410-0510 ● ●
58 PIPE; OIL,POWER UNIT
(C) L=1191 SERVICED BY L=1200 		1-47428-732-0 01 1 0511- ● ●
58 PIPE; OIL,POWER UNIT
(B) L=1134 SERVICED BY L=1200 		1-47428-732-0 01 1 0410-0411 ● ●
58 PIPE; OIL,POWER UNIT
(B) L=1150 SERVICED BY L=1200 		1-47428-732-0 01 1 0412-0510 ● ●
58 PIPE; OIL,POWER UNIT
(B) L=1154 SERVICED BY L=1200 		1-47428-732-0 01 1 0511-1009 ● ●
58 PIPE; OIL,POWER UNIT
(B) L=1268 SERVICED BY L=1370 		1-47428-734-0 01 1 1010- ● ●
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 0410-0412 ● ●
58 PIPE; OIL,POWER UNIT
(A) L=1401 SERVICED BY L=1500 		1-47428-735-0 01 1 0501- ● ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 0410-0410 ● ●
59 BRACKET; CLIP
(E) 		1-47471-087-0 01 1 0410-0410 ● ●
59 BRACKET; CLIP
(B) L=115 B=25 		1-47476-758-0 02 1 0410- ● ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0410-0510 ● ●
59 BRACKET; CLIP
(F) 		1-47475-427-1 01 1 0511- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0410- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 0410- ● ●
62 CLIP; OIL PIPE
(F) L=140 		5-09707-031-1 02 1 0511- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 01 1 0410-0606 ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 0607- ● ●
62 CLIP; OIL PIPE
(D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0410- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 0410- ● ●
62 CLIP; OIL PIPE
(E) ID=24 L=27 		1-09700-809-0 01 1 0410- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 0410- ● ●
68 BRACKET; UNION
(B) 		1-47471-040-0 01 1 0410- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0410- ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 0410- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0410-0602 ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0410- ● ●
189 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0410-0512 ● ●
189 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0410- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0410- ● ●

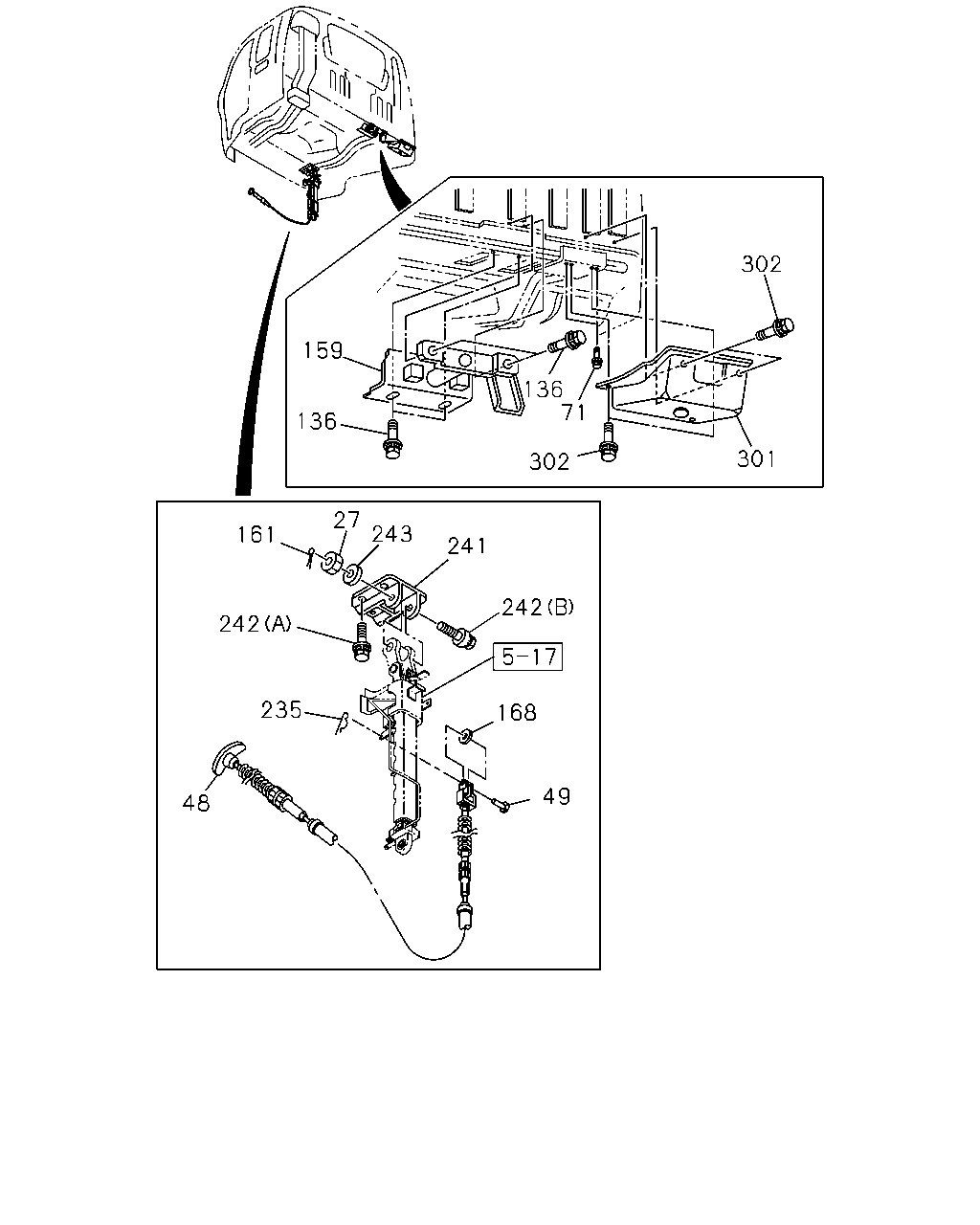

çizim 125946
302 159 136 71 136 301 302 27 243 161 241 242 242 235 168 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0410-0604 ● ●
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 0605- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0410- ● ●
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0410-0606 ● ●
49 PIN; JAW FIX
OD=6 L=17 		0-82253-617-0 01 1 0607- ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0410- ● ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0410- ● ●
159 PIN 1-79717-627-1 01 1 0410- ● ●
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0410-0606 ● ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 0607- ● ●
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0410- ● ●
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0410- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-1 01 1 0410- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 0410- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0410- ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0410-0603 ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-514-0 01 1 0604-0805 ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-814-0 01 1 0806- ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0410- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0410- ● ●

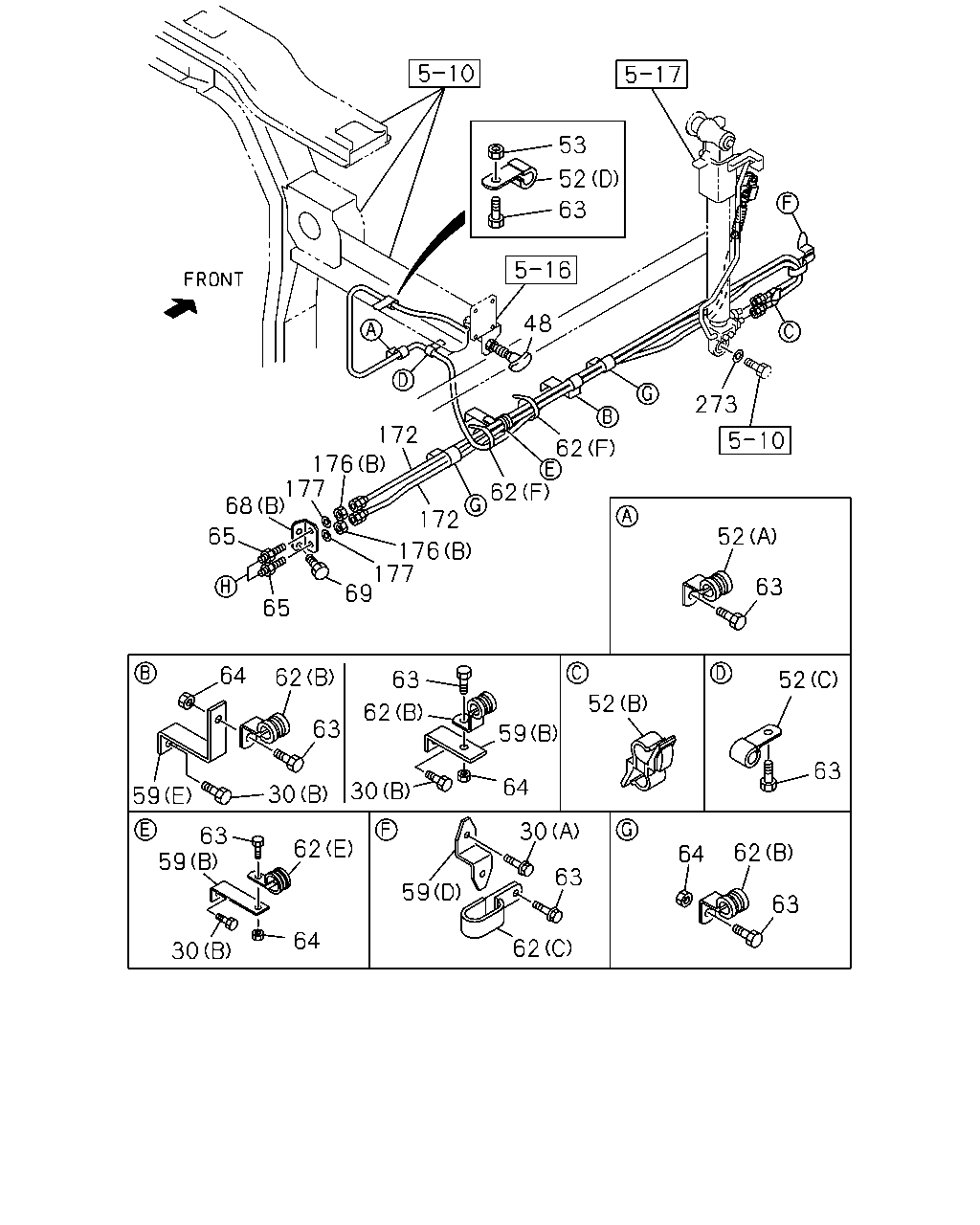

çizim 191911
53 52 63 48 273 172 62 62 176 177 68 172 65 52 176 177 69 63 65 64 62 63 52 52 62 63 59 63 64 30 30 59 30 63 59 62 62 64 63 59 63 64 62 30
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(D) M8X45 FLANGE 		0-28080-845-0 01 1 0511-0512 ● ●
30 BOLT; BRKT FIX
(D) M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ●
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0410-0512 ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 0410-0512 ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28651-225-0 01 1 0601- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0410- ● ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0410- ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0410- ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0410-0606 ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0410-0606 ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		0-95234-685-0 01 1 0607- ● ●
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
53 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 0410-0410 ● ●
59 BRACKET; CLIP
(E) 		1-47471-087-0 01 1 0410-0410 ● ●
59 BRACKET; CLIP
(B) L=115 B=25 		1-47476-758-0 02 1 0410- ● ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0410-0510 ● ●
59 BRACKET; CLIP
(F) 		1-47475-427-1 01 1 0511- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0410- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 0410- ● ●
62 CLIP; OIL PIPE
(F) L=140 		5-09707-031-1 02 1 0511- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 01 1 0410-0606 ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 0607- ● ●
62 CLIP; OIL PIPE
(D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0410- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 0410- ● ●
62 CLIP; OIL PIPE
(E) ID=24 L=27 		1-09700-809-0 01 1 0410- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 0410- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 05 1 0410-0507 ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0508-0512 ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0410-0512 ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0508-0512 ● ●
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0410-0507 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 0410-0607 ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 0608- ● ●
68 BRACKET; UNION
(B) 		1-47471-040-0 01 1 0410- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0410- ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0410-0512 ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0410-0909 ● ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 0910- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0410-0602 ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0410- ● ●
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0410-0603 ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0410-0605 ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
