5-01 — FRAME AND OTHER PARTS (#66058) — 150 parça

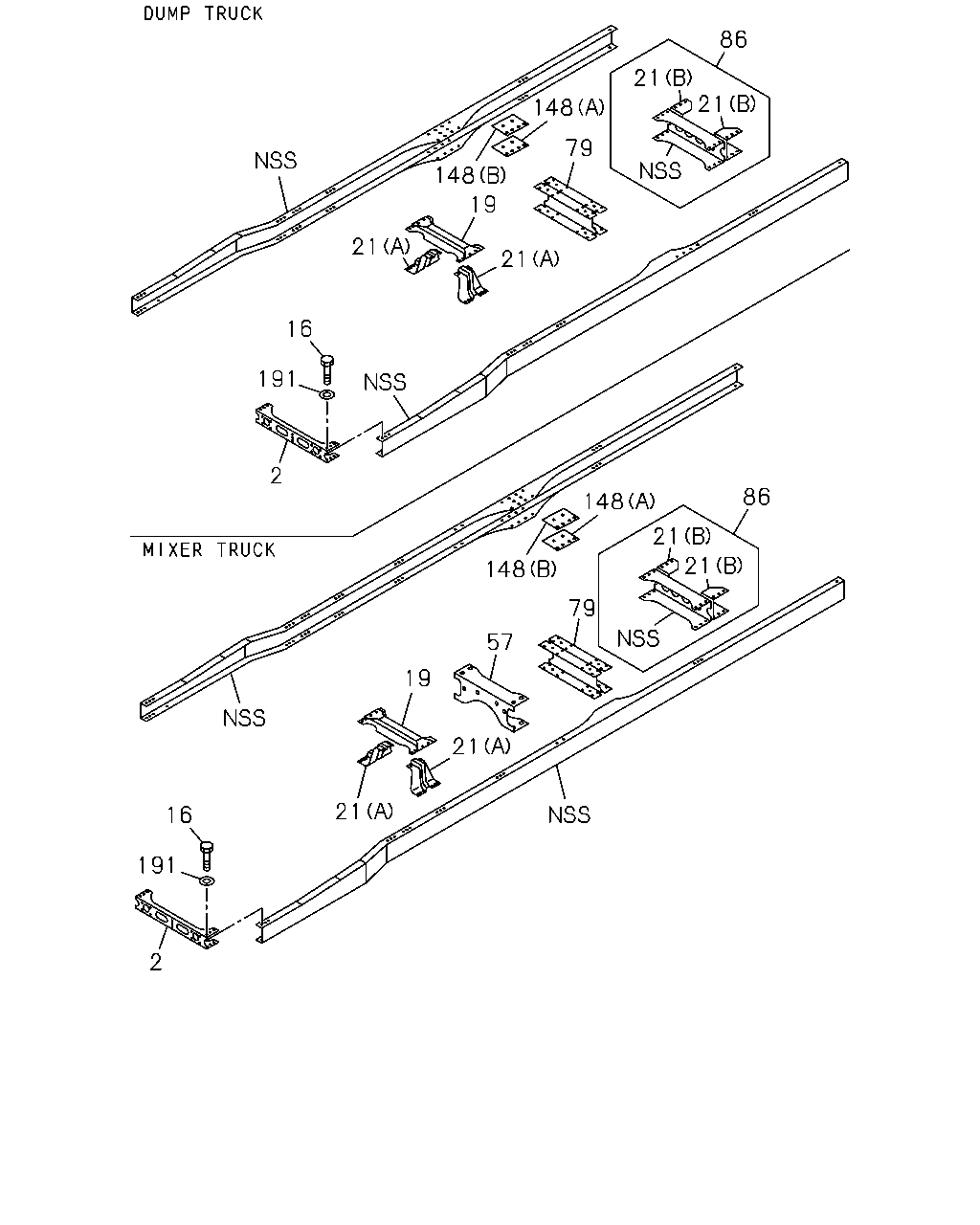

86 21 21 148 148 79 19 21 21 16 191 2 86 148 148 21 21 79 57 19 21 21 16 191 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0410-0509	●	●	●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	0510-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	9-92061-440-0	02	1	0410-0509	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	9-92061-440-0	02	1	0510-0512	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0601-	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0410-0509	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0510-	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0410-0509	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0510-	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0410-0509	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0510-	●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53181-994-1	01	1	0410-0410	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	0410-0410		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0411-0509	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0411-0509		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0510-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0510-		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0410-0509	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0510-	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0410-0509	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0510-	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0410-0509	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0510-	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0410-0509	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0510-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0410-0509	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0510-1201	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-	●	●

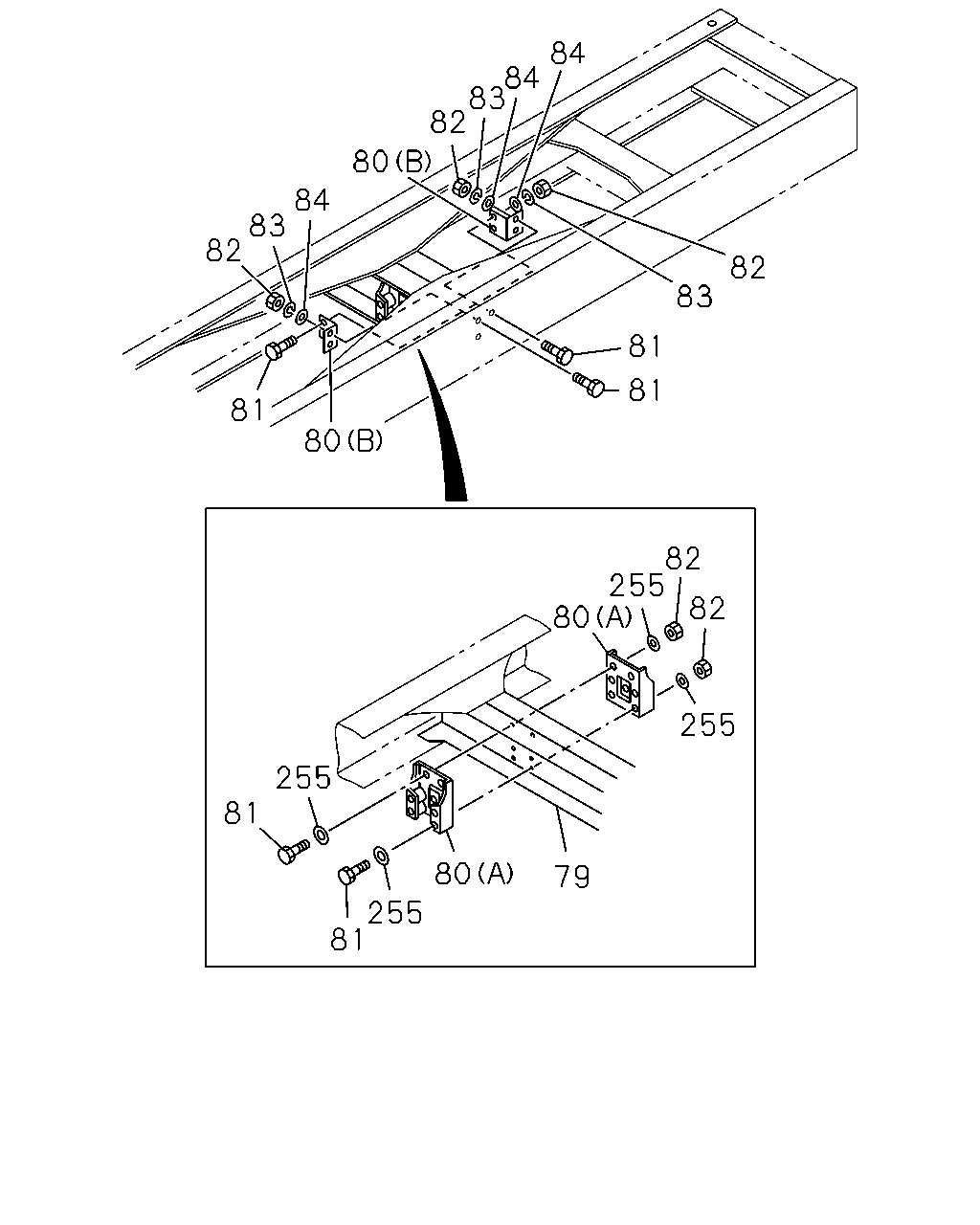

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 255 80 82 255 255 81 80 79 255 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0410-0509	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0510-	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0410-0509	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0510-	●	●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	0410-0509	●	●	●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	0510-	●	●
81	BOLT; BRKT M14X55	9-91066-455-0	04	1	0410-0509	●	●	●
81	BOLT; BRKT M14X55	9-91066-455-0	04	1	0510-	●	●
81	BOLT; BRKT M14X45	9-92061-445-0	08	1	0410-0509	●	●	●
81	BOLT; BRKT M14X45	9-92061-445-0	08	1	0510-	●	●
82	NUT; BRKT M14	9-99110-514-0	04	1	0410-0509	●	●	●
82	NUT; BRKT M14	9-99110-514-0	04	1	0510-0512	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0601-	●	●
82	NUT; BRKT M14	9-99110-514-0	12	1	0410-0509	●	●	●
82	NUT; BRKT M14	9-99110-514-0	12	1	0510-0512	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	0601-	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	0410-0509	●	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	0510-0603	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0604-	●	●
84	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	16	1	0410-0509	●	●	●
84	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	16	1	0510-1104	●	●
84	WASHER; PL,BRKT ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0410-0509	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0510-1201	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-	●	●

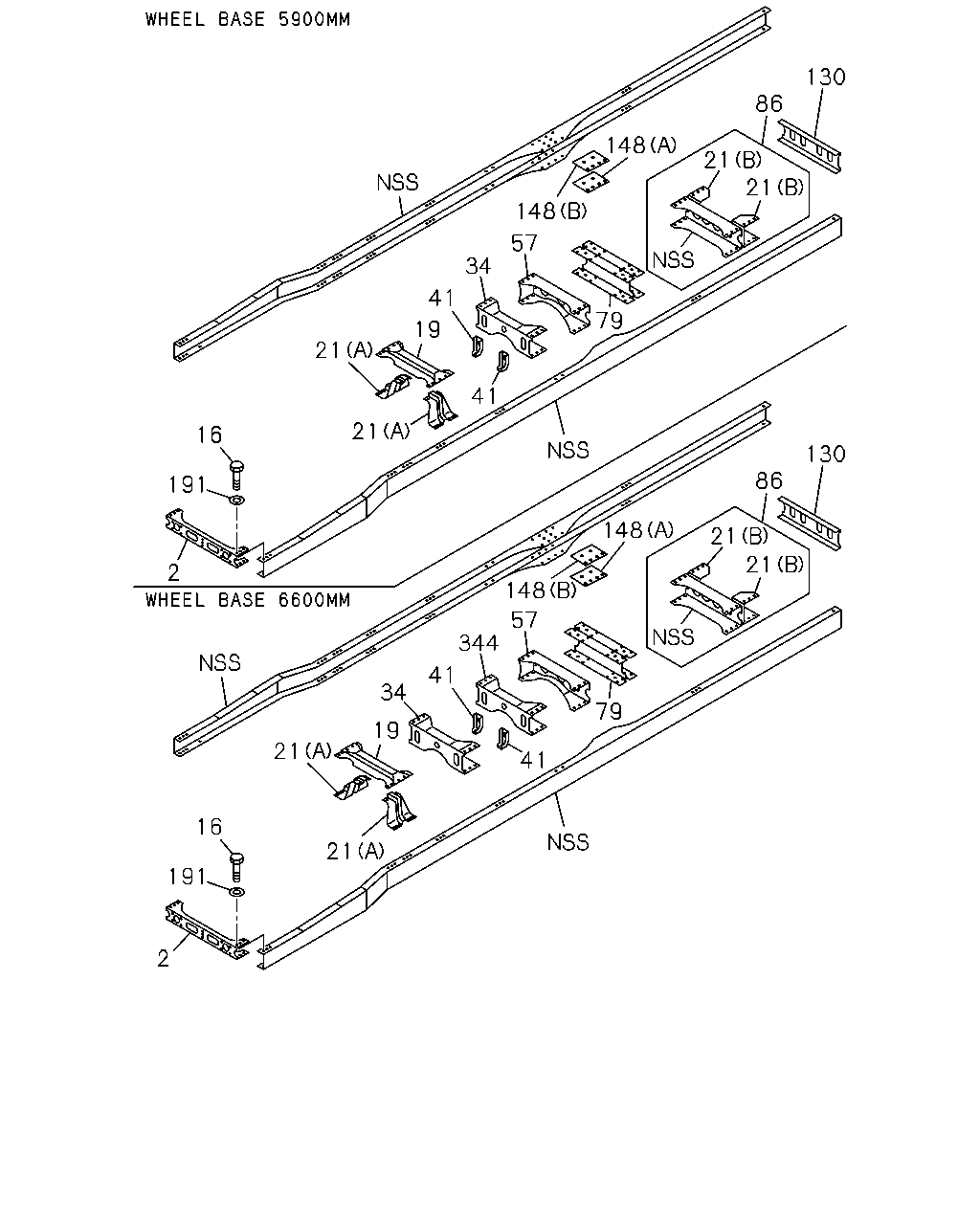

130 86 148 148 21 21 57 34 41 79 19 21 41 21 16 130 86 191 148 21 148 21 2 57 344 41 34 79 19 21 41 16 21 191 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0410-0509	●	●	●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	0510-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	9-92061-440-0	02	1	0410-0509	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	9-92061-440-0	02	1	0510-0512	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0601-	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0410-0509	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0510-	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0410-0509	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0510-	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0410-0509	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0510-	●	●
34	MEMBER; CROSS,3RD	1-53182-072-0	01	1	0410-0509		●	●
34	MEMBER; CROSS,3RD	1-53182-072-1	01	1	0510-		●
41	BRACKET; CENTER BRG,FRAME SIDE L=340	1-53271-307-1	02	1	0410-0509			●
41	BRACKET; CENTER BRG,FRAME SIDE L=320	1-53271-385-0	02	1	0410-		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53181-994-1	01	1	0410-0410	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	0410-0410		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0411-0509	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0411-0509		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0510-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0510-		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0410-0509	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0510-	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0410-0509	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0510-	●	●
130	MEMBER; CROSS,END	1-53171-876-3	01	1	0410-0509		●	●
130	MEMBER; CROSS,END	1-53171-876-4	01	1	0510-		●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0410-0509	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0510-	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0410-0509	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0510-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0410-0509	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0510-1201	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-	●	●
344	MEMBER; CROSS,4TH	1-53182-072-0	01	1	0410-0509			●

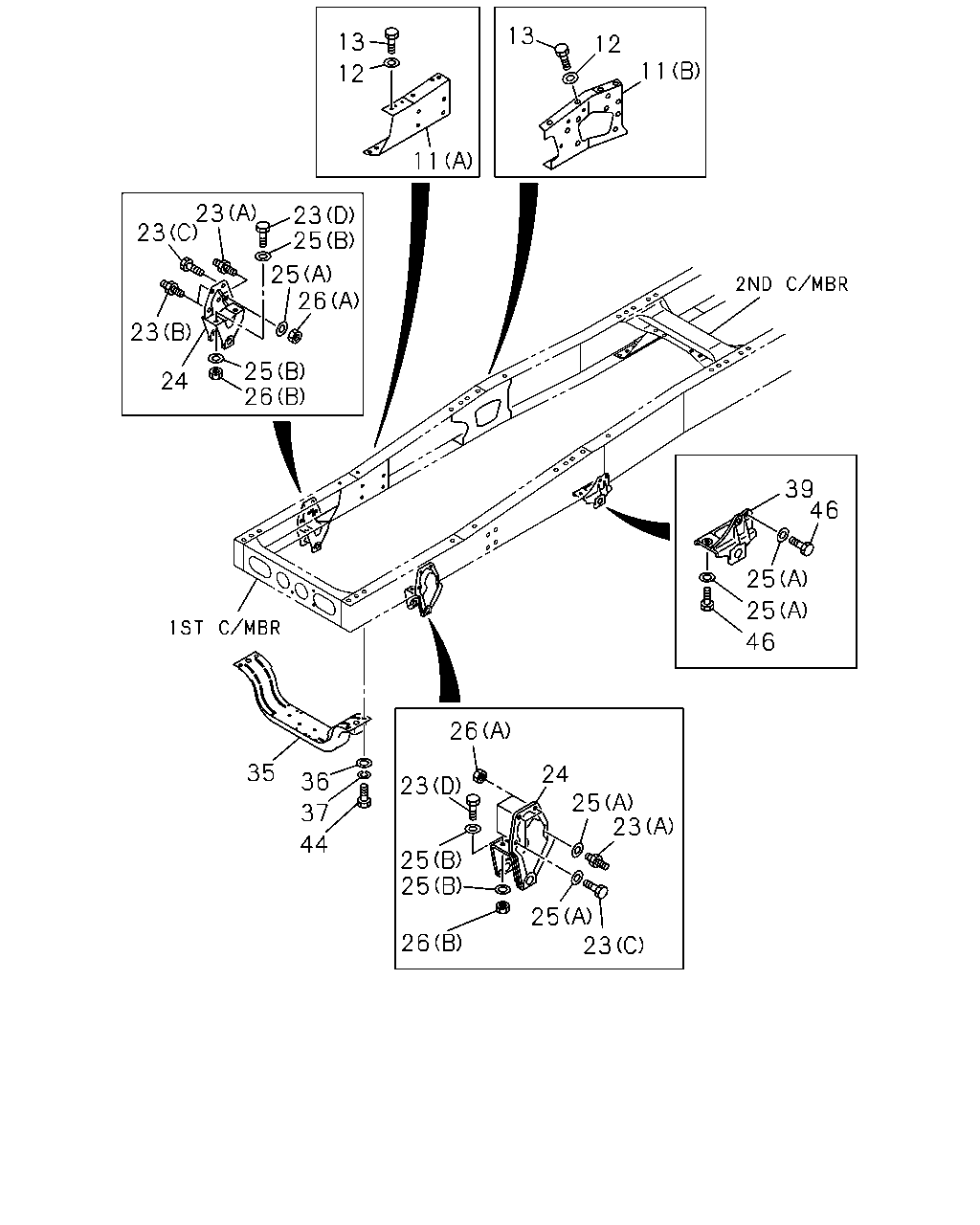

13 13 12 11 12 11 23 23 23 25 25 26 23 25 26 24 39 46 25 25 46 26 35 24 25 23 36 23 37 44 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-0	01	1	0410-0509	●
11	BRACKET; ENG MTG (B)	1-53239-141-0	01	1	0410-0509		●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-1	01	1	0510-	●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	0510-		●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-0	01	1	0410-0509	●
11	BRACKET; ENG MTG (B)	1-53239-142-0	01	1	0410-0509		●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-1	01	1	0510-	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	0510-		●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0410-0509	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0510-	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0410-0509	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0510-	●	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-1	01	1	0410-	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-140-1	01	1	0410-	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0410-0509	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0510-1201	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1202-	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	06	1	0410-0509	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	06	1	0510-0512	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0601-	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0410-0509	●	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0510-	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0410-0509	●	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0510-	●	●
23	BOLT; BRKT,SPR (C) M14X50	9-92061-450-0	04	1	0410-0509	●	●	●
23	BOLT; BRKT,SPR (C) M14X50	9-92061-450-0	04	1	0510-0512	●	●
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	0601-	●	●
23	BOLT; BRKT,SPR (D) M16X50	9-92061-650-0	04	1	0410-0509	●	●	●
23	BOLT; BRKT,SPR (D) M16X50	9-92061-650-0	04	1	0510-0512	●	●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	0601-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0410-0509	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0510-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0410-0509	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0510-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0410-0509	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0510-	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0410-0509	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0510-1201	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1202-	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	08	1	0410-0509	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	08	1	0510-0512	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	0601-	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	0410-0509	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	0510-0512	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0601-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0410-0509	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0510-	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0410-0509	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0510-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0410-0509	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0510-0603	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0604-	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0410-0509	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0510-	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0410-0509	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0510-	●	●
44	BOLT; UNDER MBR M16X60	9-92061-660-0	04	1	0410-0509	●	●	●
44	BOLT; UNDER MBR M16X60	9-92061-660-0	04	1	0510-0512	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0601-	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	0410-0509	●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	0510-0512	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0601-	●	●
