◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11013 - CXZ LHD WEDGE BRAKE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#66053) — 56 parça

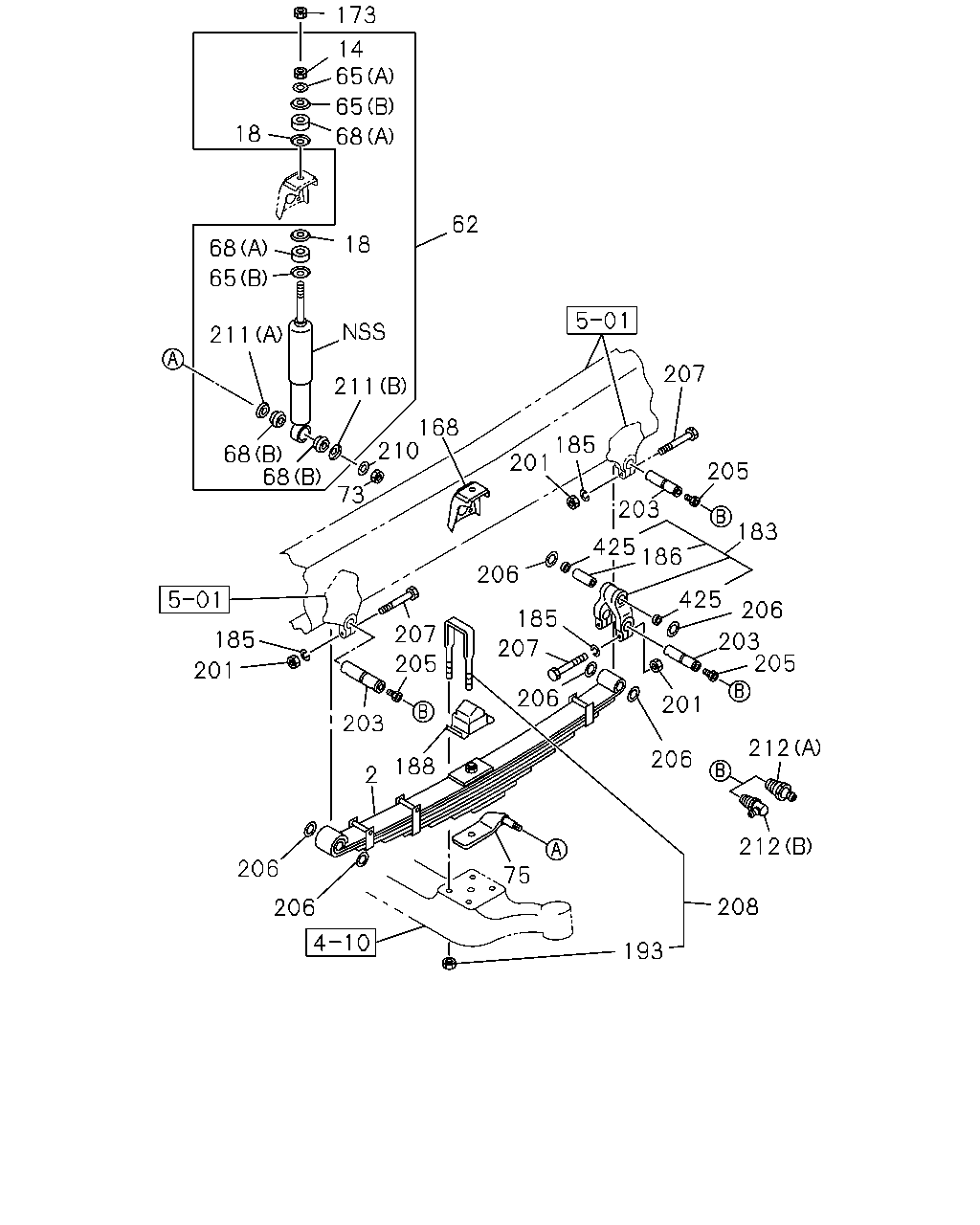

çizim 191909
173 14 65 65 18 68 62 18 68 65 211 207 211 168 210 185 68 68 201 205 73 203 183 425 186 206 425 206 185 207 185 203 205 207 205 201 206 201 203 212 206 188 2 212 206 75 208 206 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> 7-LEAF 		1-51130-961-0 02 1 0410-0603 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CONCRETE PUMP<RA5> 7-LEAF 		1-51130-961-0 02 1 0410-0603 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> 7-LEAF 		8-97614-070-0 02 1 0604-0912 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CONCRETE PUMP<RA5> 7-LEAF 		8-97614-070-0 02 1 0604-0912 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> 7-LEAF 		8-98159-648-0 02 1 1001- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CONCRETE PUMP<RA5> 7-LEAF 		8-98159-648-0 02 1 1001- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. MIXER TRUCK<RA2> 8-LEAF 		1-51130-962-0 02 1 0410-0603 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. CONCRETE PUMP<RA5> 8-LEAF 		1-51130-962-0 02 1 0410-0603 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. MIXER TRUCK<RA2> 8-LEAF 		8-97614-072-0 02 1 0604-0912 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. CONCRETE PUMP<RA5> 8-LEAF 		8-97614-072-0 02 1 0604-0912 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. MIXER TRUCK<RA2> 8-LEAF 		8-98159-659-0 02 1 1001- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. CONCRETE PUMP<RA5> 8-LEAF 		8-98159-659-0 02 1 1001- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0410- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0410- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0410- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0410- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0410- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0410- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0410- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0410- ● ●
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0410- ● ●
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0410- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0410- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0410-0512 ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601- ● ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0410-1005 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0410-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0410-1005 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 0410- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0410-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0410-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0410- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0410- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0410- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0410-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> L=230 		1-87870-269-1 04 1 0410-0507 ●
208 U-BOLT SET; FRT SPRING
CONCRETE PUMP<RA5> L=230 		1-87870-269-1 04 1 0410-0507 ●
208 U-BOLT SET; FRT SPRING
EXC. MIXER TRUCK<RA2> L=250 		1-87870-343-0 04 1 0410-0507 ●
208 U-BOLT SET; FRT SPRING
EXC. CONCRETE PUMP<RA5> L=250 		1-87870-343-0 04 1 0410-0507 ●
208 U-BOLT SET; FRT SPRING
L=250 		1-87870-343-1 04 1 0508-1206 ● ●
208 U-BOLT SET; FRT SPRING
L=250 		1-87870-494-0 04 1 1207- ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 0410- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0410- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0410- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0410-0512 ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 0410-0512 ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 0601- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0410-1005 ● ●
