Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶
7-70 — SEPARATER AND BED
(#6605) — 53 parça
◀

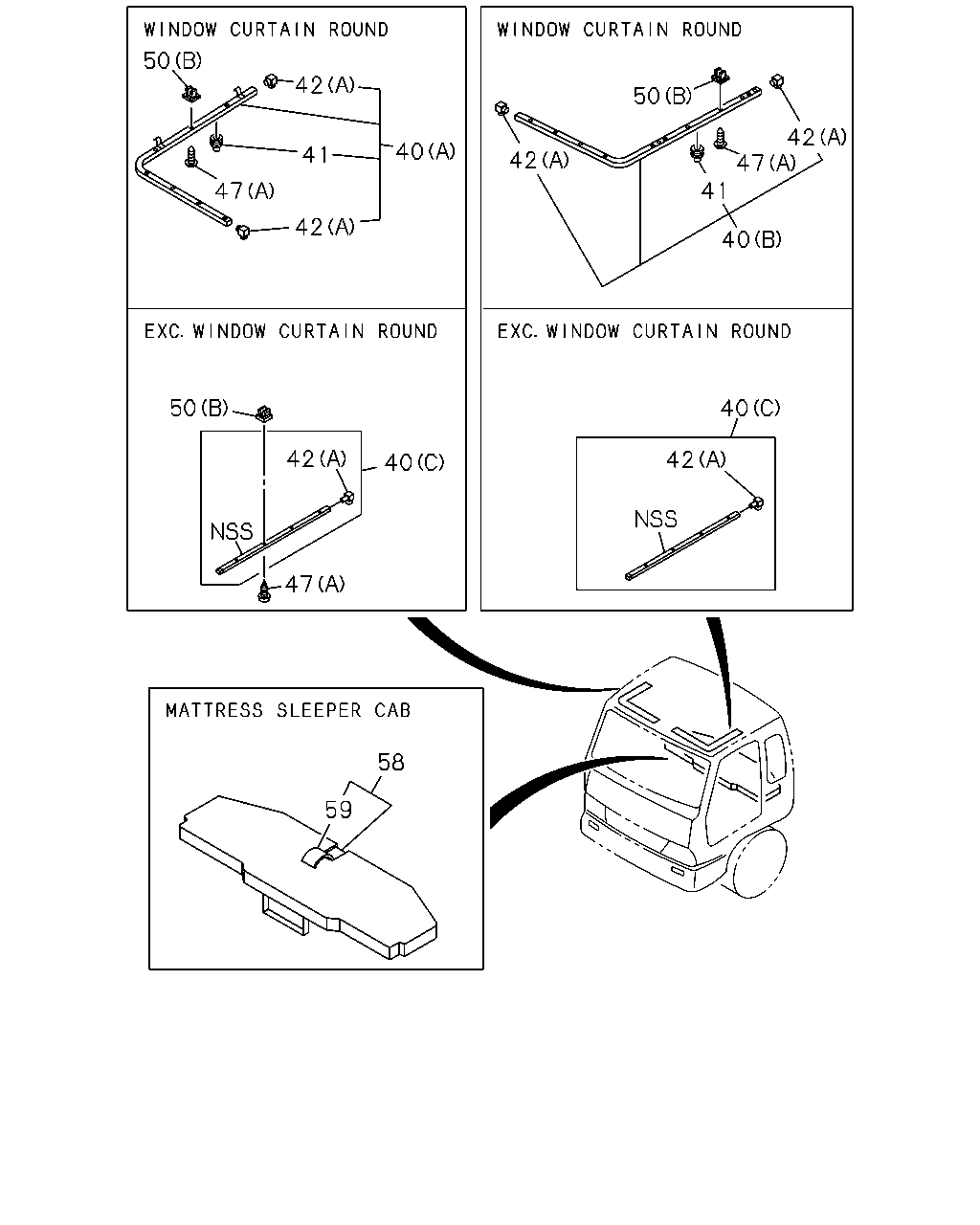

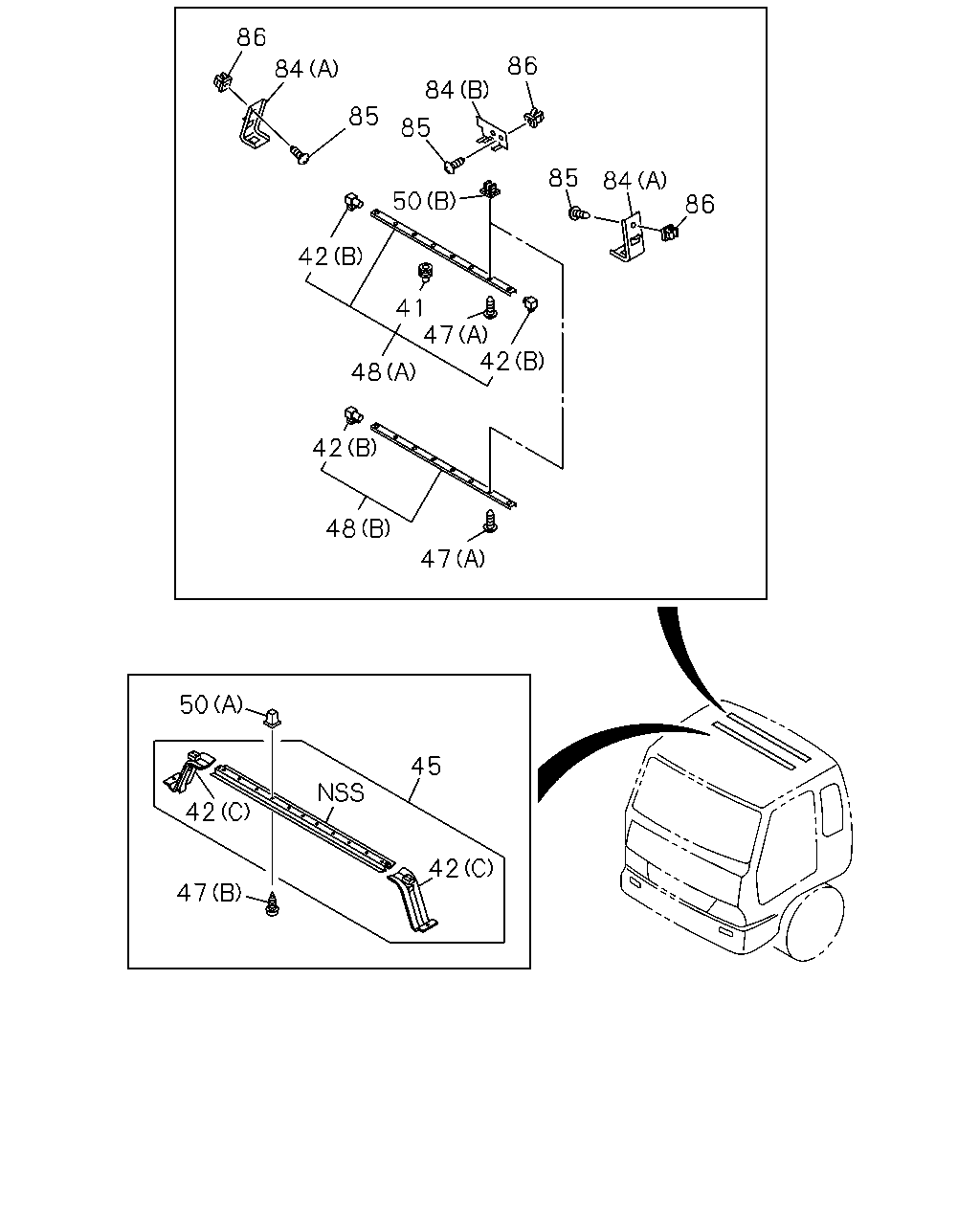

[770A] BACK CURTAIN RAIL (22 parça)

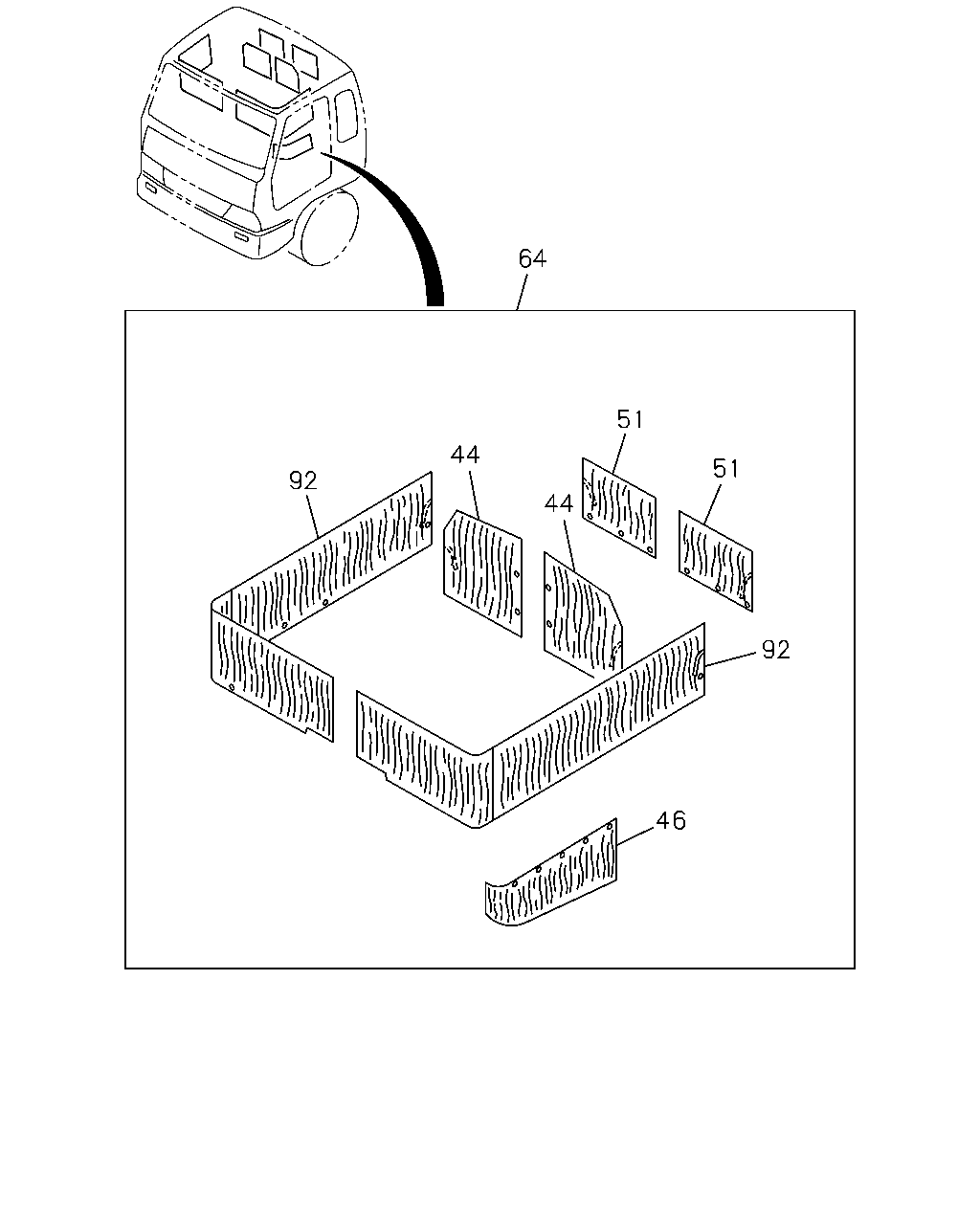

[770A] CURTAIN KIT (10 parça)
[770A] SIDE CURTAIN RAIL AND BED (21 parça)
▶
86
86
84
84
85
85
85
84
50
86
42
41
47
42
48
42
48
47
50
45
42
42
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE
1-73996-398-0
33
1
0101-
41
HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE
1-73996-398-0
14
1
0101-
42
STOPPER; CURTAIN RAIL
1-73996-402-0
02
1
0101-
42
STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A)
1-73996-393-0
04
1
0101-
42
STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B)
1-73996-399-0
02
1
0101-
42
STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A)
1-73996-393-0
02
1
0101-
42
STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B)
1-73996-399-0
01
1
0101-
45
RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>
1-73996-370-0
01
1
0101-
45
RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>
1-73996-369-0
01
1
0101-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0101-
47
SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) M5X20
5-09981-059-0
25
1
0101-
47
SCREW; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20
5-09981-059-0
19
1
0101-
48
RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A)
1-73996-386-0
01
1
0101-
48
RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B)
1-73996-385-0
01
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5
1-09983-159-0
07
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA
8-94279-078-0
25
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5
1-09983-159-0
15
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA
8-94279-078-0
11
1
0101-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0101-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0101-
85
SCREW; BRKT
M5X20
5-09981-059-0
09
1
0101-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 THA
8-94279-078-0
09
1
0101-
64
51
44
51
92
44
92
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>
1-73908-207-0
02
1
0101-
44
CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>
1-73908-208-0
02
1
0101-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-208-0
01
1
0101-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-207-0
01
1
0101-
46
CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4>
1-73907-303-0
02
1
0101-
51
CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4>
1-73908-211-0
02
1
0101-
51
CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4>
1-73908-212-0
02
1
0101-
64
CURTAIN KIT
WINDOW CURTAIN ROUND<BW4>
1-73908-205-0
01
1
0101-
92
CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4>
1-73908-215-0
02
1
0101-
92
CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4>
1-73908-216-0
02
1
0101-
50
42
50
42
40
41
42
47
41
47
42
40
50
40
42
42
40
47
58
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> (B)
1-73996-368-0
01
1
0101-
40
RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> (A)
1-73996-367-0
01
1
0101-
40
RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> (C)
1-73996-378-0
02
1
0101-
41
HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE
1-73996-398-0
33
1
0101-
41
HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE
1-73996-398-0
14
1
0101-
42
STOPPER; CURTAIN RAIL
1-73996-402-0
02
1
0101-
42
STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A)
1-73996-393-0
04
1
0101-
42
STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B)
1-73996-399-0
02
1
0101-
42
STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A)
1-73996-393-0
02
1
0101-
42
STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B)
1-73996-399-0
01
1
0101-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0101-
47
SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) M5X20
5-09981-059-0
25
1
0101-
47
SCREW; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20
5-09981-059-0
19
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5
1-09983-159-0
07
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA
8-94279-078-0
25
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5
1-09983-159-0
15
1
0101-
50
GROMMET; SCREW,CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA
8-94279-078-0
11
1
0101-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> THA
8-97916-084-0
01
1
0101-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> THA
8-97916-084-0
01
1
0101-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> THA
8-97921-662-0
01
1
0101-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> THA
8-97921-662-0
01
1
0101-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
