4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#66049) — 166 parça

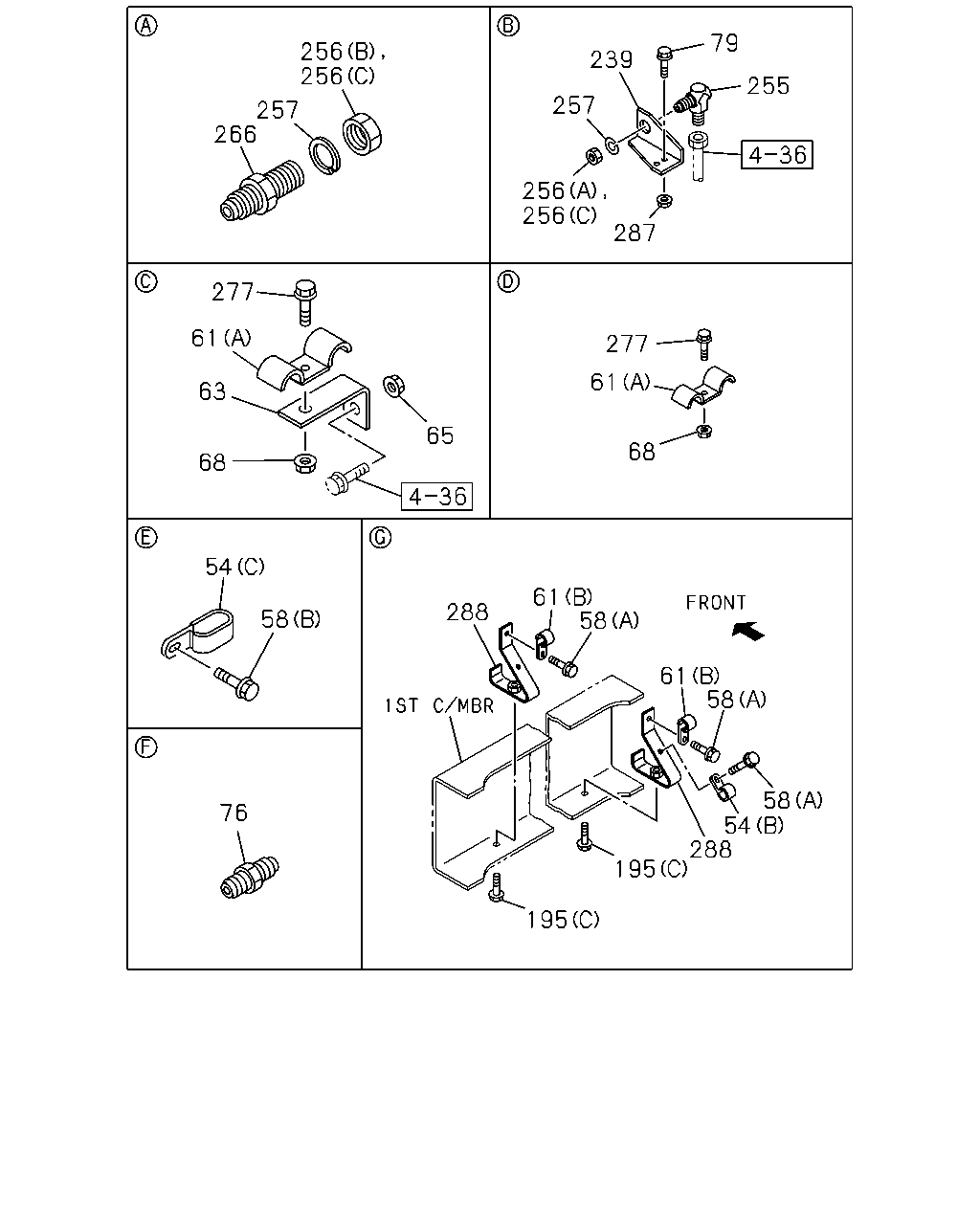

79 256 256 239 255 257 257 266 256 256 287 277 61 277 61 63 65 68 68 54 61 58 288 58 61 58 58 54 288 195 76 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0410-	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0410-0606	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-0810	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0410-0606	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0607-0907	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	0908-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0811-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0410-0503	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0504-0507	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	06	1	0508-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-0810	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0811-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0410-0512	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	0410-0512	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0504-0507	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0410-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0410-0507	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	04	1	0508-0606	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	04	1	0607-0810	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0811-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0811-	●	●
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0410-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0410-0503	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0504-0507	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0508-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0504-0507	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0410-0503	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0504-0507	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0504-0602	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0504-0607	●	●
76	UNION; OIL PIPE M22	0-92123-015-0	01	1	0608-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0410-0512	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0410-0512	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0410-0512	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0410-0512	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
239	BRACKET; FLEX HOSE	1-47479-664-0	01	1	0410-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0410-	●	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0410-0512	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0410-0512	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0410-0603	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0410-0603	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0410-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0410-0512	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0410-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0410-0507	●	●
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	0508-	●	●

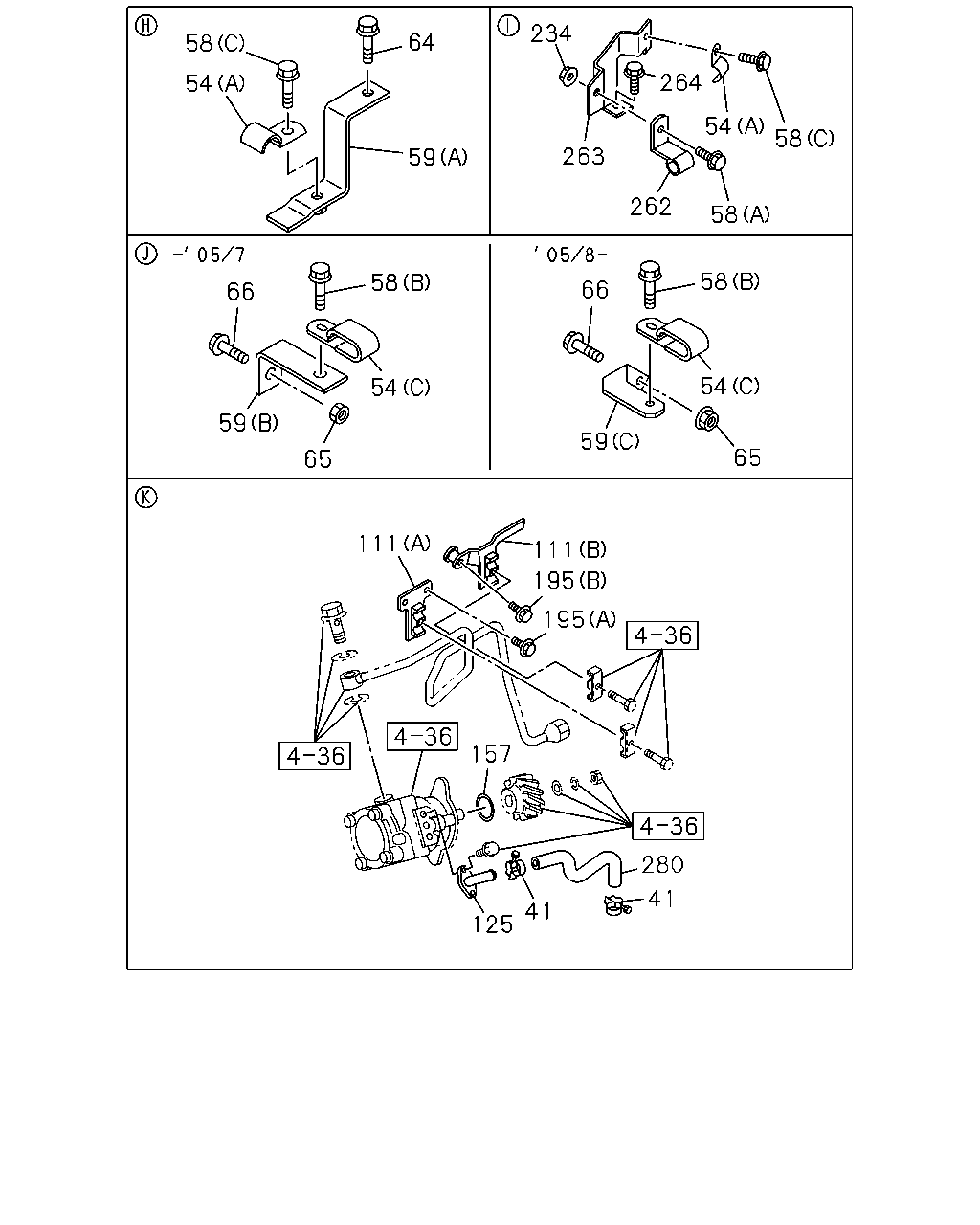

234 64 58 264 54 54 58 263 59 262 58 58 58 66 66 54 54 59 59 65 65 111 111 195 195 157 280 41 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0410-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0410-	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0410-0606	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-0810	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0410-0606	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0607-0907	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	0908-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0811-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0410-0503	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0504-0507	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	06	1	0508-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-0810	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0811-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0410-0512	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	0410-0512	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0504-0507	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=115 B=25	1-47476-758-0	01	1	0410-0507	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	0508-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0410-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	01	1	0410-0512	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	0601-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0410-0503	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0504-0507	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0508-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0504-0507	●	●
66	BOLT; BRKT,OIL PIPE M8X35 FLANGE	0-28680-835-0	01	1	0410-0507	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0508-0512	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0410-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0410-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0410-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0410-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0410-0512	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0410-0512	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0410-0512	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0410-0602	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0410-	●	●
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0410-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0410-0512	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0410-0507	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0508-	●	●

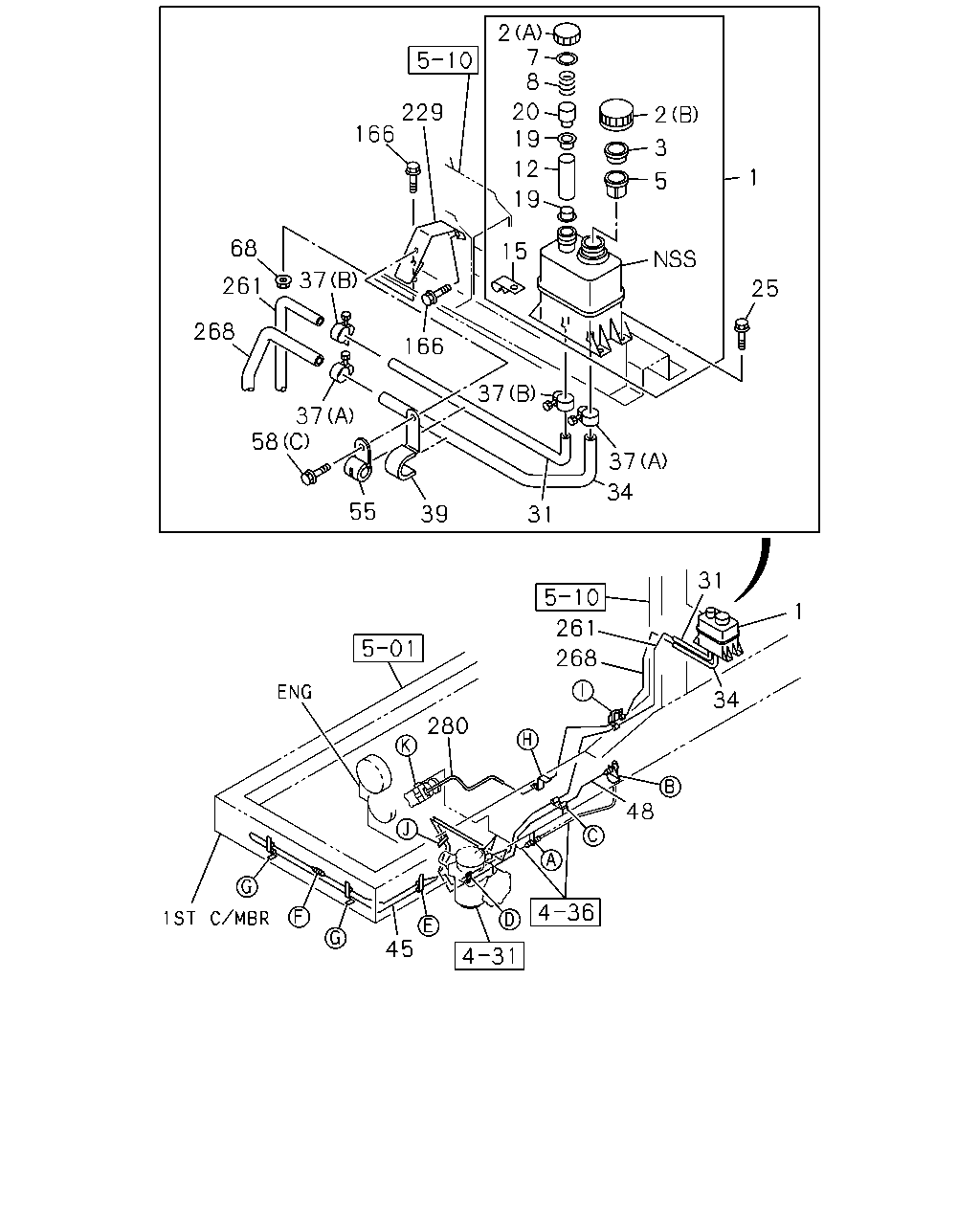

2 7 8 20 19 229 166 2 3 12 1 5 19 68 15 37 261 25 268 166 37 37 58 37 34 55 39 31 31 1 261 268 34 280 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0410-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0410-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0410-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0410-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0410-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0410-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0410-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0410-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0410-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0410-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0410-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0410-0512	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0410-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0410-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0410-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0410-	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0410-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2811	1-21117-689-0	01	1	0410-0507	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2443	1-21117-828-0	01	1	0508-0601	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2443	1-21117-889-0	01	1	0602-0609	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2443	8-98054-782-0	01	1	0610-0709	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2442	1-21117-934-0	01	1	0710-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1863	1-21117-638-0	01	1	0410-0507	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1974	1-21117-827-0	01	1	0508-0609	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1974	8-98054-781-0	01	1	0610-0709	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1984	1-21117-933-0	01	1	0710-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0410-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0811-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0410-0503	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0504-0507	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	06	1	0508-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-0810	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0811-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0410-0512	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	0410-0512	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0504-0507	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0410-0503	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0504-0507	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0504-0602	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0410-0512	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0410-	●	●
261	PIPE; OIL,UNION TO HOSE L=2472	1-21117-639-0	01	1	0410-0507	●	●
261	PIPE; OIL,UNION TO HOSE L=2981	1-21117-829-0	01	1	0508-0510	●	●
261	PIPE; OIL,UNION TO HOSE L=2989	1-21117-861-0	01	1	0511-0709	●	●
261	PIPE; OIL,UNION TO HOSE L=3000	1-21117-935-0	01	1	0710-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0410-0507	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	0508-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0410-0507	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0508-	●	●
