◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11013 - CXZ LHD WEDGE BRAKE ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#66039) — 586 parça

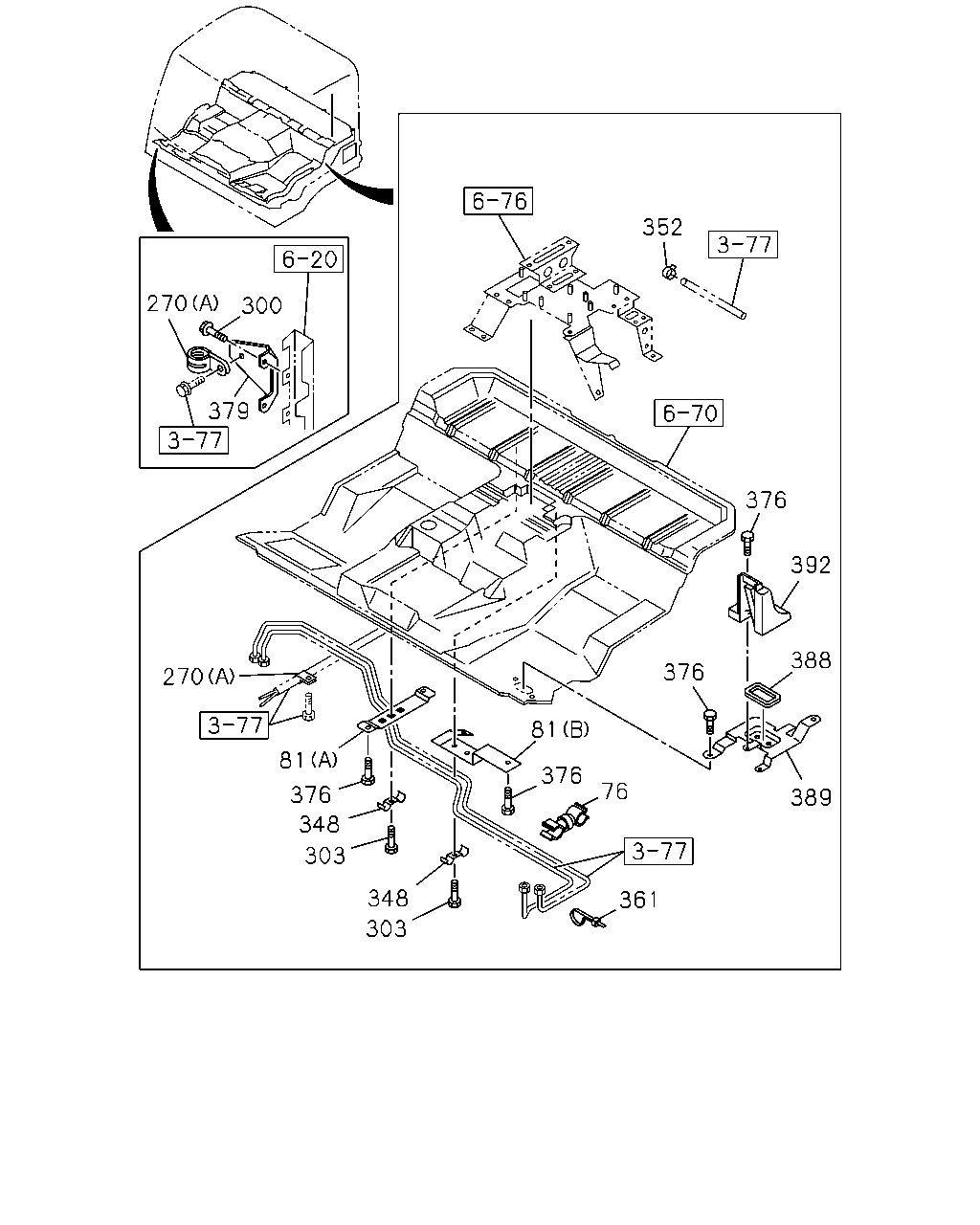

çizim 122337
352 270 300 379 376 392 388 376 270 81 81 376 76 376 389 348 303 348 361 303
BalonParca AdiParca NoAdetTipApplied Date A B
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 0410- ● ●
81 BRACKET; CLIP
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) 		1-47478-113-0 01 1 0410-0410 ● ●
81 BRACKET; CLIP
(J) 		1-47476-200-0 01 1 0410-0410 ● ●
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 0411- ● ●
81 BRACKET; CLIP
(D) 		1-47479-562-0 02 1 0410-0410 ● ●
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0410-0410 ● ●
81 BRACKET; CLIP
(I) L=150 		1-47471-217-0 02 1 0411- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0410-0507 ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0508- ● ●
81 BRACKET; CLIP
(H) L=115 B=25 		1-47476-758-0 01 1 0410-0508 ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 04 1 0410-0508 ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 05 1 0509- ● ●
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0410- ● ●
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0410- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 04 1 0410-0411 ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 02 1 0412-0706 ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 0707- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0410- ● ●
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0412- ● ●
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0412-0706 ● ●
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0410- ● ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0410- ● ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 01 1 0410- ● ●
348 CLIP; AIR PIPE
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 0410- ● ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0410- ● ●
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 0410- ● ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0410- ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0410- ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0410-0904 ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0410- ● ●
388 SEAL
L=215 		1-79738-794-1 01 1 0410- ● ●
389 BRACKET; UNION 1-79738-790-1 01 1 0410- ● ●
392 COVER; BRKT 1-73996-264-1 01 1 0410- ● ●

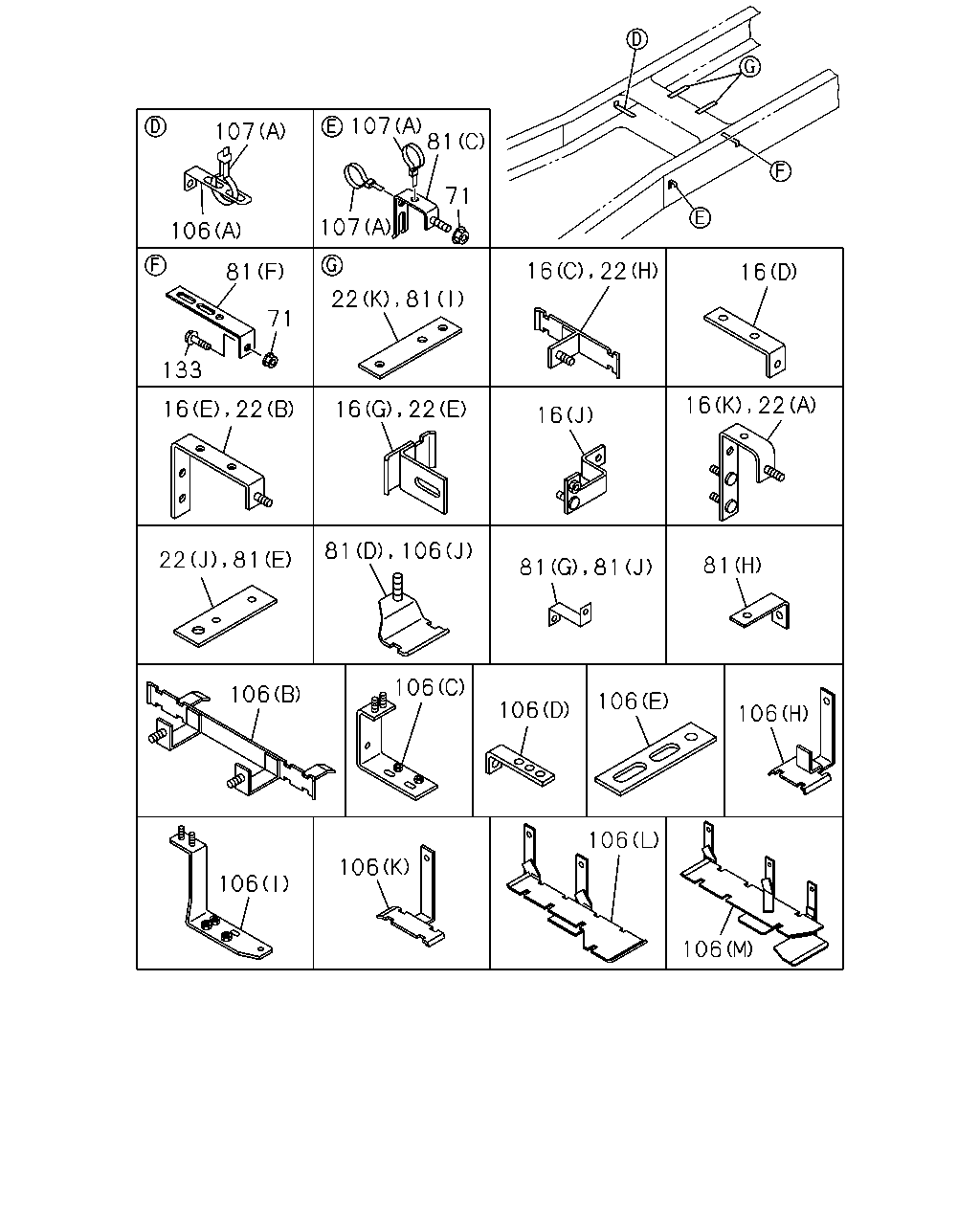

çizim 122653
107 81 107 71 107 106 81 16 71 133 16 22 16 81 106 81 81 81 106 106 106 106 106 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(J) 		1-47479-861-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-861-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 04 1 0410-0507 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> (G) 		1-47479-693-0 02 1 0410-0410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 0410-0410 ●
16 BRACKET; PIPE CLIP
MIXER TRUCK<RA2> (G) 		1-47479-693-0 01 1 0410- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 0410-0509 ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-693-0 02 1 0510- ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-329-0 02 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 02 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(L) 		1-47479-722-1 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0410-0410 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 08 1 0410-0410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 09 1 0410-0507 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 10 1 0508-0509 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 06 1 0410-0410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 03 1 0410-0509 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 02 1 0410-0507 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0508-0509 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 04 1 0508-0509 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0510- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47471-081-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0410- ● ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 04 1 0410-0410 ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 06 1 0410-0509 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 06 1 0510- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 07 1 0410-0410 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 08 1 0410-0507 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 09 1 0508-0509 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (E) 		1-47479-693-0 03 1 0410-0509 ●
22 BRACKET; CLIP
(J) L=130 		1-47479-575-0 02 1 0410-0501 ●
22 BRACKET; CLIP
(K) L=130 		1-47478-959-0 02 1 0502- ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 03 1 0410-0507 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 04 1 0508- ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0410-0509 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		1-47479-329-0 02 1 0410-0509 ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0510- ●
22 BRACKET; CLIP
MIXER TRUCK<RA2> (E) 		1-47479-693-0 01 1 0410- ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0410- ● ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0410- ● ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0410- ● ●
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 0410- ● ●
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 0410- ● ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 02 1 0410-0509 ●
22 BRACKET; CLIP
(A) 		1-47471-188-0 02 1 0510- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 02 1 0410-0509 ●
22 BRACKET; CLIP
(E) 		1-47479-693-0 02 1 0510- ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0410- ●
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0410-0602 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ● ●
81 BRACKET; CLIP
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) 		1-47478-113-0 01 1 0410-0410 ● ●
81 BRACKET; CLIP
(J) 		1-47476-200-0 01 1 0410-0410 ● ●
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 0411- ● ●
81 BRACKET; CLIP
(D) 		1-47479-562-0 02 1 0410-0410 ● ●
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0410-0410 ● ●
81 BRACKET; CLIP
(I) L=150 		1-47471-217-0 02 1 0411- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0410-0507 ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0508- ● ●
81 BRACKET; CLIP
(H) L=115 B=25 		1-47476-758-0 01 1 0410-0508 ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 04 1 0410-0508 ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 05 1 0509- ● ●
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0410- ● ●
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(L) 		1-47471-144-0 01 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(L) 		1-47471-144-0 01 1 0410-0812 ●
106 BRACKET; TUBE CLIP
(M) 		8-98122-297-0 01 1 0901- ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 02 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 02 1 0410-0410 ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0411- ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-205-0 01 1 0411-0412 ●
106 BRACKET; TUBE CLIP
(J) 		1-47479-562-0 02 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(J) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0410- ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 0410-0508 ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 06 1 0509- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47477-746-0 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 04 1 0410- ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0410-0905 ● ●
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0410- ●
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0410-0410 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0410-0507 ● ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0410-0410 ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0411- ● ●
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0410-0504 ● ●
107 CLIP; NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0505- ● ●
107 CLIP; NYLON TUBE
(A) L=300 		1-09707-001-1 01 1 0410-0504 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0505-0507 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0508- ● ●
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0410- ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0410-0606 ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0410-0503 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0410-0507 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0410 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0410-0509 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0510-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-0810 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0811- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0410-0410 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0410-0512 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0503 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 04 1 0504-0507 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0508-0512 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 07 1 0410-0507 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0508-0508 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 09 1 0509-0512 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0601- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0507 ● ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0410-0507 ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0508-0512 ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 03 1 0410-0507 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0508-0509 ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 03 1 0508-0509 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0510-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0810 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811- ● ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0811- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0410-0512 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0601- ● ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28080-610-0 01 1 0410-0512 ● ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0410-0512 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0509 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0510-0512 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0810 ●

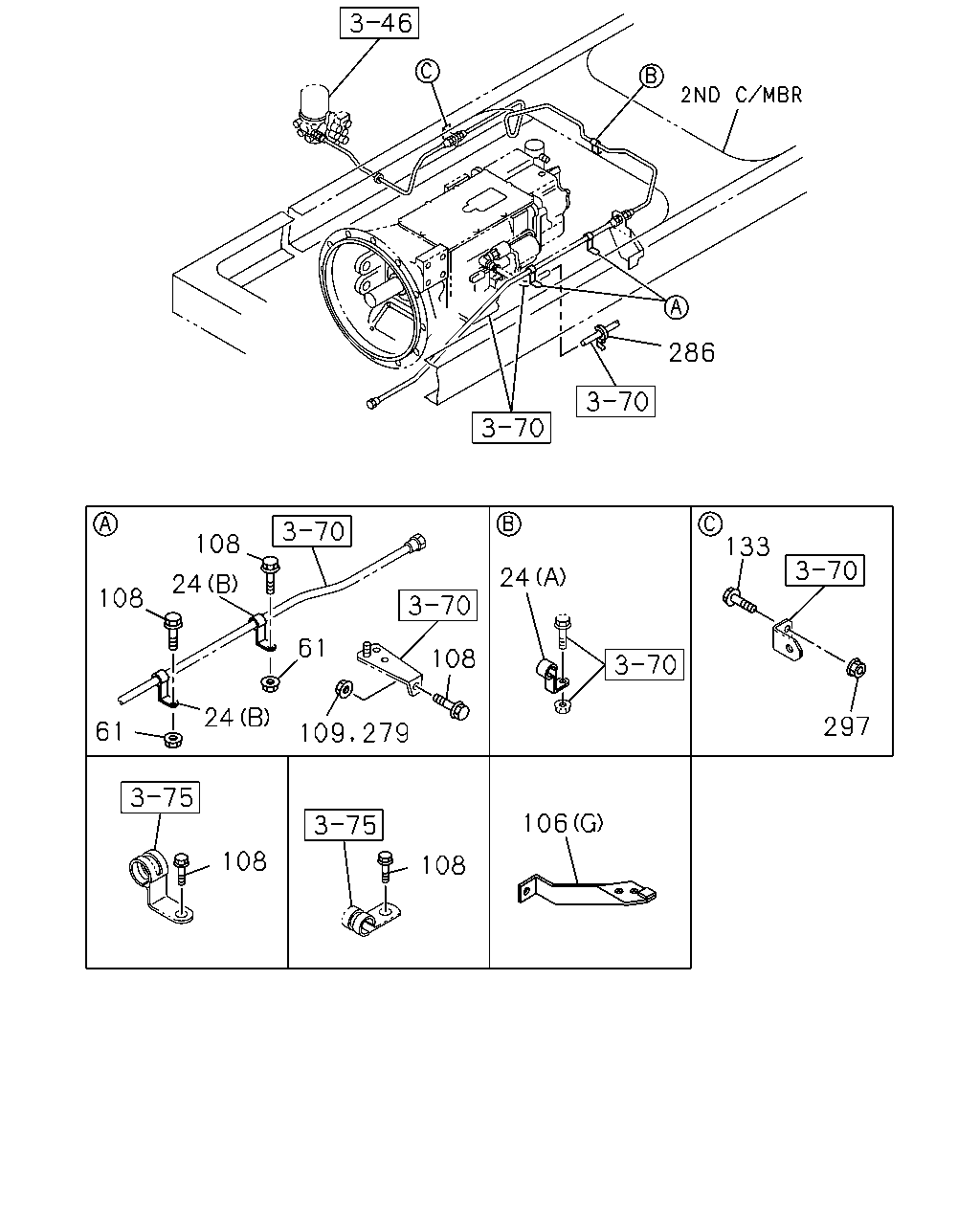

çizim 191891
286 133 108 24 24 108 61 108 24 297 61 106 108 108 109 279
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0410- ● ●
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0410- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(L) 		1-47471-144-0 01 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(L) 		1-47471-144-0 01 1 0410-0812 ●
106 BRACKET; TUBE CLIP
(M) 		8-98122-297-0 01 1 0901- ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 02 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 02 1 0410-0410 ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0411- ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-205-0 01 1 0411-0412 ●
106 BRACKET; TUBE CLIP
(J) 		1-47479-562-0 02 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(J) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0410- ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 0410-0508 ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 06 1 0509- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47477-746-0 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 04 1 0410- ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0410-0905 ● ●
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0410- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0410-0512 ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 08 1 0410-0512 ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 08 1 0601- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0410-0512 ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 06 1 0410-0503 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0504-0602 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0504-0602 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0410-0503 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0410-0507 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0410 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0410-0509 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0510-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-0810 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0811- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0410-0410 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0410-0512 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0503 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 04 1 0504-0507 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0508-0512 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 07 1 0410-0507 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0508-0508 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 09 1 0509-0512 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0601- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0507 ● ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0410-0507 ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0508-0512 ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 03 1 0410-0507 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0508-0509 ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 03 1 0508-0509 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0510-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0810 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811- ● ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0811- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0410-0512 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0601- ● ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28080-610-0 01 1 0410-0512 ● ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0410-0512 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0509 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0510-0512 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0810 ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 21 1 0410-0410 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 19 1 0411-0503 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 17 1 0504-0507 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 21 1 0508-0508 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 22 1 0509-0602 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0504-0602 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 22 1 0603- ● ●
286 CLIP; NYLON TUBE
ID=15 & 7 		1-09709-311-0 01 1 0410- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0410 ● ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 06 1 0410-0602 ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0410 ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 07 1 0410-0602 ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 07 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 15 1 0410-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 15 1 0603- ●

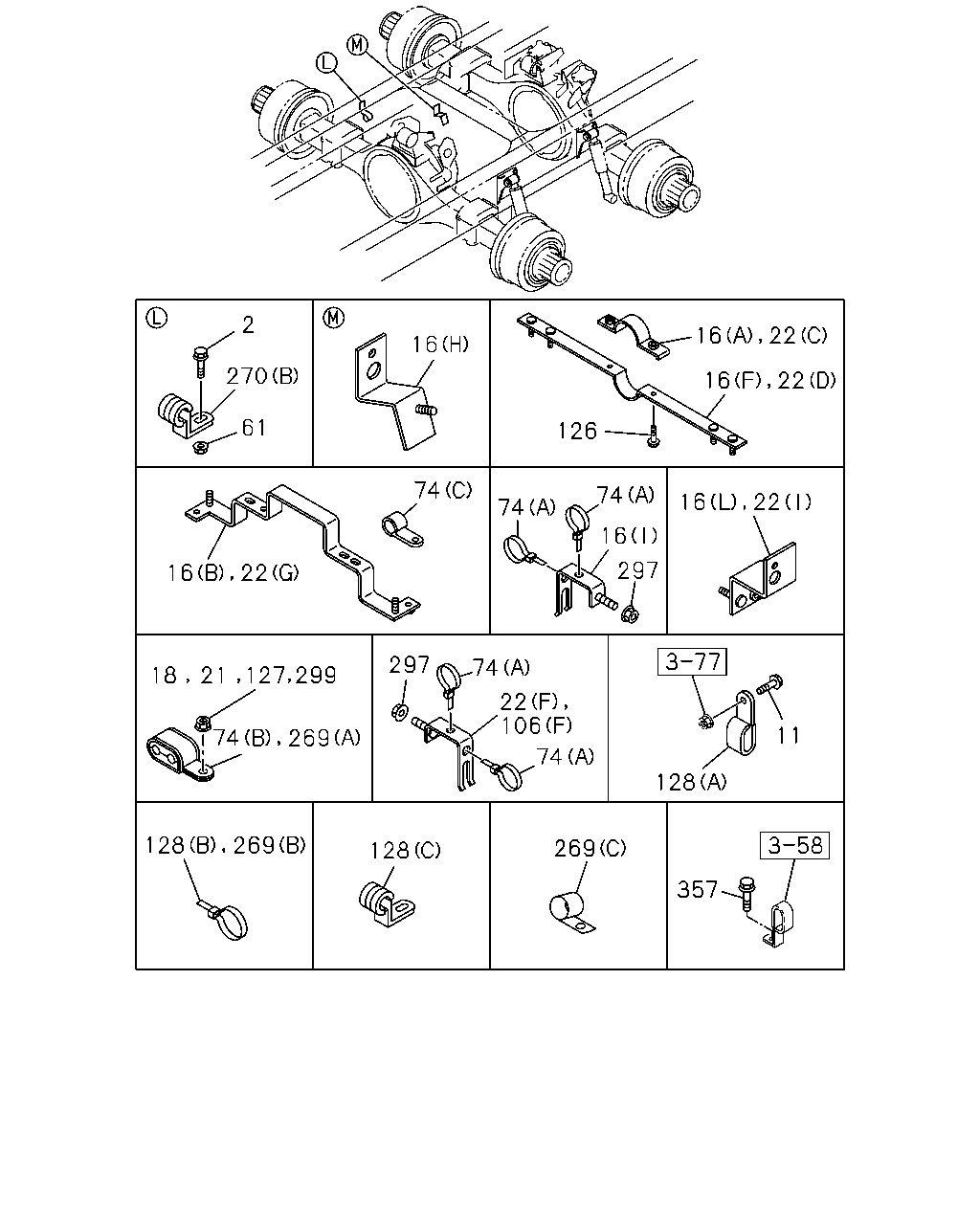

çizim 191895
2 16 22 16 270 61 126 74 74 74 16 297 297 74 18 21 22 106 11 74 128 269 128 357 16 22 16 22 127 299 22 16 269 128 74 269
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0410-0512 ● ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0512 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-861-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-861-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 04 1 0410-0507 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> (G) 		1-47479-693-0 02 1 0410-0410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 0410-0410 ●
16 BRACKET; PIPE CLIP
MIXER TRUCK<RA2> (G) 		1-47479-693-0 01 1 0410- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 0410-0509 ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-693-0 02 1 0510- ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-329-0 02 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 02 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(L) 		1-47479-722-1 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0410-0410 ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0410-0410 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 08 1 0410-0410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 09 1 0410-0507 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 10 1 0508-0509 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 06 1 0410-0410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 03 1 0410-0509 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 02 1 0410-0507 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0508-0509 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 04 1 0508-0509 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0510- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47471-081-0 01 1 0410- ● ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0410- ● ●
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0410-0410 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 04 1 0410-0410 ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 06 1 0410-0509 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 06 1 0510- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 07 1 0410-0410 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 08 1 0410-0507 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 09 1 0508-0509 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (E) 		1-47479-693-0 03 1 0410-0509 ●
22 BRACKET; CLIP
(J) L=130 		1-47479-575-0 02 1 0410-0501 ●
22 BRACKET; CLIP
(K) L=130 		1-47478-959-0 02 1 0502- ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 03 1 0410-0507 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 04 1 0508- ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0410-0509 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		1-47479-329-0 02 1 0410-0509 ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0510- ●
22 BRACKET; CLIP
MIXER TRUCK<RA2> (E) 		1-47479-693-0 01 1 0410- ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0410- ● ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0410- ● ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0410- ● ●
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 0410- ● ●
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 0410- ● ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 02 1 0410-0509 ●
22 BRACKET; CLIP
(A) 		1-47471-188-0 02 1 0510- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 02 1 0410-0509 ●
22 BRACKET; CLIP
(E) 		1-47479-693-0 02 1 0510- ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0410- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
74 CLIP; NYLON TUBE
(C) ID=13 		1-09701-030-1 03 1 0410-0410 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 17 1 0410-0410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 19 1 0410-0501 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 17 1 0502-0507 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 18 1 0508-0509 ●
74 CLIP; NYLON TUBE
MIXER TRUCK<RA2> (A) L=350 		1-09707-183-0 11 1 0410-0410 ●
74 CLIP; NYLON TUBE
MIXER TRUCK<RA2> (A) L=350 		1-09707-183-0 12 1 0411-0507 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 16 1 0410-0501 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 15 1 0502-0507 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 17 1 0508-0509 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 0510- ●
74 CLIP; NYLON TUBE
DUMP TRUCK<RA1> (A) L=350 		1-09707-183-0 10 1 0410-0507 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0508- ●
74 CLIP; NYLON TUBE
(B) 		1-09701-306-0 03 1 0410- ● ●
106 BRACKET; TUBE CLIP
(L) 		1-47471-144-0 01 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(L) 		1-47471-144-0 01 1 0410-0812 ●
106 BRACKET; TUBE CLIP
(M) 		8-98122-297-0 01 1 0901- ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 02 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 02 1 0410-0410 ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0411- ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-205-0 01 1 0411-0412 ●
106 BRACKET; TUBE CLIP
(J) 		1-47479-562-0 02 1 0410-0410 ● ●
106 BRACKET; TUBE CLIP
(J) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0410- ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 0410-0508 ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 06 1 0509- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47477-746-0 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 04 1 0410- ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0410- ● ●
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0410-0905 ● ●
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0410- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0410 ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 02 1 0410-0410 ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0410 ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0410 ●
126 BOLT; CLIP BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0410-0512 ●
126 BOLT; CLIP BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0410-0410 ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0410-0512 ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0512 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
126 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 06 1 0410-0410 ●
126 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 03 1 0410-0509 ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0410-0512 ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0410-0512 ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 09 1 0410-0509 ●
127 NUT; CLIP BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 10 1 0410-0410 ●
127 NUT; CLIP BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 04 1 0410-0602 ●
127 NUT; CLIP BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
127 NUT; CLIP BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 12 1 0410-0410 ●
127 NUT; CLIP BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ●
127 NUT; CLIP BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 05 1 0603- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 08 1 0410-0410 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0501 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0502-0509 ● ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 02 1 0502-0509 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0510-0602 ● ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 02 1 0510-0602 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 05 1 0410-0410 ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 07 1 0410-0509 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 07 1 0510-0602 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 07 1 0603- ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 17 1 0410-0410 ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 08 1 0410-0509 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 08 1 0510-0602 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 08 1 0603- ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 28 1 0410-0410 ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 14 1 0410-0509 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
128 CLIP; NYLON TUBE
MIXER TRUCK<RA2> (B) L=350 		1-09707-183-0 07 1 0410-0507 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 11 1 0410-0410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 13 1 0410-0507 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 15 1 0508-0509 ●
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 15 1 0510- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 16 1 0410-0410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 17 1 0410-0507 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 18 1 0508-0509 ●
128 CLIP; NYLON TUBE
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0410-0410 ● ●
128 CLIP; NYLON TUBE
(A) ID=16 L=28 		1-09700-872-0 01 1 0411- ● ●
128 CLIP; NYLON TUBE
DUMP TRUCK<RA1> (B) L=350 		1-09707-183-0 06 1 0410-0507 ●
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 09 1 0508- ●
128 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0502- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=13 		1-09701-030-1 02 1 0410-0410 ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=13 		1-09701-030-1 05 1 0410- ● ●
269 CLIP; BAND,NYLON TUBE
(A) 		1-09701-306-0 03 1 0410- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0410- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 04 1 0410-0411 ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 02 1 0412-0706 ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 0707- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0410- ● ●
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0412- ● ●
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0412-0706 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0410 ● ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 06 1 0410-0602 ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0410 ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 07 1 0410-0602 ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 07 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 15 1 0410-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 15 1 0603- ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28080-810-0 02 1 0410-0512 ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0601- ● ●

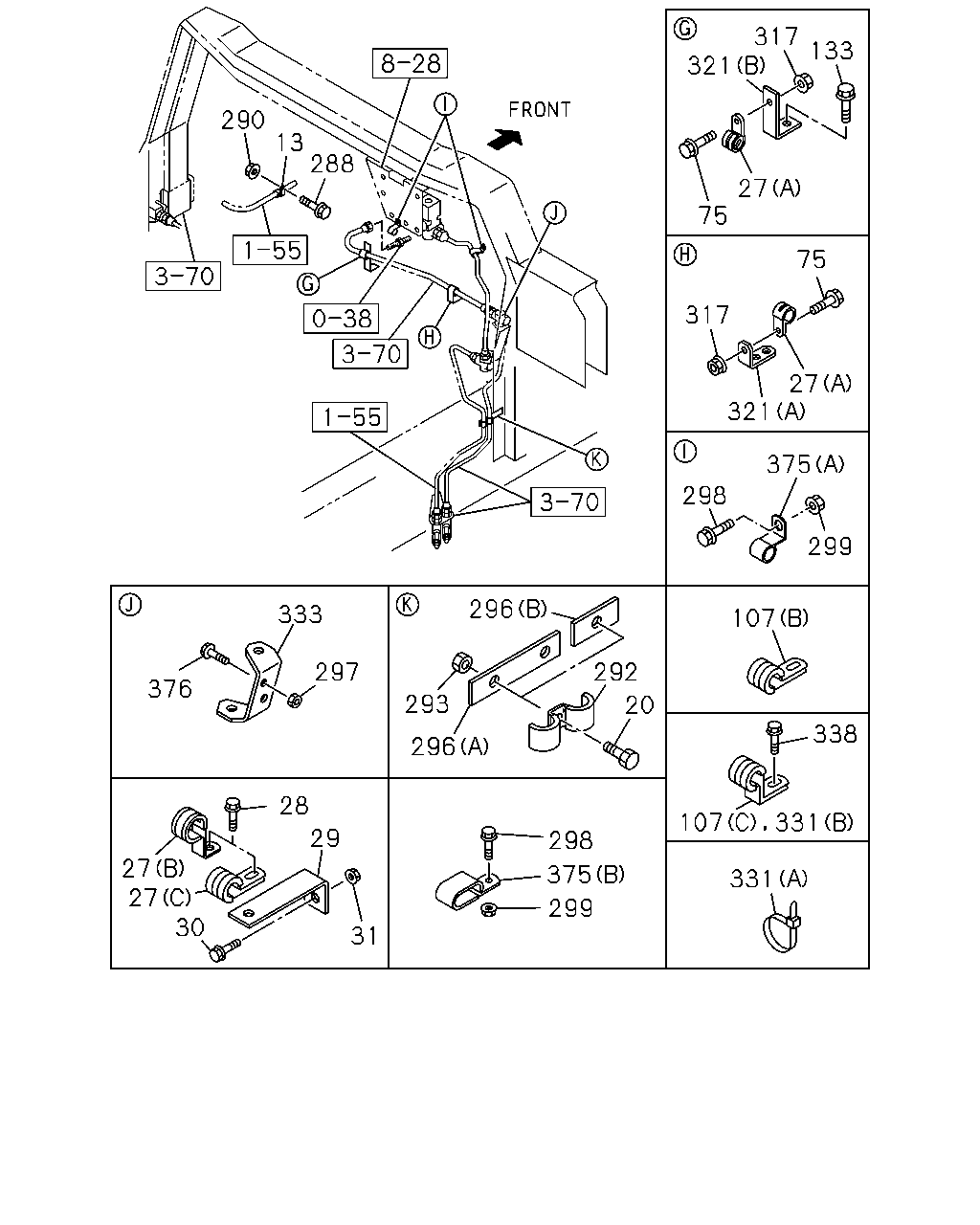

çizim 191900
317 321 133 290 13 288 27 75 75 317 27 321 375 298 299 296 333 107 292 297 376 293 20 338 296 28 29 298 27 27 30 375 331 299 31 107 331
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0410- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0410-0410 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0410- ●
27 CLIP; FLEX HOSE
EXC. MIXER TRUCK<RA2> (A) ID=15 L=28 		1-09701-216-0 02 1 0410- ● ●
27 CLIP; FLEX HOSE
(C) ID=26 L=27 		1-09701-006-0 01 1 0410- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 0410-0512 ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
29 BRACKET; CLIP,AIR PIPE
L=95 		1-82699-085-0 01 1 0511- ●
29 BRACKET; CLIP,AIR PIPE
L=95 		1-82699-085-0 01 1 0410-0410 ●
29 BRACKET; CLIP,AIR PIPE
L=60 		1-47476-217-0 01 1 0410- ●
30 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0510 ●
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0511-0512 ● ●
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0510 ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0511-0602 ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
75 BOLT; CLIP
EXC. MIXER TRUCK<RA2> M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
75 BOLT; CLIP
EXC. MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0410-0410 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0410-0507 ● ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0410-0410 ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0411- ● ●
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0410-0504 ● ●
107 CLIP; NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0505- ● ●
107 CLIP; NYLON TUBE
(A) L=300 		1-09707-001-1 01 1 0410-0504 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0505-0507 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0508- ● ●
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0410- ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0410-0606 ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0410-0503 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0410-0507 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0410 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0410-0509 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0510-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-0810 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0811- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0410-0410 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0410-0512 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0503 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 04 1 0504-0507 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0508-0512 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 07 1 0410-0507 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0508-0508 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 09 1 0509-0512 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0601- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0507 ● ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0410-0507 ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0508-0512 ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 03 1 0410-0507 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0508-0509 ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28680-825-0 03 1 0508-0509 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0510-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0810 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811- ● ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0811- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0410-0512 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 0601- ● ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28080-610-0 01 1 0410-0512 ● ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0410-0512 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0509 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0510-0512 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0810 ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0410-0512 ● ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-208-0 01 1 0410-0602 ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-208-0 01 1 0603- ● ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0410-0410 ● ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0410- ● ●
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
296 BRACKET; CLIP
(B) 		1-47475-648-0 01 1 0410- ● ●
296 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0410- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0410 ● ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 06 1 0410-0602 ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0410 ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 07 1 0410-0602 ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 07 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0410-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 15 1 0410-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 15 1 0603- ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28680-820-0 01 1 0410-0512 ● ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (A) 		1-47477-337-1 01 1 0410- ● ●
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (B) L=75 		1-47478-328-0 01 1 0410- ● ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0410- ● ●
331 CLIP; NYLON TUBE
(B) ID=13 H=75 L=25 		1-09700-601-0 02 1 0501- ●
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 0410- ● ●
338 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28680-835-0 02 1 0501-0512 ●
338 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0410- ●
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (B) ID=7 L=20 		9-09524-635-0 02 1 0410-0606 ● ●
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (B) ID=7 L=20 		0-95234-635-0 02 1 0607- ● ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0410- ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0410- ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0410-0904 ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
