3-77 — BRAKE PIPING; AIR,REAR (#66038) — 97 parça

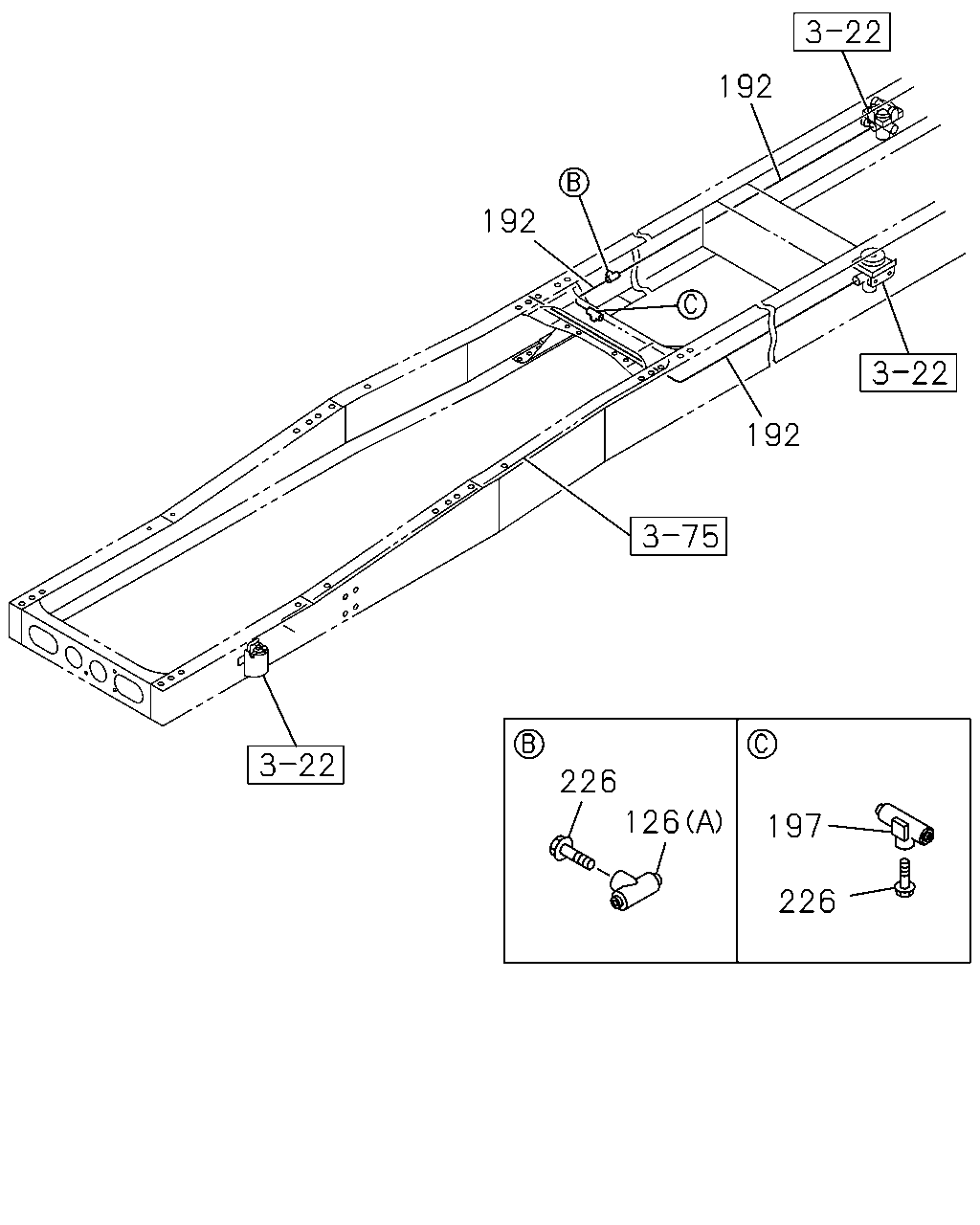

çizim 121843
192 192 192 226 126 197 226
BalonParca AdiParca NoAdetTipApplied Date A B
126 UNION; NYLON TUBE
(C) 		8-98107-103-0 02 1 0804- ● ●
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 0410- ● ●
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0410- ● ●
197 UNION ASM; NYLON TUBE 1-09661-133-0 01 1 0410- ● ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 06 1 0410-0512 ● ●
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 0601- ● ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 02 1 0410-0512 ● ●
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 0601- ● ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0410-0904 ● ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●

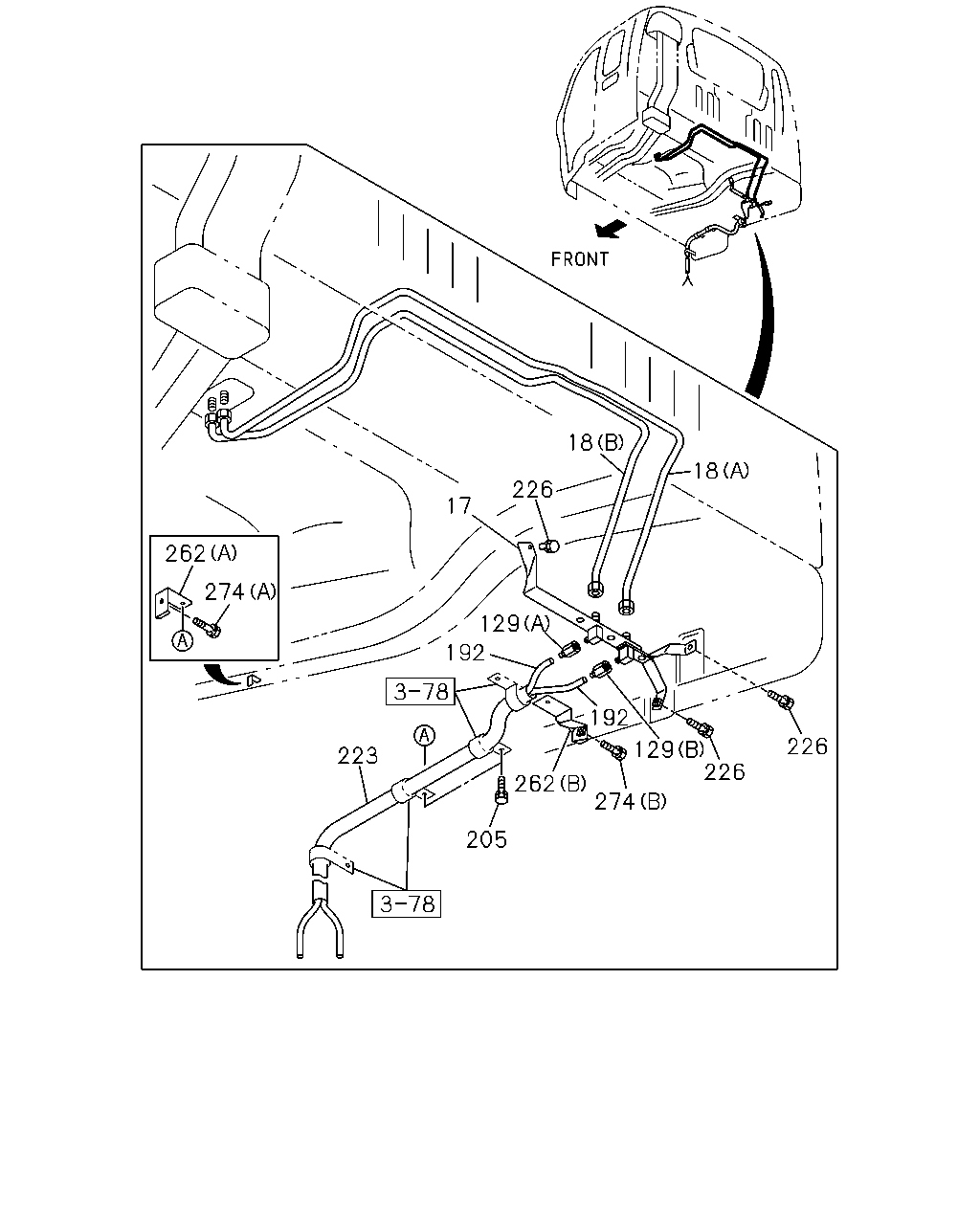

çizim 122168
18 18 226 17 262 274 129 192 192 226 129 226 223 262 274 205
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE 1-47470-464-3 01 1 0410- ● ●
18 PIPE; AIR,UNION TO UNION
(A) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0410- ● ●
18 PIPE; AIR,UNION TO UNION
(B) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0410- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0410-0610 ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0611-0803 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0410- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0410- ● ●
205 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0410-0501 ● ●
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502- ● ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0410-0512 ● ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0410- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0410- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 		1-87411-023-0 AR 1 0501- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0411- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0501- ● ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 06 1 0410-0512 ● ●
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 0601- ● ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 02 1 0410-0512 ● ●
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 0601- ● ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0410-0904 ● ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
262 BRACKET
(A) 		1-79996-143-0 01 1 0410- ● ●
262 BRACKET
(B) 		1-79996-258-1 01 1 0410- ● ●
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0410-0512 ● ●
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
274 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0410- ● ●

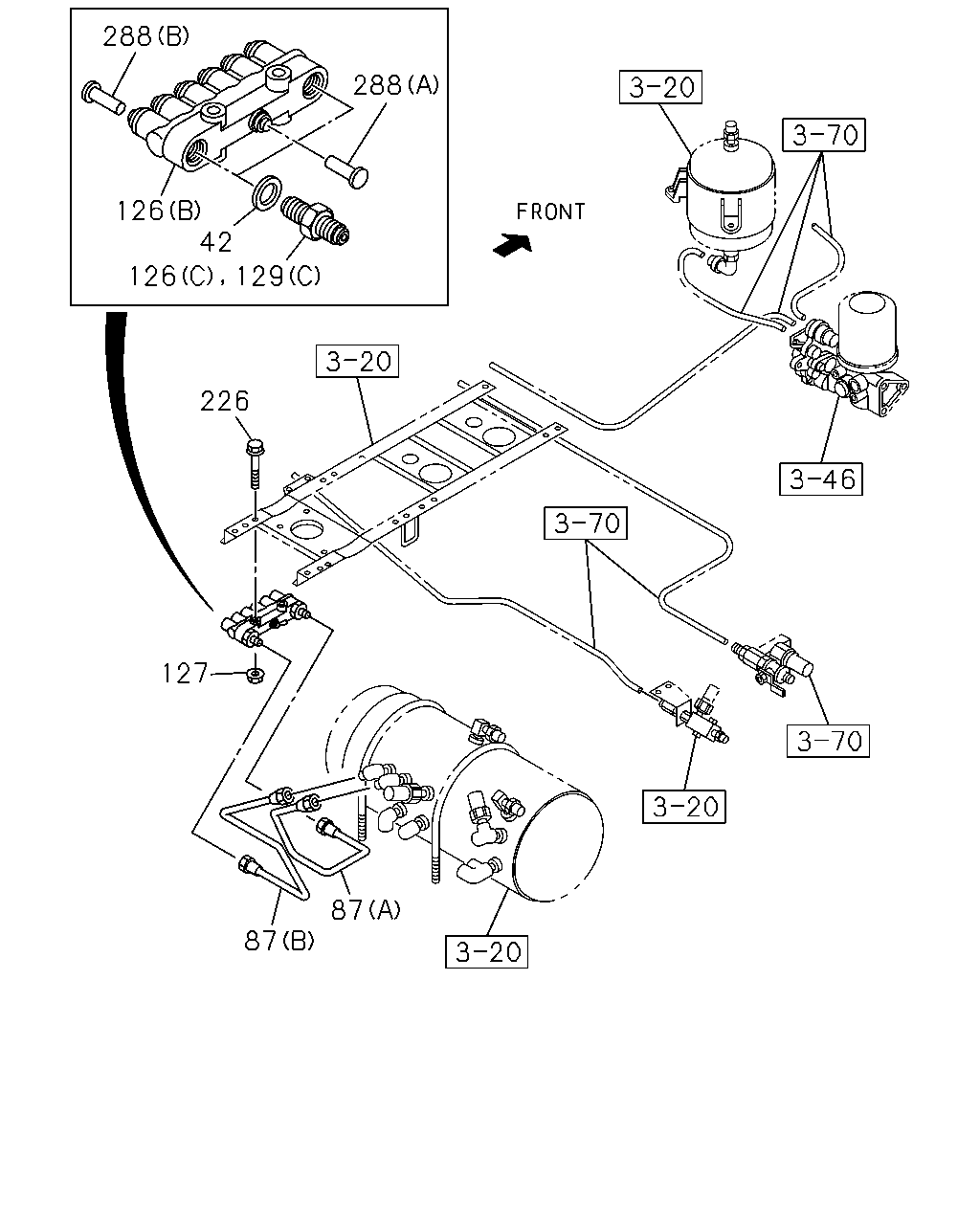

çizim 122329
288 288 126 42 126 129 226 127 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
42 GASKET; CONNECTOR 9-09572-022-0 02 1 0410-0803 ● ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=430 		1-49124-518-0 01 1 0410-0410 ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 0411- ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=542 		1-49124-519-0 01 1 0410-0410 ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=541 		1-49124-671-0 01 1 0411- ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=561 		1-49124-520-0 01 1 0410- ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=426 		1-49124-521-0 01 1 0410- ●
126 UNION; NYLON TUBE
(C) 		8-98107-103-0 02 1 0804- ● ●
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 0410- ● ●
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0410- ● ●
127 NUT; UNION
M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ● ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0410-0610 ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0611-0803 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0410- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0410- ● ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 06 1 0410-0512 ● ●
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 0601- ● ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 02 1 0410-0512 ● ●
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 0601- ● ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0410-0904 ● ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
288 PLUG
(B) OD=8 		1-09661-616-0 01 1 0410- ● ●
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0410- ● ●

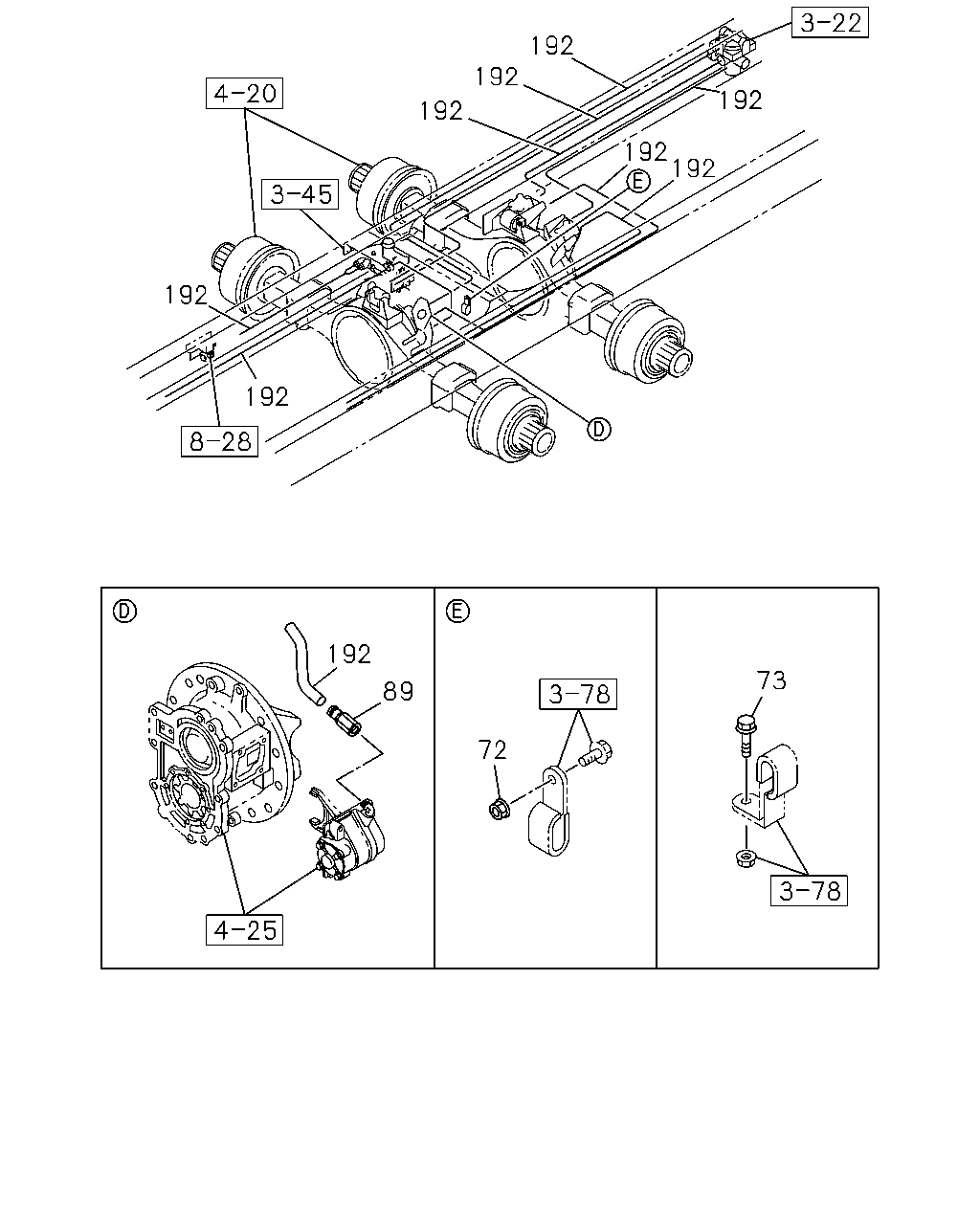

çizim 122332
192 192 192 192 192 192 192 192 192 73 89 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0410-0602 ● ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
73 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0502-0508 ●
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512 ●
73 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0410- ● ●

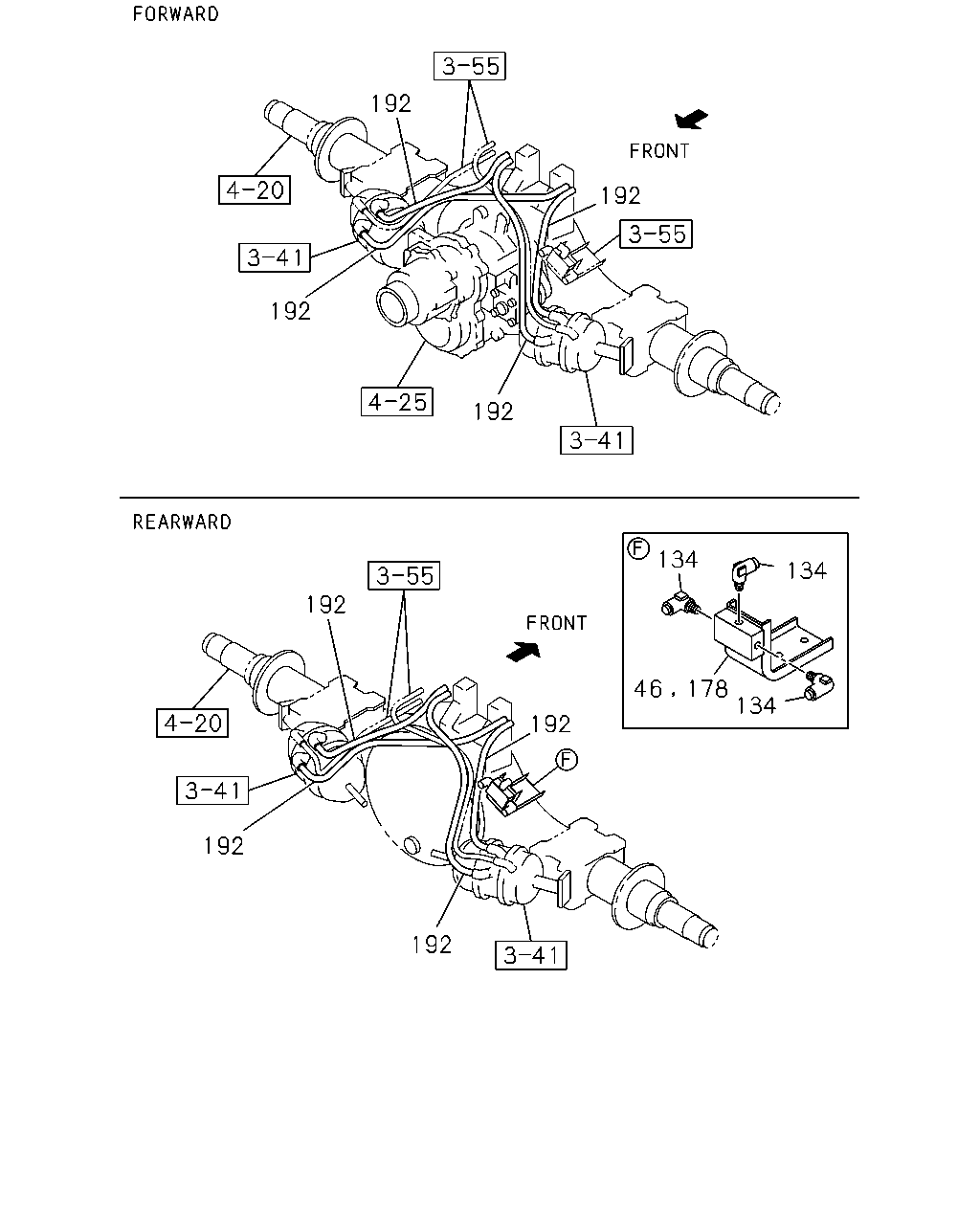

çizim 122334
192 192 192 192 134 134 192 46 178 134 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
46 NIPPLE; AIR PIPE 1-47471-083-0 01 1 0410-0908 ● ●
134 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0410- ● ●
178 BRACKET; UNION 8-98153-830-0 01 1 0909- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0410- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0410- ● ●

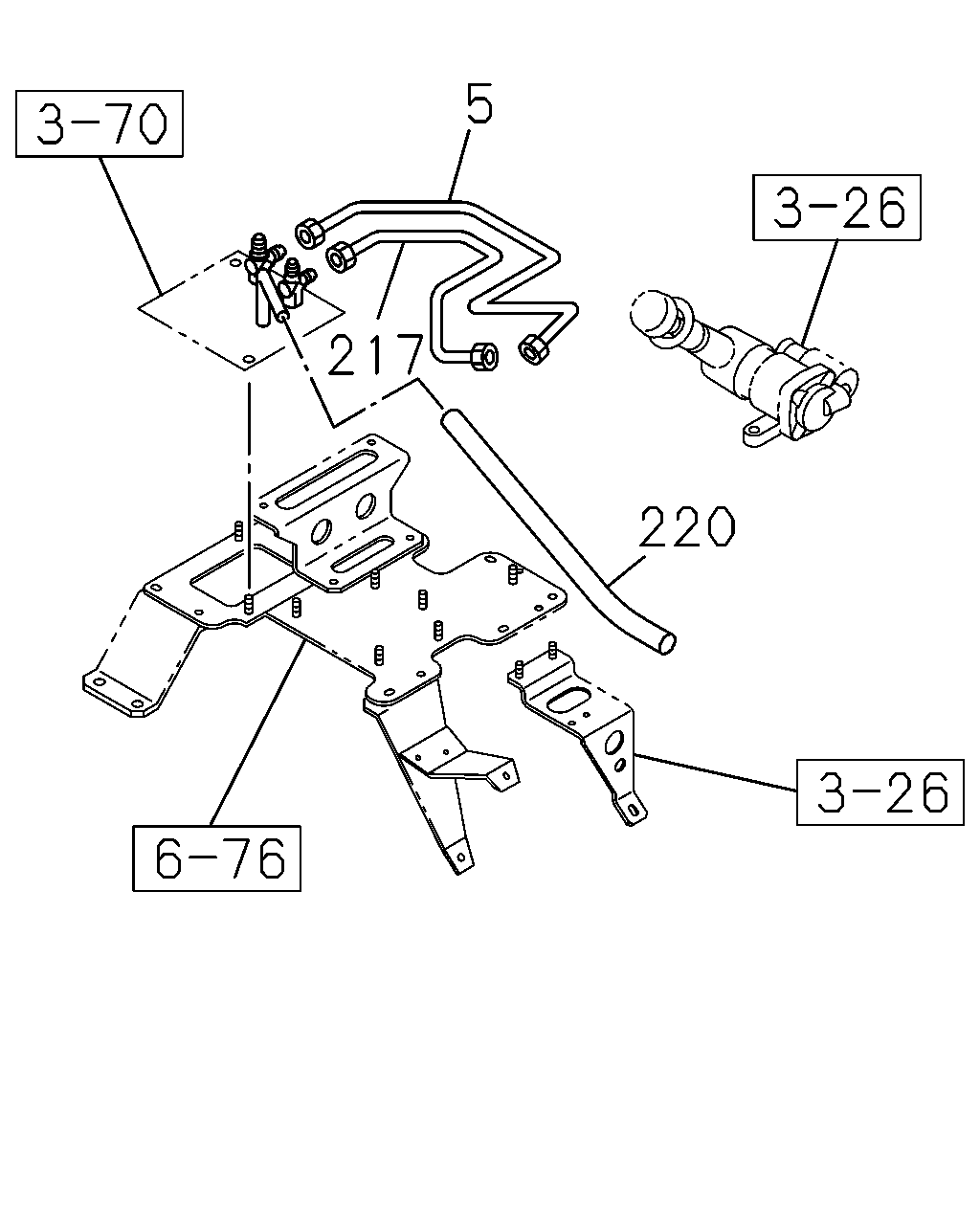

çizim 191893
5 217 220
BalonParca AdiParca NoAdetTipApplied Date A B
5 PIPE; AIR,UNION TO PARKING VLV 1-49118-158-0 01 1 0410- ● ●
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49118-159-0 01 1 0410- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0410- ● ●
