Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11013 - CXZ LHD WEDGE BRAKE
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#66032) — 136 parça
Tümü
A - CXZ6MC
B - CXZ6MF
◀

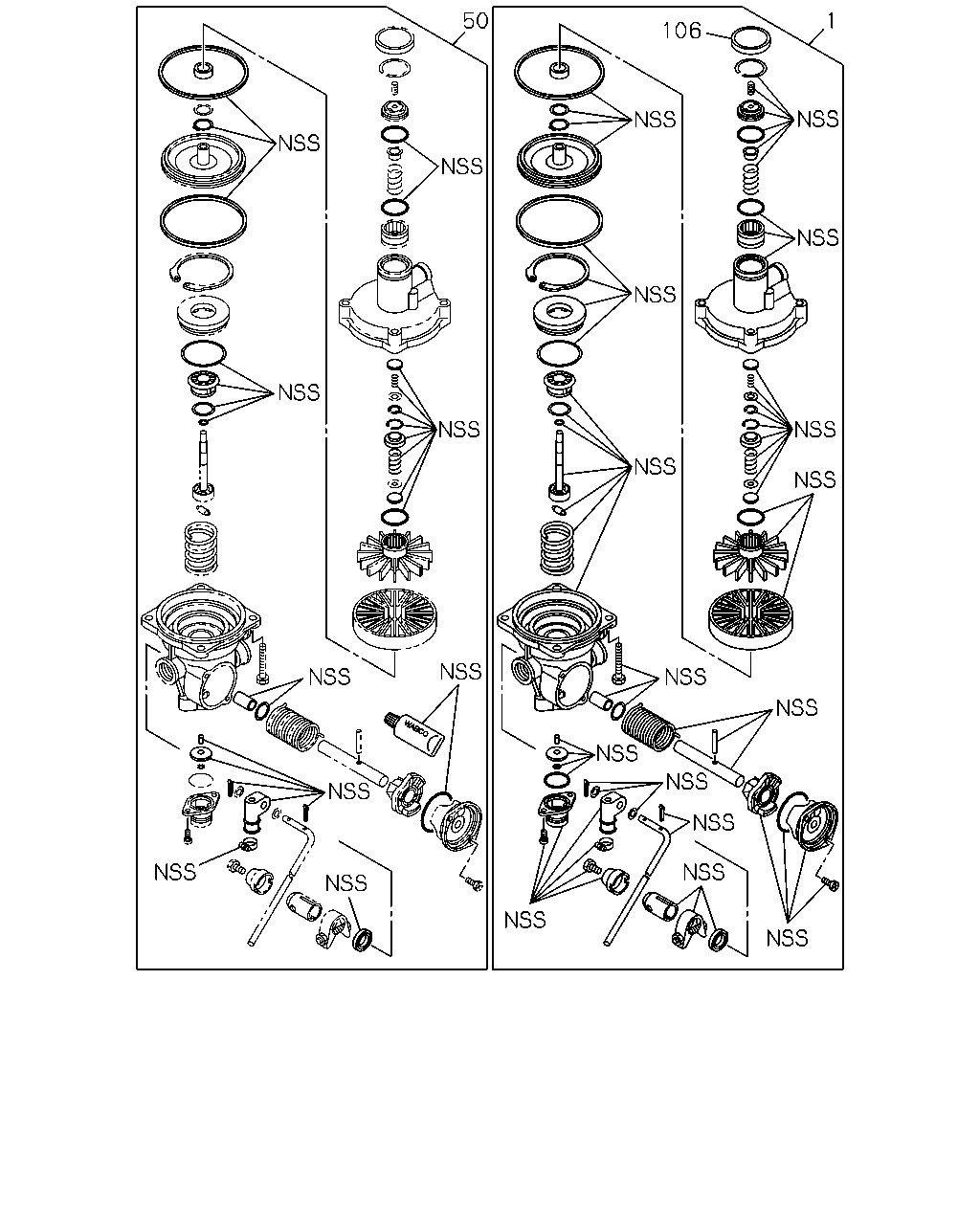

[345A] COMPONENT AND REPAIR KIT (3 parça)

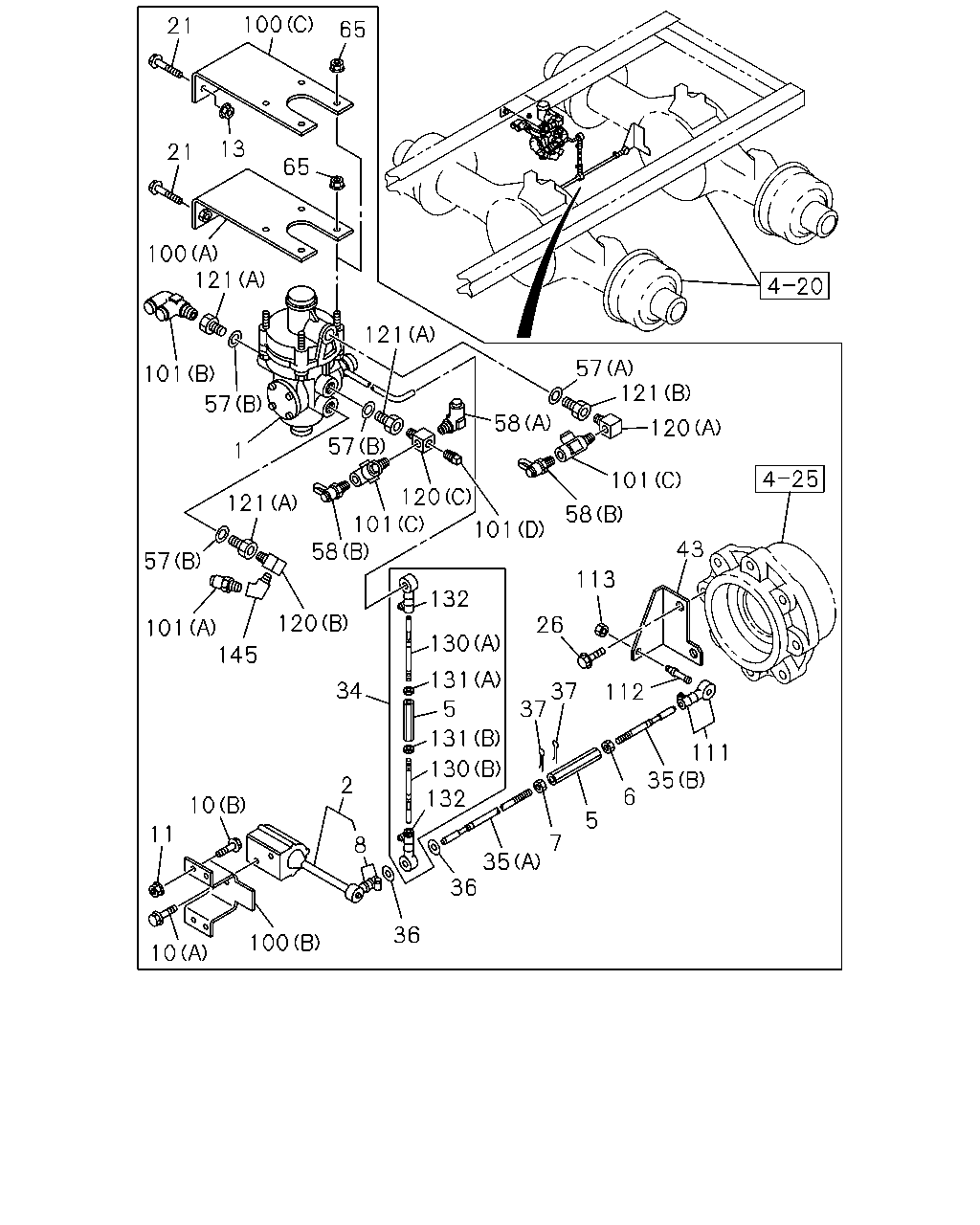

[345A] '05/4-;FIXING (67 parça)

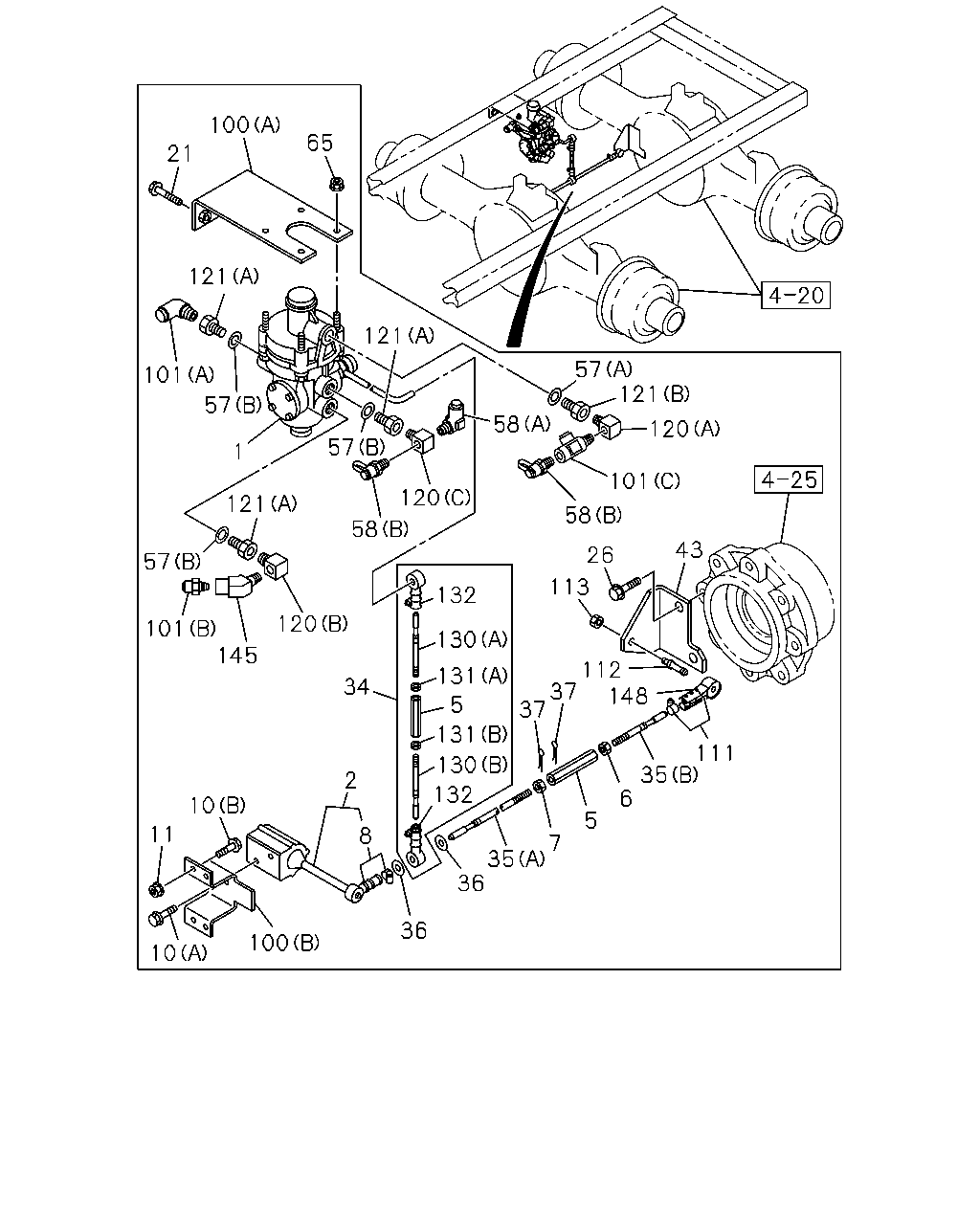

[345A] -'05/3;FIXING (66 parça)
▶
50
1
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-150-0
01
1
0410-
●
●
50
REPAIR KIT; LSPV
1-85576-393-0
01
1
0410-
●
●
106
COVER; PISTON
1-47729-001-0
01
1
0410-
●
●
100
65
21
121
121
57
121
101
57
58
120
57
1
101
120
121
58
58
43
26
57
113
132
120
101
145
130
112
37
148
37
131
34
5
131
111
35
6
130
2
132
10
5
11
8
7
35
36
36
100
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-150-0
01
1
0410-
●
●
2
DAMPER
1-47725-047-0
01
1
0410-
●
●
5
JOINT
1-09768-091-0
02
1
0410-
●
●
6
NUT; LK,UPR
M8
9-09111-408-0
01
1
0410-0512
●
●
6
NUT; LK,UPR
M8
0-91111-508-0
01
1
0601-
●
●
7
NUT; LK,LWR
LH THREAD
1-09409-002-0
01
1
0410-
●
●
8
ROD END
1-47723-001-0
01
1
0410-
●
●
10
BOLT; BRKT
(A) M8X12 FLANGE
0-28080-812-0
02
1
0410-0512
●
●
10
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0601-
●
●
10
BOLT; BRKT
(B) M8X25 FLANGE
0-28680-825-0
04
1
0410-0512
●
●
10
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
04
1
0601-
●
●
11
NUT; BRKT
M8 FLANGE
0-91150-208-0
04
1
0410-0602
●
●
11
NUT; BRKT
M8 FLANGE
0-91180-208-0
04
1
0603-
●
●
21
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
02
1
0410-0512
●
●
21
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
0601-
●
●
26
BOLT; DAMPER
M8X12 FLANGE
0-28080-812-0
02
1
0410-0503
●
●
34
ROD; LEVER TO ROD,LSPV
1-47725-046-0
01
1
0410-
●
●
35
ROD; LINK,LSPV
(B)
1-09765-282-0
01
1
0410-
●
●
35
ROD; LINK,LSPV
(A)
1-09765-318-0
01
1
0410-
●
●
36
WASHER; PL,ROD
ID=8.4
9-09160-508-0
02
1
0410-0605
●
●
36
WASHER; PL,ROD
ID=8.4 OD=16
0-91610-508-0
02
1
0606-
●
●
37
PIN; SPLIT,ROD
OD=1.8 L=25
9-08112-025-0
02
1
0410-0606
●
●
37
PIN; SPLIT,ROD
OD=1.8 L=25
0-81122-025-0
02
1
0607-
●
●
43
BRACKET; DAMPER TO AXLE
1-42129-185-0
01
1
0410-0503
●
●
43
BRACKET; DAMPER TO AXLE
1-42129-517-0
01
1
0504-
●
●
57
GASKET; CONNECTOR
(A) ID=16.2 OD=24
9-09571-416-0
01
1
0410-
●
●
57
GASKET; CONNECTOR
(B) ID=22.5
9-09571-422-0
03
1
0410-
●
●
58
CONNECTOR; LSPV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0504-0509
●
●
58
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0510-
●
●
58
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0410-0503
●
●
58
CONNECTOR; LSPV
(B)
1-47459-013-1
02
1
0410-
●
●
65
NUT; LSPV
M8 FLANGE
0-91150-108-0
04
1
0410-0602
●
●
65
NUT; LSPV
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
100
BRACKET; LSPV
(C)
1-47479-913-0
01
1
0410-0410
●
●
100
BRACKET; LSPV
(A)
1-47471-208-0
01
1
0411-
●
●
100
BRACKET; LSPV
(B)
1-42129-511-0
01
1
0410-
●
●
101
CONNECTOR; LSPV
(D) PT3/8
9-09204-517-0
01
1
0510-
●
●
101
CONNECTOR; LSPV
(D) PT3/8
9-09204-517-0
01
1
0410-0503
●
●
101
CONNECTOR; LSPV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0410-0503
●
●
101
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0504-0509
●
●
101
CONNECTOR; LSPV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0510-
●
●
101
CONNECTOR; LSPV
(B) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
0410-0503
●
●
101
CONNECTOR; LSPV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0504-0509
●
●
101
CONNECTOR; LSPV
(B) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
0510-
●
●
101
CONNECTOR; LSPV
(C)
1-09661-536-0
02
1
0410-0508
●
●
101
CONNECTOR; LSPV
(C)
1-09661-536-0
01
1
0509-0509
●
●
101
CONNECTOR; LSPV
(C)
1-09661-536-0
02
1
0510-
●
●
111
RUBBER; JOINT,LSPV
1-47723-001-0
01
1
0410-
●
●
112
PIN; JOINT RUBBER
1-09744-123-0
01
1
0410-
●
●
113
NUT; JOINT RUBBER
M8 FLANGE
0-91150-108-0
01
1
0410-0602
●
●
113
NUT; JOINT RUBBER
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
120
CONNECTOR
(C) PT3/8 4WAY
1-09661-489-0
01
1
0410-0503
●
●
120
CONNECTOR
(C)
1-09656-708-0
01
1
0504-0509
●
●
120
CONNECTOR
(C) PT3/8 4WAY
1-09661-489-0
01
1
0510-
●
●
120
CONNECTOR
(A) PT3/8 ELBOW
1-09660-696-0
01
1
0410-
●
●
120
CONNECTOR
(B)
1-09661-303-0
01
1
0410-
●
●
121
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
03
1
0410-
●
●
121
ADAPTER
(B)
1-09661-044-0
01
1
0410-
●
●
130
ROD; JOINT
(B)
1-09765-283-0
01
1
0410-
●
●
130
ROD; JOINT
(A)
1-09765-290-0
01
1
0410-
●
●
131
NUT; JOINT
(A) LH THREAD
1-09409-002-0
01
1
0410-
●
●
131
NUT; JOINT
(B)
1-48119-089-0
01
1
0410-
●
●
132
RUBBER ASM; CONN
1-47723-001-0
03
1
0410-0410
●
●
132
RUBBER ASM; CONN
1-47723-001-0
02
1
0411-
●
●
145
UNION
1-09664-209-0
01
1
0410-
●
●
148
COVER; JOINT RUBBER
1-47729-058-0
02
1
0508-0509
●
148
COVER; JOINT RUBBER
1-47729-058-0
02
1
0510-
●
●
100
21
65
13
21
65
100
121
121
57
121
101
57
58
120
57
1
101
120
101
58
121
58
101
43
57
113
132
120
26
101
145
130
131
34
37
37
112
5
131
111
35
130
2
6
132
10
5
11
7
8
35
36
36
100
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-150-0
01
1
0410-
●
●
2
DAMPER
1-47725-047-0
01
1
0410-
●
●
5
JOINT
1-09768-091-0
02
1
0410-
●
●
6
NUT; LK,UPR
M8
9-09111-408-0
01
1
0410-0512
●
●
6
NUT; LK,UPR
M8
0-91111-508-0
01
1
0601-
●
●
7
NUT; LK,LWR
LH THREAD
1-09409-002-0
01
1
0410-
●
●
8
ROD END
1-47723-001-0
01
1
0410-
●
●
10
BOLT; BRKT
(A) M8X12 FLANGE
0-28080-812-0
02
1
0410-0512
●
●
10
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0601-
●
●
10
BOLT; BRKT
(B) M8X25 FLANGE
0-28680-825-0
04
1
0410-0512
●
●
10
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
04
1
0601-
●
●
11
NUT; BRKT
M8 FLANGE
0-91150-208-0
04
1
0410-0602
●
●
11
NUT; BRKT
M8 FLANGE
0-91180-208-0
04
1
0603-
●
●
13
NUT; LSPV TO BRKT
M8 FLANGE
0-91150-108-0
02
1
0410-0410
●
●
21
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
02
1
0410-0512
●
●
21
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
0601-
●
●
26
BOLT; DAMPER
M8X12 FLANGE
0-28080-812-0
02
1
0410-0503
●
●
34
ROD; LEVER TO ROD,LSPV
1-47725-046-0
01
1
0410-
●
●
35
ROD; LINK,LSPV
(B)
1-09765-282-0
01
1
0410-
●
●
35
ROD; LINK,LSPV
(A)
1-09765-318-0
01
1
0410-
●
●
36
WASHER; PL,ROD
ID=8.4
9-09160-508-0
02
1
0410-0605
●
●
36
WASHER; PL,ROD
ID=8.4 OD=16
0-91610-508-0
02
1
0606-
●
●
37
PIN; SPLIT,ROD
OD=1.8 L=25
9-08112-025-0
02
1
0410-0606
●
●
37
PIN; SPLIT,ROD
OD=1.8 L=25
0-81122-025-0
02
1
0607-
●
●
43
BRACKET; DAMPER TO AXLE
1-42129-185-0
01
1
0410-0503
●
●
43
BRACKET; DAMPER TO AXLE
1-42129-517-0
01
1
0504-
●
●
57
GASKET; CONNECTOR
(A) ID=16.2 OD=24
9-09571-416-0
01
1
0410-
●
●
57
GASKET; CONNECTOR
(B) ID=22.5
9-09571-422-0
03
1
0410-
●
●
58
CONNECTOR; LSPV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0504-0509
●
●
58
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0510-
●
●
58
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0410-0503
●
●
58
CONNECTOR; LSPV
(B)
1-47459-013-1
02
1
0410-
●
●
65
NUT; LSPV
M8 FLANGE
0-91150-108-0
04
1
0410-0602
●
●
65
NUT; LSPV
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
100
BRACKET; LSPV
(C)
1-47479-913-0
01
1
0410-0410
●
●
100
BRACKET; LSPV
(A)
1-47471-208-0
01
1
0411-
●
●
100
BRACKET; LSPV
(B)
1-42129-511-0
01
1
0410-
●
●
101
CONNECTOR; LSPV
(D) PT3/8
9-09204-517-0
01
1
0510-
●
●
101
CONNECTOR; LSPV
(D) PT3/8
9-09204-517-0
01
1
0410-0503
●
●
101
CONNECTOR; LSPV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0410-0503
●
●
101
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0504-0509
●
●
101
CONNECTOR; LSPV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0510-
●
●
101
CONNECTOR; LSPV
(B) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
0410-0503
●
●
101
CONNECTOR; LSPV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0504-0509
●
●
101
CONNECTOR; LSPV
(B) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
0510-
●
●
101
CONNECTOR; LSPV
(C)
1-09661-536-0
02
1
0410-0508
●
●
101
CONNECTOR; LSPV
(C)
1-09661-536-0
01
1
0509-0509
●
●
101
CONNECTOR; LSPV
(C)
1-09661-536-0
02
1
0510-
●
●
111
RUBBER; JOINT,LSPV
1-47723-001-0
01
1
0410-
●
●
112
PIN; JOINT RUBBER
1-09744-123-0
01
1
0410-
●
●
113
NUT; JOINT RUBBER
M8 FLANGE
0-91150-108-0
01
1
0410-0602
●
●
113
NUT; JOINT RUBBER
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
120
CONNECTOR
(C) PT3/8 4WAY
1-09661-489-0
01
1
0410-0503
●
●
120
CONNECTOR
(C)
1-09656-708-0
01
1
0504-0509
●
●
120
CONNECTOR
(C) PT3/8 4WAY
1-09661-489-0
01
1
0510-
●
●
120
CONNECTOR
(A) PT3/8 ELBOW
1-09660-696-0
01
1
0410-
●
●
120
CONNECTOR
(B)
1-09661-303-0
01
1
0410-
●
●
121
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
03
1
0410-
●
●
121
ADAPTER
(B)
1-09661-044-0
01
1
0410-
●
●
130
ROD; JOINT
(B)
1-09765-283-0
01
1
0410-
●
●
130
ROD; JOINT
(A)
1-09765-290-0
01
1
0410-
●
●
131
NUT; JOINT
(A) LH THREAD
1-09409-002-0
01
1
0410-
●
●
131
NUT; JOINT
(B)
1-48119-089-0
01
1
0410-
●
●
132
RUBBER ASM; CONN
1-47723-001-0
03
1
0410-0410
●
●
132
RUBBER ASM; CONN
1-47723-001-0
02
1
0411-
●
●
145
UNION
1-09664-209-0
01
1
0410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
