3-41 — REAR BRAKE POWER CHAMBER (#66031) — 175 parça

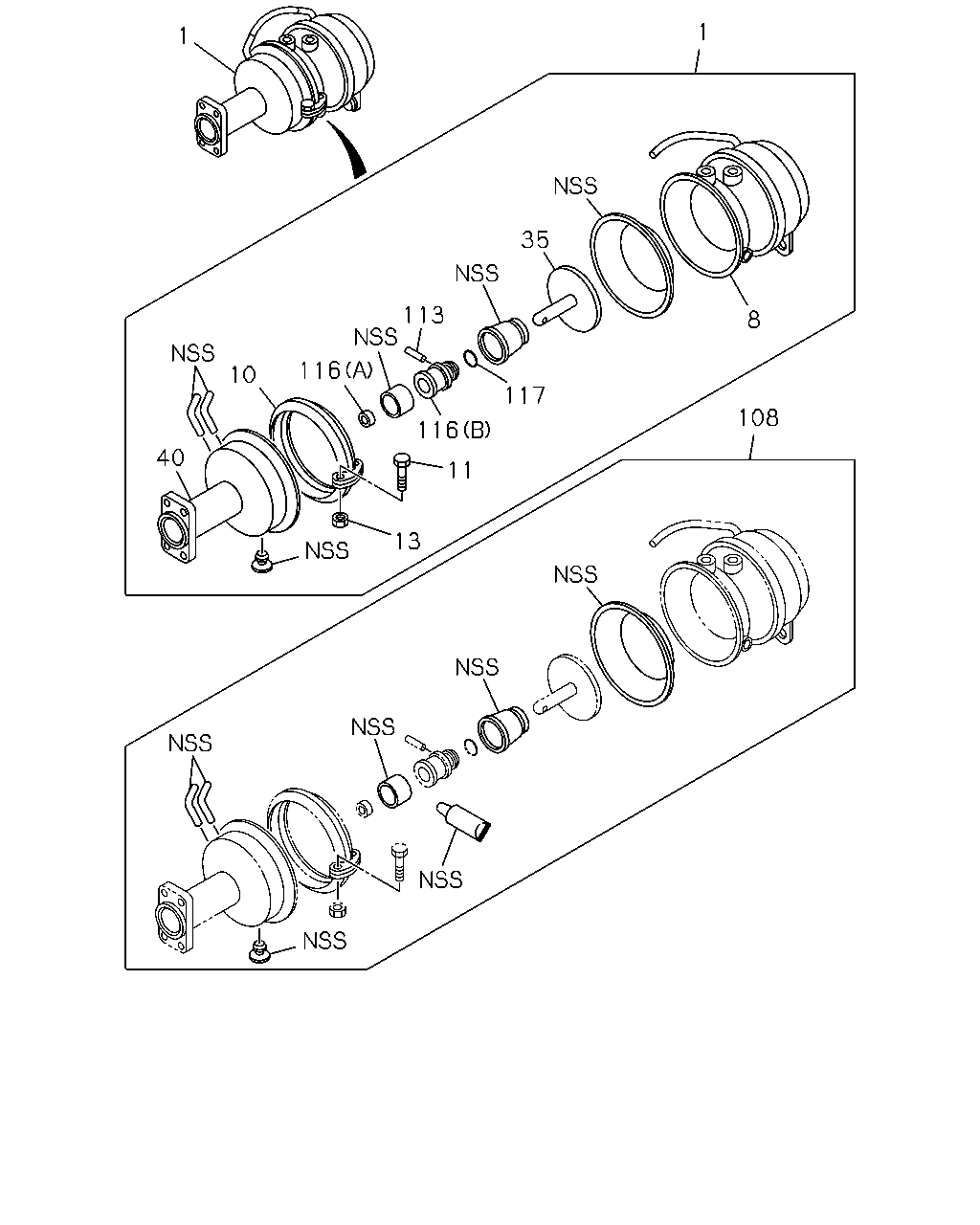

1 1 35 113 8 116 10 117 108 116 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-2	01	1	0410-1005	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-2	01	1	0410-1005	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-2	01	1	0410-1005	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-2	01	1	0410-1005	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-150-0	02	1	0410-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-150-0	02	1	0410-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0410-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0410-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0410-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0410-	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0410-0910	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0410-0910	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	02	1	0911-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	02	1	0911-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	01	1	0410-	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0410-0604	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0410-0604	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-396-0	02	1	0605-0910	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-396-0	02	1	0605-0910	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	02	1	0911-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	02	1	0911-	●	●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0410-0910	●	●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-	●	●

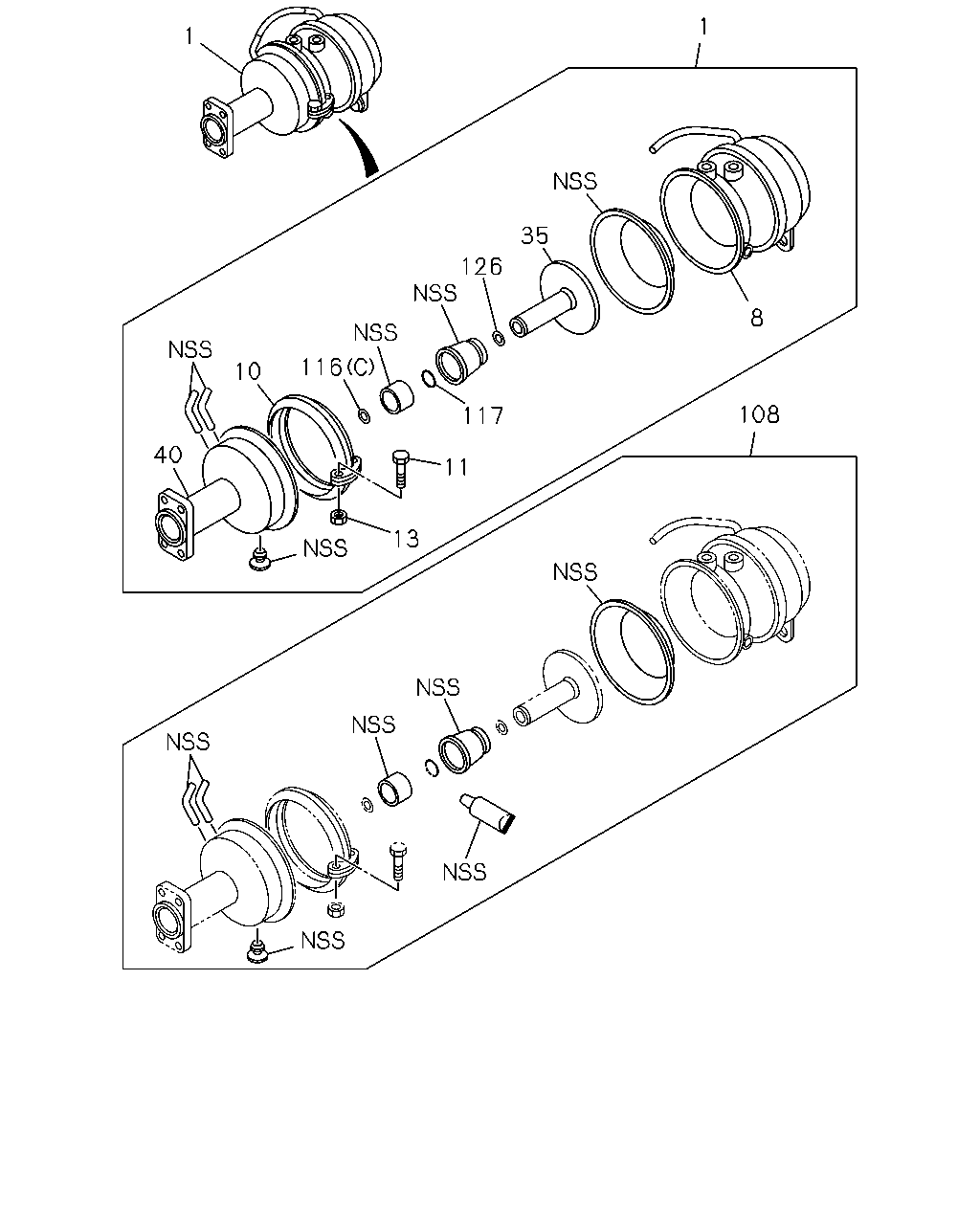

1 1 35 126 118 116 10 108 117 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-150-0	02	1	0410-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-150-0	02	1	0410-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0410-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0410-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0410-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0410-	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0410-0910	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0410-0910	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	02	1	0911-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	02	1	0911-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	01	1	0410-	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0410-0604	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0410-0604	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-396-0	02	1	0605-0910	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-396-0	02	1	0605-0910	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	02	1	0911-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-115-0	01	1	1006-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-115-0	01	1	1006-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-116-0	01	1	1006-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-116-0	01	1	1006-	●	●
126	SHIM	8-98146-965-0	AR	1	0911-	●	●
126	SHIM	8-98146-965-0	AR	1	0911-	●	●

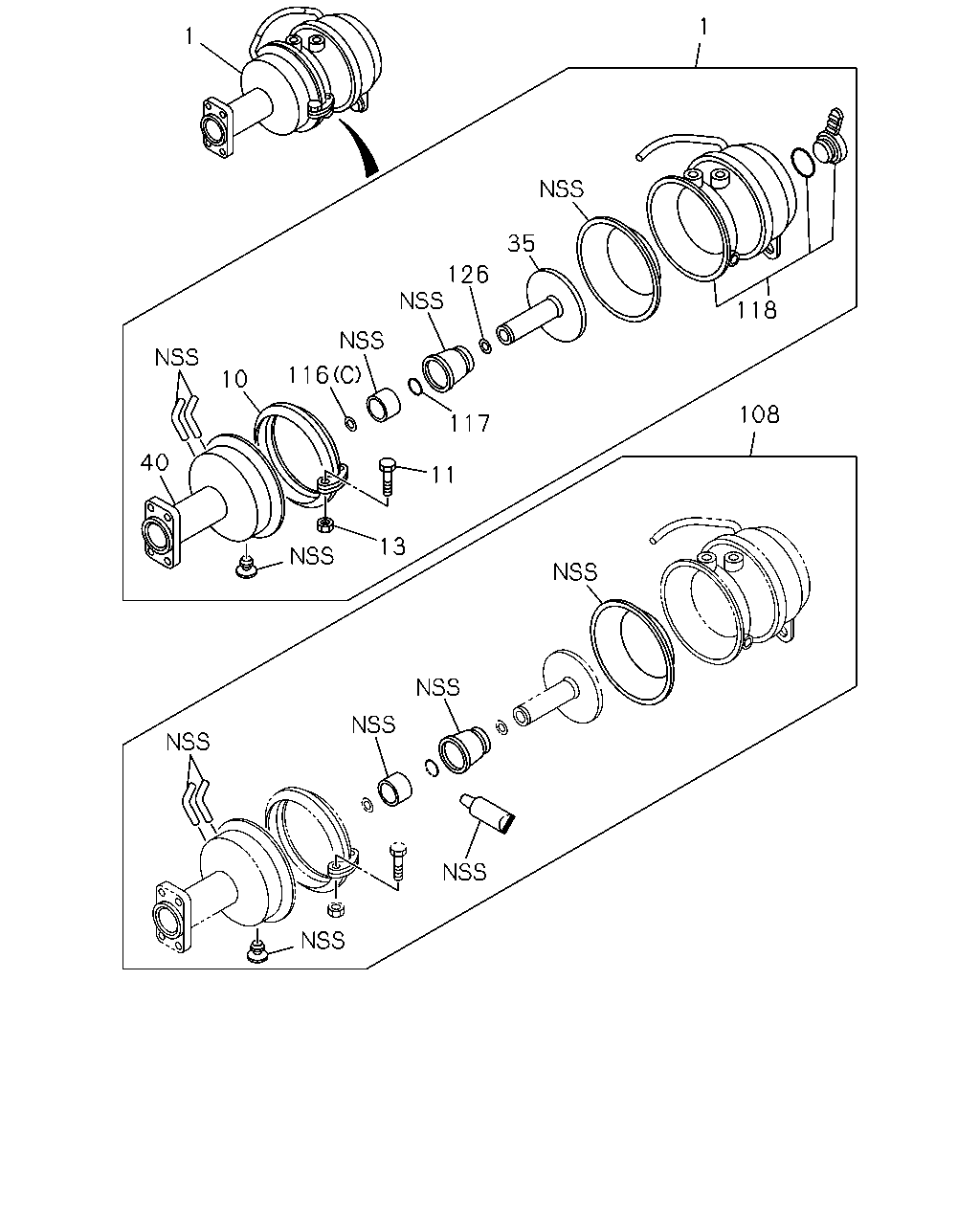

1 1 35 126 8 116 10 108 117 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-2	01	1	0410-1005	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-2	01	1	0410-1005	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-2	01	1	0410-1005	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-2	01	1	0410-1005	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-150-0	02	1	0410-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-150-0	02	1	0410-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0410-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0410-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0410-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0410-	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0410-0910	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0410-0910	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	02	1	0911-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	02	1	0911-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	01	1	0410-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	01	1	0410-	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0410-0604	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0410-0604	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-396-0	02	1	0605-0910	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-396-0	02	1	0605-0910	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	02	1	0911-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0410-0910	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0410-0910	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-	●	●
126	SHIM	8-98146-965-0	AR	1	0911-	●	●
126	SHIM	8-98146-965-0	AR	1	0911-	●	●

1 32 1 1 32 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-841-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-887-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-702-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-842-0	01	1	0410-0604	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-888-0	01	1	0605-0910	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-703-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	01	1	1006-	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0410-	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0410-	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
