3-22 — AIR CONTROL PARTS (#66027) — 92 parça

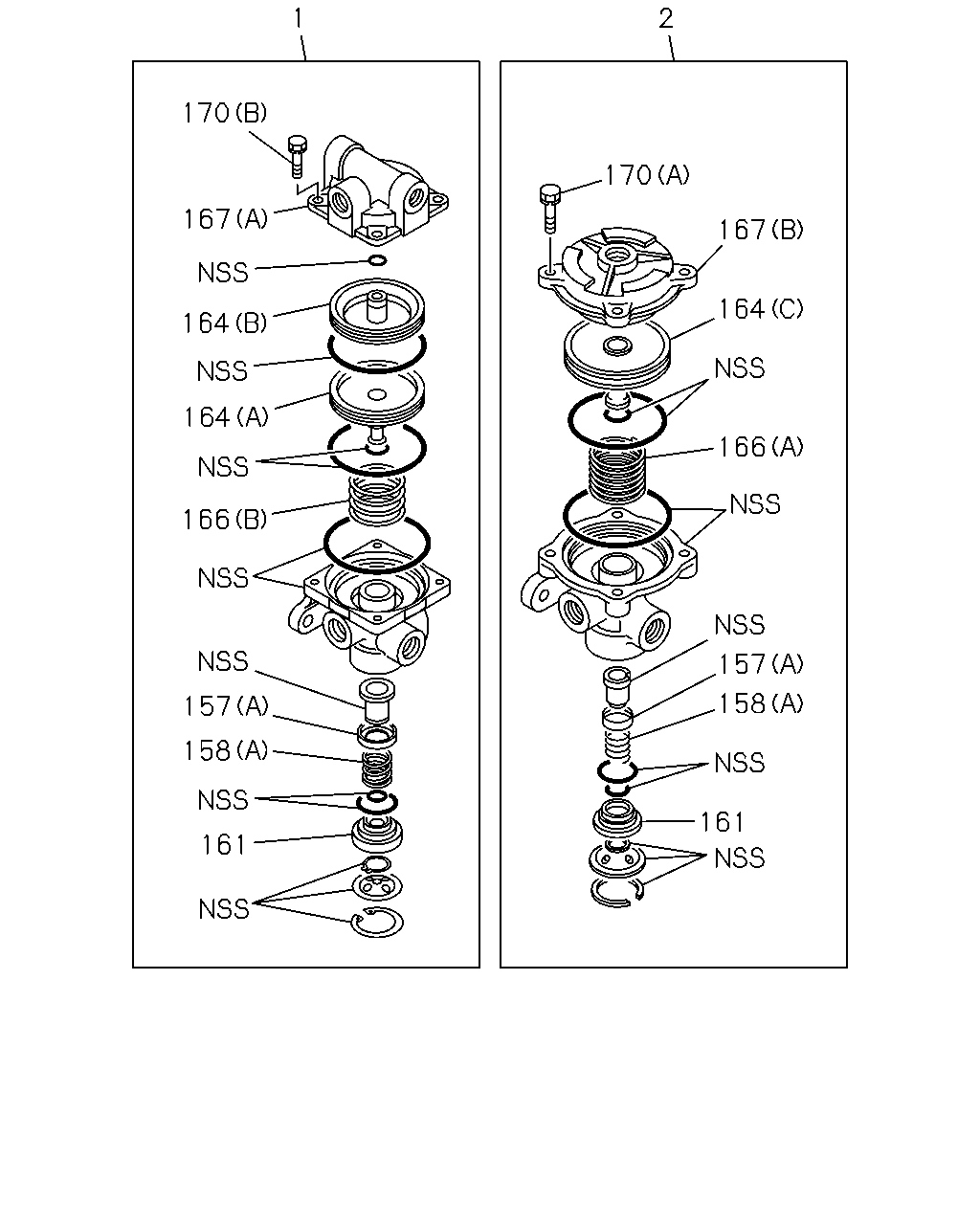

çizim 116744
2 1 170 170 167 167 164 164 164 166 166 157 158 157 158 161 161
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0410- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0410- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 0410- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0410- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0410- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0410- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0410- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0410- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0410- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0410- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0410- ● ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0410- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0410- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0410- ● ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0410- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0410- ● ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0410- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0410- ● ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0410- ● ●

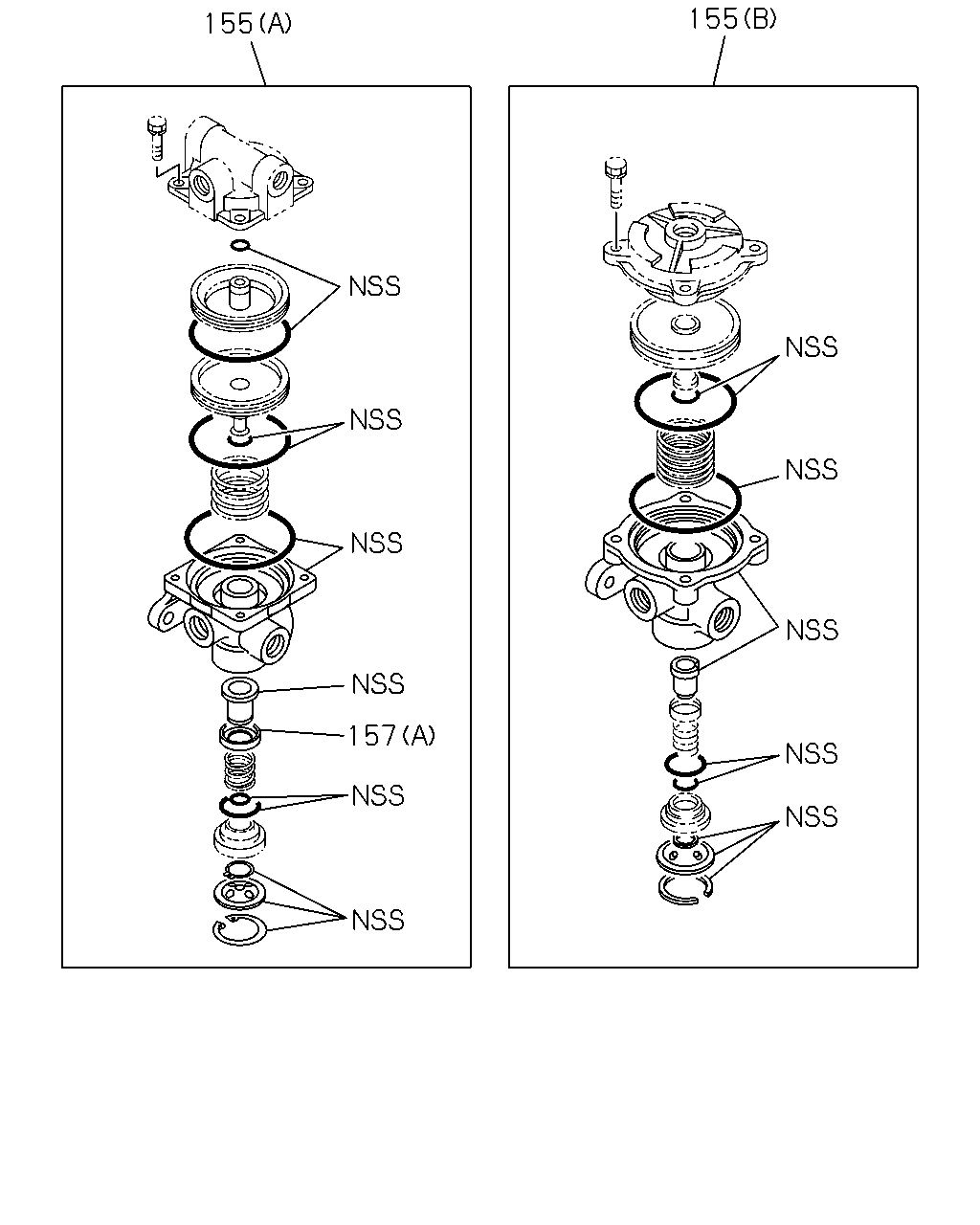

çizim 191881
155 155 157
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0410- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0410- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 0410- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0410- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0410- ● ●

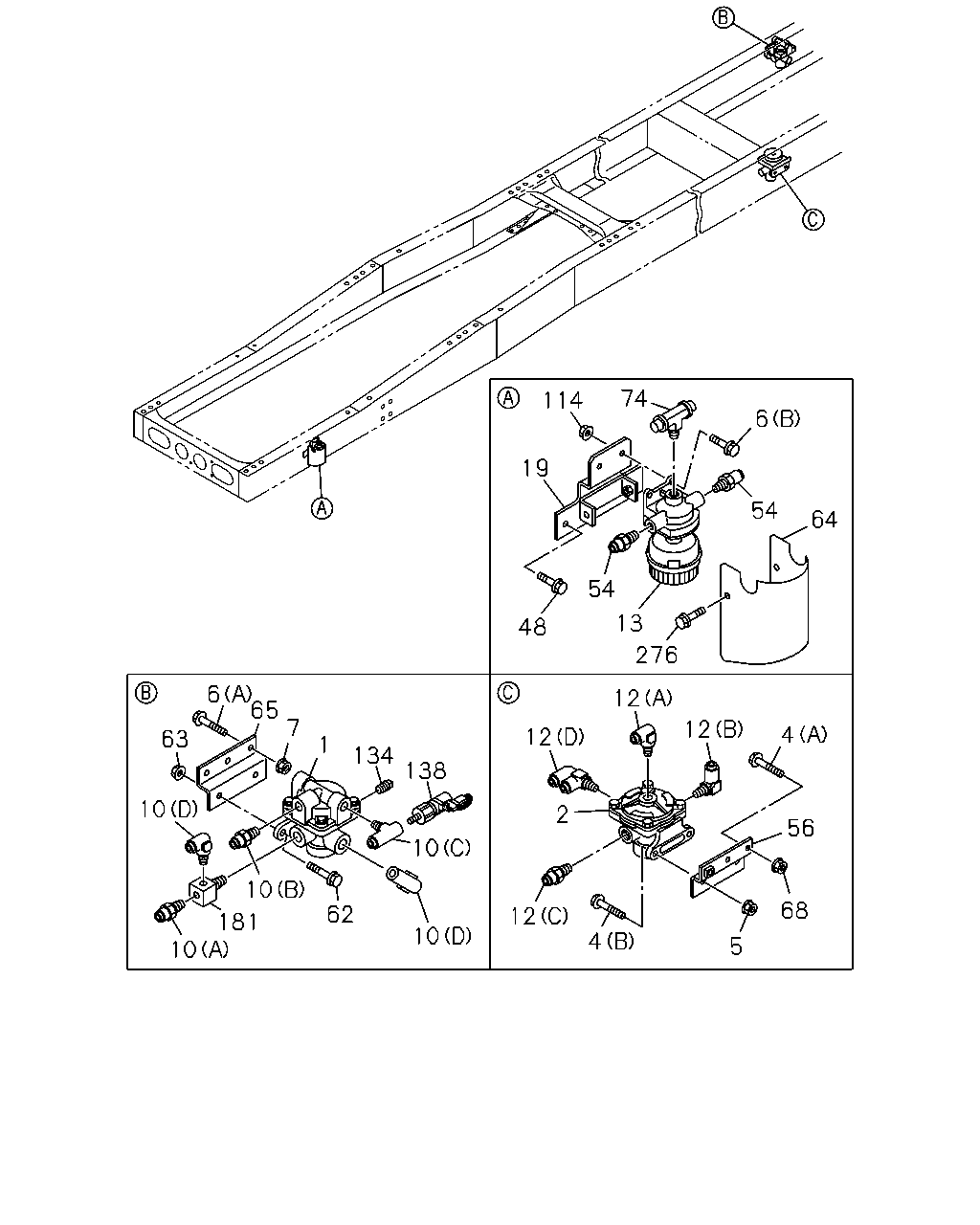

çizim 191885
74 114 6 19 54 64 54 13 48 276 6 65 7 12 12 4 12 63 1 134 138 10 2 56 10 10 68 62 12 181 10 4 5 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0410- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0410- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0410 ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0410-0509 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE 		0-28680-830-0 02 1 0410-0509 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0510-0512 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0410-0410 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0410-0512 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W) (A) M8X40 FLANGE 		0-28680-840-0 02 1 0410-0509 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X40 FLANGE 		0-28680-840-0 02 1 0510-0512 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X40 FLANGE 		0-28650-840-0 02 1 0601- ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 0410-0602 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0410-0512 ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28680-835-0 02 1 0410-0512 ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0410- ● ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0410- ● ●
10 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0410- ● ●
10 CONNECTOR
(C) 		1-09661-537-0 01 1 0410-0704 ● ●
10 CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0410- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0410- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0410- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0410- ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 0410- ● ●
19 BRACKET; QUICK RELEASE VLV 1-47471-014-0 01 1 0410- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28680-830-0 02 1 0410-0512 ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0410- ● ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 0410-0509 ●
56 BRACKET; RELAY VLV
WHEEL BASE 6600MM(66W) 		1-47479-328-0 01 1 0410-0509 ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 0510- ●
56 BRACKET; RELAY VLV
WHEEL BASE 5900MM(59W) 		1-47471-190-0 01 1 0410-0509 ●
56 BRACKET; RELAY VLV 1-47471-190-0 01 1 0510- ●
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28681-030-0 02 1 0410-0512 ● ●
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0410-0602 ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
64 PROTECTOR; QUICK RELEASE VALVE 1-47471-013-0 01 1 0410-0503 ● ●
64 PROTECTOR; QUICK RELEASE VALVE 1-47471-259-0 01 1 0504-0706 ● ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 0707- ● ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0410- ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
74 CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 0410- ● ●
114 NUT; VLV
M8 FLANGE 		0-91150-108-0 02 1 0410-0601 ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0602- ● ●
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 01 1 0410- ● ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0410- ● ●
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 01 1 0410- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
çizim 191959
13 157 216 158 262
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 0410- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 0410- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0410- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0410- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0410- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0410- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0410- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 01 1 0410-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-484-0 01 1 1110- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0410- ● ●
