3-20 — AIR TANK (#66026) — 169 parça
çizim 115407
39 39 87 117 214 32 28 31 80 191 28 31 28 31 30 46 46 184
BalonParca AdiParca NoAdetTipApplied Date A B
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 0410- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 01 1 0410- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 0410-0508 ● ●
28 BRACKET; AIR TANK
(C) 		1-48316-077-0 01 1 0509- ● ●
28 BRACKET; AIR TANK
(D) 		1-82699-208-1 01 1 0410-0601 ● ●
30 BRACKET; AIR TANK,SUB 1-48316-024-3 01 1 0410- ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20801-450-0 04 1 0410-0512 ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20801-450-0 04 1 0410-0512 ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 0601- ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 0601- ● ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0410-0503 ● ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0410-0503 ● ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 08 1 0504-0512 ● ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 08 1 0601- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 0410- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0410- ● ●
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0410-0512 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0601- ● ●
80 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0512 ● ●
80 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
80 BOLT; BRKT
M12X25 FLANGE 		0-28681-225-0 04 1 0410-0512 ● ●
80 BOLT; BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 0601- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-537-0 01 1 0508-0809 ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98060-053-0 01 1 0810- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-541-1 02 1 0410-0410 ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-33659-243-0 01 1 0410- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-111-0 01 1 0410-0410 ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-111-0 01 1 0410-0412 ●
87 BRACKET; AIR PIPE JOINT
(G) 		1-47471-223-0 02 1 0501-0501 ● ●
87 BRACKET; AIR PIPE JOINT
(H) 		1-47471-241-0 01 1 0501- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-566-0 01 1 0410-0410 ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-566-0 01 1 0410- ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 0410- ● ●
87 BRACKET; AIR PIPE JOINT
(I) 		1-47471-242-0 01 1 0501-0809 ● ●
87 BRACKET; AIR PIPE JOINT
(I) 		8-98054-525-0 01 1 0810- ● ●
117 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 0410-0603 ● ●
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0410-0602 ● ●
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
184 NUT; BRKT
M12 FLANGE 		0-91150-212-0 01 1 0410-0602 ● ●
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 0410-0410 ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 0410- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 0410- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 0410- ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0410-0603 ● ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
çizim 115591
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28080-870-0 02 1 0410-0512 ● ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ●

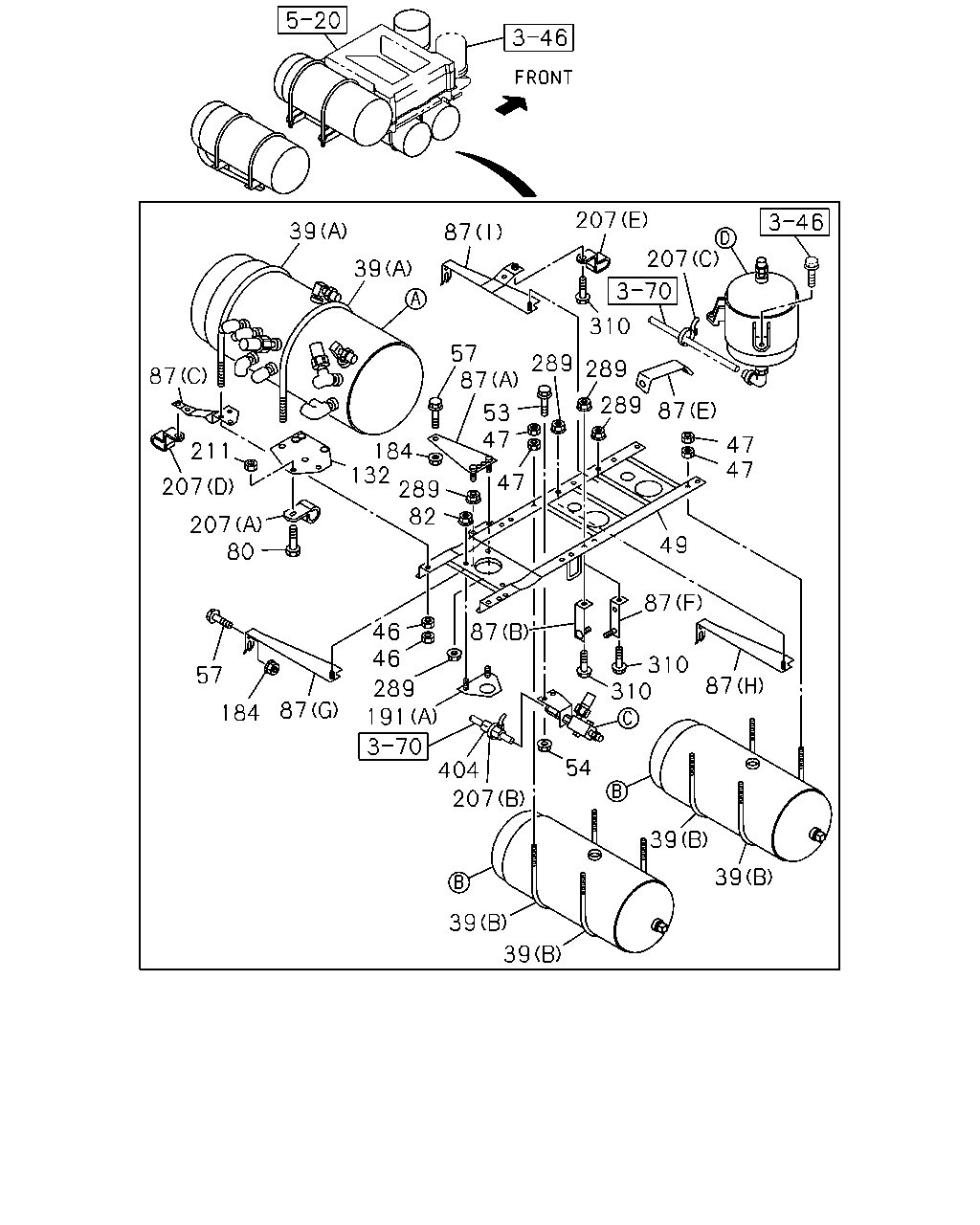

çizim 191882
207 39 87 207 39 310 57 87 289 289 87 289 87 53 47 211 47 47 184 132 289 82 47 207 207 80 49 87 46 46 87 310 310 57 87 289 191 87 184 54 404 207 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 0410- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0410- ● ●
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0410-0512 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0601- ● ●
47 NUT; LK,U BOLT,AIR TANK
M8 		9-09110-408-0 16 1 0410-0512 ● ●
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 0601- ● ●
49 BRACKET; AIR TANK 1-48316-053-1 01 1 0410-0410 ● ●
49 BRACKET; AIR TANK 1-48316-059-0 01 1 0410-0412 ● ●
49 BRACKET; AIR TANK 1-48316-065-1 01 1 0501- ● ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
54 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0410-0512 ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
80 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0410-0512 ● ●
80 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
80 BOLT; BRKT
M12X25 FLANGE 		0-28681-225-0 04 1 0410-0512 ● ●
80 BOLT; BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 0601- ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-537-0 01 1 0508-0809 ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98060-053-0 01 1 0810- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-541-1 02 1 0410-0410 ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-33659-243-0 01 1 0410- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-111-0 01 1 0410-0410 ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-111-0 01 1 0410-0412 ●
87 BRACKET; AIR PIPE JOINT
(G) 		1-47471-223-0 02 1 0501-0501 ● ●
87 BRACKET; AIR PIPE JOINT
(H) 		1-47471-241-0 01 1 0501- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-566-0 01 1 0410-0410 ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-566-0 01 1 0410- ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 0410- ● ●
87 BRACKET; AIR PIPE JOINT
(I) 		1-47471-242-0 01 1 0501-0809 ● ●
87 BRACKET; AIR PIPE JOINT
(I) 		8-98054-525-0 01 1 0810- ● ●
132 BRACKET; STRING GUIDE 1-47479-531-0 01 1 0410-0410 ● ●
132 BRACKET; STRING GUIDE 1-47471-204-0 01 1 0411- ● ●
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0410-0602 ● ●
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
184 NUT; BRKT
M12 FLANGE 		0-91150-212-0 01 1 0410-0602 ● ●
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 0410-0410 ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 0410- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 0410- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 0410- ●
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 0410-0410 ●
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 0410- ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 0410-0410 ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 0411- ● ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 10 1 0410-0411 ● ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 11 1 0412-0503 ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 12 1 0504-0508 ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 13 1 0509- ●
207 CLIP; AIR PIPE
(D) ID=31 H=30 L=35 		1-09700-994-0 01 1 0410- ● ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 18 1 0412- ●
207 CLIP; AIR PIPE
(E) ID=45 H=31 L=35 		1-09701-308-0 01 1 0501-0507 ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 08 1 0410-0602 ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 08 1 0603-0809 ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 09 1 0810- ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 03 1 0410-0410 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 04 1 0411-0412 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 05 1 0501-0512 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 0601-0809 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 05 1 0410-0512 ● ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 05 1 0601- ● ●
310 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0410-0512 ● ●
310 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 01 1 0410-0411 ● ●

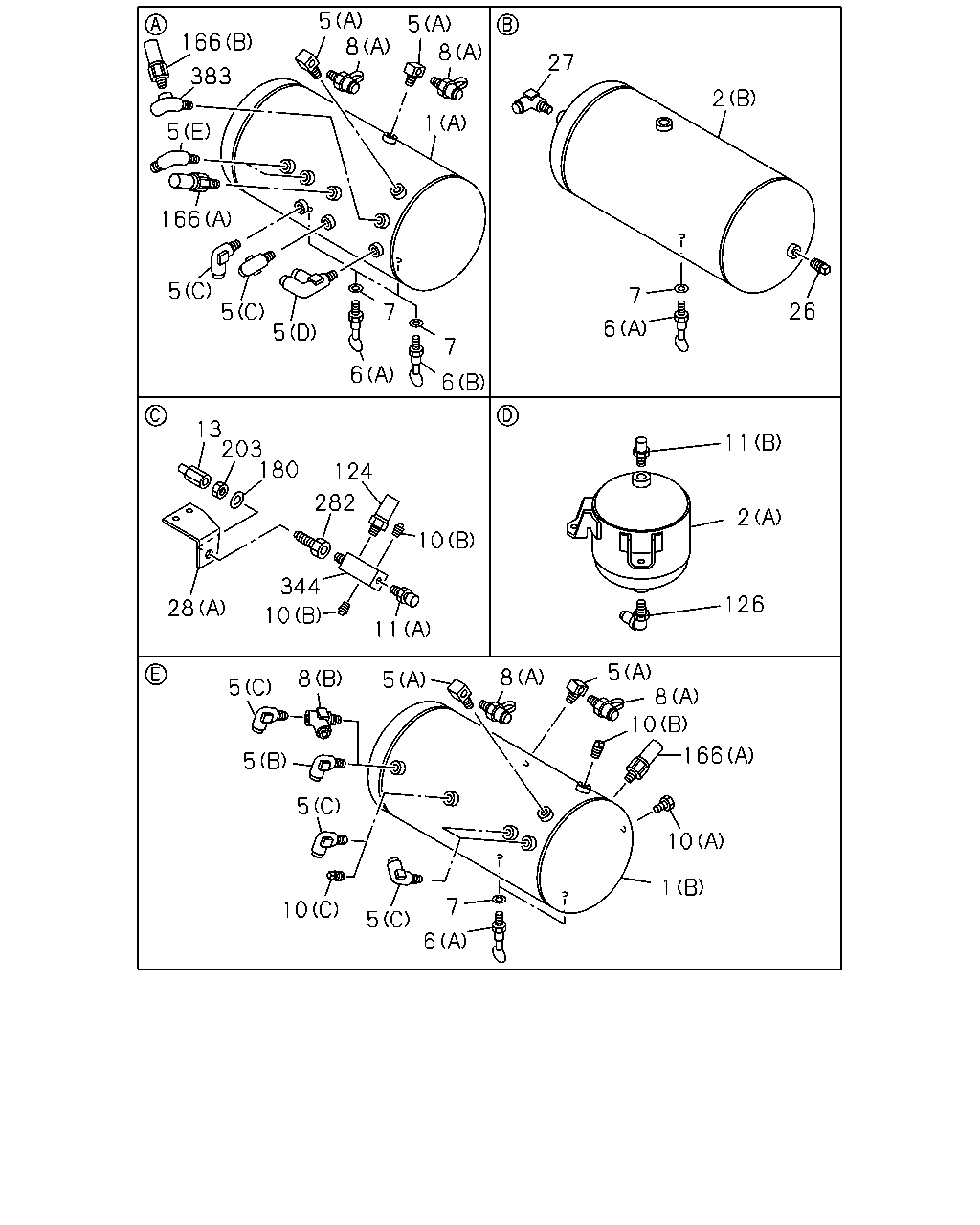

çizim 191884
5 8 5 166 8 27 383 2 1 5 166 5 5 5 7 26 7 6 7 6 6 13 203 180 11 124 282 2 10 344 126 28 10 11 5 8 10 8 8 5 5 166 5 5 10 7 10 5 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		1-48371-388-0 01 1 0410-0410 ● ●
1 TANK ASM; AIR
(B) 		1-48371-408-0 01 1 0410-0411 ● ●
1 TANK ASM; AIR
(B) 		1-48371-416-1 01 1 0412- ● ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 0410- ● ●
2 TANK; AIR
(A) 		1-48371-166-3 01 1 0410- ● ●
2 TANK; AIR
(B) 		1-48371-389-1 02 1 0410- ● ●
5 UNION; AIR TANK
(A) PT1/4 2WAY 		1-09660-693-0 04 1 0410-0410 ● ●
5 UNION; AIR TANK
(A) PT1/4 2WAY 		1-09660-693-0 03 1 0410- ● ●
5 UNION; AIR TANK
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0410-0411 ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0410- ● ●
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0410- ● ●
5 UNION; AIR TANK
(E) 		1-09661-550-0 02 1 0410- ● ●
6 COCK; DRAIN,AIR TANK
(B) W/COVER 		1-48312-004-2 01 1 0410-0410 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 03 1 0410-0410 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 04 1 0410- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 02 1 0410- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0410- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0410- ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-0 04 1 0410-0410 ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 03 1 0410- ● ●
8 CONNECTOR; AIR TANK
(B) 		1-09661-271-0 01 1 0412- ● ●
10 PLUG; AIR TANK
(A) 		1-09661-502-0 01 1 0410- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0410-0608 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0609- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0609- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0410-0608 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 01 1 0412-0608 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 01 1 0609- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 01 1 0609- ● ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0410- ● ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0410- ● ●
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0410- ● ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 0410- ● ●
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0410- ● ●
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 0410- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 01 1 0410- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 0410-0508 ● ●
28 BRACKET; AIR TANK
(C) 		1-48316-077-0 01 1 0509- ● ●
28 BRACKET; AIR TANK
(D) 		1-82699-208-1 01 1 0410-0601 ● ●
124 SWITCH; AIR PRESSURE 1-48340-065-0 01 1 0410- ● ●
126 CONNECTOR; ELBOW
DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0410- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) 		1-48340-058-2 02 1 0410- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 		1-48340-065-0 01 1 0410- ● ●
180 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0410-0603 ● ●
180 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604- ● ●
203 NUT
M16 		9-99110-516-0 01 1 0410-0512 ● ●
203 NUT
M16 		0-91110-516-0 01 1 0601- ● ●
282 UNION; 2 WAY 1-09650-222-1 01 1 0410- ● ●
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0410- ● ●
383 UNION; 3 WAY 1-09661-233-0 01 1 0410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
