3-01 — FRONT WHEEL BRAKE (#66022) — 112 parça
çizim 115111
304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271
BalonParca AdiParca NoAdetTipApplied Date A B
23 SPRING; COIL 1-47629-196-0 04 1 0410- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 02 1 0410- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0410- ● ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0410- ● ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0410- ● ●
271 CLIP; ADJ 1-47621-017-0 04 1 0410- ● ●
275 RING; RETAINER 1-47649-031-0 02 1 0410- ● ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0410- ● ●
279 CAGE; SPRING 1-47629-192-0 04 1 0410- ● ●
282 RING; DRIVE 1-47629-200-0 04 1 0410- ● ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0410- ● ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0410- ● ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0410- ● ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0410- ● ●

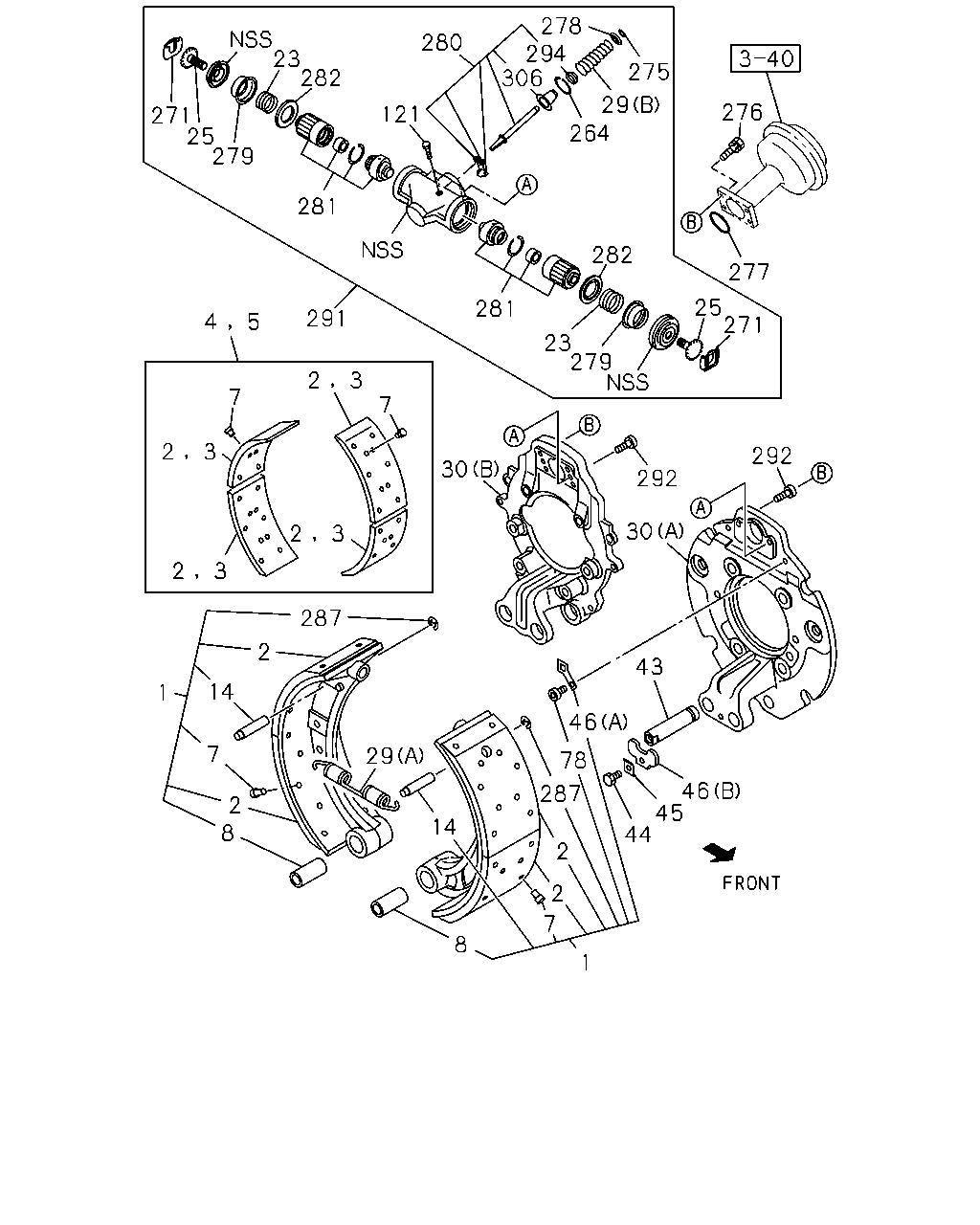

çizim 191888
278 294 306 23 282 280 275 29 276 121 271 25 279 264 281 282 277 25 271 281 291 5 4 23 279 2 3 7 7 2 3 292 30 292 2 30 3 3 2 287 2 43 14 1 46 7 29 78 46 45 44 287 2 8 14 2 2 7 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
LEADING 		1-47170-036-0 01 1 0410-0410 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> LEADING 		1-47170-036-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) LEADING 		1-47170-036-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) LEADING 		1-47170-036-0 01 1 0504- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-037-0 01 1 0410-0410 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> TRAILING 		1-47170-037-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) TRAILING 		1-47170-037-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) TRAILING 		1-47170-037-0 01 1 0504- ● ●
1 SHOE; BRK,FRT
LEADING 		1-47170-038-0 01 1 0410-0410 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> LEADING 		1-47170-038-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) LEADING 		1-47170-038-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) LEADING 		1-47170-038-0 01 1 0504- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-039-0 01 1 0410-0410 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> TRAILING 		1-47170-039-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) TRAILING 		1-47170-039-0 01 1 0411-0503 ● ●
1 SHOE; BRK,FRT
FRONT AXLE F063(FS7) TRAILING 		1-47170-039-0 01 1 0504- ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> LEADING 		1-47170-316-0 01 1 0411-0503 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) LEADING 		1-47170-316-0 01 1 0504-0506 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) LEADING 		1-47170-316-0 01 1 0507- ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> TRAILING 		1-47170-317-0 01 1 0411-0503 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) TRAILING 		1-47170-317-0 01 1 0504-0506 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) TRAILING 		1-47170-317-0 01 1 0507- ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> LEADING 		1-47170-318-0 01 1 0411-0503 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) LEADING 		1-47170-318-0 01 1 0504-0506 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) LEADING 		1-47170-318-0 01 1 0507- ● ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> TRAILING 		1-47170-319-0 01 1 0411-0503 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) TRAILING 		1-47170-319-0 01 1 0504-0506 ●
1 SHOE; BRK,FRT
FRONT AXLE F075(FH5) TRAILING 		1-47170-319-0 01 1 0507- ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-686-0 08 1 0410-0410 ● ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-47125-686-0 08 1 0411-0503 ● ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE F063(FS7) 		1-47125-686-0 08 1 0411-0503 ● ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE F063(FS7) 		1-47125-686-0 08 1 0504- ● ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-47126-698-0 08 1 0411-0503 ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE F075(FH5) 		1-47126-698-0 08 1 0504-0506 ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE F075(FH5) 		1-47126-698-0 08 1 0507- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-687-0 08 1 0410-0410 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-47125-687-0 08 1 0411-0503 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE F063(FS7) 		1-47125-687-0 08 1 0411-0503 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE F063(FS7) 		1-47125-687-0 08 1 0504- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-47126-699-0 08 1 0411-0503 ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE F075(FH5) 		1-47126-699-0 08 1 0504-0506 ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE F075(FH5) 		1-47126-699-0 08 1 0507- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88310-777-0 02 1 0410-0410 ● ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-88310-777-0 02 1 0411-0503 ● ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F063(FS7) 		1-88310-777-0 02 1 0411-0503 ● ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F063(FS7) 		1-88310-777-0 02 1 0504- ● ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-88311-314-0 02 1 0411-0503 ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F075(FH5) 		1-88311-314-0 02 1 0504-0506 ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F075(FH5) 		1-88311-314-0 02 1 0507- ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-778-0 02 1 0410-0410 ● ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-88310-778-0 02 1 0411-0503 ● ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE F063(FS7) 		1-88310-778-0 02 1 0411-0503 ● ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE F063(FS7) 		1-88310-778-0 02 1 0504- ● ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-88311-315-0 02 1 0411-0503 ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE F075(FH5) 		1-88311-315-0 02 1 0504-0506 ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE F075(FH5) 		1-88311-315-0 02 1 0507- ● ●
7 RIVET; LINING,FRT BRK
L=15.5 		1-09732-053-0 80 1 0410- ● ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 0410- ● ●
14 PIN; SHOE RETURN SPR 1-47119-035-0 04 1 0410-0410 ● ●
14 PIN; SHOE RETURN SPR
FRONT AXLE F075(FH5) EXC. FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-47119-035-0 04 1 0411-0503 ● ●
14 PIN; SHOE RETURN SPR
FRONT AXLE F063(FS7) 		1-47119-035-0 04 1 0411-0503 ● ●
14 PIN; SHOE RETURN SPR
FRONT AXLE F063(FS7) 		1-47119-035-0 04 1 0504- ● ●
14 PIN; SHOE RETURN SPR
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-47119-177-0 04 1 0411-0503 ●
14 PIN; SHOE RETURN SPR
FRONT AXLE F075(FH5) 		1-47119-177-0 04 1 0504-0506 ●
14 PIN; SHOE RETURN SPR
FRONT AXLE F075(FH5) 		1-47119-177-1 04 1 0507- ● ●
23 SPRING; COIL 1-47629-196-0 04 1 0410- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 0410- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 02 1 0410- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0410- ● ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-512-0 02 1 0410-1005 ● ●
30 BRACKET; ANCHOR,FRT
(B) 		8-98091-252-0 02 1 1006- ● ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 0410- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 0410-0512 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0601-0910 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 0911- ● ●
45 WASHER; LK 1-47133-011-0 02 1 0410- ● ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 0410- ● ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 0410- ● ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 0410- ● ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0410- ● ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0410- ● ●
271 CLIP; ADJ 1-47621-017-0 04 1 0410- ● ●
275 RING; RETAINER 1-47649-031-0 02 1 0410- ● ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 0410- ● ●
277 RING; CHAMBER 1-48259-231-0 02 1 0410- ● ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0410- ● ●
279 CAGE; SPRING 1-47629-192-0 04 1 0410- ● ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 0410- ● ●
281 SLEEVE 1-47629-247-1 04 1 0410- ● ●
282 RING; DRIVE 1-47629-200-0 04 1 0410- ● ●
287 RING; SNAP
FRONT AXLE F075(FH5) FRT BRK AIR D410 WEDGE-160-24<B7Q> ID=10 		9-09185-410-0 08 1 0411-0503 ●
287 RING; SNAP
FRONT AXLE F075(FH5) ID=10 		9-09185-410-0 08 1 0504-0506 ●
287 RING; SNAP
FRONT AXLE F075(FH5) ID=10 		9-09185-410-0 08 1 0507-0604 ● ●
287 RING; SNAP
FRONT AXLE F075(FH5) ID=10 		0-91805-510-0 08 1 0605- ● ●
291 EXPANDER 1-47601-087-0 02 1 0410- ● ●
292 BOLT; EXPANDER 1-47634-008-0 04 1 0410- ● ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0410- ● ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0410- ● ●
