2-85 — POWER TAKE OFF CONTROL
(#66021) — 42 parça
Tümü
A - CXZ6MC
B - CXZ6MF
◀

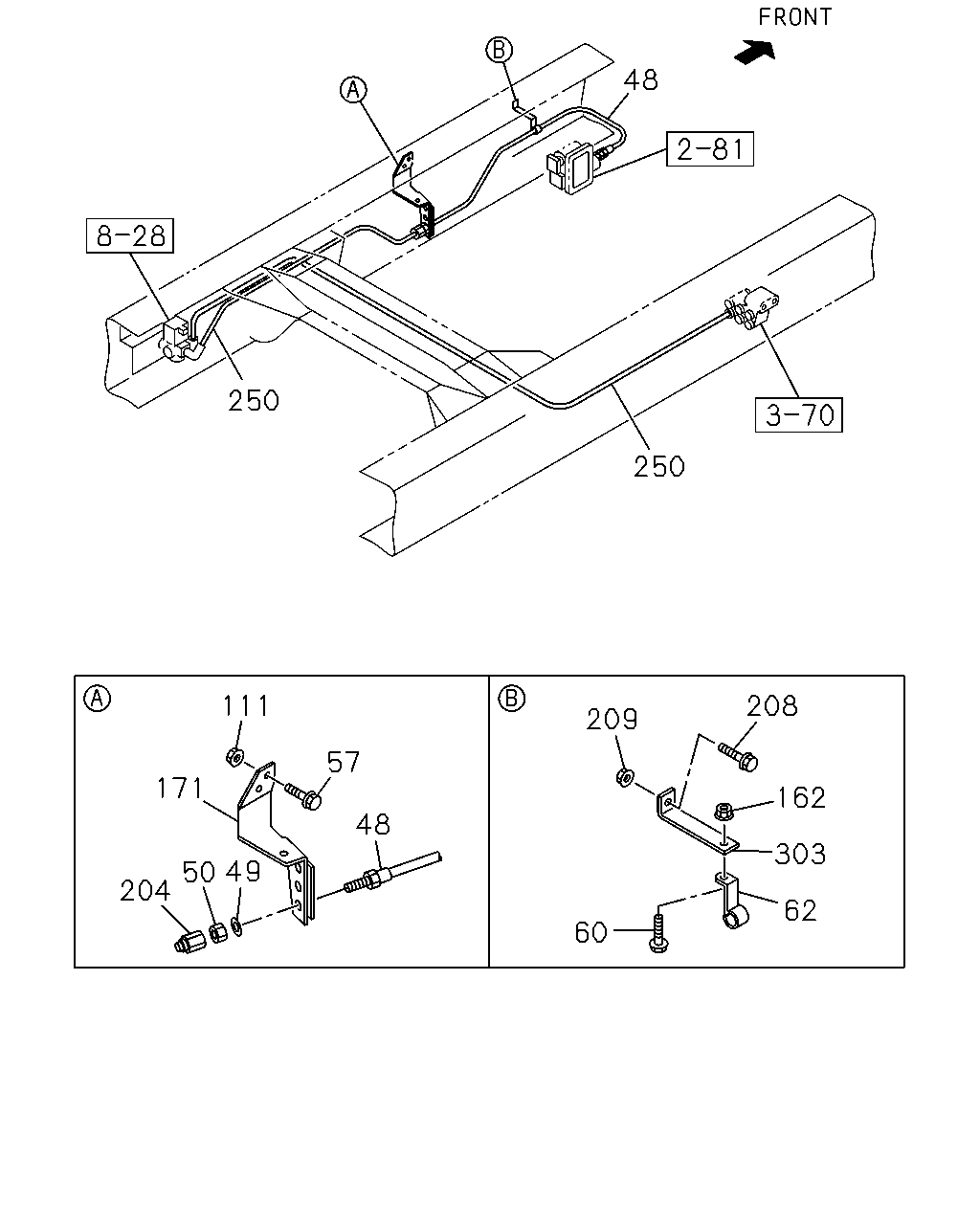

[285A] FIXING;HOSE AND BRACKET (23 parça)

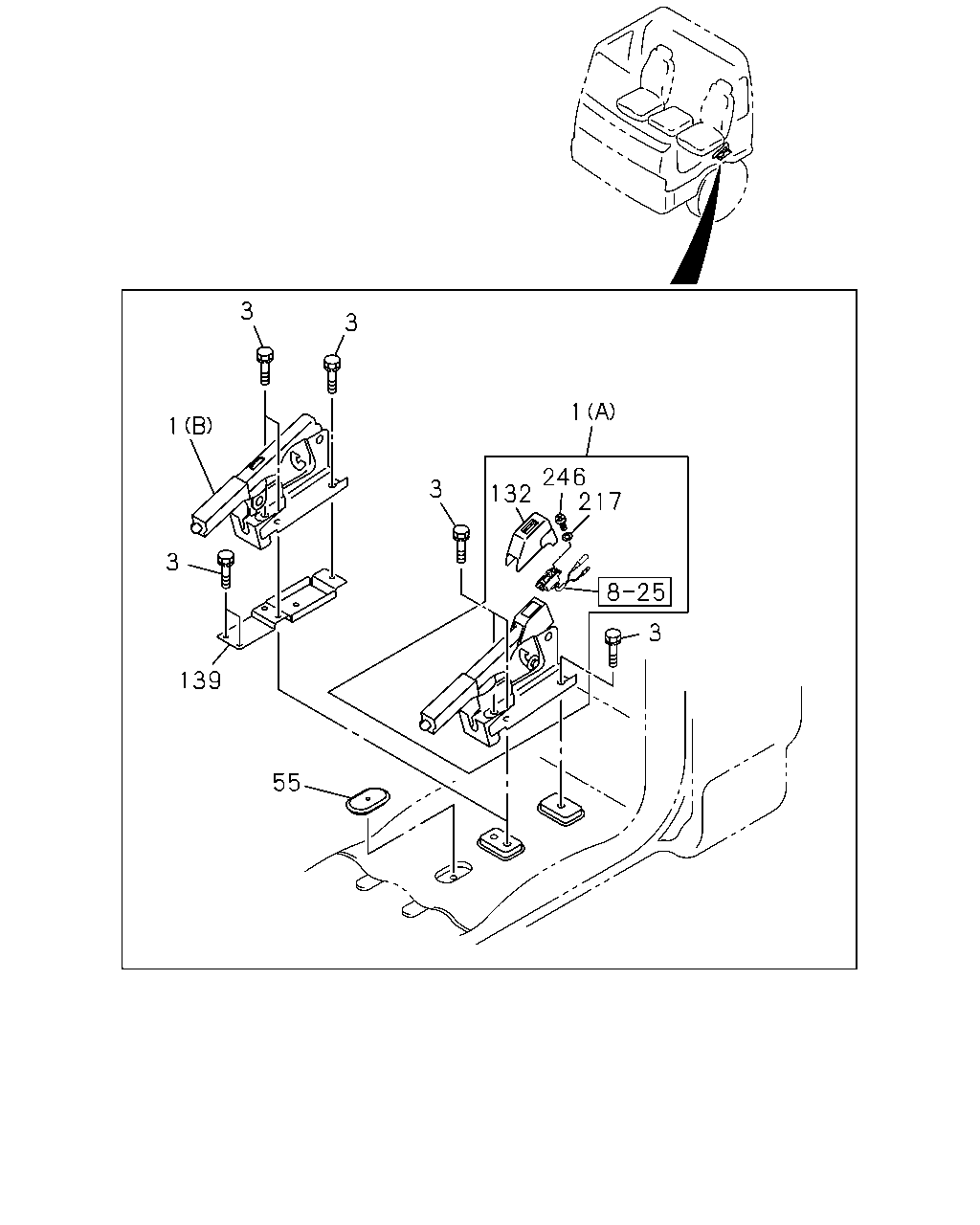

[285A] LEVER AND GROMMET (19 parça)
▶
48
250
250
111
208
209
57
171
162
48
303
204
62
60
50
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760
1-09363-715-0
01
1
0410-
●
●
49
WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2
9-09150-512-0
01
1
0410-0603
●
●
49
WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2
0-91510-512-0
01
1
0604-
●
●
50
NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12
9-09840-280-0
01
1
0410-
●
●
57
BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE
0-28680-835-0
02
1
0410-0512
●
●
57
BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE
0-28650-835-0
02
1
0601-
●
●
60
BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE
0-28680-820-0
01
1
0410-0512
●
●
60
BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE
0-28650-820-0
01
1
0601-
●
●
62
CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30
1-09701-215-1
01
1
0410-
●
●
111
NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91150-108-0
02
1
0410-0602
●
●
111
NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
162
NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91150-108-0
01
1
0410-0602
●
●
162
NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
171
BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-47479-634-1
01
1
0410-
●
●
204
CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
0410-
●
●
208
BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE
0-28680-835-0
01
1
0410-0512
●
●
208
BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE
0-28650-835-0
01
1
0601-
●
●
209
NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91150-108-0
01
1
0410-0602
●
●
209
NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
250
TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6
1-87411-002-0
02
1
0410-0410
●
●
250
TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6
1-87411-002-0
02
1
0411-
●
250
TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
0410-
●
303
BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95
1-82699-085-0
01
1
0410-
●
●
3
3
1
1
246
217
3
132
3
3
139
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER ASM; PTO & DUMP CONT
MIXER TRUCK<RA2> (B)
1-79907-045-1
01
1
0410-0501
●
●
1
LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (B)
1-79907-045-1
01
1
0502-
●
●
1
LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A)
1-79996-244-0
01
1
0410-
●
●
3
BOLT; BRKT,DUMP CONT LEVER
MIXER TRUCK<RA2> M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
0410-0501
●
●
3
BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
0502-
●
●
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0410-
●
●
55
GROMMET; CABLE
EXC. MIXER TRUCK<RA2>,DUMP CONTROL LEVER<RC4>
1-09983-068-0
01
1
0410-0501
●
●
55
GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6)
1-09983-068-0
01
1
0502-
●
●
132
COVER; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79997-376-0
01
1
0410-
●
●
139
BRACKET; CONT BOX
MIXER TRUCK<RA2>
1-79907-044-0
01
1
0410-0501
●
●
139
BRACKET; CONT BOX
PTO CONTROL(SV6)
1-79907-044-0
01
1
0502-
●
●
217
WASHER; PL
MIXER TRUCK<RA2> ID=6.4 OD=14
9-09160-606-0
02
1
0410-0501
●
●
217
WASHER; PL
PTO CONTROL(SV6) ID=6.4 OD=14
9-09160-606-0
02
1
0502-0605
●
●
217
WASHER; PL
PTO CONTROL(SV6) ID=6.4
0-91610-606-0
02
1
0606-
●
●
217
WASHER; PL
PTO CONTROL(SV6) ID=10.5 OD=22
9-09160-610-0
03
1
0502-0605
●
●
217
WASHER; PL
PTO CONTROL(SV6) ID=10.5 OD=22 T=1.6
0-91610-610-0
03
1
0606-
●
●
217
WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3
9-09160-504-0
02
1
0510-
●
●
246
SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING
0-71180-408-0
02
1
0410-0603
●
●
246
SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING
0-71240-408-0
02
1
0604-
●
●
