2-53 — TRANSMISSION OIL COOLER SYSTEM (#66019) — 111 parça

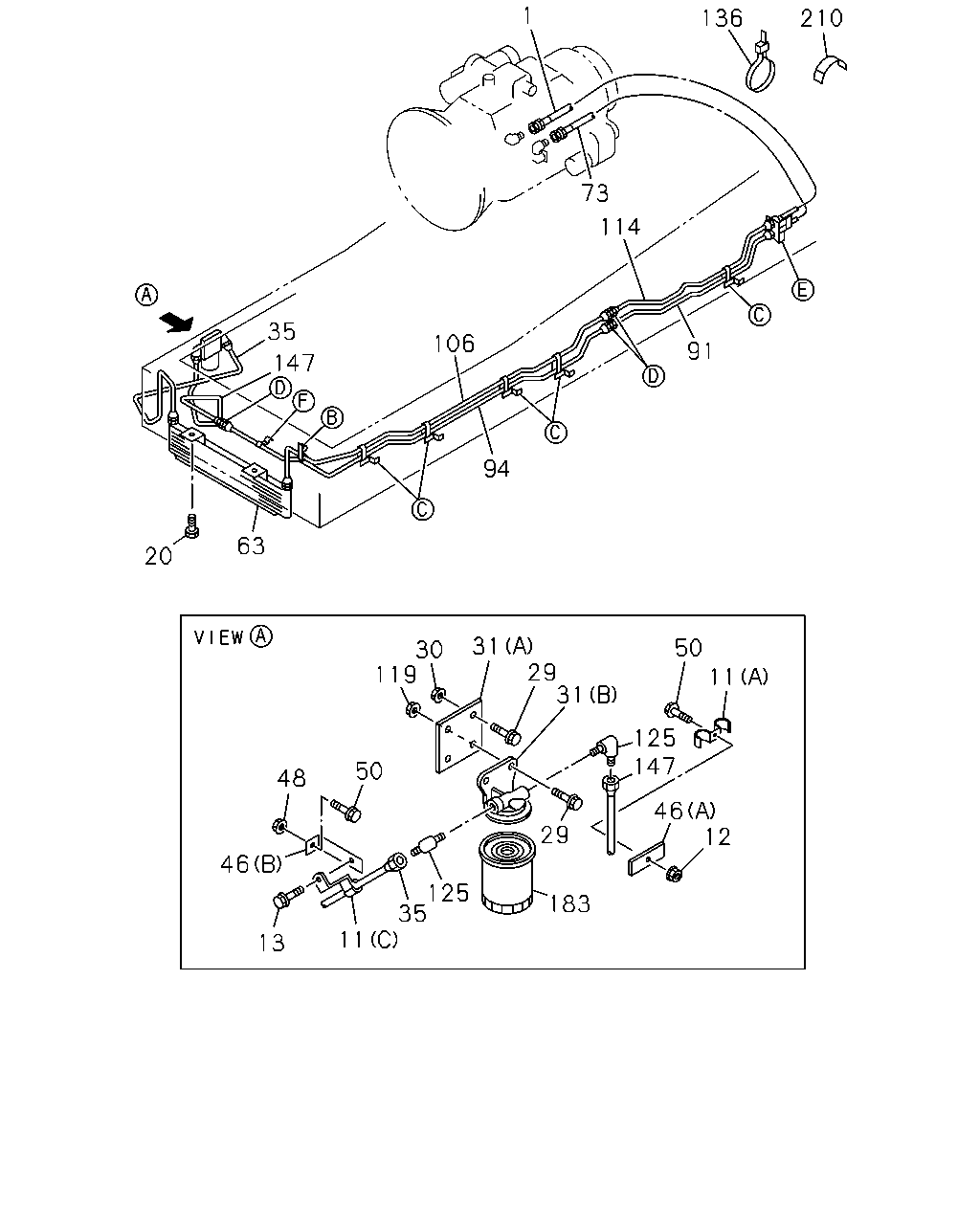

çizim 114323
1 136 210 73 114 35 106 91 147 94 63 20 31 29 31 50 11 30 119 125 147 50 48 46 12 29 46 125 35 11 183 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=430 		1-09364-872-0 01 1 0410- ● ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0410- ● ●
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0410- ● ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		5-09700-351-0 01 1 0410-0707 ● ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ● ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 05 1 0410- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0410-0602 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0603-0802 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 0803- ● ●
13 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0410-0512 ● ●
13 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0802 ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0410-0512 ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0410-0512 ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
29 BOLT; FILTER TO BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0512 ● ●
29 BOLT; FILTER TO BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0410-0512 ● ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
30 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0410-0510 ● ●
30 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0511-0602 ● ●
30 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
31 BRACKET; OIL FILTER
(B) 		1-33119-222-0 01 1 0410- ● ●
31 BRACKET; OIL FILTER
(A) 		1-47471-155-0 01 1 0410- ● ●
35 PIPE; OIL,OIL COOLER TO FILTER
L=787 		1-49167-386-0 01 1 0410- ● ●
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 01 1 0410- ● ●
46 BRACKET; OIL PIPE
(B) 		1-47475-519-0 01 1 0410-0802 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0410-0512 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 05 1 0410-0512 ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0410-0512 ● ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
63 COOLER; OIL 1-21700-290-0 01 1 0410-0609 ● ●
63 COOLER; OIL 1-21700-394-0 01 1 0610-1405 ● ●
63 COOLER; OIL 8-98269-766-0 01 1 1406- ● ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0410- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=876 SERVICED BY L=900 		1-47428-873-0 01 1 0410-0410 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=770 SERVICED BY L=800 		1-47428-872-0 01 1 0510-0603 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0604- ● ●
94 PIPE; OIL,UNION TO UNION
L=2169 SERVICED BY L=2500 		1-47428-883-0 01 1 0410-0410 ● ●
94 PIPE; OIL,UNION TO UNION
L=2210 SERVICED BY L=2500 		1-47428-883-0 01 1 0411-0507 ● ●
94 PIPE; OIL,UNION TO UNION
L=2298 SERVICED BY L=2500 		1-47428-883-0 01 1 0508-0709 ● ●
94 PIPE; OIL,UNION TO UNION
L=2296 SERVICED BY L=2500 		1-47428-883-0 01 1 0710- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L=1729 		1-49167-387-0 01 1 0410-0507 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L=1747 SERVICED BY L=1900 		1-47428-881-0 01 1 0508-0709 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L=1743 		1-49167-896-0 01 1 0710- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=831 SERVICED BY L=900 		1-47428-873-0 01 1 0410-0410 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0510- ● ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0410-0602 ● ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0410-0607 ● ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608- ● ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0410- ● ●
147 PIPE; OIL,UNION TO FILTER
L=748 SERVICED BY L=800 		1-47428-872-0 01 1 0410-0410 ● ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 0410- ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0410- ● ●
çizim 114671
11 95 29 178 50 12 50 12 11 95 1 48 117 116 114 8 109 73 179 77 76 91 19 50 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=430 		1-09364-872-0 01 1 0410- ● ●
8 UNION
M16 L=42 		9-09233-010-1 01 1 0410-0607 ● ●
8 UNION
M16 L=42 		0-92123-010-0 01 1 0608- ● ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0410- ● ●
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0410- ● ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		5-09700-351-0 01 1 0410-0707 ● ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ● ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 05 1 0410- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0410-0602 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0603-0802 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 0803- ● ●
19 BRACKET; FLEX HOSE 1-47479-559-0 01 1 0410- ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0410-0512 ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
29 BOLT; FILTER TO BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0512 ● ●
29 BOLT; FILTER TO BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0410-0512 ● ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0410-0602 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0410-0512 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 05 1 0410-0512 ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0410-0512 ● ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0410- ● ●
76 NUT; FLEX HOSE
M16 		9-99111-416-0 01 1 0410-0512 ● ●
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ● ●
77 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0410-0603 ● ●
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=876 SERVICED BY L=900 		1-47428-873-0 01 1 0410-0410 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=770 SERVICED BY L=800 		1-47428-872-0 01 1 0510-0603 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0604- ● ●
95 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0410- ● ●
95 BRACKET; CLIP
(A) 		1-47479-482-0 05 1 0410- ● ●
109 UNION
M16 L=42 		9-09233-010-1 02 1 0410-0607 ● ●
109 UNION
M16 L=42 		0-92123-010-0 02 1 0608- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=831 SERVICED BY L=900 		1-47428-873-0 01 1 0410-0410 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0510- ● ●
116 NUT; BRKT,FLEX HOSE
M16 		9-99111-416-0 01 1 0410-0512 ● ●
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ● ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 01 1 0410-0603 ● ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 0604- ● ●
178 BOLT; BRKT,CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 0410-0512 ● ●
178 BOLT; BRKT,CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
179 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0410-0512 ● ●
179 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
