2-05 — CLUTCH PIPING (#66007) — 142 parça

153 22 167 103 102 27 25 133 50 30 25 10 175 56 27 184 180 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

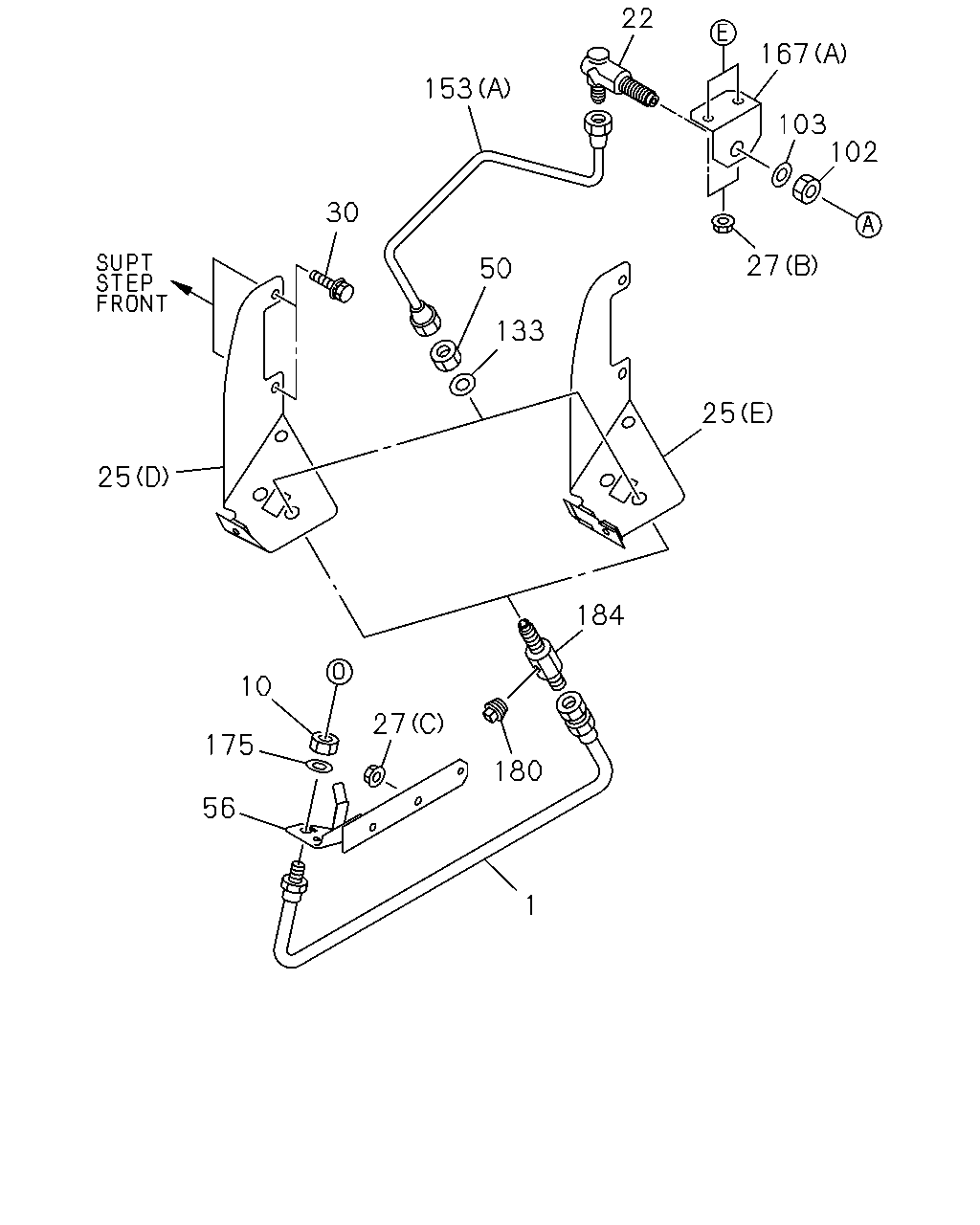

1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0410-0703	●	●
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0410-0512	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0410-0607	●	●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-	●	●
25	BRACKET; OIL PIPE (A)	1-47471-020-0	01	1	0410-0410	●	●
25	BRACKET; OIL PIPE (A)	1-47471-197-0	01	1	0410-0507	●	●
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0410-0410	●	●
25	BRACKET; OIL PIPE (B)	1-47471-218-0	01	1	0411-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0410-	●	●
25	BRACKET; OIL PIPE (D)	1-71907-627-1	01	1	0410-0508	●	●
25	BRACKET; OIL PIPE (E)	1-71907-726-0	01	1	0509-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0410-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0410-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0410-	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	03	1	0410-0507	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	01	1	0508-0512	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0410-0904	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
50	NUT; UNION M14	9-99111-414-0	01	1	0410-0512	●	●
50	NUT; UNION M14	0-91111-514-0	01	1	0601-	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0410-0508	●	●
56	BRACKET; FLEX HOSE	1-47471-366-0	01	1	0509-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0410-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0410-0603	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0410-0603	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2044 SERVICED BY L=2150	1-47428-770-0	01	1	0410-0410	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2025 SERVICED BY L=2150	1-47426-394-0	01	1	0411-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0410-0606	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0410-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0410-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0410-0603	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0410-0804	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0410-0804	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●	●

173 173 220 48 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

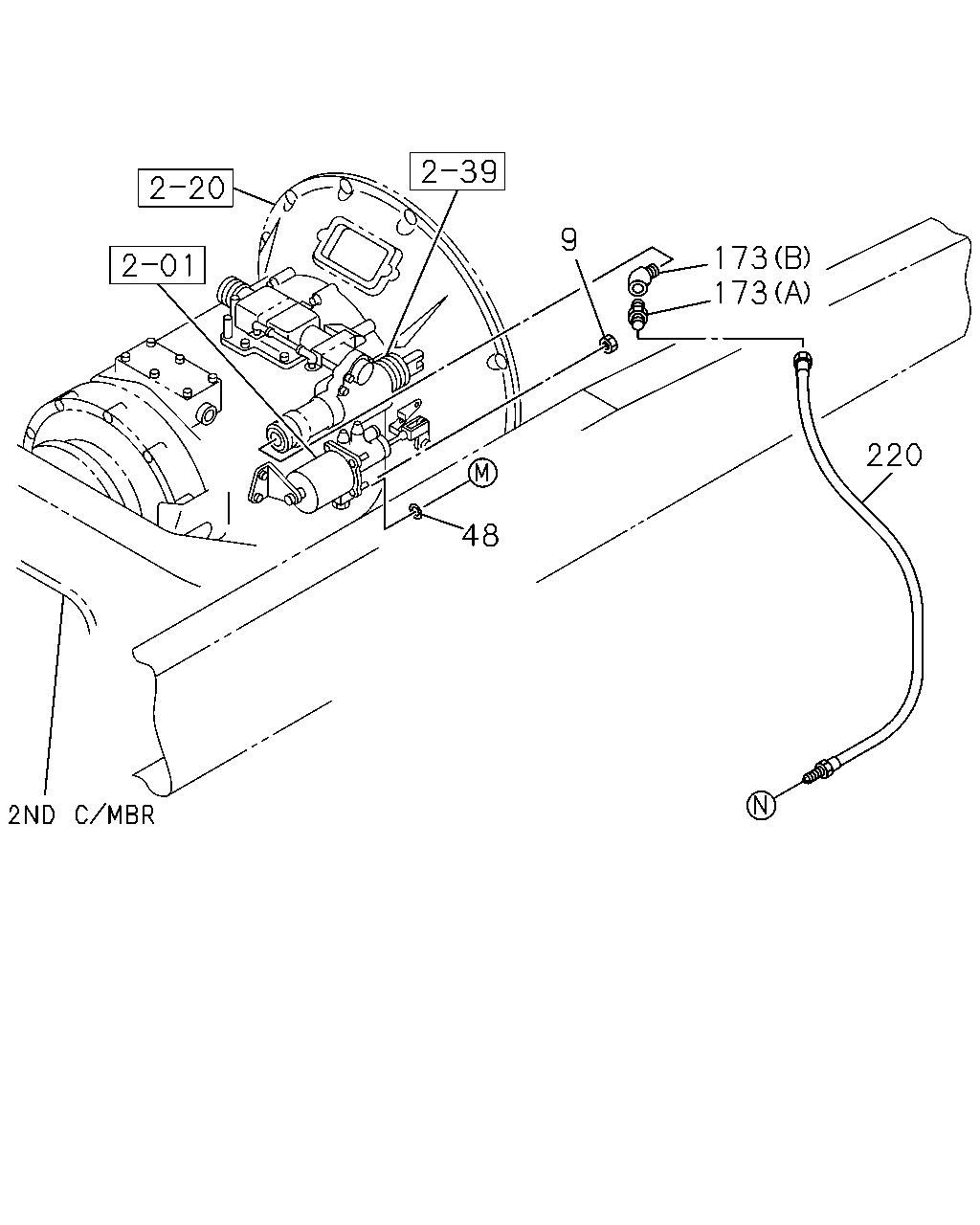

9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0410-0602	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0410-	●	●
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0410-	●	●
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	0410-	●	●
220	HOSE; FLEX,POWER ASSIST MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	0410-	●	●
220	HOSE; FLEX,POWER ASSIST EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	0410-	●	●

25 29 30 28 30 26 25 28 29 29 28 34 25 106 33 35 117 4 44 45 46 42 36 115 116 37 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0410-	●	●
25	BRACKET; OIL PIPE (A)	1-47471-020-0	01	1	0410-0410	●	●
25	BRACKET; OIL PIPE (A)	1-47471-197-0	01	1	0410-0507	●	●
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0410-0410	●	●
25	BRACKET; OIL PIPE (B)	1-47471-218-0	01	1	0411-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0410-	●	●
25	BRACKET; OIL PIPE (D)	1-71907-627-1	01	1	0410-0508	●	●
25	BRACKET; OIL PIPE (E)	1-71907-726-0	01	1	0509-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0508-0602	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
28	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0410-0410	●	●
28	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0410-0507	●	●
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0508-	●	●
28	CLIP; OIL PIPE (A) ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	0410-0507	●	●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0508-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0410-0507	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0508-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0410-0507	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	03	1	0508-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	03	1	0410-0507	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	01	1	0508-0512	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0410-0904	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	07	1	0410-0503	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0504-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0504-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0410-0512	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0410-0512	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	02	1	0410-0512	●	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	0410-0503	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0504-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0504-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0410-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0410-	●	●
37	BOLT; CLIP BRKT M10X20 FLANGE	0-28181-020-0	01	1	0410-0512	●	●
37	BOLT; CLIP BRKT M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47479-626-0	01	1	0410-0410	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47471-203-0	01	1	0411-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X40 FLANGE	0-28680-840-0	02	1	0410-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0410-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0410-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0410-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	02	1	0410-0607	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	02	1	0608-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0410-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0410-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	0410-0512	●	●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●

153 109 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

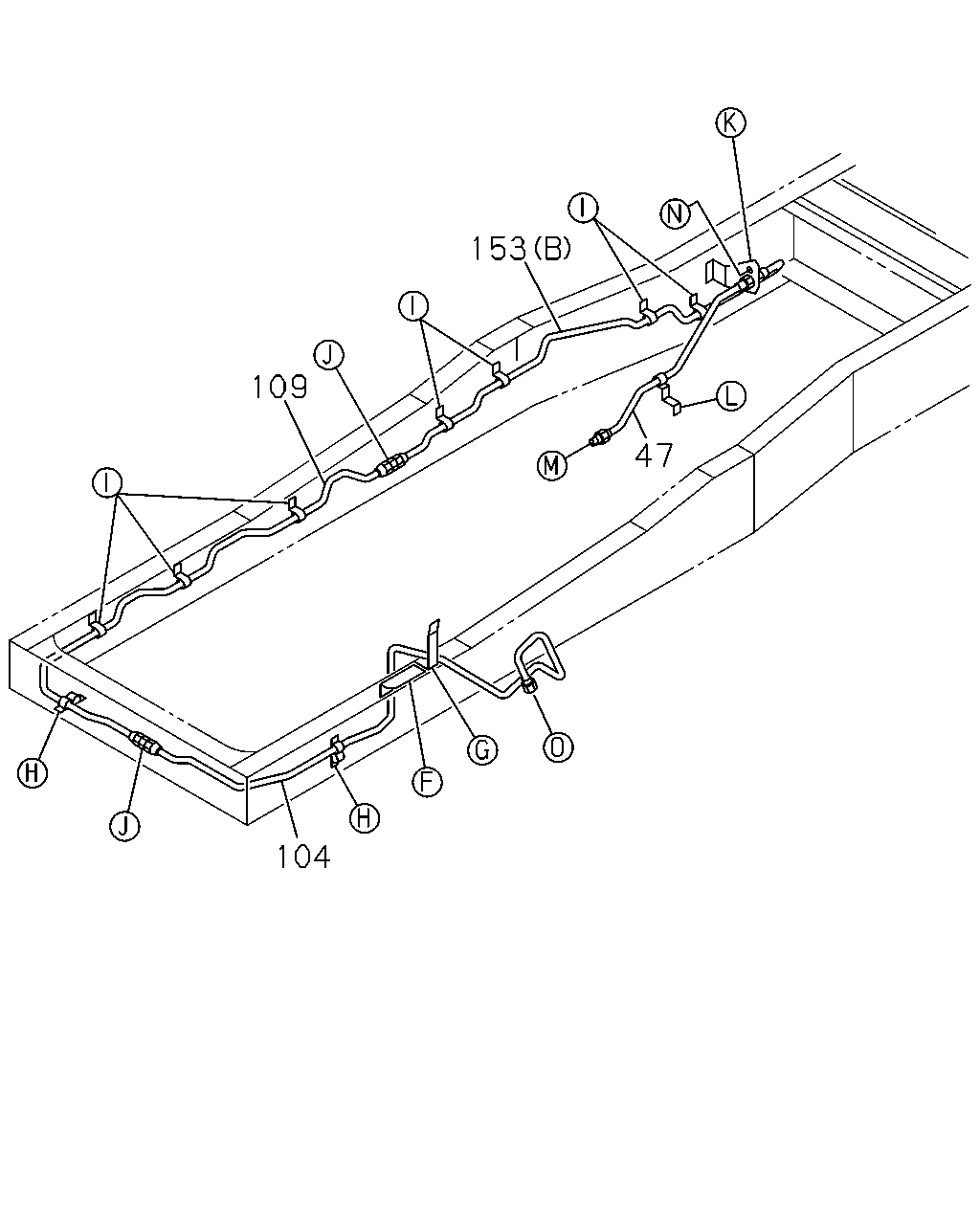

47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	0410-	●	●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0410-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1851 SERVICED BY L=1950	1-47426-393-0	01	1	0410-0410	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1415 SERVICED BY L=1550	1-47426-390-0	01	1	0410-0507	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1390 SERVICED BY L=1400	1-47426-389-0	01	1	0508-0510	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1396 SERVICED BY L=1400	1-47428-765-0	01	1	0511-	●	●
109	PIPE; AIR,UNION TO UNION L=1275 SERVICED BY L=1400	1-47426-389-0	01	1	0410-0410	●	●
109	PIPE; AIR,UNION TO UNION L=1712 SERVICED BY L=1800	1-47426-392-0	01	1	0410-0507	●	●
109	PIPE; AIR,UNION TO UNION L=1715 SERVICED BY L=1800	1-47426-392-0	01	1	0508-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2044 SERVICED BY L=2150	1-47428-770-0	01	1	0410-0410	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2025 SERVICED BY L=2150	1-47426-394-0	01	1	0411-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0410-0606	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-	●	●

36 67 24 185 67 66 185 147 167 58 57 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

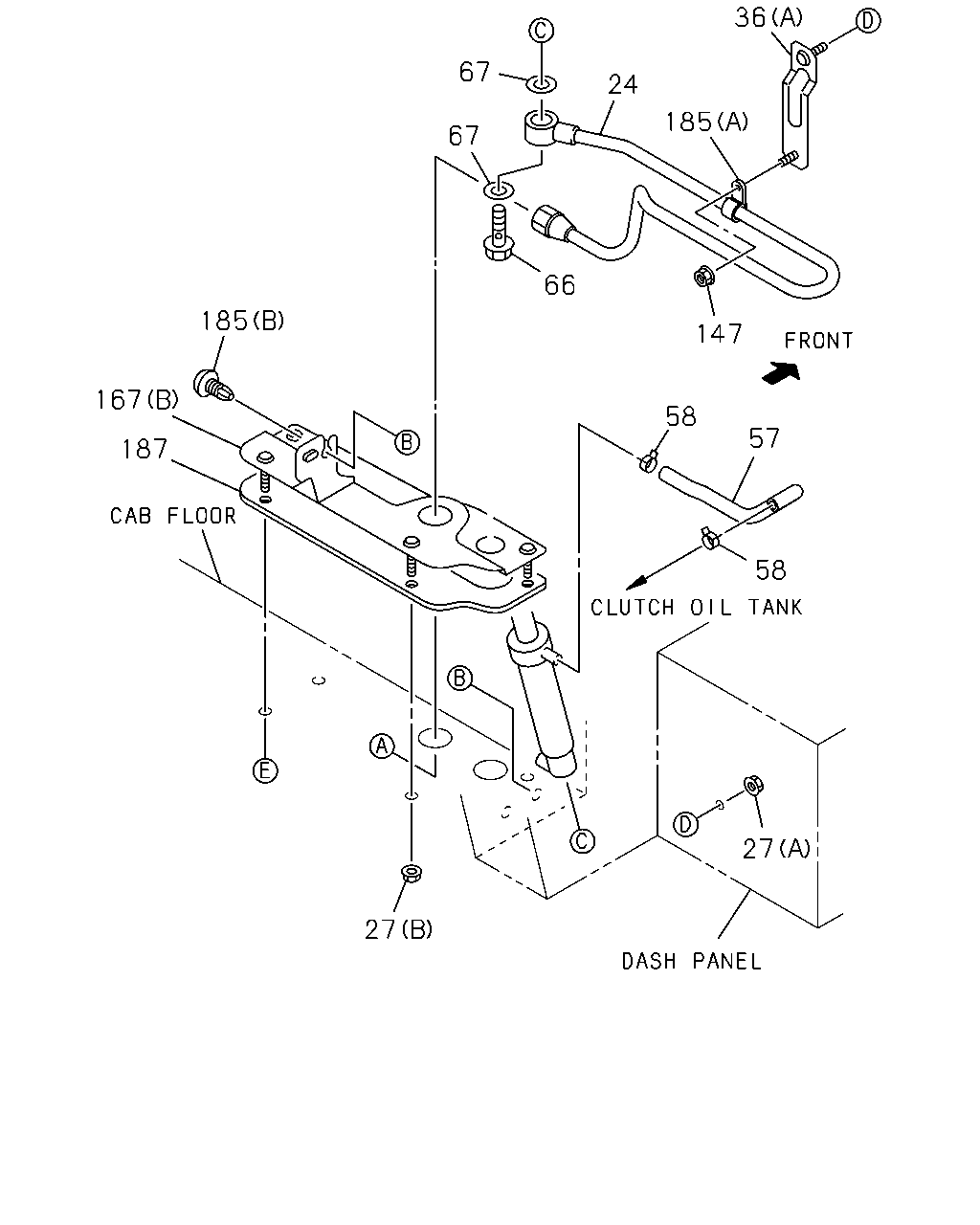

24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0410-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0410-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0410-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0410-	●	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0410-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0410-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0410-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0410-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0410-0805	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0410-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0410-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0410-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0410-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0410-	●	●
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0410-0606	●	●
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	0410-	●	●
