Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11013 - CXZ LHD WEDGE BRAKE
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

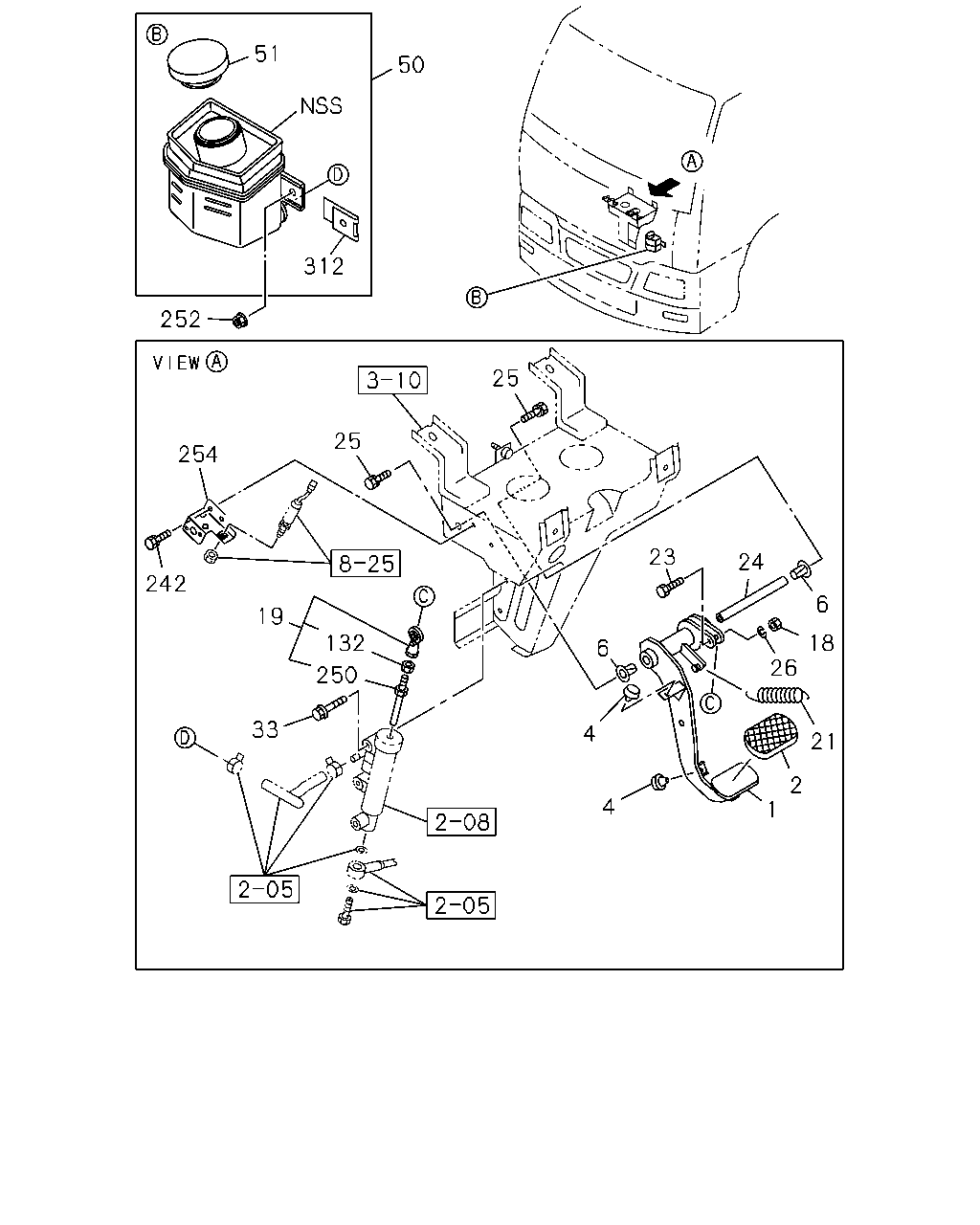

2-03 — CLUTCH PEDAL AND CONTROL
(#66006) — 21 parça
Tümü
A - CXZ6MC
B - CXZ6MF
51
50
312
252
25
25
254
23
24
242
6
19
132
18
6
26
250
33
4
21
2
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PEDAL; CLU
1-73907-440-2
01
1
0410-
●
●
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0410-
●
●
4
STOPPER; CLU PEDAL
1-47319-014-1
02
1
0410-
●
●
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0410-
●
●
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
0410-
●
●
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
0410-
●
●
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
0410-
●
●
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
0410-
●
●
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
0410-
●
●
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0410-
●
●
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
0410-
●
●
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28081-060-0
02
1
0410-0512
●
●
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0601-
●
●
50
TANK; OIL,CLU
1-47530-182-0
01
1
0410-
●
●
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0410-
●
●
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
0410-
●
●
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
02
1
0410-
●
●
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0410-
●
●
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0410-
●
●
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
0410-
●
●
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0410-
●
●
