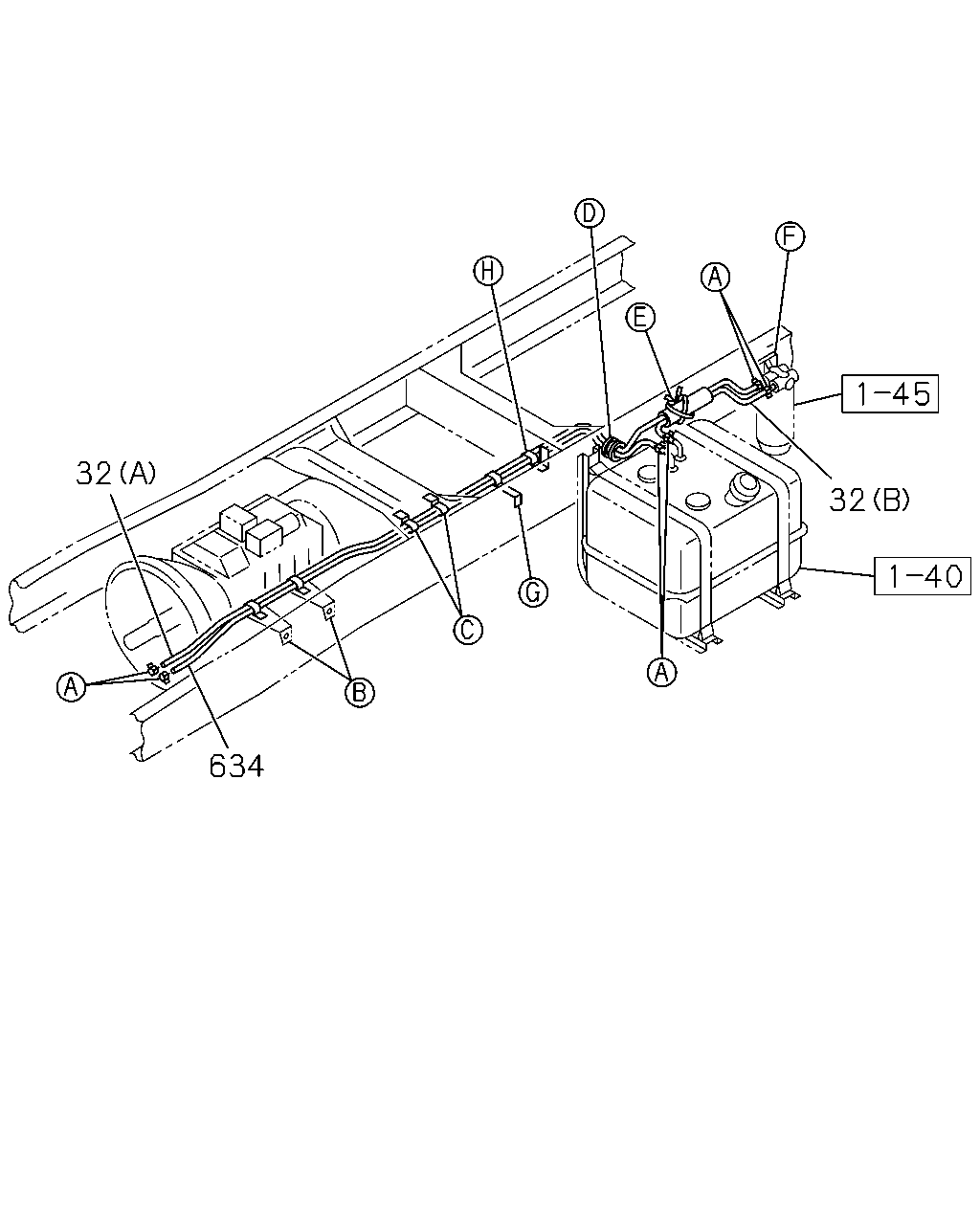

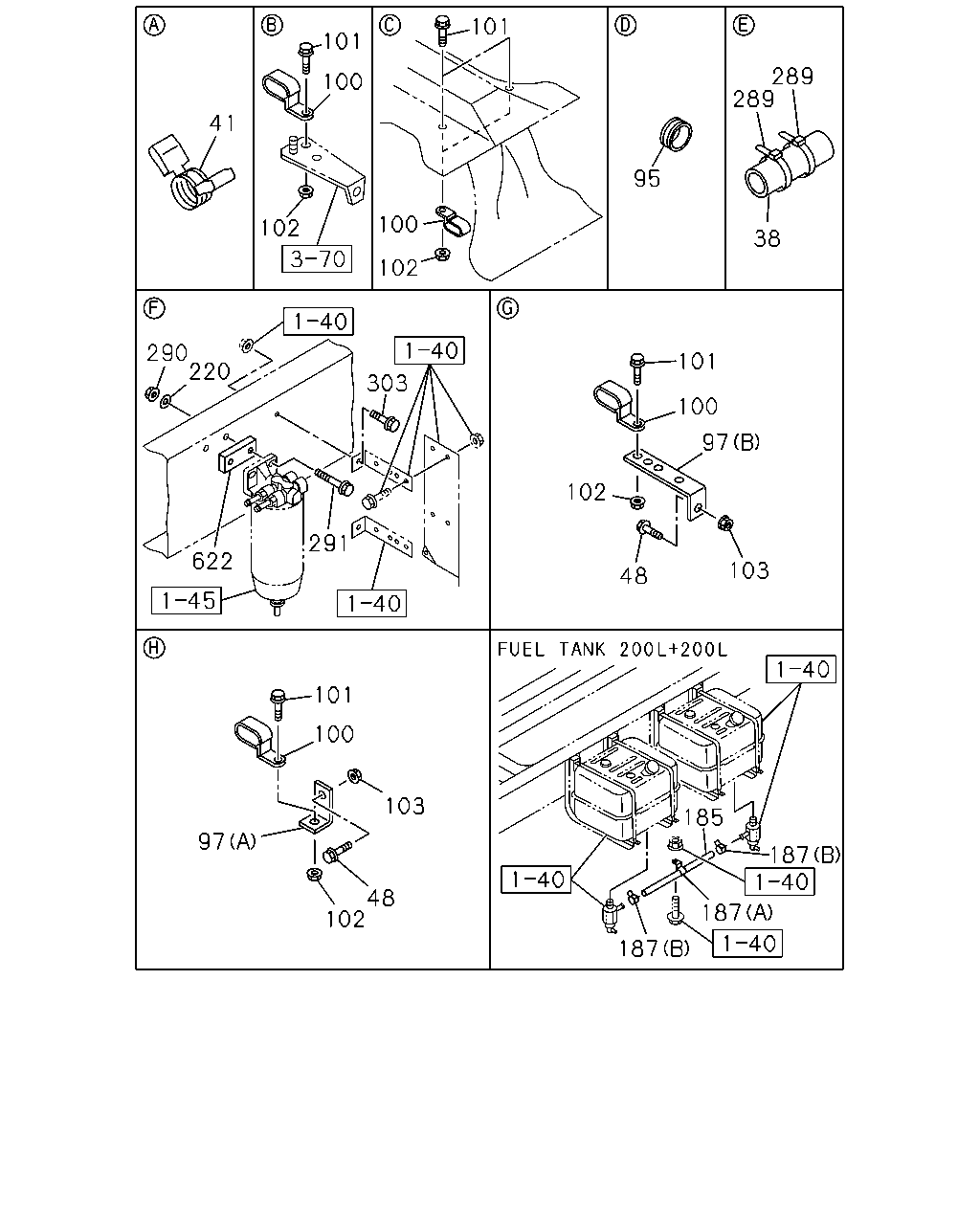

1-41 — FUEL PIPING; CHASSIS (#66001) — 65 parça

101 101 289 289 100 41 95 100 102 38 102 290 220 101 303 100 97 102 291 622 103 48 101 100 103 185 97 187 48 102 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0410-0411	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0410-0411		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0412-	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0410-0411		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0412-		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	02	1	0410-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0410-	●	●
48	BOLT; BRKT M8X40 FLANGE	0-28080-840-0	02	1	0410-0410	●
48	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0412-0512		●
48	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
48	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0412-0512		●
48	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0410-	●	●
97	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	0412-		●
97	BRACKET; CLIP (B)	1-82698-358-0	01	1	0412-		●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	04	1	0410-0411	●	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	04	1	0412-	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	07	1	0412-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0410-0411	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0412-0512	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0410-0411	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0412-0512	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28680-820-0	05	1	0412-0512		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0601-		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0412-0512		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0410-0501	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0502-0602	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	07	1	0412-0602		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	07	1	0603-		●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0412-0602		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	0410-0509		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17.1	8-94122-679-0	02	1	0410-0509		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=19 H=25 L=25	9-09917-035-0	02	1	0410-0509		●
220	WASHER; PL ID=10.5 OD=26	9-09164-710-0	02	1	0410-0605	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0606-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	01	1	0410-0411	●
289	CLIP; BAND,HOSE FUEL TANK 200L FRAME SIDE<N20> L=250	5-09707-030-1	01	1	0410-0411		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	03	1	0412-	●
289	CLIP; BAND,HOSE FUEL TANK 200L+200L<NF7> L=250	5-09707-030-1	04	1	0410-0411		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	05	1	0412-		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91150-210-0	02	1	0410-0602	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28081-060-0	02	1	0410-0512	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0601-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0410-0512	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
622	SPACER; BRKT	1-53168-492-0	01	1	0410-0806	●	●
622	SPACER; BRKT	8-98124-944-0	01	1	0807-	●	●

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0410-0411	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0410-0411		●
32	PIPE; DELIVERY,FUEL TANK (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0412-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	0410-0411	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	0410-0411		●
32	PIPE; DELIVERY,FUEL TANK (A) L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	0412-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0412-		●
32	PIPE; DELIVERY,FUEL TANK (A) L=2750 SERVICED BY L=3000	0-01260-300-0	01	1	0412-		●
634	HOSE; RUBBER RETURN L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0410-0411	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0410-0411		●
634	HOSE; RUBBER RETURN L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0412-	●
634	HOSE; RUBBER RETURN L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	0412-		●
