1-40 — FUEL TANK (#66000) — 98 parça

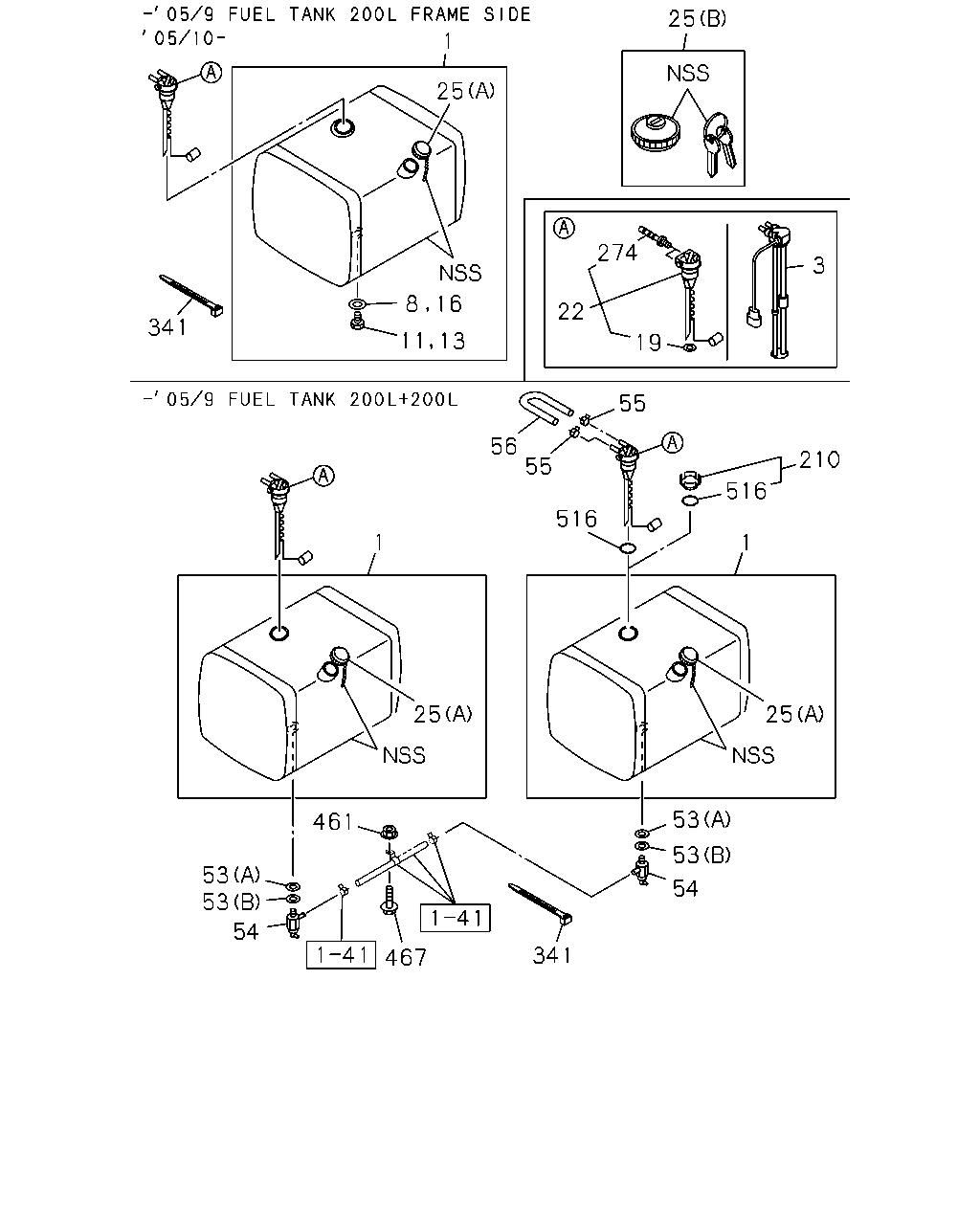

1 25 25 3 19 22 274 8 16 11 13 56 516 55 55 516 210 25 1 53 53 54 341 461 467 53 53 54 1 341 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L+200L<NF7> 745X650X480 200L	1-87411-169-0	02	1	0410-0509	●
1	TANK; FUEL 745X650X480 200L	1-87411-169-0	01	1	0410-0509		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 745X650X480 200L	1-87411-169-0	01	1	0410-0509	●
1	TANK; FUEL 745X650X480 200L	1-87411-169-0	01	1	0510-	●	●
3	UNIT; FUEL TANK,SUB	8-98217-750-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1211-	●	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	9-99202-318-0	01	1	0410-0509		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	9-99202-318-0	01	1	0410-0509	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	9-99202-318-0	01	1	0510-0606	●	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	0607-1210	●	●
16	GASKET; PLUG T=1.60	1-22416-001-0	01	1	0410-0509		●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> T=1.60	1-22416-001-0	01	1	0410-0509	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	0510-1210	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=58	1-83149-005-0	02	1	0410-0508	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0509-1210	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0410-0508		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=58	1-83149-005-0	01	1	0410-0508	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-131-0	02	1	0410-0508	●
22	UNIT; FUEL TANK	1-83141-131-0	01	1	0509-1210	●	●
22	UNIT; FUEL TANK	1-83141-131-0	01	1	0410-0508		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-131-0	01	1	0410-0508	●
25	CAP; FILLER,FUEL TANK (B)	1-22440-057-2	01	1	1211-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-056-0	02	1	0410-0509	●
25	CAP; FILLER,FUEL TANK (A)	1-22440-056-0	01	1	0410-0509		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-056-0	01	1	0410-0509	●
25	CAP; FILLER,FUEL TANK (A)	1-22440-056-0	01	1	0510-	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	0410-0509	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) T=2.0	1-22416-002-0	02	1	0410-0509	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	0410-0509	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0410-0509	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0410-0509	●
210	CAP; FUEL TANK FUEL TANK 200L+200L<NF7>	1-22411-076-0	01	1	0509-0509	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0410-0508		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L FRAME SIDE<N20>	1-83149-006-0	02	1	0410-0508	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L+200L<NF7>	1-83149-006-0	04	1	0410-0508	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0509-1210	●	●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=350	1-09707-183-0	02	1	0410-0509	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	01	1	0410-0509		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350	1-09707-183-0	01	1	0410-0509	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	01	1	0510-	●	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	0410-0509	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	0410-0509	●
516	GASKET; CAP ID=78	8-98259-383-0	01	1	1312-	●	●
516	GASKET; CAP FUEL TANK 200L+200L<NF7> ID=58	1-83149-005-0	01	1	0509-0509	●

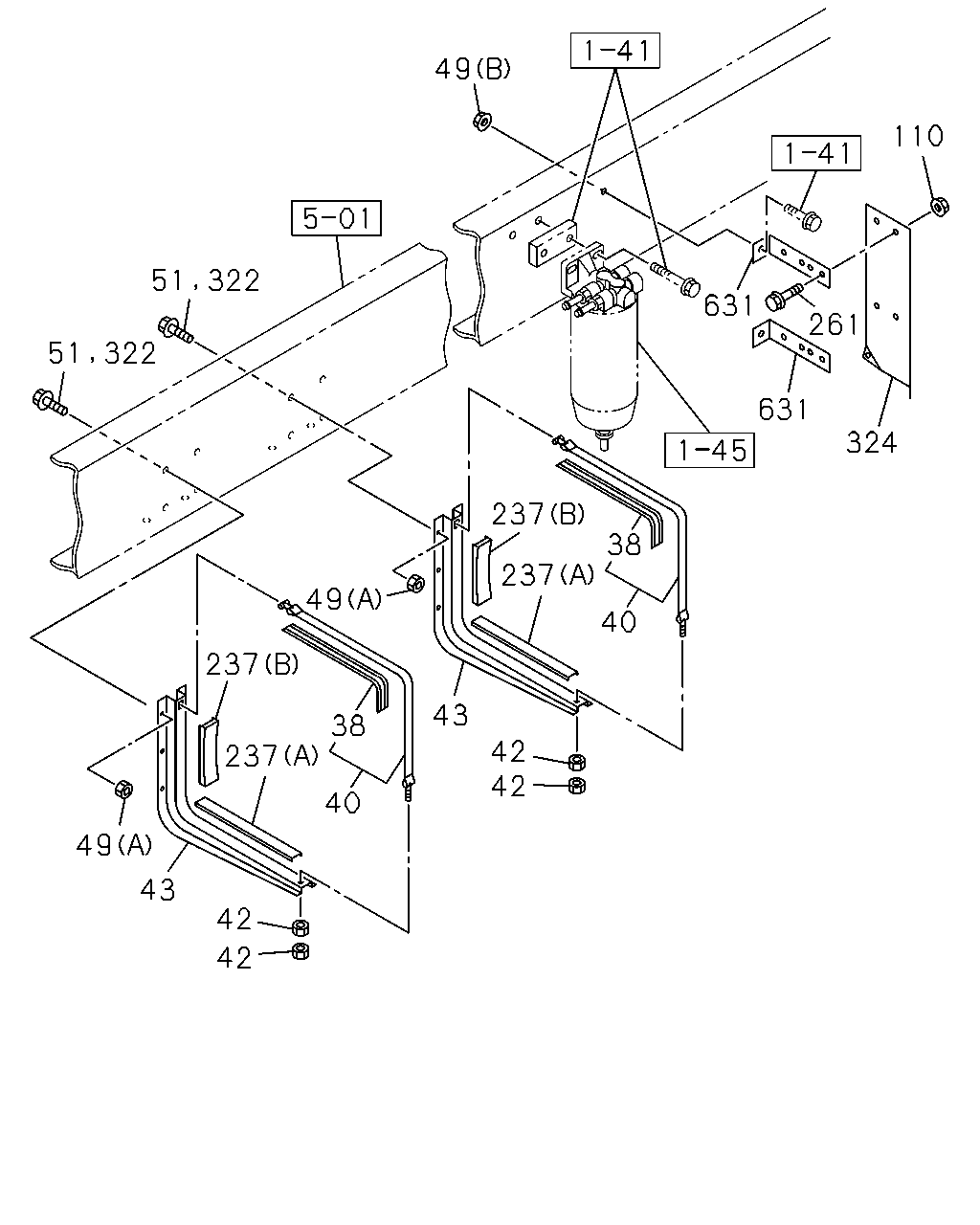

49 110 322 51 631 261 51 322 631 324 237 38 237 49 40 237 43 38 42 42 237 40 49 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=960	1-22553-044-0	04	1	0410-0509	●
38	INSULATION; SUPPORT BELT L=960	1-22553-044-0	02	1	0410-0509		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=960	1-22553-044-0	02	1	0410-0509	●
38	INSULATION; SUPPORT BELT L=960	1-22553-044-0	02	1	0510-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7>	1-22550-262-0	04	1	0410-0509	●
40	BELT; SUPPORT,FUEL TANK	1-22550-262-0	02	1	0410-0509		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22550-262-0	02	1	0410-0509	●
40	BELT; SUPPORT,FUEL TANK	1-22550-262-0	02	1	0510-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0410-0509	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0410-0509		●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	0410-0509	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0510-0512	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK	1-53461-485-0	02	1	0410-0504		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-485-0	02	1	0410-0504	●
43	BRACKET; FUEL TANK	1-53461-543-0	02	1	0505-0509		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-543-0	02	1	0505-0509	●
43	BRACKET; FUEL TANK	1-53461-543-0	02	1	0510-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-485-0	04	1	0410-0504	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-543-0	04	1	0505-0509	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0601-0601		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0601-	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0601-		●
49	NUT; BRKT (A) M12	9-99110-512-0	16	1	0410-0510		●
49	NUT; BRKT (A) M12	9-99110-512-0	08	1	0511-0512	●	●
49	NUT; BRKT (A) M12	9-99110-512-0	08	1	0511-0512		●
49	NUT; BRKT (A) M12	9-99110-512-0	08	1	0601-0601	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) M12	9-99110-512-0	24	1	0410-0509	●
49	NUT; BRKT (A) M12	9-99110-512-0	24	1	0510-0510	●
49	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0410-0602		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28081-240-0	24	1	0410-0509	●
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	04	1	0410-0602		●
110	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	04	1	0603-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=340	1-22553-043-1	04	1	0410-0509	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=540	1-22553-064-0	04	1	0410-0509	●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0410-0509		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=340	1-22553-043-2	02	1	0410-0509	●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0510-	●	●
237	GASKET; BRKT TO FUEL TANK (A) L=540	1-22553-064-1	02	1	0410-0509		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=540	1-22553-064-1	02	1	0410-0509	●
237	GASKET; BRKT TO FUEL TANK (A) L=540	1-22553-064-1	02	1	0510-	●	●
261	BOLT; PROTECTOR M8X20 FLANGE	0-28680-820-0	04	1	0410-0512		●
261	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28081-235-0	08	1	0410-0510		●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28081-235-0	08	1	0511-0512	●	●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0601-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	0410-0509	●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28081-235-0	12	1	0510-0510	●
324	PROTECTOR; FUEL SEDIMENTER	1-47471-198-0	01	1	0410-0412		●
324	PROTECTOR; FUEL SEDIMENTER	1-47471-216-0	01	1	0501-		●
631	BRACKET; PROTECTOR	1-82698-358-0	02	1	0410-		●
