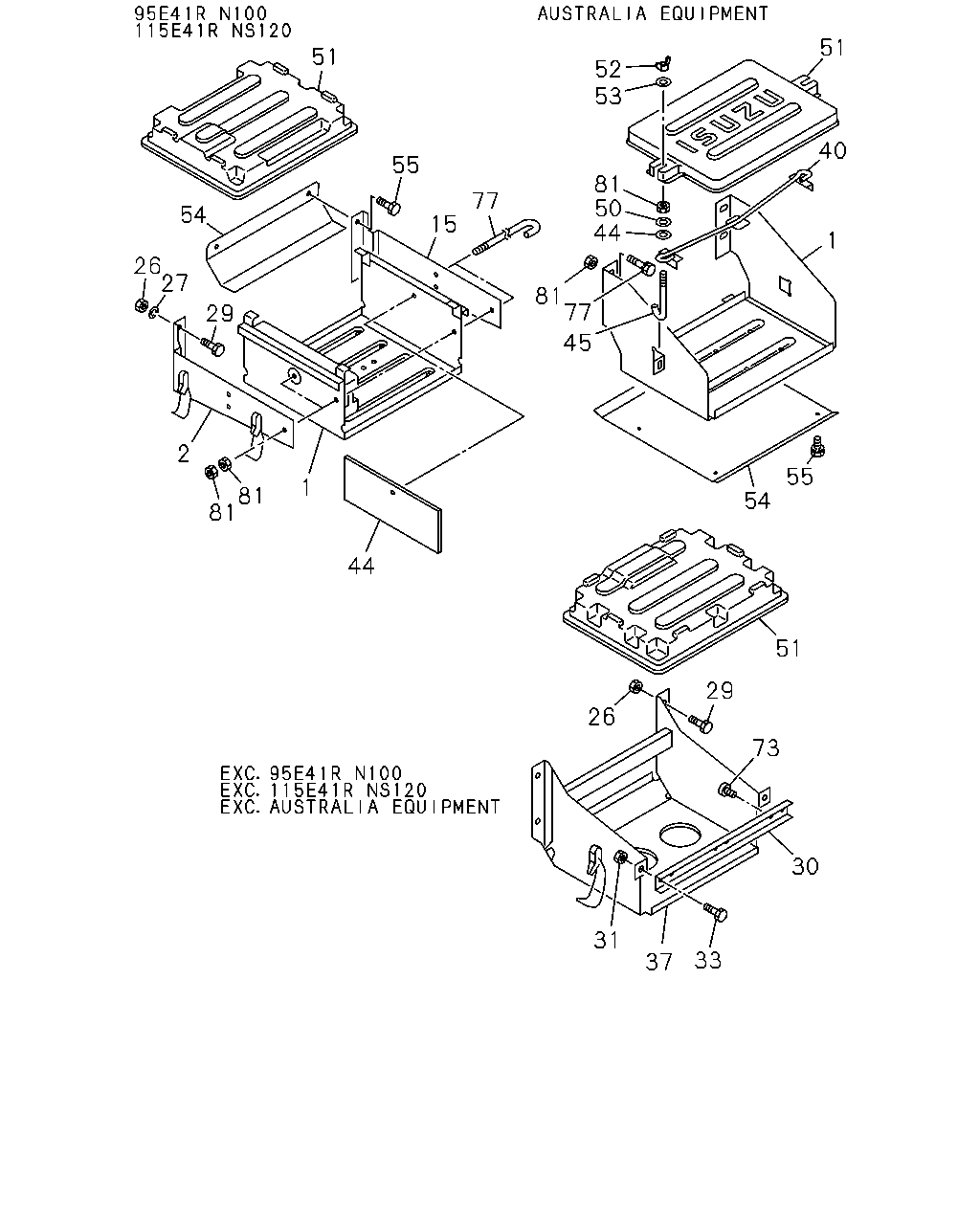

5-20 — BATTERY CARRIER (#66) — 44 parça

51 51 52 53 40 55 81 50 44 77 54 15 1 26 27 81 77 29 45 2 55 1 81 81 54 44 51 29 26 73 30 31 33 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CARRIER; BATTERY AUSTRALIA EQUIPMENT(RR3)	1-53610-101-3	01	1	9202-	●	●
1	CARRIER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-53613-584-3	01	1	9202-	●	●
2	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-339-1	01	1	9202-	●	●
15	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-340-1	01	1	9202-	●	●
26	NUT; BRKT EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	9-09110-510-0	04	1	9406-	●
26	NUT; BRKT EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	9-09110-510-0	04	1	9406-		●
26	NUT; BRKT EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	9-09110-510-0	04	1	9202-9405	●	●
26	NUT; BRKT THAILAND EQUIPMENT(PM9) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	9-09110-510-0	03	1	9406-	●
26	NUT; BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	9-99110-414-0	04	1	9202-	●	●
27	WASHER; LK,BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	9-09150-514-0	04	1	9202-	●	●
29	BOLT; BRKT TO FRAME EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9204	●	●
29	BOLT; BRKT TO FRAME EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER	0-50041-035-0	04	1	9205-9307	●	●
29	BOLT; BRKT TO FRAME EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE	0-28081-035-0	04	1	9308-9401	●	●
29	BOLT; BRKT TO FRAME EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 FLANGE	0-28081-030-0	04	1	9402-	●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35	0-20801-435-0	04	1	9202-9204	●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40	0-20801-440-0	04	1	9205-	●	●
30	PLATE; BATTERY EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-046-3	01	1	9202-	●	●
31	NUT; PLATE EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9202-	●	●
33	BOLT; PLATE TO BRKT EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
33	BOLT; PLATE TO BRKT EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
37	BRACKET; BATTERY EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-354-3	01	1	9202-	●	●
40	CLAMP; BATTERY AUSTRALIA EQUIPMENT(RR3)	5-53615-004-1	01	1	9202-	●	●
44	SPACER; BATTERY AUSTRALIA EQUIPMENT(RR3)	9-53319-024-0	02	1	9202-	●	●
44	SPACER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-006-0	02	1	9202-	●	●
45	ROD; TENSION,BATTERY AUSTRALIA EQUIPMENT(RR3)	1-53616-076-0	02	1	9202-	●	●
50	WASHER; PL,ROD,BATTERY AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22	9-09164-708-0	02	1	9202-	●	●
51	COVER; BATTERY AUSTRALIA EQUIPMENT(RR3)	9-53612-606-0	01	1	9202-9410	●	●
51	COVER; BATTERY AUSTRALIA EQUIPMENT(RR3)	8-97120-747-0	01	1	9411-	●	●
51	COVER; BATTERY EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-019-1	01	1	9202-	●	●
51	COVER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-029-0	01	1	9202-	●	●
52	NUT; WING,COVER FIX AUSTRALIA EQUIPMENT(RR3) M8 WING NUT	9-09118-408-0	02	1	9202-	●	●
53	WASHER; PL,COVER FIX AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09160-608-0	02	1	9202-	●	●
54	PROTECTOR; HEAT,BATTERY AUSTRALIA EQUIPMENT(RR3)	1-53619-019-0	01	1	9202-	●	●
54	PROTECTOR; HEAT,BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-075-1	01	1	9202-	●	●
55	BOLT; HEAT PROTECTOR AUSTRALIA EQUIPMENT(RR3) M6X14 W/LK WASHER	0-50040-614-0	04	1	9202-	●	●
55	BOLT; HEAT PROTECTOR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X16 FLANGE	0-28210-816-0	02	1	9202-9204	●	●
55	BOLT; HEAT PROTECTOR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X16	0-28280-816-0	04	1	9205-	●	●
73	RUBBER; CUSHION,PLATE EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-09337-002-0	04	1	9202-	●	●
77	BOLT; BATTERY BRKT,FRT TO RR AUSTRALIA EQUIPMENT(RR3) M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9202-9307	●	●
77	BOLT; BATTERY BRKT,FRT TO RR AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●
77	BOLT; BATTERY BRKT,FRT TO RR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-101-0	02	1	9202-	●	●
81	NUT; BATTERY AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9202-	●	●
81	NUT; BATTERY AUSTRALIA EQUIPMENT(RR3) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	04	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
