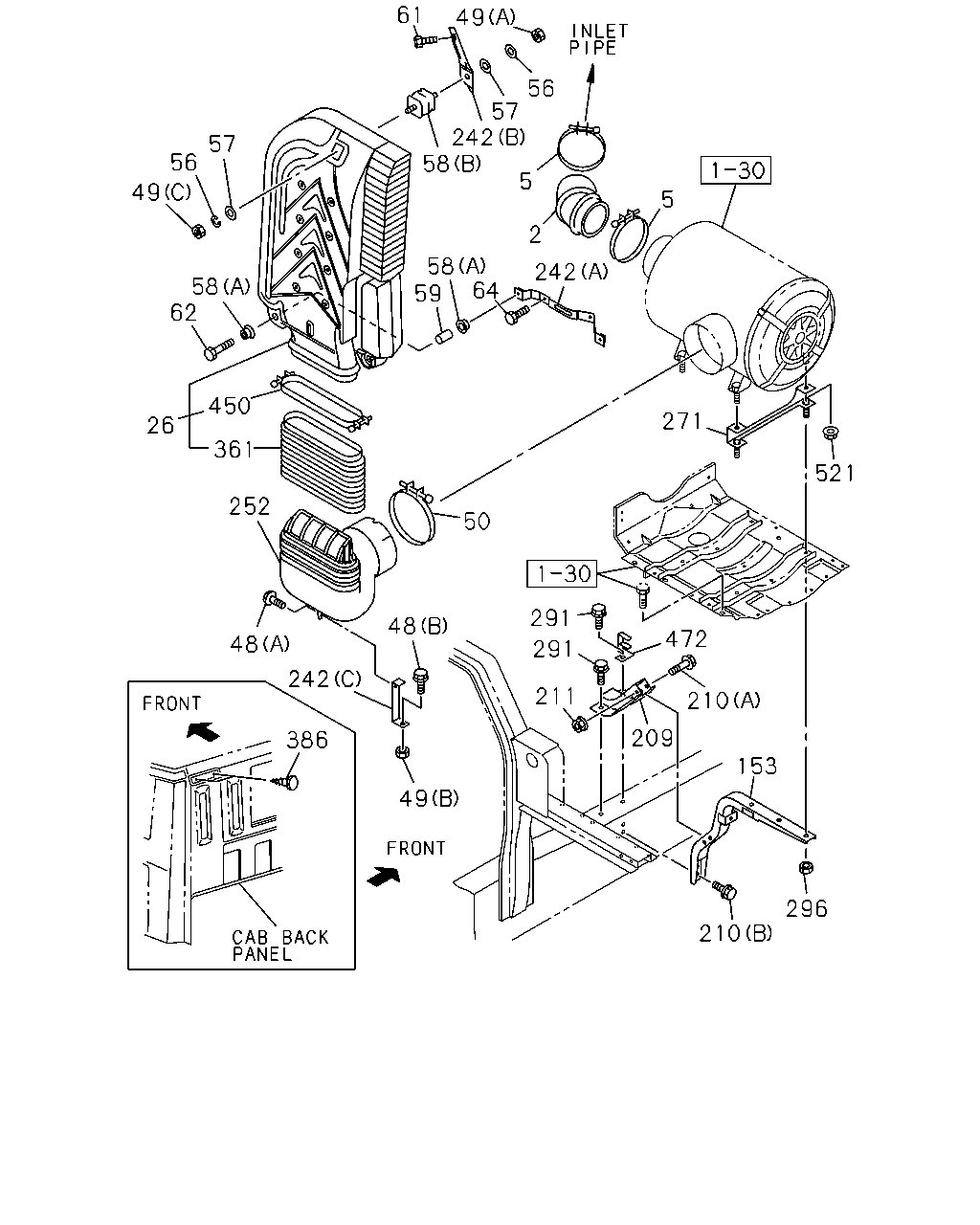

2 |
HOSE; ACL
|
1-14231-955-1 |
01 |
1 |
0410- |
| |
5 |
CLIP; AIR DUCT
ID=130-169
|
1-09707-157-0 |
02 |
1 |
0410- |
| |
26 |
DUCT; AIR INT
|
1-14230-202-2 |
01 |
1 |
0410-1003 |
| |
26 |
DUCT; AIR INT
|
8-98122-904-2 |
01 |
1 |
1004- |
| |
48 |
BOLT; AIR DUCT
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0410-0512 |
| |
48 |
BOLT; AIR DUCT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
48 |
BOLT; AIR DUCT
(B)
M10X25 FLANGE
|
0-28681-025-0 |
01 |
1 |
0410-0512 |
| |
48 |
BOLT; AIR DUCT
(B)
M10X25 FLANGE
|
0-28651-025-0 |
01 |
1 |
0601- |
| |
49 |
NUT; AIR DUCT
(B)
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
0410-0602 |
| |
49 |
NUT; AIR DUCT
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0603- |
| |
49 |
NUT; AIR DUCT
(C)
M8 FLANGE
|
1-09984-126-0 |
01 |
1 |
0410- |
| |
49 |
NUT; AIR DUCT
(A)
M8
|
9-09110-408-0 |
01 |
1 |
0410-0512 |
| |
49 |
NUT; AIR DUCT
(A)
M8
|
0-91110-508-0 |
01 |
1 |
0601-0808 |
| |
49 |
NUT; AIR DUCT
(A)
M8 FLANGE
|
1-09984-122-0 |
01 |
1 |
0809- |
| |
50 |
CLIP; JOINT HOSE
ID=183.5
|
1-09707-098-2 |
01 |
1 |
0410- |
| |
56 |
WASHER; LK,AIR INT DUCT
ID=8.2
|
1-09985-177-0 |
02 |
1 |
0410- |
| |
57 |
WASHER; PL,AIR INT DUCT
ID=8.4 OD=22
|
1-09985-188-0 |
02 |
1 |
0410- |
| |
58 |
SUPPORT; AIR INL DUCT
(A)
OD=40 T=18.5
|
1-14119-267-0 |
04 |
1 |
0410- |
| |
58 |
SUPPORT; AIR INL DUCT
EXC. GRIP OUT SIDE<W52>
(B)
|
8-97080-149-0 |
01 |
1 |
0410-0606 |
| |
58 |
SUPPORT; AIR INL DUCT
(B)
|
8-97080-149-0 |
01 |
1 |
0607- |
| |
59 |
TUBE; DIST,AIR INT DUCT
|
1-79998-228-0 |
02 |
1 |
0410- |
| |
61 |
BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER
|
8-94279-218-0 |
02 |
1 |
0410-0702 |
| |
61 |
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
|
8-98074-570-0 |
02 |
1 |
0703- |
| |
62 |
BOLT; AIR INT DUCT
M10X26
|
1-09030-044-1 |
02 |
1 |
0410- |
| |
64 |
BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER
|
8-94279-218-0 |
02 |
1 |
0410-0702 |
| |
64 |
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
|
8-98074-570-0 |
02 |
1 |
0703- |
| |
153 |
BRACKET; ACL,FRT
|
1-53419-265-1 |
01 |
1 |
0410- |
| |
209 |
BRACKET; ACL
|
1-53419-276-0 |
01 |
1 |
0410- |
| |
210 |
BOLT; ACL BRKT
(A)
M8X70 FLANGE
|
0-28080-870-0 |
02 |
1 |
0410-0512 |
| |
210 |
BOLT; ACL BRKT
(A)
M8X70 FLANGE
|
0-28050-870-0 |
02 |
1 |
0601- |
| |
210 |
BOLT; ACL BRKT
(B)
M12X30 FLANGE
|
0-28081-230-0 |
01 |
1 |
0410-0512 |
| |
210 |
BOLT; ACL BRKT
(B)
M12X30 FLANGE
|
0-28051-230-0 |
01 |
1 |
0601- |
| |
211 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0410-0602 |
| |
211 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
242 |
BRACKET; AIR DUCT
(A)
|
1-53419-379-1 |
01 |
1 |
0607- |
| |
242 |
BRACKET; AIR DUCT
(C)
|
1-23957-006-0 |
01 |
1 |
0410- |
| |
242 |
BRACKET; AIR DUCT
(B)
|
1-53419-325-1 |
01 |
1 |
0410- |
| |
242 |
BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52>
(A)
|
1-53419-379-0 |
01 |
1 |
0410-0606 |
| |
252 |
DUCT; AIR INT
|
1-14230-194-0 |
01 |
1 |
0410- |
| |
271 |
SPACER; BRKT,ACL
|
1-53419-343-1 |
02 |
1 |
0410- |
| |
291 |
BOLT; ACL
M12X30 FLANGE
|
0-28081-230-0 |
02 |
1 |
0410-0512 |
| |
291 |
BOLT; ACL
M12X30 FLANGE
|
0-28051-230-0 |
02 |
1 |
0601- |
| |
296 |
NUT; ACL
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0410-0602 |
| |
296 |
NUT; ACL
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
| |
361 |
RUBBER; CUSHION,AIR DUCT
|
1-14230-149-2 |
01 |
1 |
0410- |
| |
386 |
PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52>
OD=15 L=14.5
|
1-76378-157-0 |
01 |
1 |
0607-0610 |
| |
386 |
PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52>
OD=15 L=14.5
|
1-76378-157-0 |
04 |
1 |
0611- |
| |
386 |
PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5
|
1-76378-157-0 |
04 |
1 |
0410-0606 |
| |
386 |
PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52>
OD=15 L=14.5
|
1-76378-157-0 |
04 |
1 |
0607-0610 |
| |
386 |
PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52>
OD=15 L=14.5
|
1-76378-157-0 |
01 |
1 |
0611- |
| |
450 |
CLAMP; HOSE
|
1-14239-237-0 |
01 |
1 |
0410- |
| |
472 |
STOPPER; LINK ROD
|
1-33659-227-0 |
01 |
1 |
0410- |
| |
521 |
NUT; SPACER
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0410-0602 |
| |
521 |
NUT; SPACER
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
