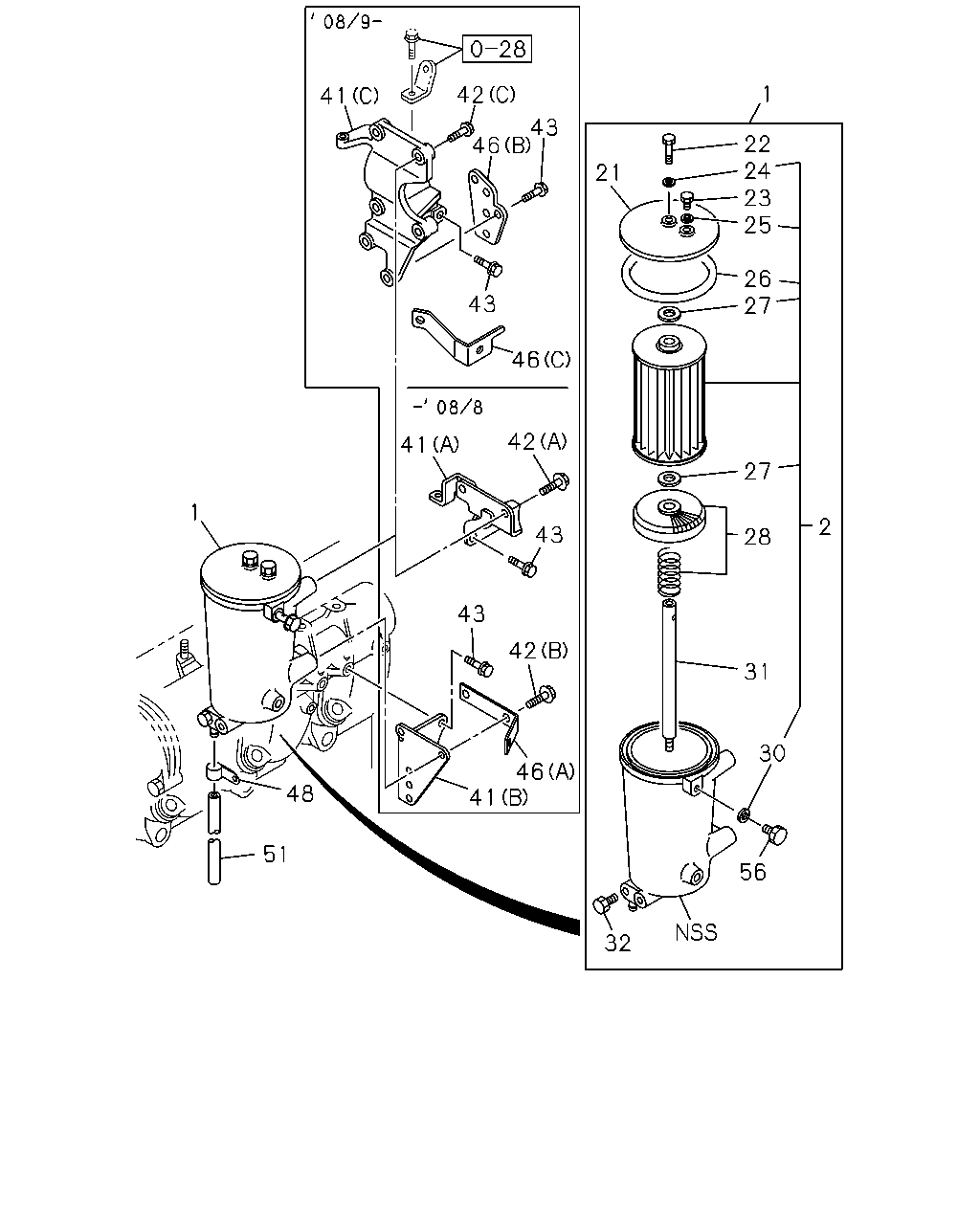

0-41 — FUEL FILTER AND BRACKET (#65979) — 36 parça

28 1 42 41 43 46 22 24 23 25 21 26 27 43 46 42 41 27 1 2 43 28 43 42 31 30 46 41 48 51 56 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL	1-13200-820-2	01	1	0410-1106
1	FILTER ASM; FUEL	8-98175-168-0	01	1	1107-
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0410-1106
2	ELEMENT KIT; FUEL FILTER	8-98174-903-0	02	1	1107-
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	0410-
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0410-
23	PLUG; COVER	1-13219-074-0	01	1	0410-
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0410-
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0410-
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0410-
27	GASKET; ELEMENT	1-09630-007-0	02	1	0410-
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0410-
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0410-
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0410-
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0410-
41	BRACKET; FUEL FILTER (A)	1-13219-350-2	01	1	0410-0808
41	BRACKET; FUEL FILTER (C)	8-97628-937-0	01	1	0809-
41	BRACKET; FUEL FILTER (B)	1-13219-351-2	01	1	0410-0808
42	BOLT; FUEL FILTER (A) M10X20 FLANGE	0-28081-020-0	02	1	0410-0512
42	BOLT; FUEL FILTER (A) M10X20 FLANGE	0-28051-020-0	02	1	0601-0808
42	BOLT; FUEL FILTER (C) M10X40 FLANGE	0-28051-040-0	03	1	0809-
42	BOLT; FUEL FILTER (B) M10X25 FLANGE	0-28081-025-0	02	1	0410-0512
42	BOLT; FUEL FILTER (B) M10X25 FLANGE	0-28051-025-0	02	1	0601-0808
42	BOLT; FUEL FILTER (C) M10X45 FLANGE	0-28051-045-0	01	1	0809-
43	BOLT; BRKT M10X60 FLANGE	0-28151-060-0	02	1	0809-
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	0410-0512
43	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	04	1	0601-0808
43	BOLT; BRKT M10X30 FLANGE	0-28151-030-0	04	1	0809-
46	BRACKET (C)	8-97631-102-0	01	1	0809-
46	BRACKET (A)	1-83129-470-0	01	1	0410-0808
46	BRACKET (B)	8-97629-738-1	01	1	0809-
48	CLIP; VINYL PIPE ID=21 L=47.5	8-94178-108-0	01	1	0410-
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0410-
56	PLUG; FUEL FILTER M14X9	9-99202-314-0	01	1	0410-0805
56	PLUG; FUEL FILTER M14X9	8-98042-944-0	01	1	0806-1106
56	PLUG; FUEL FILTER M14X9	9-99202-314-0	01	1	1107-
