Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11013 - CXZ LHD WEDGE BRAKE
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

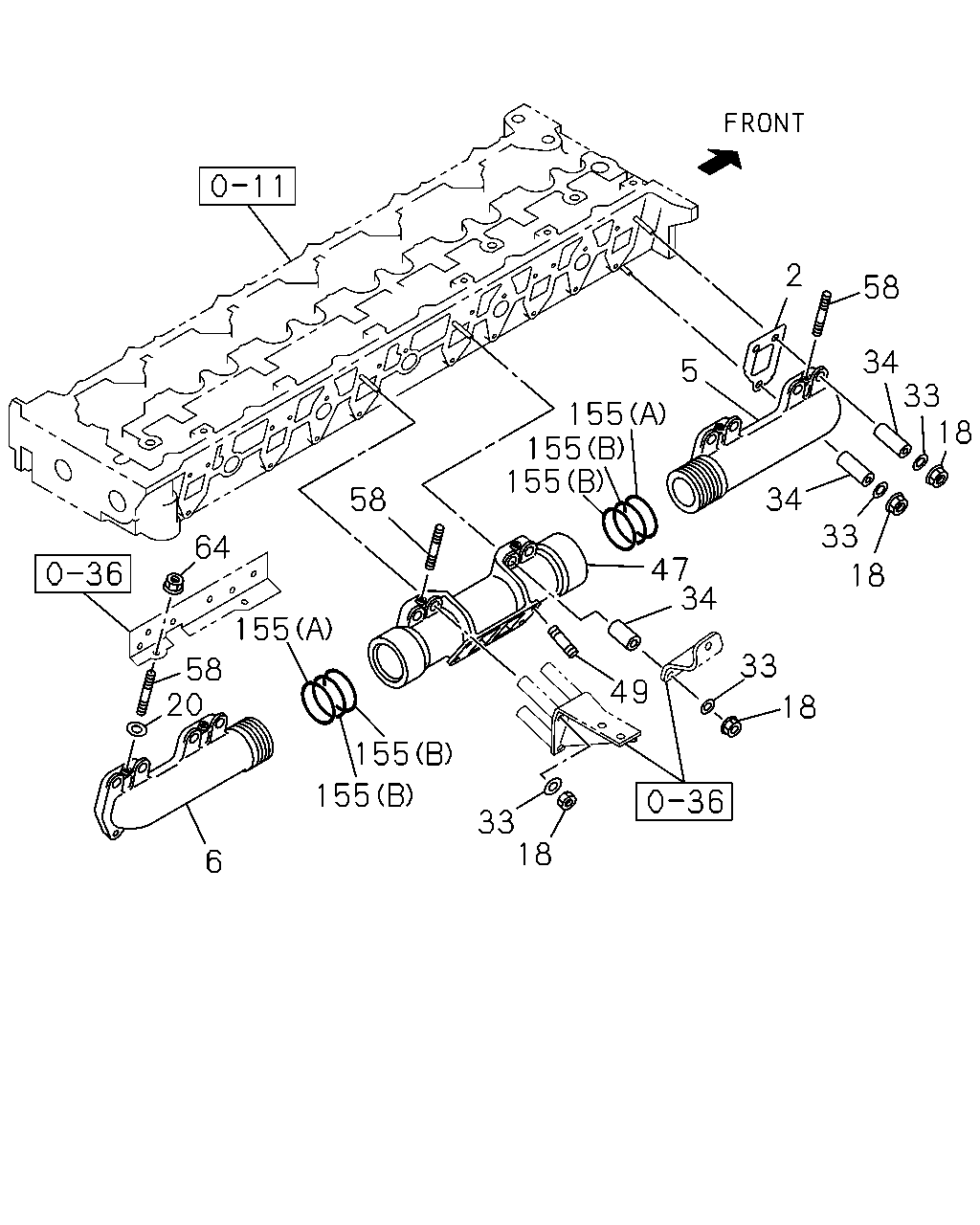

0-27 — EXHAUST MANIFOLD
(#65967) — 16 parça
2
58
34
33
18
5
155
155
155
34
58
33
18
64
155
47
34
33
58
20
49
18
155
155
33
18
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-3
06
1
0410-
5
MANIFOLD; EXH,FRT
1-14141-999-0
01
1
0410-
6
MANIFOLD; EXH,RR
1-14142-001-0
01
1
0410-
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
18
1
0410-0602
18
NUT; EXH MANIF
M10 FLANGE
0-91180-210-0
18
1
0603-
20
WASHER; PL,HEAT PROTECTOR
1-09503-067-1
01
1
0410-
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
18
1
0410-
34
COLLAR; DIST,EXH MANIF
L=47
1-14149-263-0
15
1
0410-
47
MANIFOLD; EXH,CENTER
1-14141-938-0
01
1
0410-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
04
1
0410-
58
STUD; HEAT PROTECTOR
M8X20 L=32
9-04110-820-0
06
1
0410-0604
58
STUD; HEAT PROTECTOR
M8X20 L=32
0-41010-820-0
06
1
0605-
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
04
1
0410-0602
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91180-108-0
04
1
0603-
155
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
0410-
155
RING; SEAL,EXH MANIF
(B)
9-14149-026-1
04
1
0410-
