0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#65964) — 153 parça

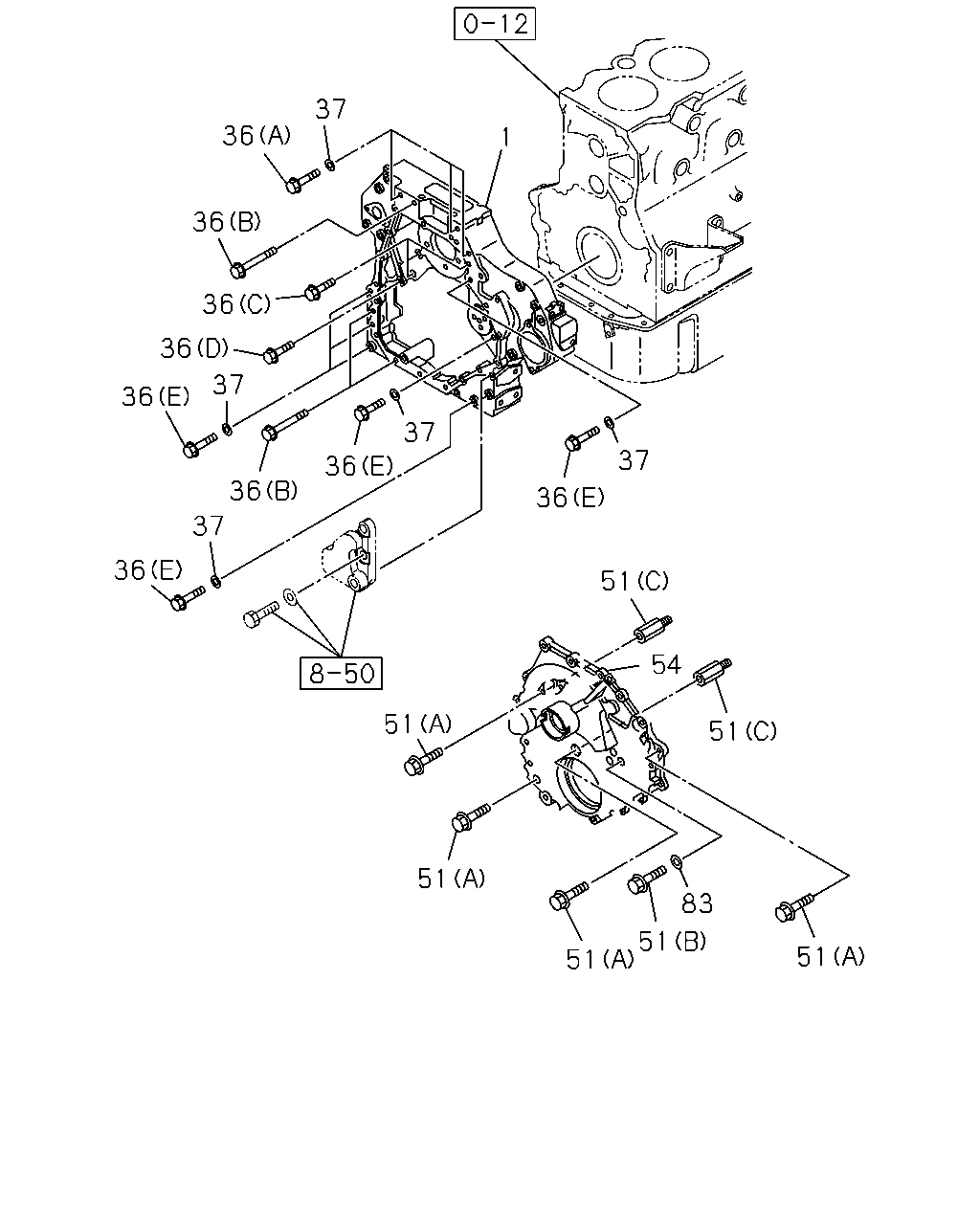

37 36 1 36 36 36 37 36 37 37 36 36 36 37 36 51 54 51 51 51 83 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TIMING GEAR	1-11310-053-5	01	1	0410-0512
1	CASE; TIMING GEAR	8-98030-095-0	01	1	0601-0608
1	CASE; TIMING GEAR	8-98032-286-4	01	1	0609-1001
1	CASE; TIMING GEAR	8-98152-249-0	01	1	1002-1309
1	CASE; TIMING GEAR	8-98249-370-0	01	1	1310-
36	BOLT; GEAR CASE HEATER & DEFROSTER(C41) (E) M14X110	1-09020-007-0	10	1	0410-
36	BOLT; GEAR CASE (A) M10X100 FLANGE	0-28181-000-0	03	1	0410-0512
36	BOLT; GEAR CASE (A) M10X100 FLANGE	0-28151-000-0	03	1	0601-
36	BOLT; GEAR CASE (B) M10X25 FLANGE	0-28181-025-0	04	1	0410-0512
36	BOLT; GEAR CASE (B) M10X25 FLANGE	0-28151-025-0	04	1	0601-
36	BOLT; GEAR CASE (C) M10X35 FLANGE	0-28181-035-0	01	1	0410-0512
36	BOLT; GEAR CASE (C) M10X35 FLANGE	0-28151-035-0	01	1	0601-
36	BOLT; GEAR CASE (D) M14X60	1-09020-146-0	01	1	0410-
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) (E) M14X110	1-09020-007-0	08	1	0410-
37	WASHER; PL,GEAR CASE HEATER & DEFROSTER(C41) ID=15 OD=26	9-09164-514-0	11	1	0410-1301
37	WASHER; PL,GEAR CASE HEATER & DEFROSTER(C41) ID=15 OD=26	0-91614-514-0	11	1	1302-
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	0410-1301
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	0-91614-514-0	09	1	1302-
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	0410-0512
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	02	1	0410-
51	BOLT; GEAR CASE COVER (B) M8X40	9-01065-840-0	03	1	0410-0512
51	BOLT; GEAR CASE COVER (B) M8X40	0-10955-840-0	03	1	0601-
54	COVER; GEAR CASE	1-11320-096-8	01	1	0410-1502
54	COVER; GEAR CASE	8-98269-504-0	01	1	1503-
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	0410-

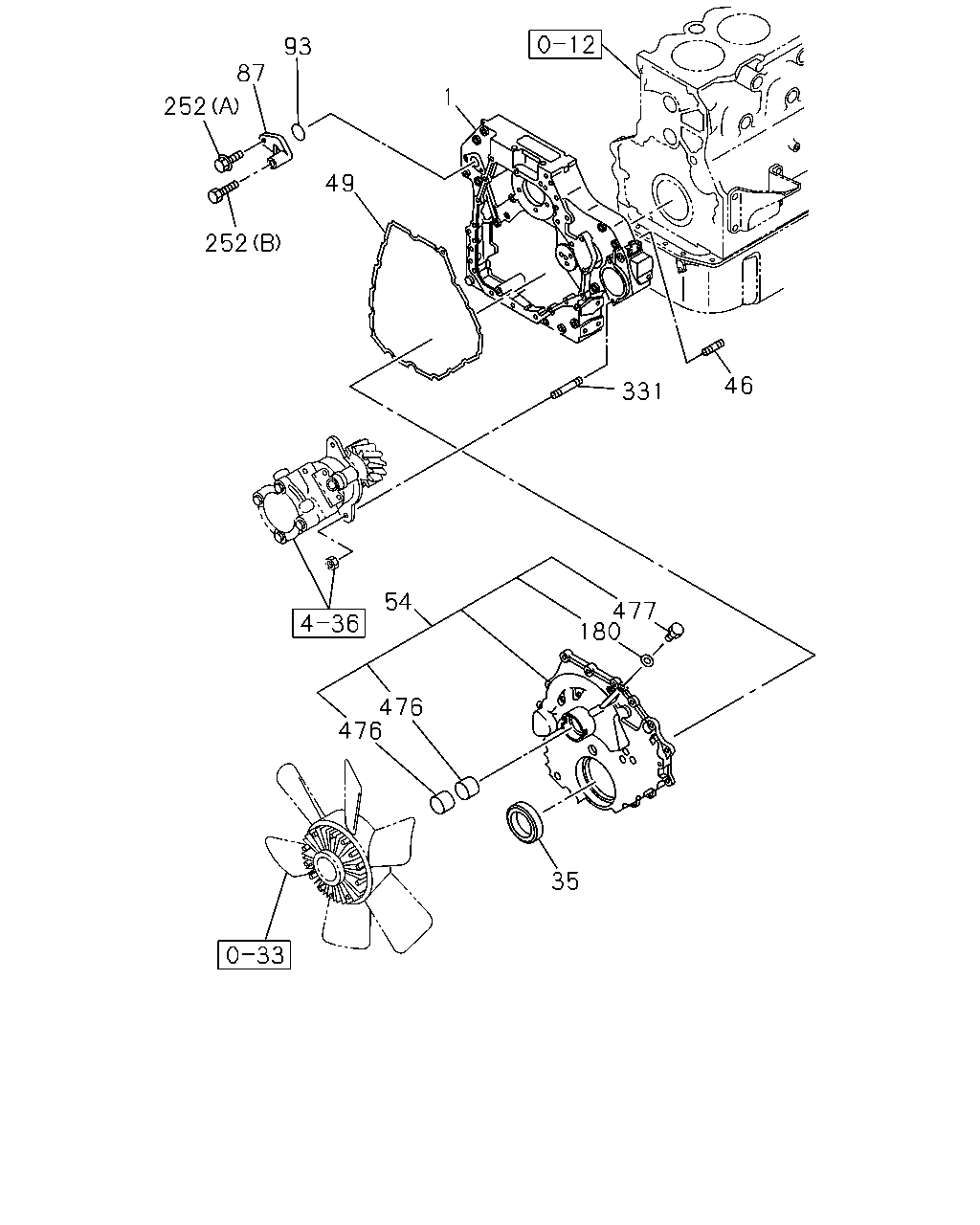

93 87 1 252 49 252 46 331 54 477 180 476 476 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TIMING GEAR	1-11310-053-5	01	1	0410-0512
1	CASE; TIMING GEAR	8-98030-095-0	01	1	0601-0608
1	CASE; TIMING GEAR	8-98032-286-4	01	1	0609-1001
1	CASE; TIMING GEAR	8-98152-249-0	01	1	1002-1309
1	CASE; TIMING GEAR	8-98249-370-0	01	1	1310-
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	0410-0611
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	0612-
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	0410-0604
46	STUD; BRG COVER,RR M14X45 L=66	0-44011-445-0	01	1	0605-
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	0410-0701
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98061-423-0	01	1	0702-
54	COVER; GEAR CASE	1-11320-096-8	01	1	0410-1502
54	COVER; GEAR CASE	8-98269-504-0	01	1	1503-
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	0410-
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	0410-
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0410-
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28080-820-0	01	1	0410-0512
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28080-860-0	01	1	0410-0512
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28050-860-0	01	1	0601-0907
252	BOLT; GEAR BOX (B) M8X65 FLANGE	1-09044-072-1	01	1	0908-
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	0410-0604
331	STUD; P/S PUMP M10X25 L=40	0-44011-025-0	02	1	0605-1009
331	STUD; P/S PUMP M10X28 L=39	8-98178-056-0	02	1	1010-
476	BUSHING; COVER	1-09330-096-0	02	1	0410-
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	0410-

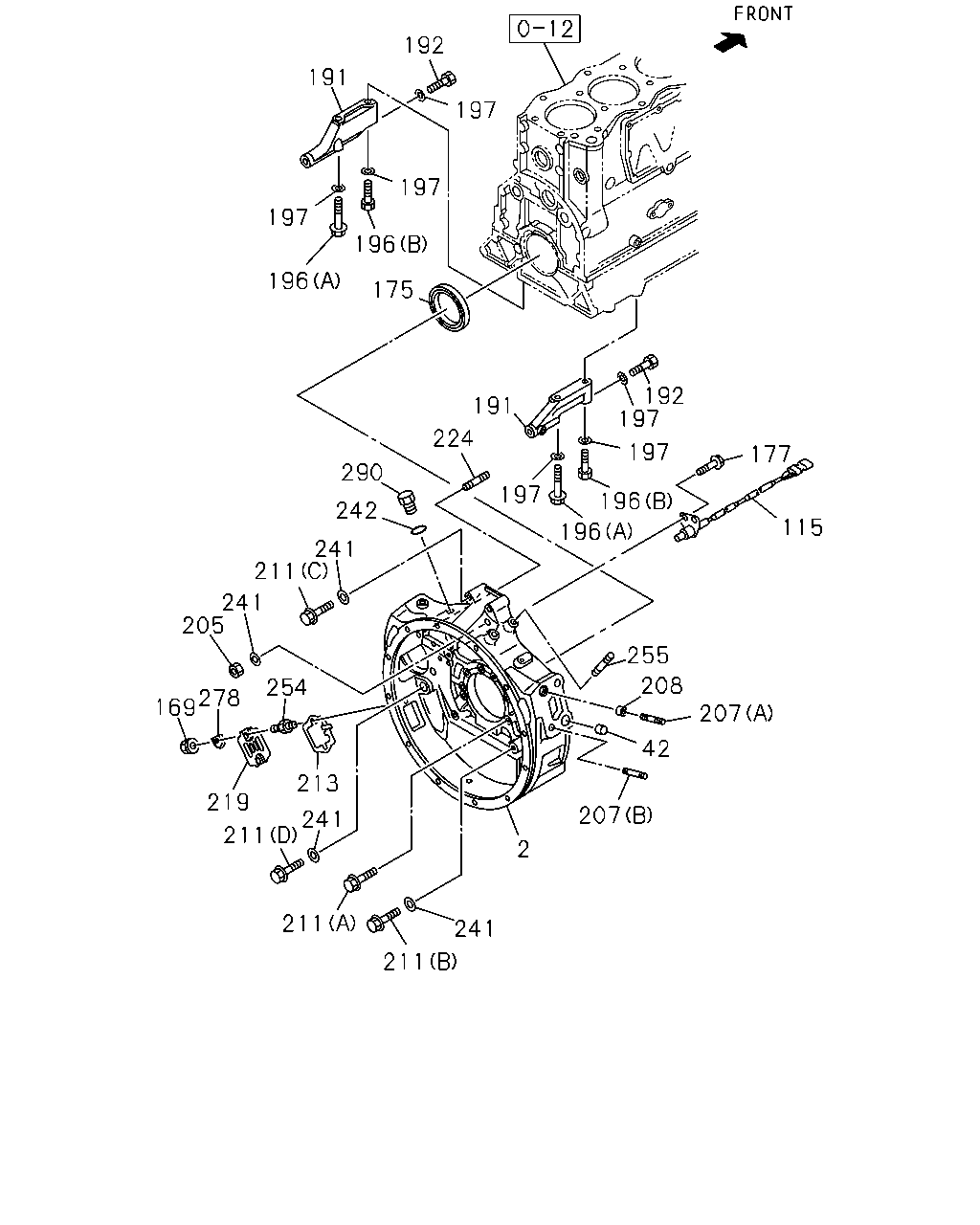

192 191 197 197 197 196 196 175 192 197 191 224 197 177 290 197 196 242 115 196 241 211 241 205 255 254 208 278 169 207 42 213 219 207 241 211 2 211 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	0410-1103
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-98181-926-0	01	1	1104-
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-271-9	01	1	0410-
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0410-
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-6	01	1	0410-
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0410-0602
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0410-0611
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0612-
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	0410-0512
177	BOLT; SENSOR M8X16 FLANGE	0-28050-816-0	02	1	0601-
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0410-
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0410-
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0410-
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	0410-0512
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	0601-
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0410-
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0410-
205	NUT; HSG EXC. ENGINE REAR PTO(SV1) M14	9-99110-514-0	01	1	0410-0512
205	NUT; HSG EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	01	1	0601-
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	0410-0604
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	0605-
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	0410-0604
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	0605-
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0410-
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28791-430-0	01	1	0410-0512
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	0601-
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28791-440-0	05	1	0410-0512
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	0601-
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28996-411-0	11	1	0410-0512
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	0601-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (A) M8X35 FLANGE	0-28080-835-0	08	1	0410-0512
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (A) M8X35 FLANGE	0-28050-835-0	08	1	0601-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X50	9-91666-450-0	02	1	0410-0512
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X50	0-16956-450-0	02	1	0601-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (C) M14X70	9-91666-470-0	02	1	0410-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	0410-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0410-
219	COVER; POINTER	1-11349-131-0	01	1	0410-
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0410-0604
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0605-
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=15 OD=26	9-09164-514-0	15	1	0410-
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	01	1	0410-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0410-
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	0410-0604
255	STUD; RELAY LEVER BRKT M12X30 L=48	0-44011-230-0	03	1	0605-0609
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	0610-
278	WASHER; COVER FIX	1-11349-127-0	01	1	0410-
290	PLUG; SENSOR HOLE EXC. ENGINE REAR PTO(SV1) M20X10.5	9-09662-005-0	01	1	0410-0805
290	PLUG; SENSOR HOLE EXC. ENGINE REAR PTO(SV1) M20X10.5	8-98009-333-0	01	1	0806-

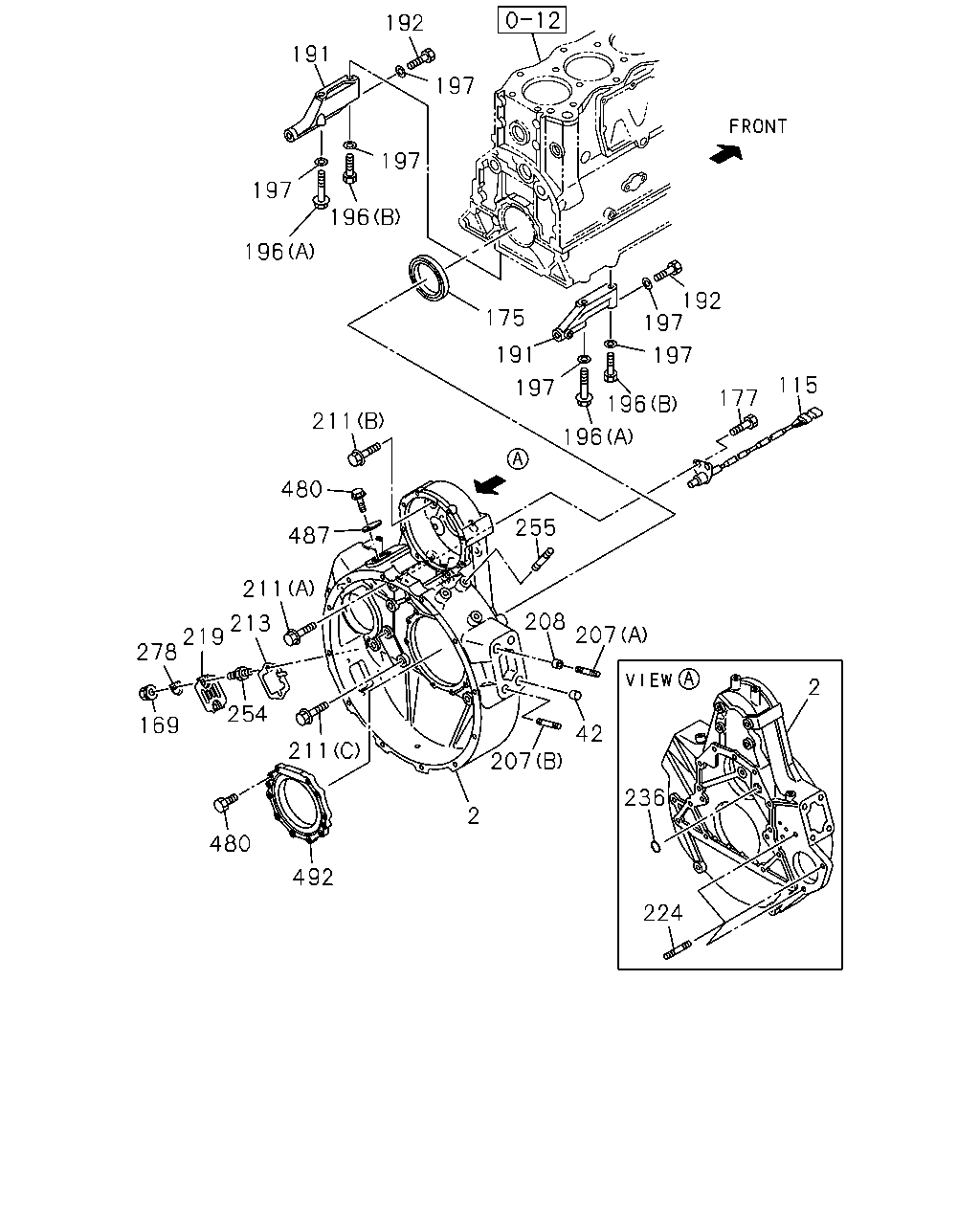

192 191 197 197 197 196 196 192 197 175 191 197 115 197 177 196 211 196 480 255 487 211 208 213 219 278 207 2 254 169 42 211 207 236 2 480 492 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	0410-1103
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-98181-926-0	01	1	1104-
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-271-9	01	1	0410-
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0410-
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-6	01	1	0410-
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0410-0602
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0410-0611
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0612-
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	0410-0512
177	BOLT; SENSOR M8X16 FLANGE	0-28050-816-0	02	1	0601-
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0410-
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0410-
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0410-
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	0410-0512
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	0601-
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0410-
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0410-
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	0410-0604
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	0605-
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	0410-0604
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	0605-
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0410-
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28791-430-0	01	1	0410-0512
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	0601-
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28791-440-0	05	1	0410-0512
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	0601-
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28996-411-0	11	1	0410-0512
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	0601-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (A) M8X35 FLANGE	0-28080-835-0	08	1	0410-0512
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (A) M8X35 FLANGE	0-28050-835-0	08	1	0601-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X50	9-91666-450-0	02	1	0410-0512
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X50	0-16956-450-0	02	1	0601-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (C) M14X70	9-91666-470-0	02	1	0410-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	0410-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0410-
219	COVER; POINTER	1-11349-131-0	01	1	0410-
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0410-0604
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0605-
236	GASKET; FLYWHEEL HSG ENGINE REAR PTO(SV1) ID=29.7	1-09623-273-0	01	1	0410-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0410-
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	0410-0604
255	STUD; RELAY LEVER BRKT M12X30 L=48	0-44011-230-0	03	1	0605-0609
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	0610-
278	WASHER; COVER FIX	1-11349-127-0	01	1	0410-
480	BOLT; COVER ENGINE REAR PTO(SV1) M6X12 FLANGE	0-28080-612-0	01	1	0410-0512
480	BOLT; COVER ENGINE REAR PTO(SV1) M6X12 FLANGE	0-28050-612-0	01	1	0601-
480	BOLT; COVER ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28680-830-0	10	1	0410-0512
480	BOLT; COVER ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	10	1	0601-
487	COVER; HOLE ENGINE REAR PTO(SV1)	8-97600-831-0	01	1	0410-
492	COVER; OIL SEAL ENGINE REAR PTO(SV1)	1-12363-043-0	01	1	0410-
