8-80 — WINDSHIELD WIPER AND WASHER (#65954) — 58 parça

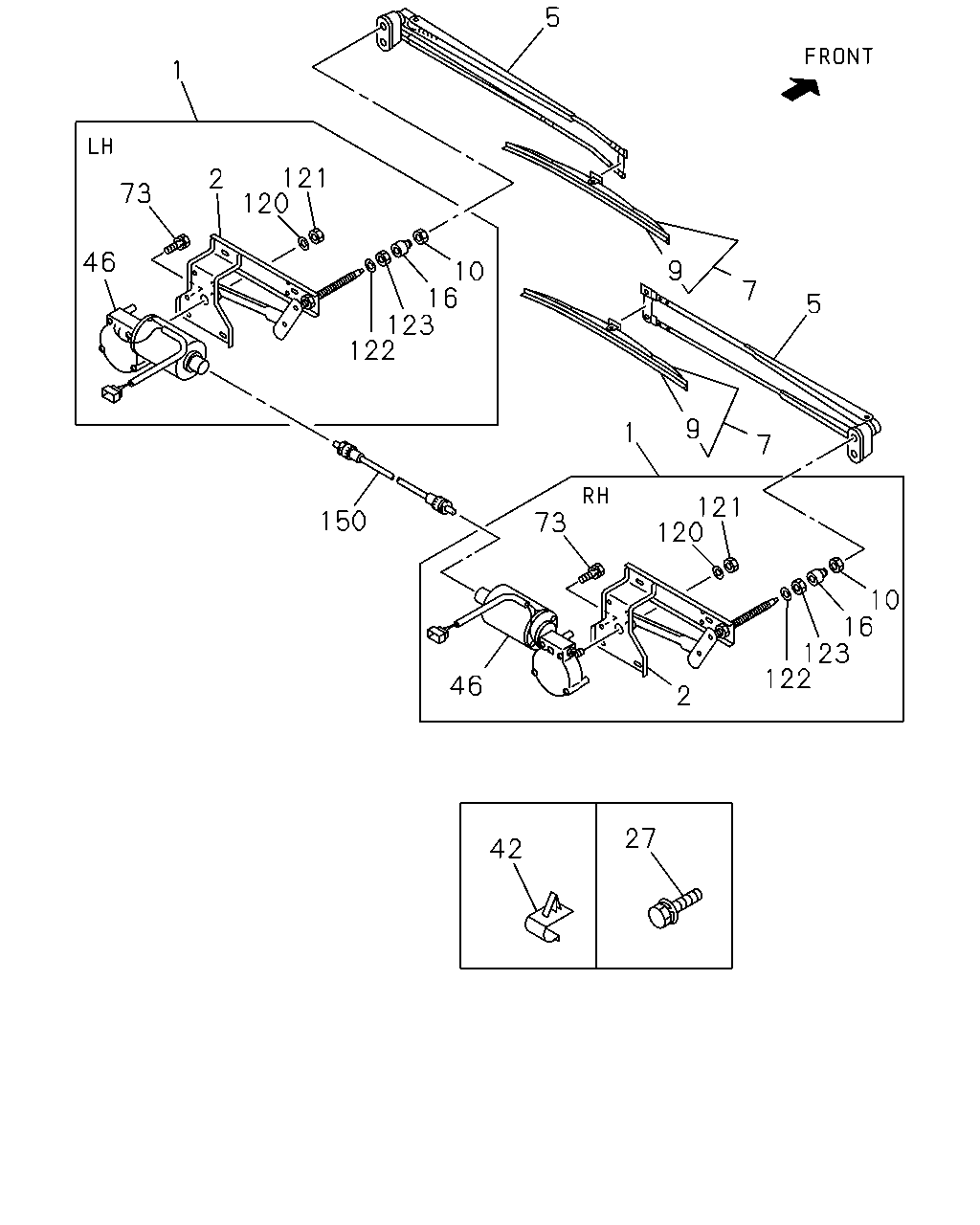

çizim 158189
5 1 73 2 46 120 121 10 16 123 122 150 1 9 7 9 5 7 121 120 73 46 2 122 10 16 123 27 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-83310-071-0 01 1 0505-1411 ●
1 LINK ASM; FRT WIPER 1-83310-071-0 01 1 1412- ● ●
1 LINK ASM; FRT WIPER 1-83310-114-0 01 1 0505-1411 ●
1 LINK ASM; FRT WIPER 1-83310-114-0 01 1 1412- ● ●
2 LINK; FRT WIPER 1-83312-082-0 01 1 0505-1411 ●
2 LINK; FRT WIPER 1-83312-082-0 01 1 1412- ● ●
2 LINK; FRT WIPER 1-83314-117-0 01 1 0505-1411 ●
2 LINK; FRT WIPER 1-83314-117-0 01 1 1412- ● ●
5 ARM; WIPER 1-83314-120-0 01 1 0505-1411 ●
5 ARM; WIPER 1-83314-120-0 01 1 1412- ● ●
5 ARM; WIPER 1-83314-121-0 01 1 0505-1411 ●
5 ARM; WIPER 1-83314-121-0 01 1 1412- ● ●
7 BLADE; WIPER 1-83315-039-0 02 1 0505-1411 ●
7 BLADE; WIPER 1-83315-039-0 02 1 1412- ● ●
9 RUBBER; FRT WIPER BLADE
L=563 		1-83355-009-0 02 1 0505-1411 ●
9 RUBBER; FRT WIPER BLADE
L=563 		1-83355-009-0 02 1 1412- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT 1-83318-049-0 02 1 0505-1411 ●
10 NUT; WIPER ARM TO WIPER PIVOT 1-83318-049-0 02 1 1412- ● ●
16 SEAL; BALL JOINT 1-83318-048-0 02 1 0505-1411 ●
16 SEAL; BALL JOINT 1-83318-048-0 02 1 1412- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0504- ●
42 CLIP; WASHER HOSE 1-09987-247-0 05 1 0504- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-059-0 01 1 0505-1411 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-059-0 01 1 1412- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-065-0 01 1 0505-1411 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-065-0 01 1 1412- ● ●
73 BOLT 1-83318-079-0 06 1 0505-1411 ●
73 BOLT 1-83318-079-0 06 1 1412- ● ●
120 WASHER; ARM TO BRKT 1-83318-045-0 01 1 0505-1411 ●
120 WASHER; ARM TO BRKT 1-83318-045-0 01 1 1412- ● ●
120 WASHER; ARM TO BRKT 1-83318-077-0 01 1 0505-1411 ●
120 WASHER; ARM TO BRKT 1-83318-077-0 01 1 1412- ● ●
121 NUT; ARM TO BRKT 1-83318-044-0 01 1 0505-1411 ●
121 NUT; ARM TO BRKT 1-83318-044-0 01 1 1412- ● ●
121 NUT; ARM TO BRKT 1-83318-078-0 01 1 0505-1411 ●
121 NUT; ARM TO BRKT 1-83318-078-0 01 1 1412- ● ●
122 WASHER; PIVOT FIX,FRT WIPER 1-83318-046-0 02 1 0505-1411 ●
122 WASHER; PIVOT FIX,FRT WIPER 1-83318-046-0 02 1 1412- ● ●
123 NUT; PIVOT FIX,FRT WIPER 1-83318-050-0 02 1 0505-1411 ●
123 NUT; PIVOT FIX,FRT WIPER 1-83318-050-0 02 1 1412- ● ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER 1-83124-080-0 01 1 0505-1508 ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER 1-83124-080-0 01 1 1509- ● ●
çizim 158388
24 127 26 25 30 36 36 40 36 39 36 36 39
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER 1-83330-033-0 01 1 0505-1508 ●
24 TANK ASM; WASHER 1-83330-033-0 01 1 1509- ● ●
25 BRACKET; WASHER TANK 9-83561-926-0 01 1 0505-1508 ●
25 BRACKET; WASHER TANK 9-83561-926-0 01 1 1509- ● ●
26 HANGER; WASHER TANK 9-83561-925-0 01 1 0505-1508 ●
26 HANGER; WASHER TANK 9-83561-925-0 01 1 1509- ● ●
30 MOTOR ASM; FRT WASHER TANK 9-83561-208-0 01 1 0505-1508 ●
30 MOTOR ASM; FRT WASHER TANK 9-83561-208-0 01 1 1509- ● ●
36 HOSE; WASHER
SERVICED BY L=10000 		9-09914-906-0 01 1 0505-1508 ●
36 HOSE; WASHER
SERVICED BY L=10000 		9-09914-906-0 01 1 1509- ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83334-012-0 02 1 0505-1508 ●
39 NOZZLE; WINDSHIELD WASHER 1-83334-012-0 02 1 1509- ● ●
40 JOINT; WASHER HOSE 9-83565-006-0 01 1 0505-1508 ●
40 JOINT; WASHER HOSE 9-83565-006-0 01 1 1509- ● ●
127 BAND; WASHER TANK 9-83561-928-0 01 1 0505-1508 ●
127 BAND; WASHER TANK 9-83561-928-0 01 1 1509- ● ●
