◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#65949) — 46 parça

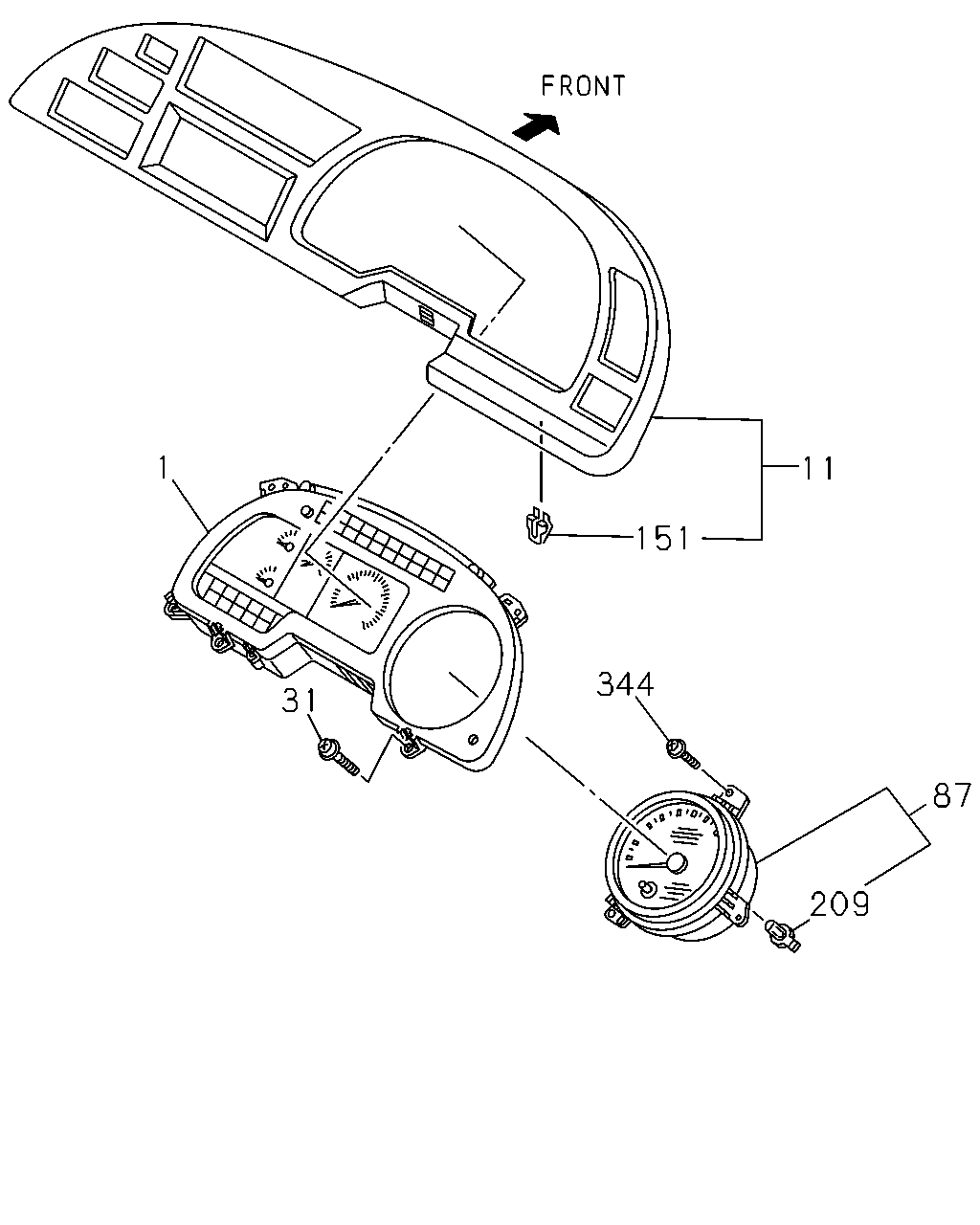

çizim 137846
11 151 344 1 87 209 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 1-83114-963-0 01 1 0504-1411 ●
1 METER COMPL; CLUSTER 1-83114-963-0 01 1 1412- ● ●
11 CLUSTER ASM; METER 1-72418-012-9 01 1 1412- ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 1412- ●
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 0505-0604 ●
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605- ●
87 SPEEDOMETER 1-83120-490-1 01 1 0504-1411 ●
87 SPEEDOMETER 1-83120-490-1 01 1 1412- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1412- ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0504-1411 ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 02 1 1412- ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0504-0604 ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605-1411 ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 1412- ● ●
çizim 467290
1 157 105 199 191 199 86 2 82 121 121 269 118 269 129 118 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 1-83114-963-0 01 1 0504-1411 ●
1 METER COMPL; CLUSTER 1-83114-963-0 01 1 1412- ● ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 0504-1411 ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 1412- ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 0504-1411 ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 1412- ● ●
86 TACHOMETER; CLUSTER METER 1-83120-566-0 01 1 0504-1411 ●
86 TACHOMETER; CLUSTER METER 1-83120-566-0 01 1 1412- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 0504-1411 ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 1412- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-303-0 01 1 0504-1411 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-303-0 01 1 1412- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0504-1411 ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 1412- ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 0504-1411 ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 1412- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 0504-1411 ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 1412- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0504-1411 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 1412- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 0504-1411 ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 1412- ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 0504-1411 ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 1412- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0504-1411 ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 1412- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 0504-1411 ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 1412- ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 0504-1411 ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 1412- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 0504-1411 ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 1412- ● ●
