◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#65947) — 225 parça
çizim 136622
38 313 133 239 239 38 88 173 38 38 38 139 38 239 516 239 38 173 38 239
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 05 1 1412- ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0504-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-1411 ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1412- ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 04 1 0504-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0504-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-1411 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1412- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512 ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1411 ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1412- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28680-830-0 02 1 0504-0512 ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0601-1411 ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 1412- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0504-0512 ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0601-1411 ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 1412- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0504-1201 ●
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-1411 ●
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1412- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0504-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-1411 ●
38 BOLT; CLIP,HARNESS
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1412- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1412- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0504-1411 ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1412- ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0504-0512 ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-1411 ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1412- ● ●
173 BOLT; STARTER EARTH
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1412- ●
173 BOLT; STARTER EARTH
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0504-1201 ●
173 BOLT; STARTER EARTH
(B) M10X20 W/PL WASHER 		8-98164-838-0 01 1 1202- ●
239 BOLT; GRAND
(A) M5X8 		0-20850-508-0 01 1 1412- ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0504- ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0504-1007 ●
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-1411 ●
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1412- ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0504-1201 ●
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-1411 ●
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1412- ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0504-0512 ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-1411 ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1412- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0504-1411 ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ● ●
çizim 136672
524 294 219 210 184 520 209
BalonParca AdiParca NoAdetTipApplied Date A B
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0504-1411 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1412- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0504-0603 ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-1411 ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 1412- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0504-1411 ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 1412- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0504-0602 ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603-1411 ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 1412- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1412- ●
294 NUT
M8 FLANGE 		0-91150-108-0 03 1 0504-0602 ●
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0504-1411 ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 1412- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0504-0602 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-1411 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 1412- ● ●

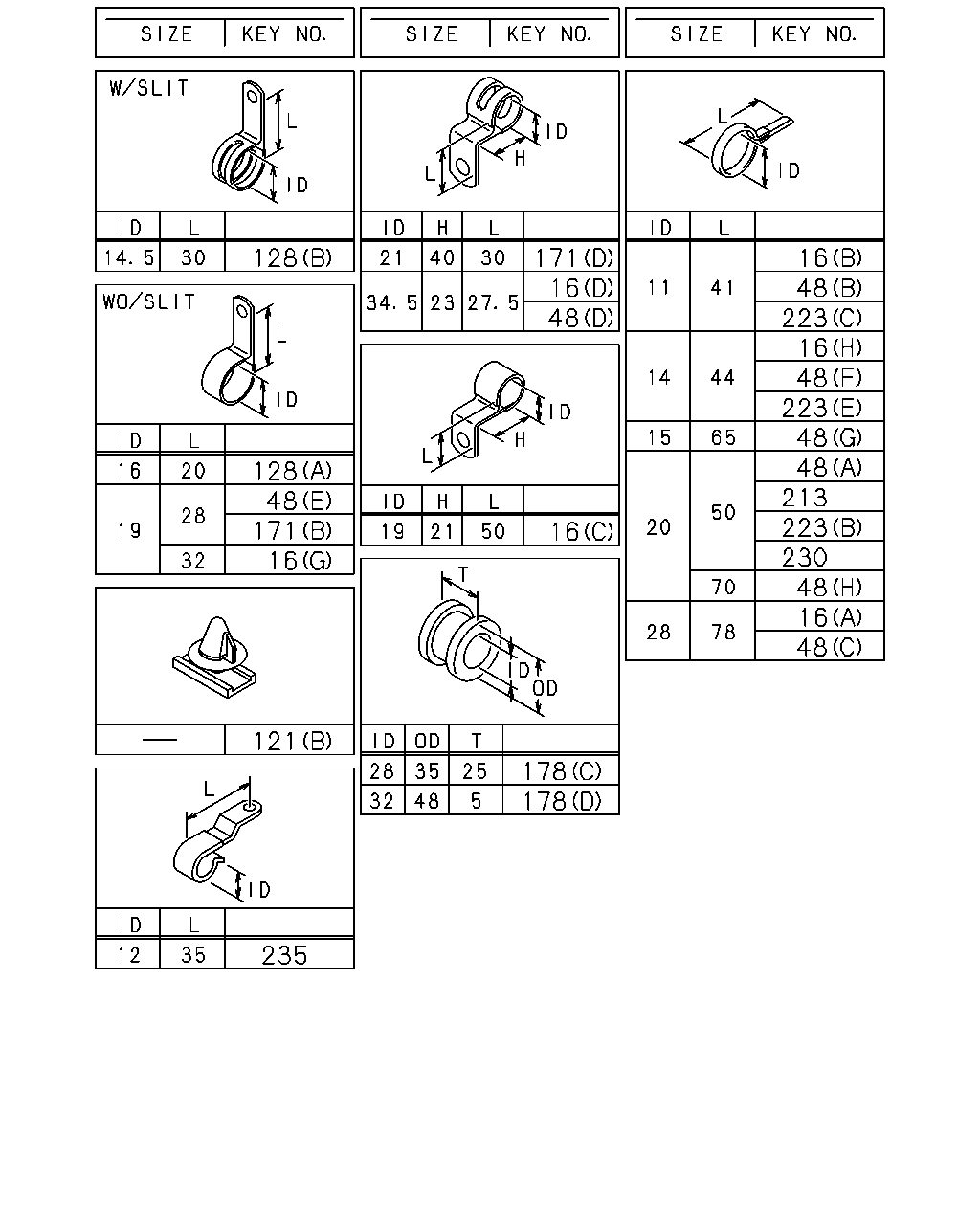

çizim 136962
128 128 48 171 16 121 235 171 16 48 16 178 178 16 48 223 16 48 223 48 48 213 223 230 16 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0504-1411 ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 1412- ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0504-1411 ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 1412- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0504-1411 ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1412- ● ●
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 0504-1411 ●
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 1412- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 0504-1411 ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 1412- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0504-1411 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 1412- ● ●
16 CLIP; HARNESS
(G) ID=19 L=32 		9-09525-866-0 01 1 0504-0606 ●
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 0607-1411 ●
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 1412- ● ●
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 0504-1411 ●
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1412- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 04 1 1412- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1412- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 21 1 1412- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0504- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0504- ●
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 0504-1411 ●
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1412- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0504- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 03 1 0504- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0504-1411 ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 1412- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0504-0606 ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-1411 ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 1412- ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0504-1411 ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 1412- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 15 1 0504- ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0504-1411 ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1412- ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0504-1411 ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 1412- ● ●
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0504-1411 ●
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 1412- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0504-0606 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-1411 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1412- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0504-1411 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1412- ● ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0504-1411 ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 1412- ● ●
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0504-1411 ●
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 1412- ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0504-1411 ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 1412- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0504-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-1411 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 1412- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1412- ●
178 GROMMET; HARNESS
(D) ID=32 OD=48 T=5 		9-09575-232-0 01 1 1412- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0504-1411 ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 1412- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0504- ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0504-1411 ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 1412- ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0504-1411 ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 1412- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0504-1411 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 1412- ● ●

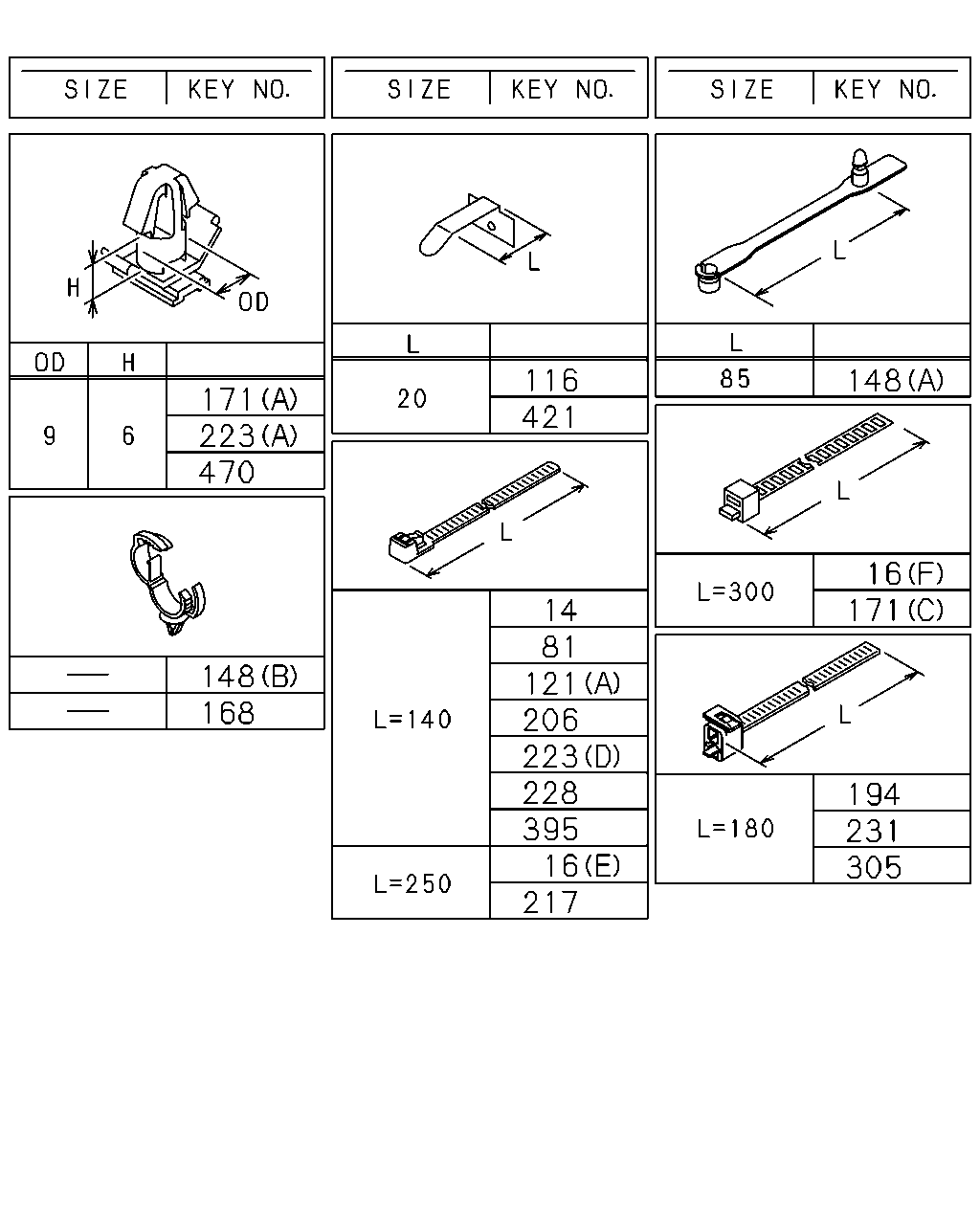

çizim 137143
171 223 470 148 168 116 421 14 81 121 206 223 228 395 16 217 148 16 171 194 231 305
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 0504-1205 ●
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1206-1411 ●
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1412- ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0504-1411 ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 1412- ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0504-1411 ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 1412- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0504-1411 ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1412- ● ●
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 0504-1411 ●
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 1412- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 0504-1411 ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 1412- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0504-1411 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 1412- ● ●
16 CLIP; HARNESS
(G) ID=19 L=32 		9-09525-866-0 01 1 0504-0606 ●
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 0607-1411 ●
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 1412- ● ●
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 0504-1411 ●
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1412- ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0504-1411 ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1412- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1412- ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0504-1411 ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 1412- ● ●
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0504-1411 ●
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 1412- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0504-1411 ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 1412- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0504-1411 ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 1412- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0504-1411 ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 1412- ● ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0504-1411 ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 1412- ● ●
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0504-1411 ●
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 1412- ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0504-1411 ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 1412- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0504-0606 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-1411 ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 1412- ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0504-1411 ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 1412- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0504-1411 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1412- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0504-1411 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 1412- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0504-1411 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 1412- ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0504-1411 ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 1412- ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0504-1411 ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 1412- ● ●
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0504-1411 ●
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 1412- ● ●
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0504-1411 ●
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 1412- ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0504-1411 ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 1412- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0504-1411 ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1412- ● ●
çizim 137300
530 514 178 178
BalonParca AdiParca NoAdetTipApplied Date A B
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1412- ●
178 GROMMET; HARNESS
(D) ID=32 OD=48 T=5 		9-09575-232-0 01 1 1412- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0504-1411 ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 1412- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0504- ●
514 FINISHER; HARNESS 8-94270-377-1 01 1 1412- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0504-1411 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1412- ● ●
çizim 191790
59 154 312 503 335
BalonParca AdiParca NoAdetTipApplied Date A B
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 1412- ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0504-1411 ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 1412- ● ●
312 BRACKET; CLIP HARNESS 1-47478-981-0 01 1 1412- ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0504-1411 ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1412- ● ●
503 CONNECTOR 1-82690-668-0 02 1 0504-1411 ●
503 CONNECTOR 1-82690-668-0 02 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
